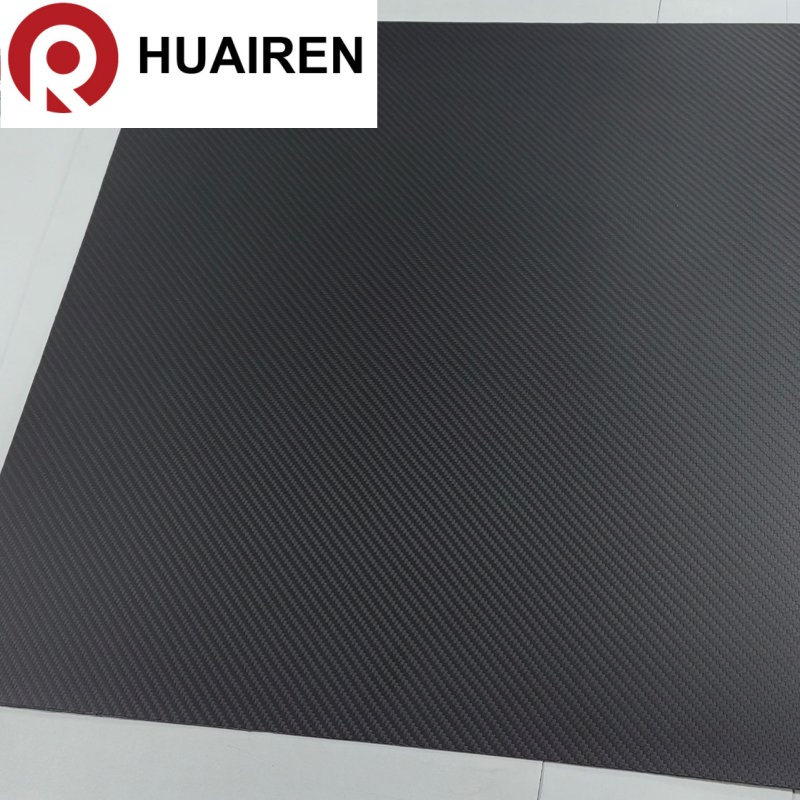

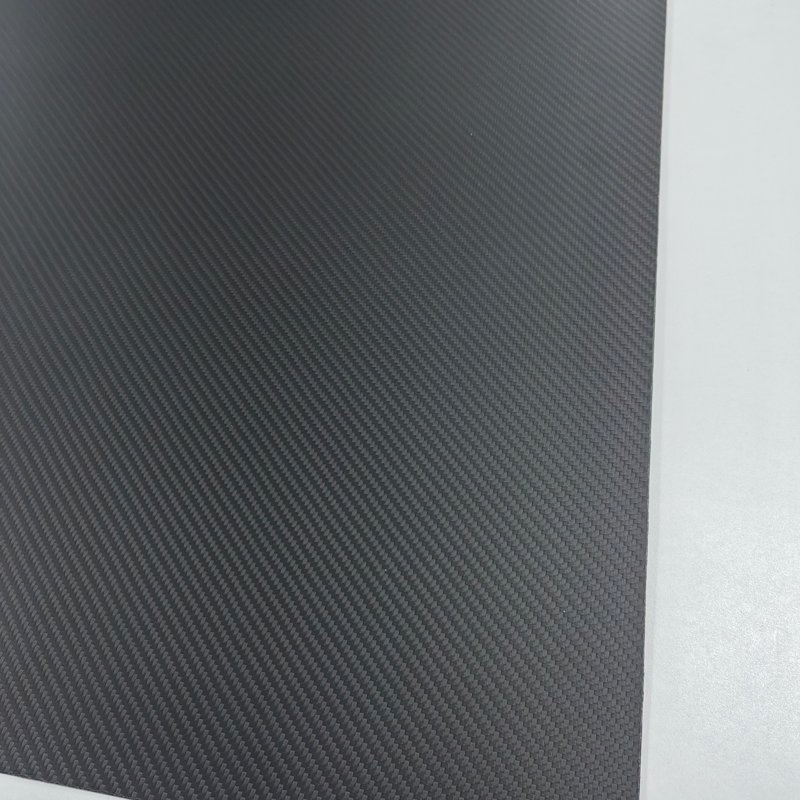

1mm Thickness Twill Carbon Fiber Sheet for Medical X-ray Device Plate

Basic Information

Model NO.	40014	Performance	High-Strength Type
State	Board	Mechanical Property	High-Performance Type
Thickness	1mm	Texture	Twill
Paint	Mate Paint	MOQ	100 Pieces
Specification	50x50cm	HS Code	6815110090

Product Parameters

Item No.	40015	Carbon Yarn	1K/3K/12K
Material	Carbon Fiber	Size	50x50cm or Customized
Package	100 pieces/carton	Production Capacity	10000 pieces/month
Loading Port	Shanghai	Leadtime	20-40 days

Material Property Test

Typical Properties	Detection Value	Typical Properties	Detection Value
0° Tensile Strength	1800 Mpa	0° Flexural Strength	1600 Mpa
0° Tensile Modulus	155 Gpa	0° Flexural Modulus	120 Gpa
0° Tensile Strain	1.18%	Interlaminer Shear Strength	80 Mpa
90° Tensile Strength	85 Mpa	±45° In-Plane Shear Strength	90 Mpa

Key Advantages

✓ Lightweight Construction

✓ High Strength-to-Weight Ratio

✓ Superior Corrosion Resistance

✓ High Modulus of Elasticity (Stiffness)

✓ Excellent Fatigue Resistance

✓ Low Thermal Expansion

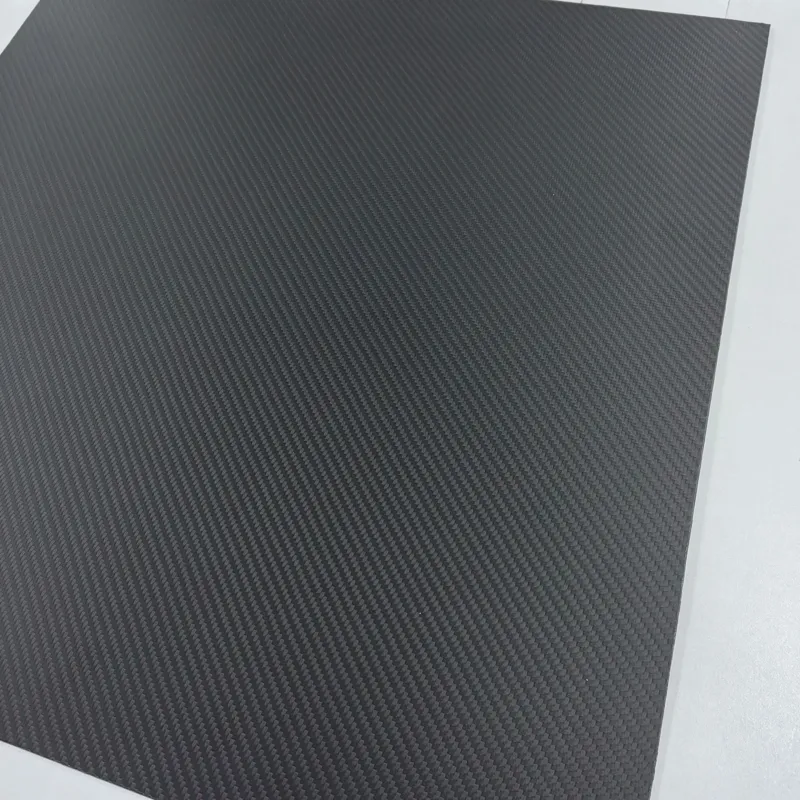

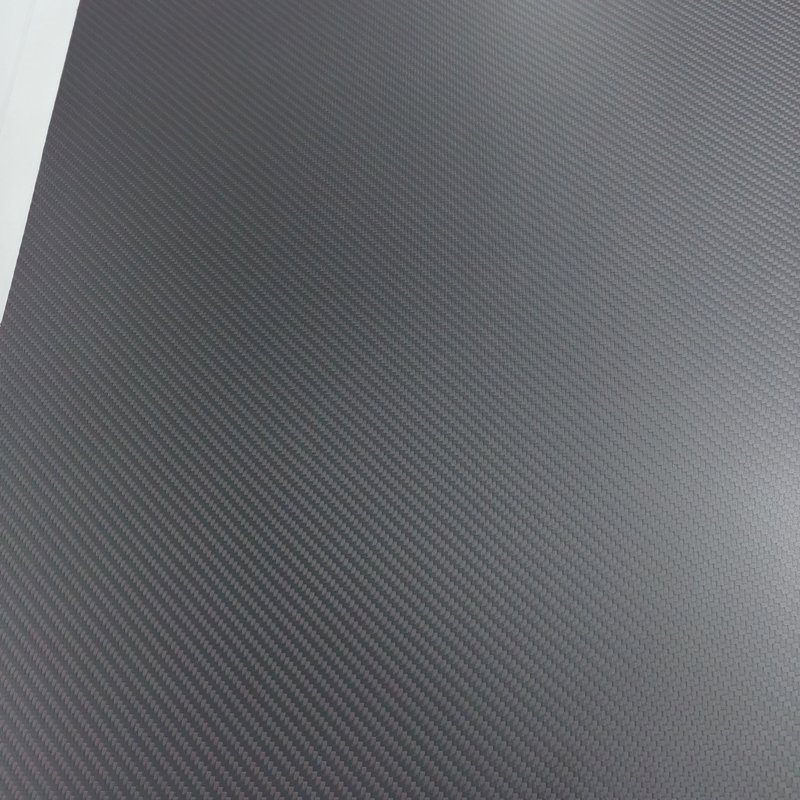

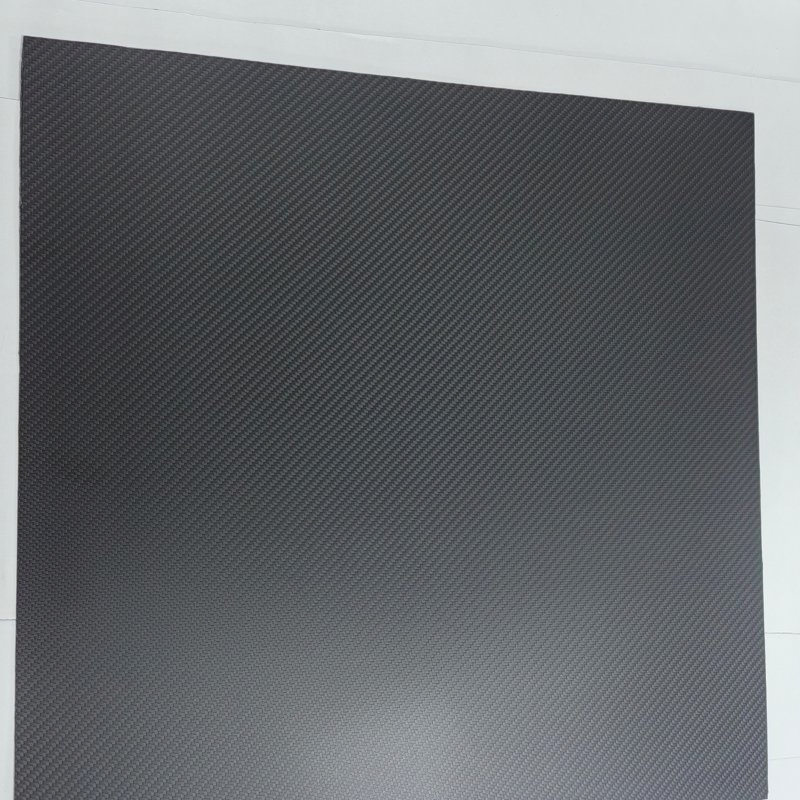

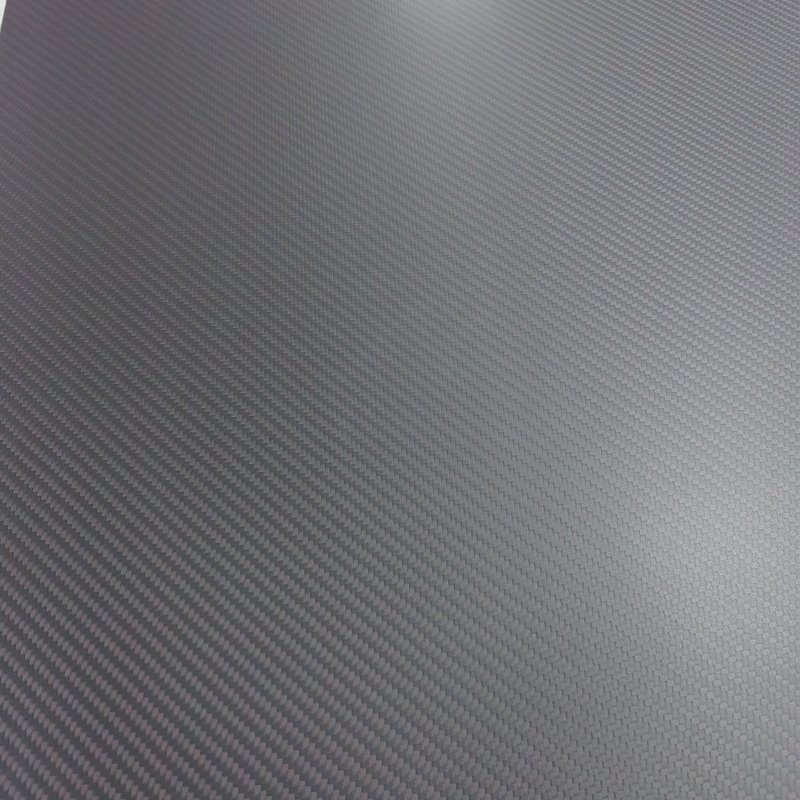

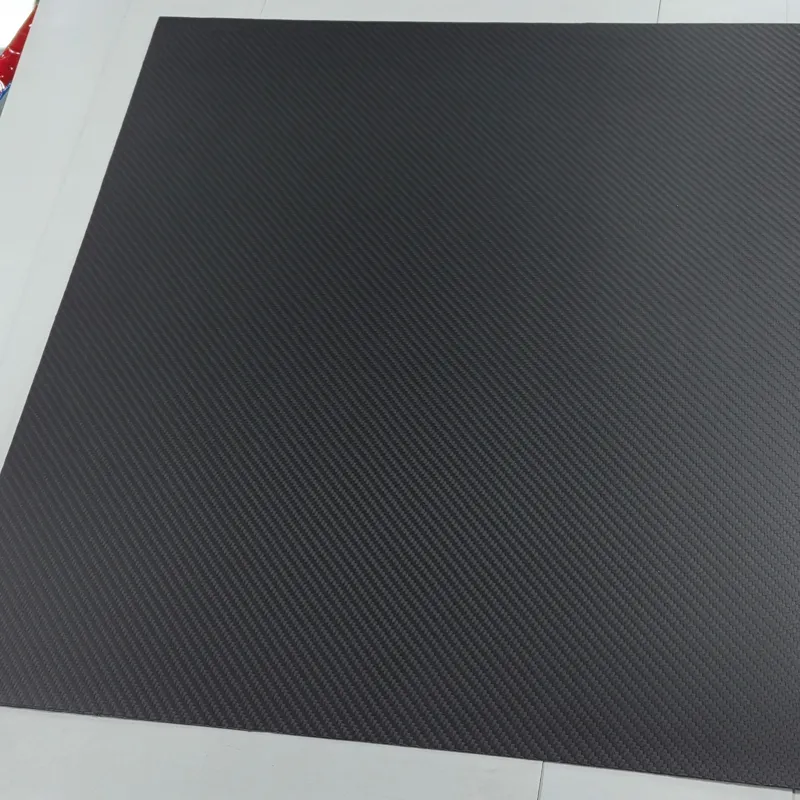

Detailed Photos

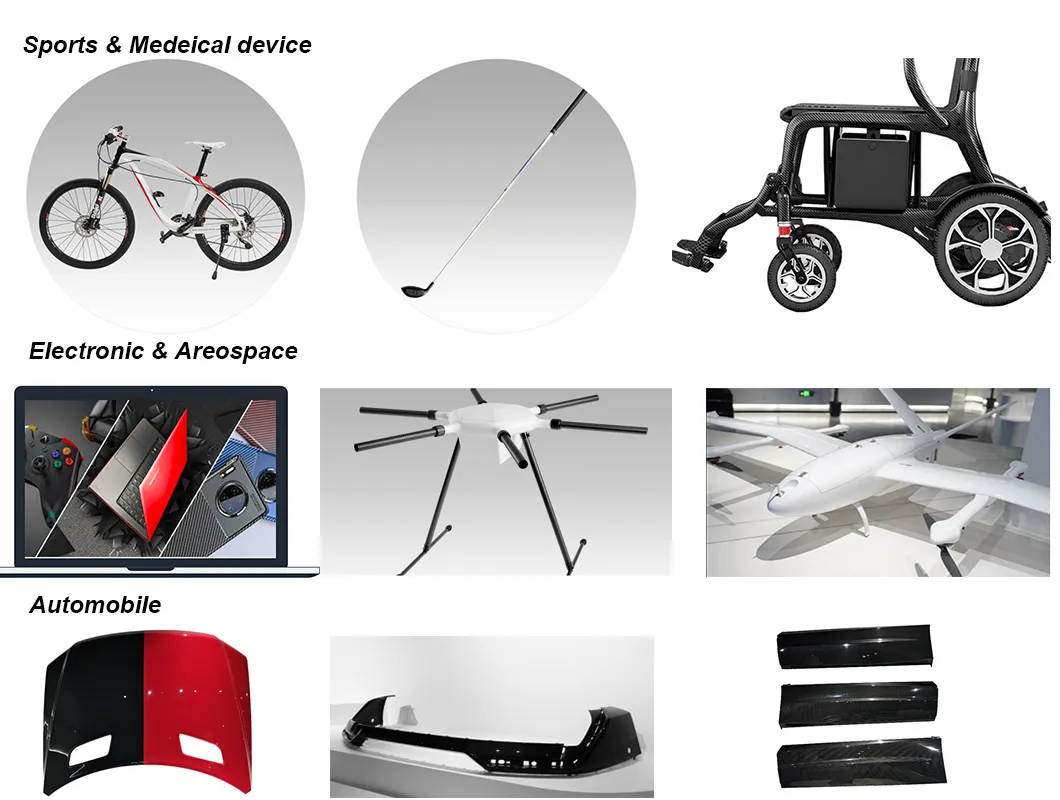

Industrial Applications

Industry	Application Parts
Aircraft Components	Wings, fuselage panels, and interior parts to reduce weight and improve fuel efficiency.
Spacecraft/Satellites	Structural elements where lightweight materials are critical for launch.
High-Performance Vehicles	Body panels, chassis, and spoilers in sports/racing cars.
Electric Vehicles	Lightweighting to extend battery range and efficiency.
Sports and Recreation	Bicycles, tennis rackets, golf clubs, and hockey sticks.
Medical Equipment	MRI/X-ray components where non-metallic materials are essential.

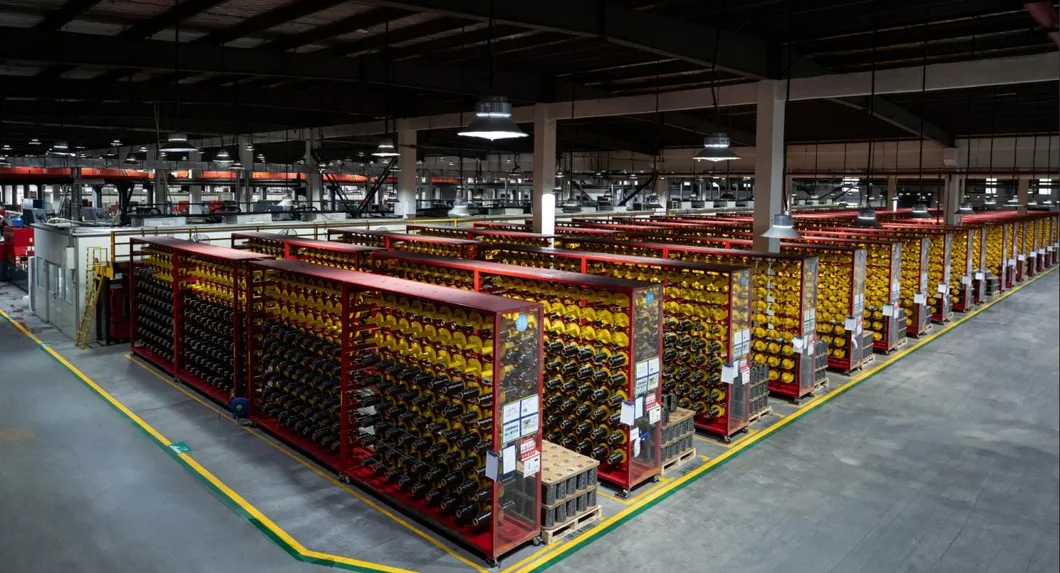

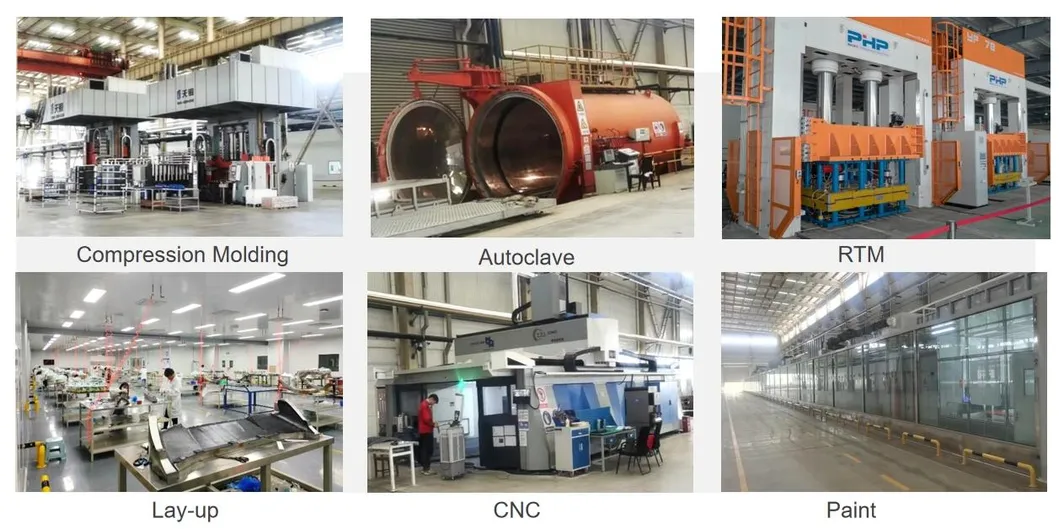

Production & Quality Control

Our industrial landscape covers carbon fiber woven fabric and prepreg as the starting point, serving sectors such as sports, building reinforcement, and medical devices. Growing sections include wind turbine blades, 3C electronics, and automotive lightweighting. Our capabilities include pultrusion, winding, molding, and special-shaped parts processing to meet customized requirements.

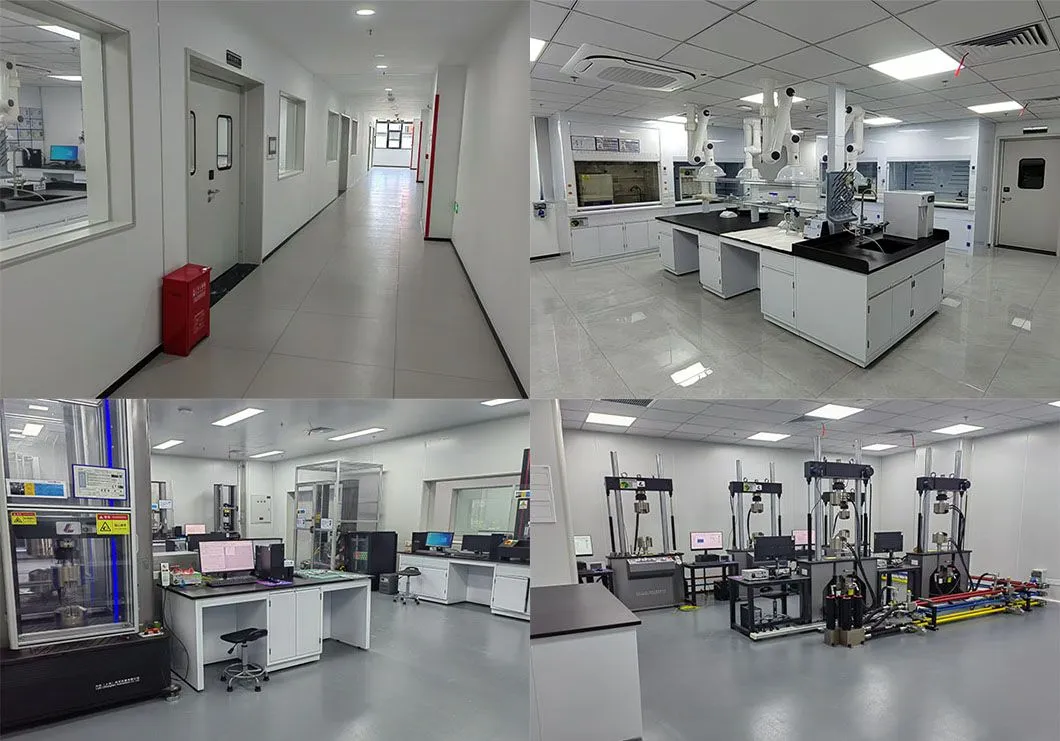

Test Laboratory: Our testing center covers approximately 3,100 square meters with control systems for all processes. Testing scopes include mechanical properties, weather resistance, and chemical analysis, featuring tensile, compression, bending, and fatigue tests.

Certifications & Patents

Holding IATF16949 certification and a total of 19 patents, including design, invention, and utility model patents.

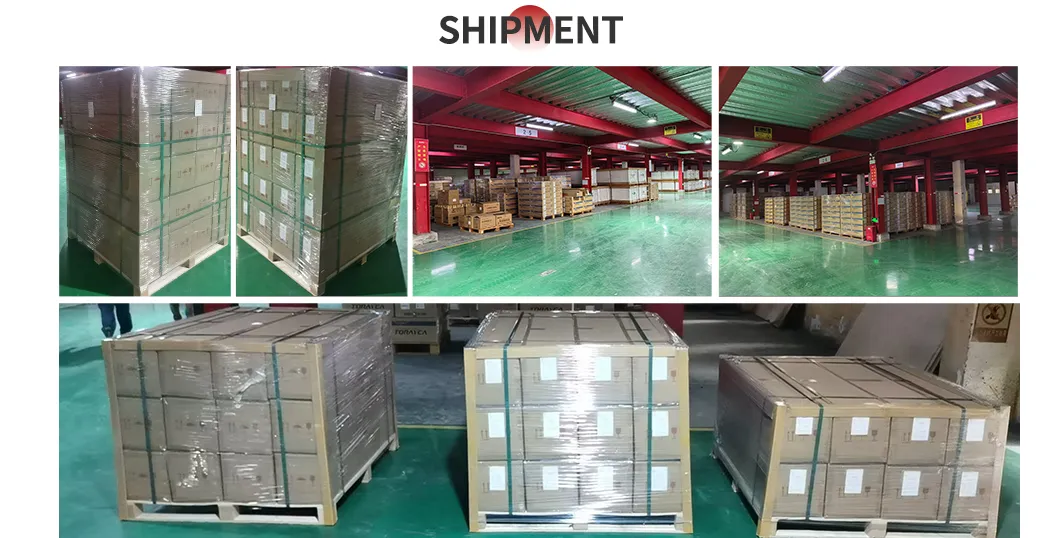

Packaging & Shipping

Frequently Asked Questions

Q1: How strong are carbon fiber tubes and sheets? A: Carbon fiber materials are extremely strong, often up to five times stronger than steel while being significantly lighter.

Q2: Can holes be drilled in carbon fiber products? A: Yes, holes can be drilled using proper techniques and specific tools to prevent delamination and damage to the fibers.

Q3: Do you offer customized services? A: Absolutely. We provide both OEM and ODM services. Please provide your specific requirements and dimensions for a custom quote.

Q4: What is the typical lead time for an order? A: The lead time is generally between 20 to 40 days, depending on the order quantity and specific customization requirements.

Q5: Can we request samples for quality evaluation? A: Yes, we provide samples for quality evaluation to ensure the material meets your industrial standards.

Q6: Which port is used for loading and shipping? A: Our primary loading port is Shanghai, though other ports are negotiable based on your logistical needs.
