200GSM 42%RC Resin Content Twill Weave Carbon Fiber Fabric Prepreg

1 / 5

200GSM 42%RC Resin Content Twill Weave Carbon Fiber Fabric Prepreg

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

🔷 Basic Product Information

Model NO.	21033	Material	Carbon Fabric + Resin
Carbon Type	Twill	Filament Count	3K
Performance	High-Strength Type	Specification	200g/sqm
Width	1m	Roll Length	100m or Customized
Leadtime	7-35 days	HS Code	6815131090

📊 Technical Parameters

Carbon Fiber Properties
Tensile Strength	≥ 3500 MPa	Tensile Modulus	≥ 230 GPa
Elongation	≥ 1.5%	Fabric Weight	200g/sqm
Resin System (Epoxy)
Resin Content	42%	TG Point	90~110 ºC
Bending Strength	100~120 MPa	Storage Temp	-18°C (0°F) or lower

⭐ Key Advantages of Prepreg Carbon Fabric

Controlled Resin Content
Superior Mechanical Properties
Manufacturing Efficiency
Consistency and Repeatability
Enhanced Handling
Improved Aesthetics
Environmental and Safety Benefits
High-Performance Curing

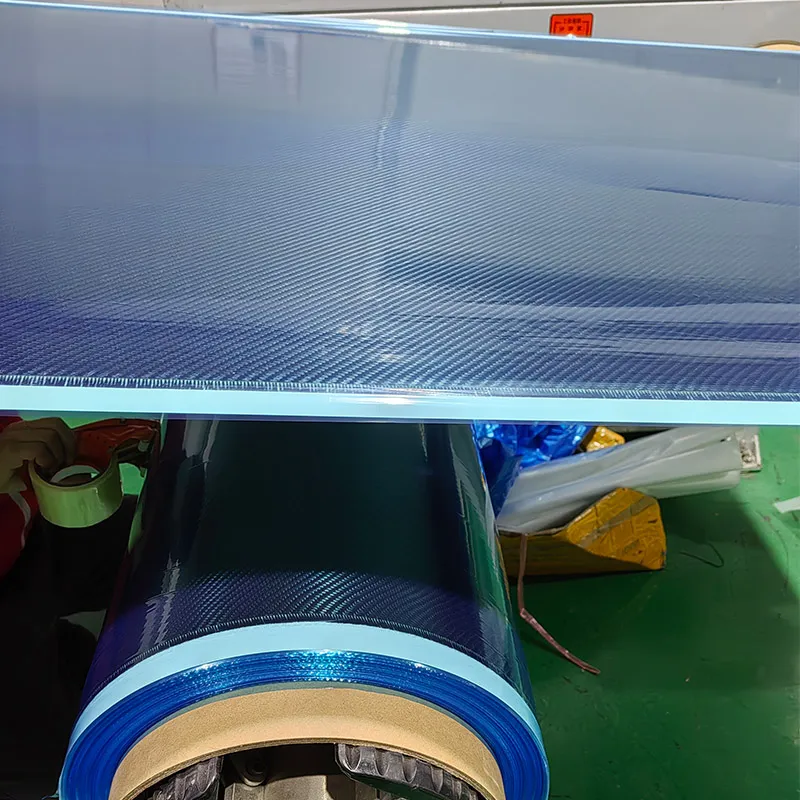

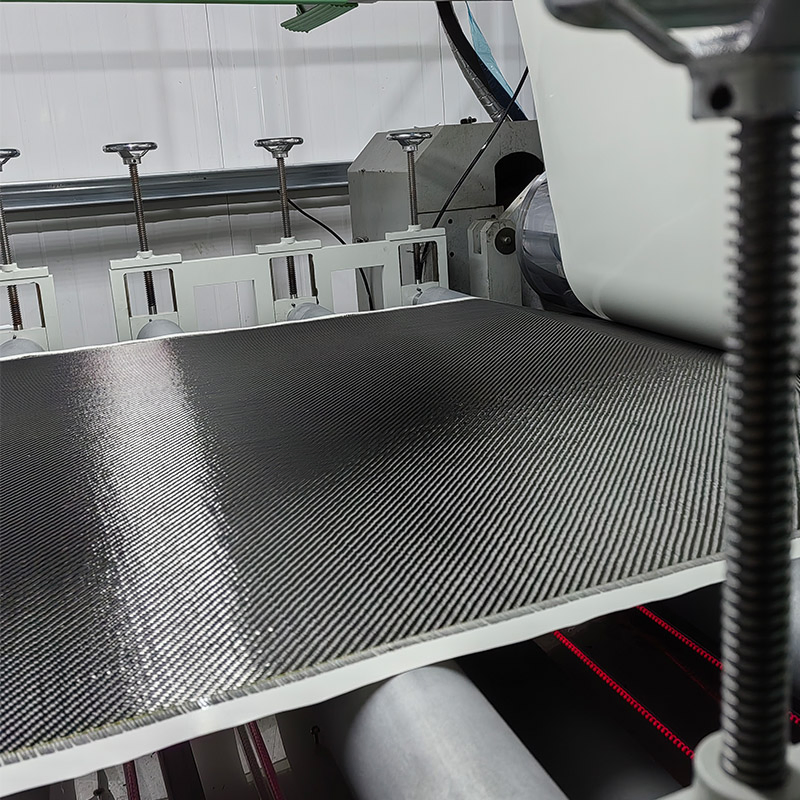

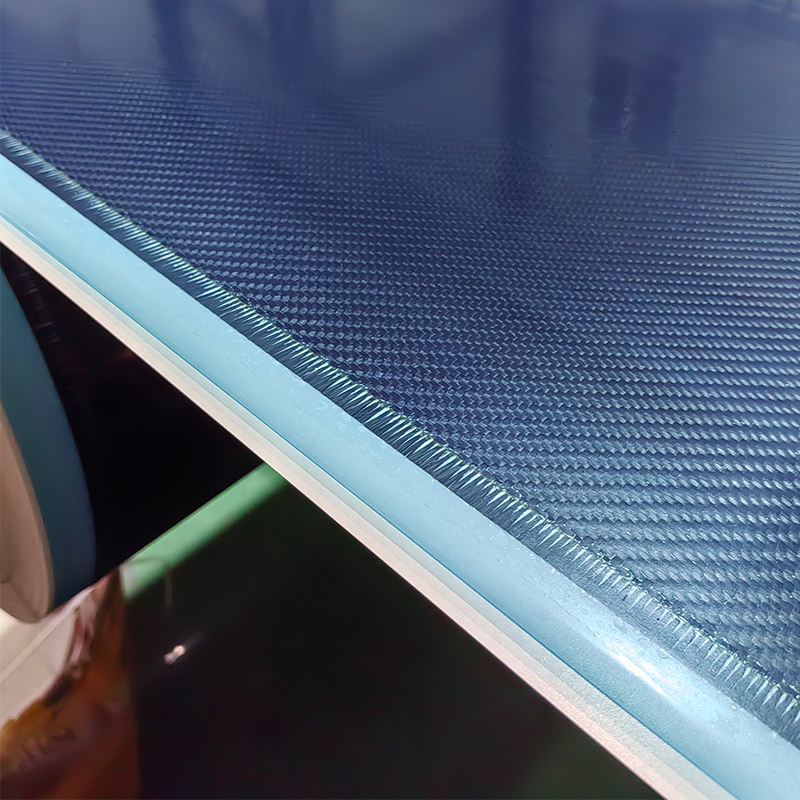

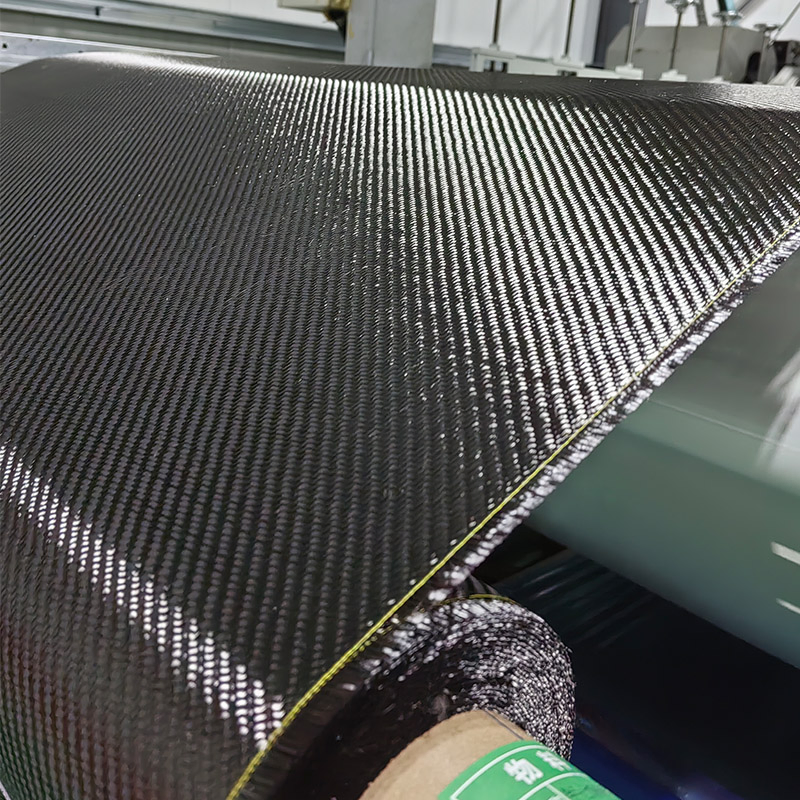

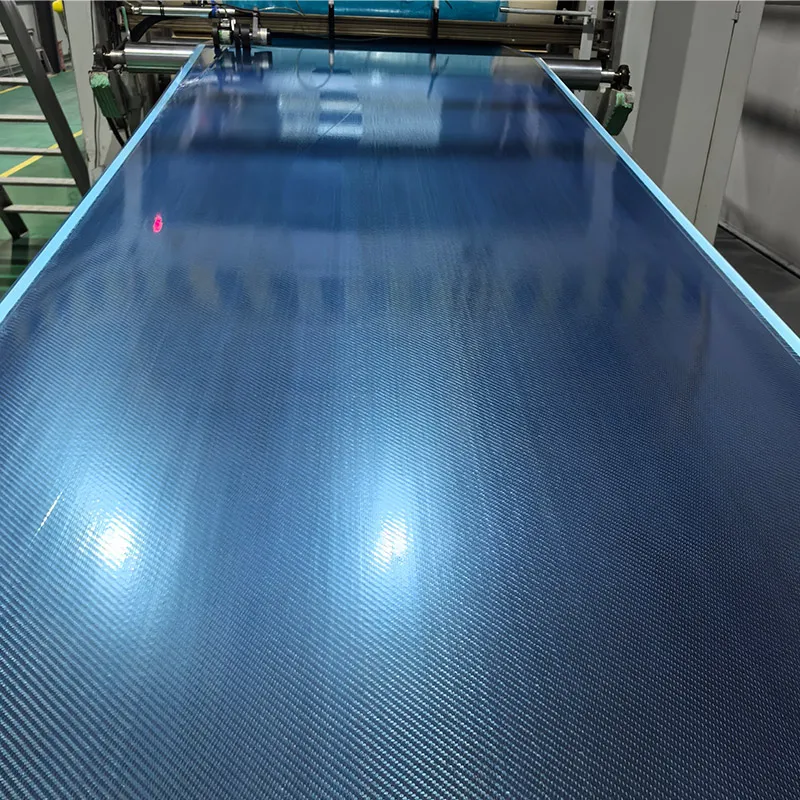

📷 Detailed Product Gallery

🚀 Industrial Applications

Industry	Application Parts
Aerospace & Aviation	Aircraft wings, fuselages, helicopter blades, satellite components
Automotive	Sports car chassis, body panels, electric vehicle components
Sports & Recreation	Bicycles, tennis rackets, golf clubs, kayaks, and boat hulls
Civil Engineering	Bridge reinforcement, building retrofitting, seismic retrofitting
Renewable Energy	Wind turbine blades, hydrogen storage tanks
Medical & Robotics	Prosthetics, surgical tools, drone frames, robotic arms

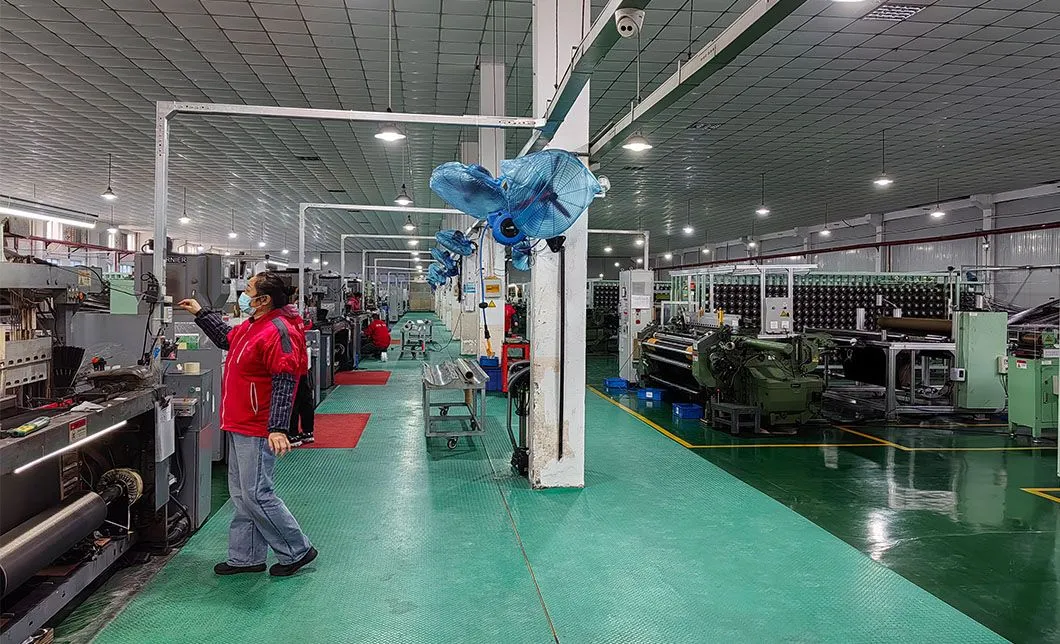

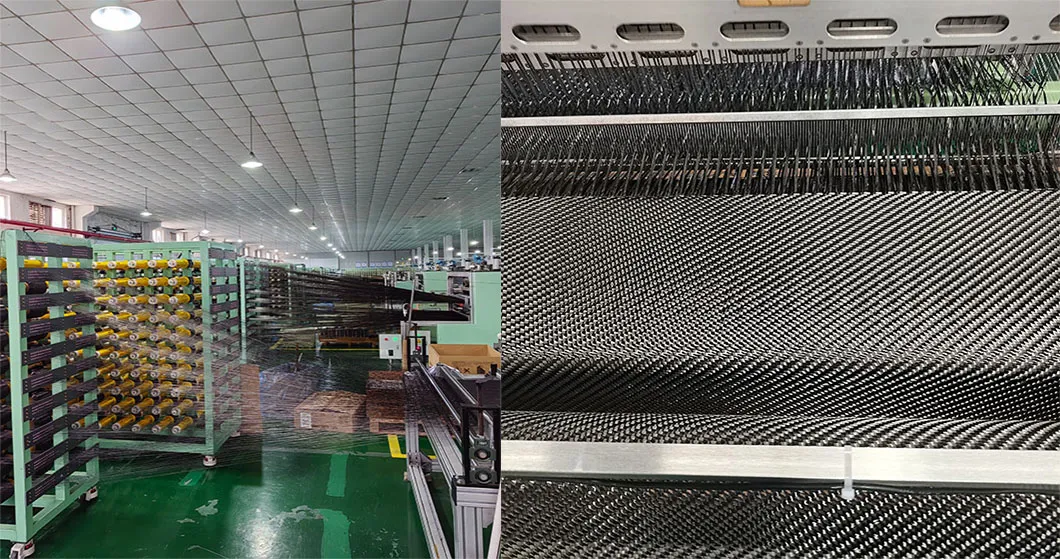

🏭 Manufacturing & Quality Control

Our production specializes in high-quality woven textiles including unidirectional, plain, twill, and jacquard weaves using high-performance fibers like carbon, glass, and aramid fibers. We maintain strict quality control standards, backed by the IATF16949 certification.

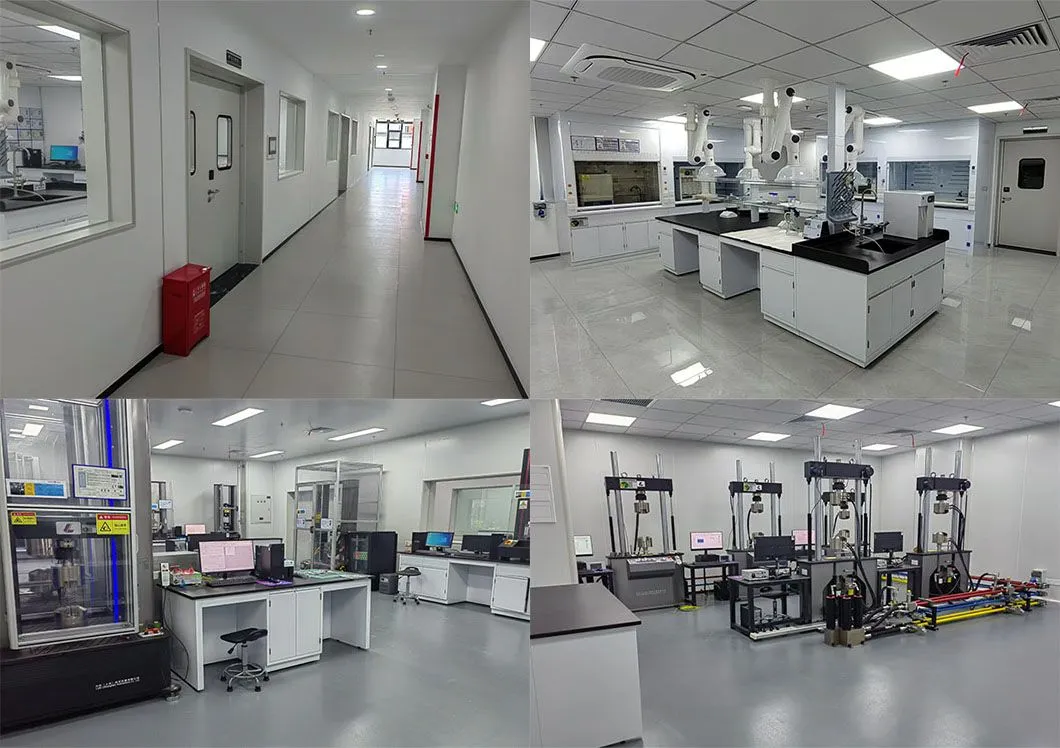

Testing Capabilities: Our CNAS accredited laboratory covers mechanical properties, weather resistance, and chemical analysis. Key tests include tensile, compression, bending, fatigue, fiber content, and glass transition temperature (TG).

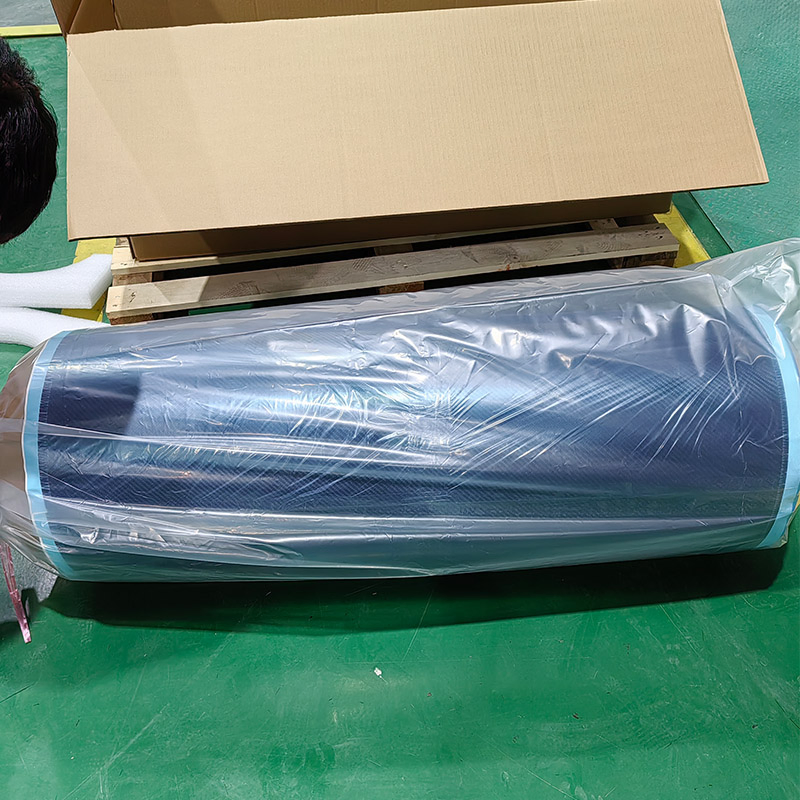

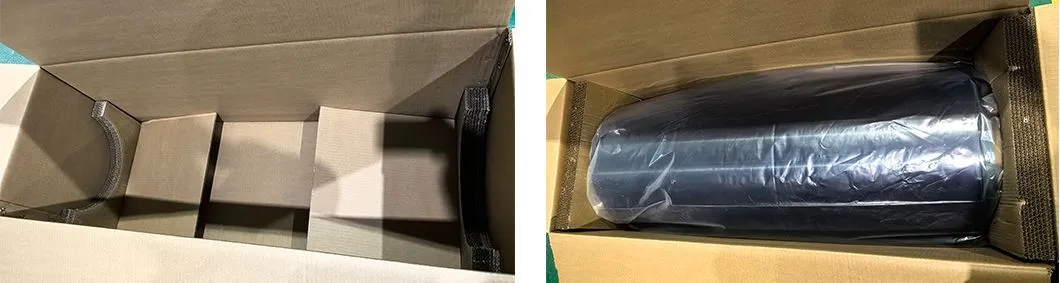

📦 Packaging & Shipping

❓ Frequently Asked Questions

Are you a manufacturer or a trading company?

We are a specialized factory founded in 2014, focused primarily on manufacturing high-performance carbon fiber fabrics and prepreg materials.

Do you offer customized services?

Yes, we provide both OEM and ODM services. Please provide your specific requirements and technical specifications for a tailored solution.

What is the typical lead time for an order?

The lead time usually ranges from 7 to 35 days, depending on the order quantity and specific product requirements. We also maintain stock for certain standard items.

Can I request samples for quality evaluation?

Yes, we provide free samples (typically less than 1 meter) for quality testing and evaluation purposes.

What are your primary loading ports?

Our primary loading port is Shanghai, though other ports are negotiable based on your logistical needs.

How should the prepreg fabric be stored?

Prepreg carbon fabric should typically be stored at -18°C (0°F) or lower in a freezer to prevent premature curing and maintain the shelf life of the resin.
