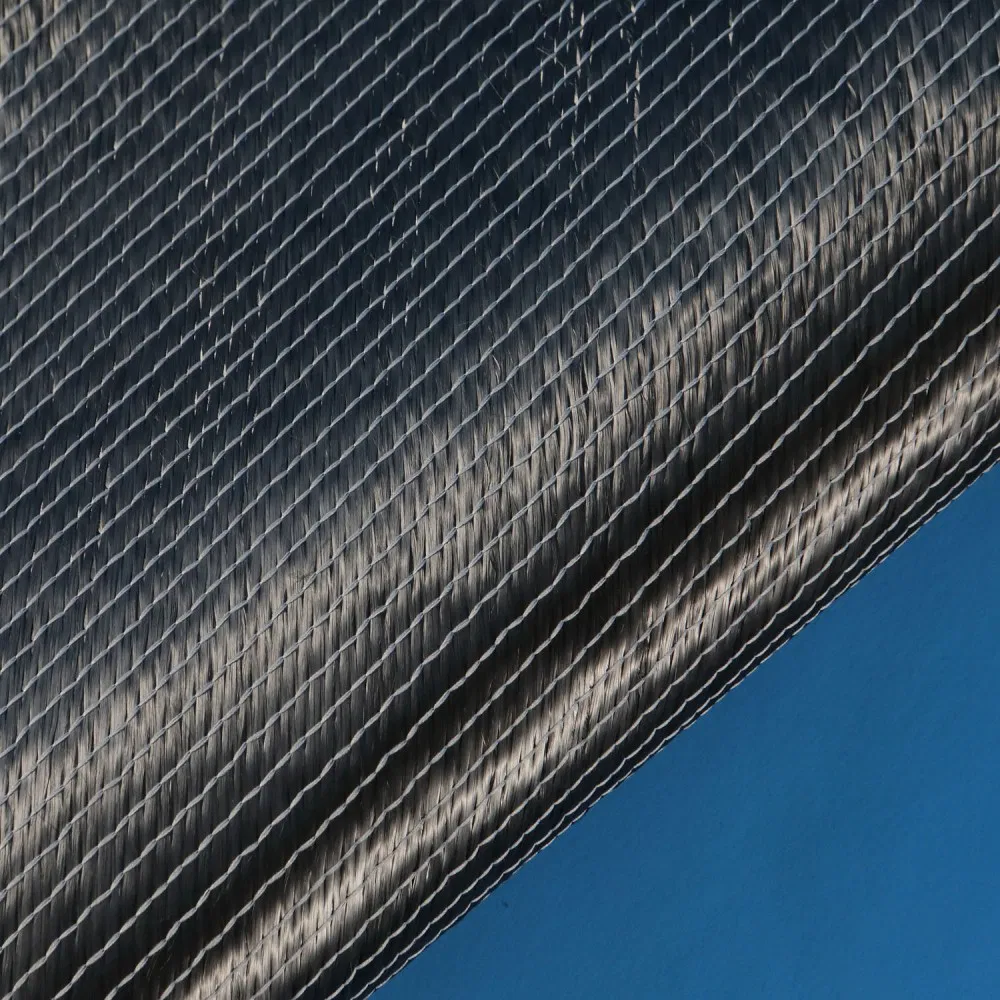

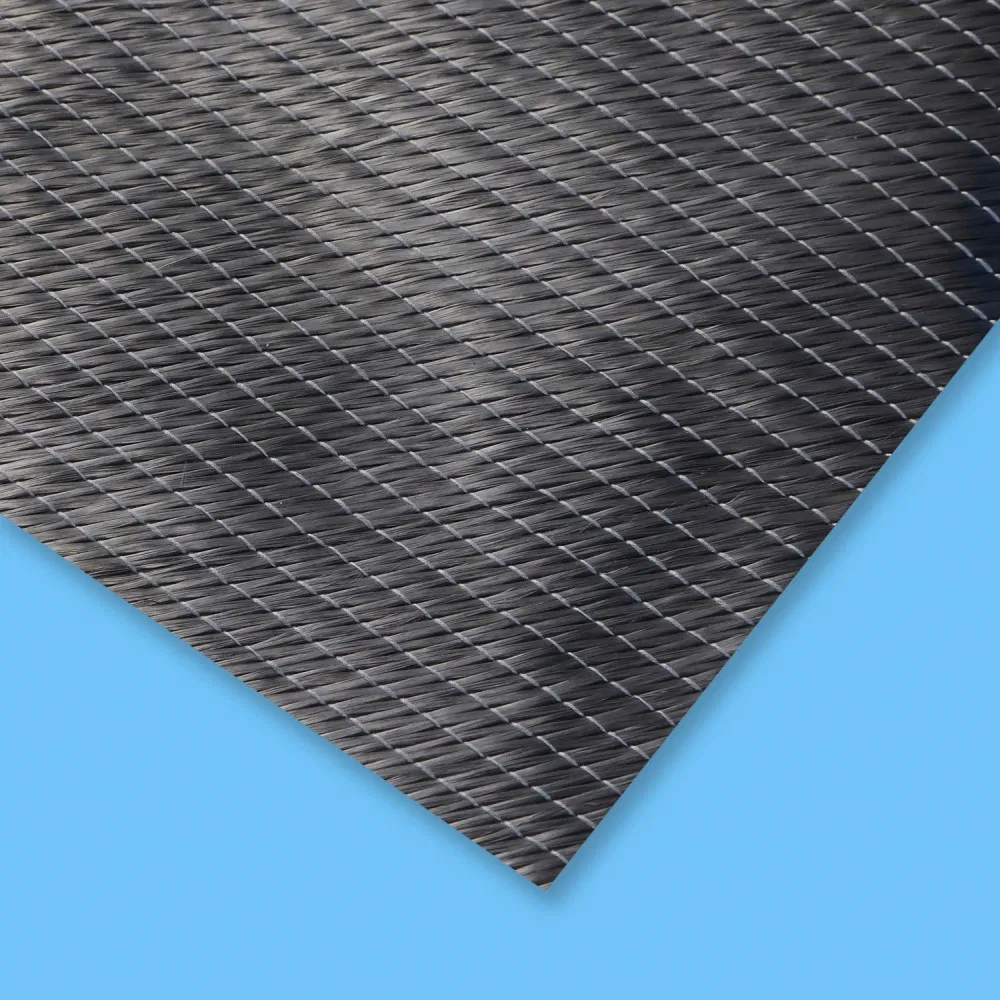

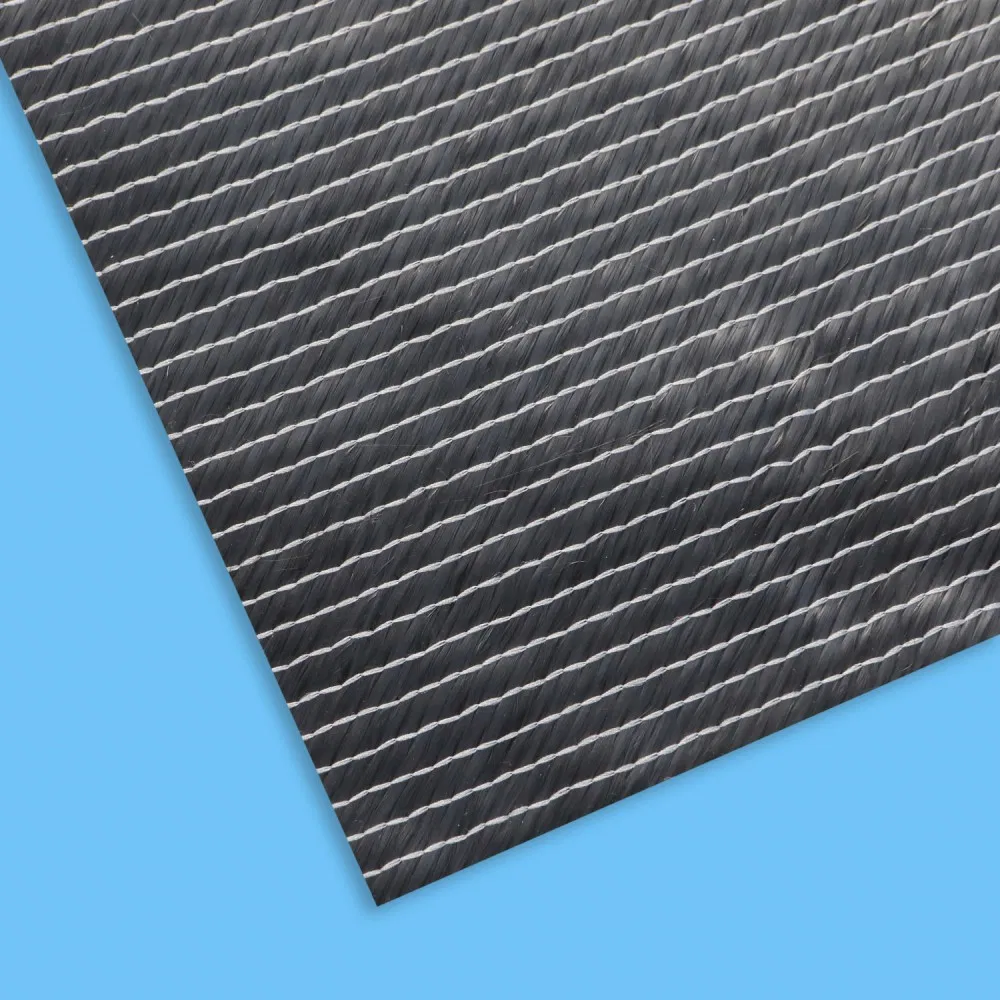

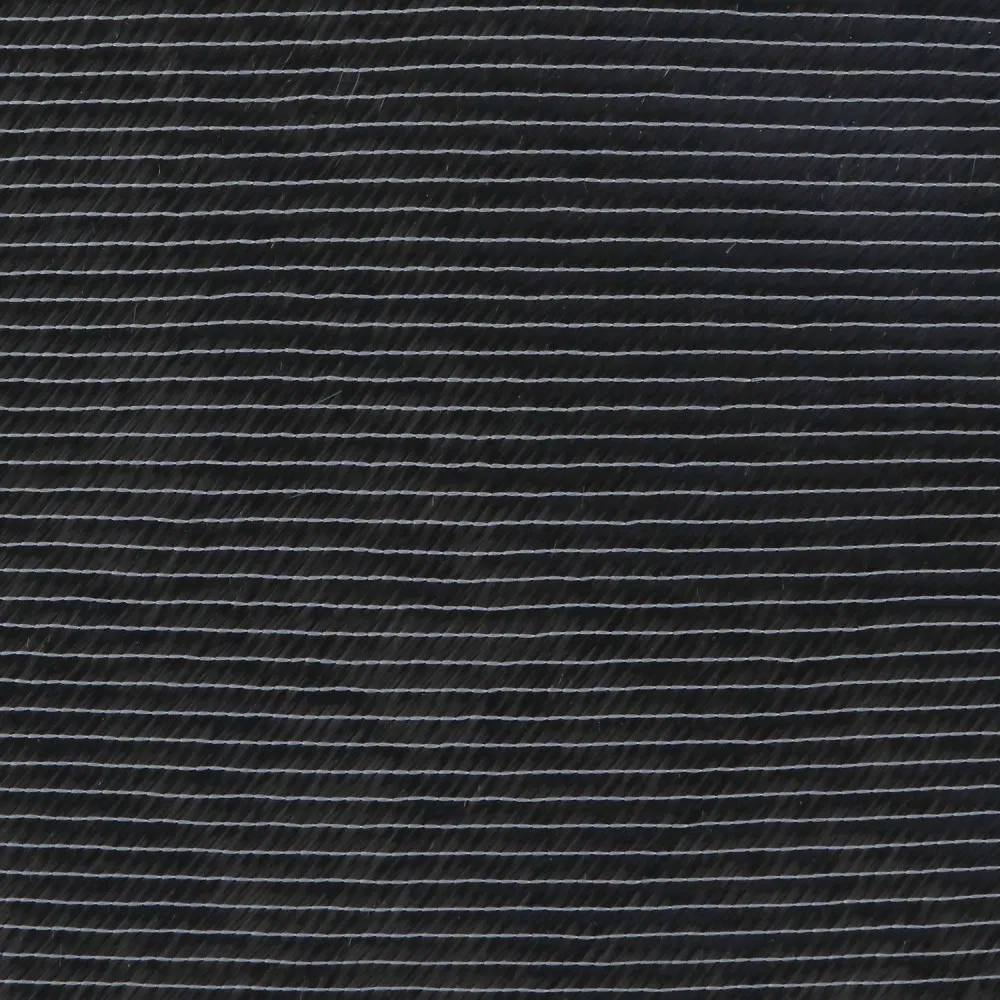

± 45 Degree 200GSM/400GSM Double Bias Multiaxial Carbon Fiber Fabric for UAV

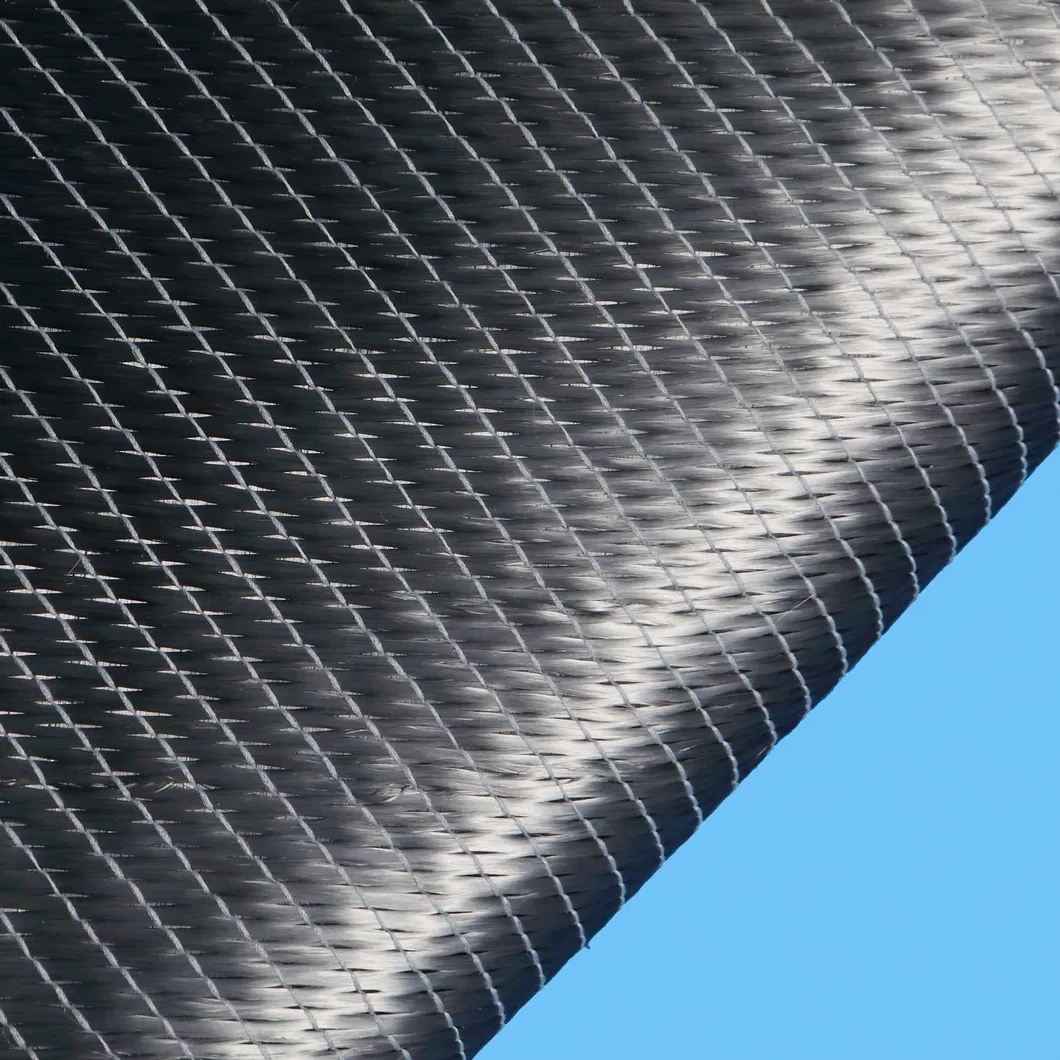

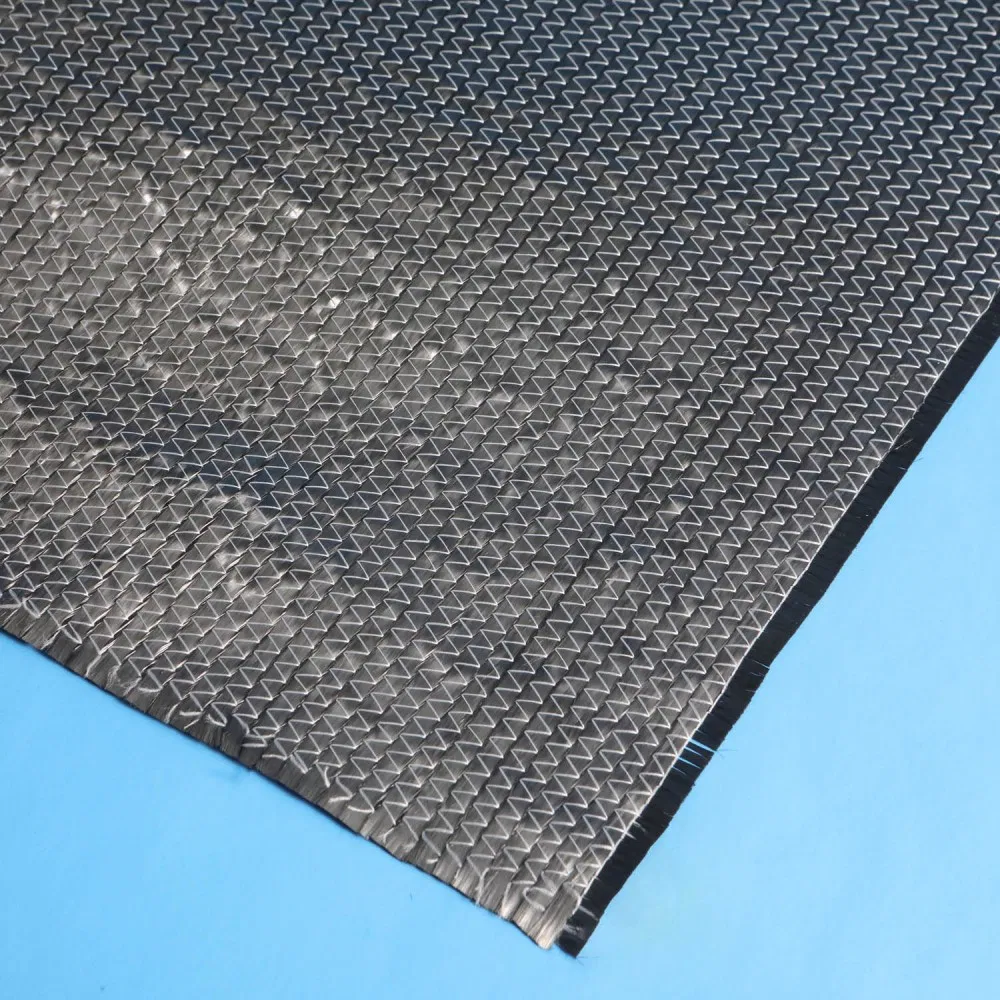

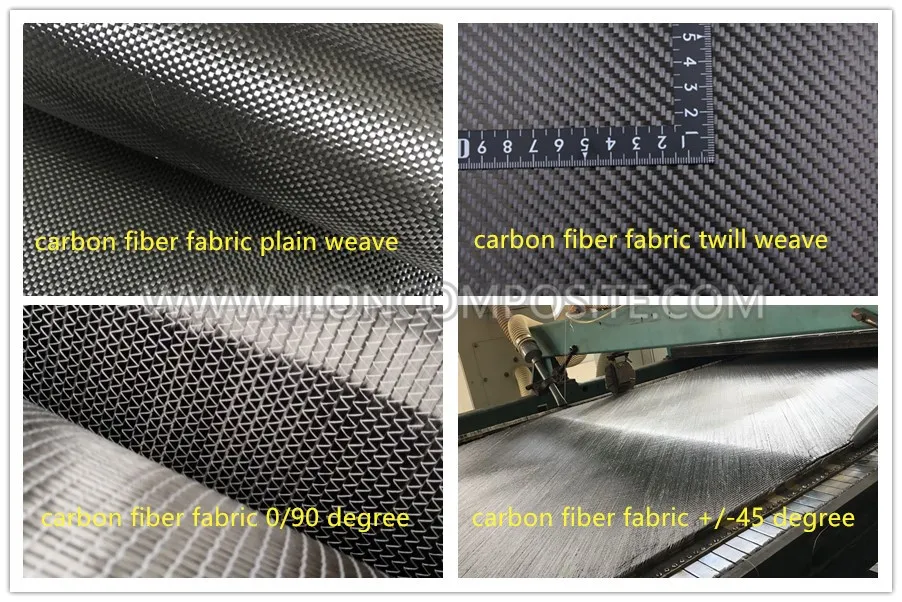

Carbon fabric is light weight, high strength and high modulus. It has good resistance to fatigue, heat and corrosion. Our multiaxial carbon fiber cloth include biaxial in 0/90 and +/-45 degree. Basically, these are UD fabrics with fiber orientations of 0/90 or +/-45 stitched together.
Aviation, automobile, bicycle, surfboard, suite case, reinforcement to helmet, buildings…
| Fabric Specification | Total Weight (g/m2) | 0° | 90° | +45° | -45° | Stitching Yarn | Binder |
|---|---|---|---|---|---|---|---|
| C-PN600-12 | 602 | - | - | 300 | 300 | 2 | - |
| C-PN600-50 | 602 | - | - | 300 | 300 | 2 | - |
| C-LT400-12 | 402 | 200 | 200 | - | - | 2 | - |
| C-LT600-50 | 602 | 300 | 300 | - | - | 2 | - |
| C-TX500-12 | 502 | 200 | - | 150 | 150 | 2 | - |
| C-QX600-12 | 602 | 150 | 150 | 150 | 150 | 2 | - |
| C-L150-12-B | 174 | 150 | 12 | - | - | 4 | 8 |
| C-P150-12-B | 176 | - | - | 150 | 10 | 8 | 8 |
| C-PN260-12 | 262 | - | - | 130 | 130 | 2 | - |
| C-PN400-12 | 402 | - | - | 200 | 200 | 2 | - |
1. The ±45° carbon fiber fabric is high quality, drapes well, and provides excellent torsional strength for UAV frames.
2. Good weaving and flexibility, easy to cut and lay-up. Resin infusion works smoothly, very reliable material.
3. We used 200GSM and 400GSM for UAV arms and fuselage, very strong and lightweight. Highly recommend.
