| Model NO. | 14016 | Performance | High-Strength Type |
| State | Woven Fabric | Mechanical Property | High-Performance Type |
| Carbon Type | Unidirectional | Filament Count | 12K |
| Tensile Strength | 4900MPa | Width | 20cm or Customized |
| Roll Length | 50m or Customized | Material | Carbon Fiber+Hot Melt Yarn |
| Specification | 300g/sqm | HS Code | 6815120000 |

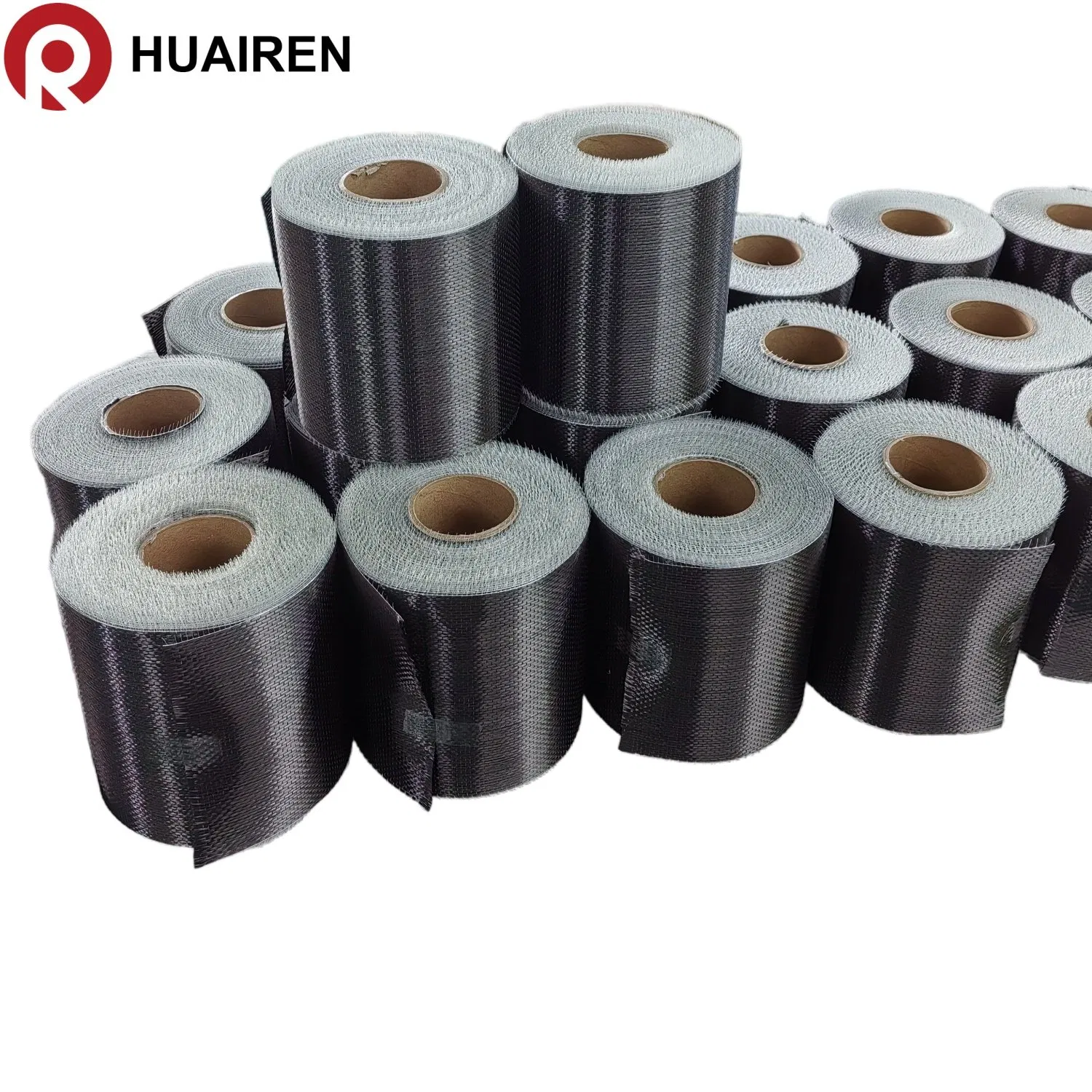

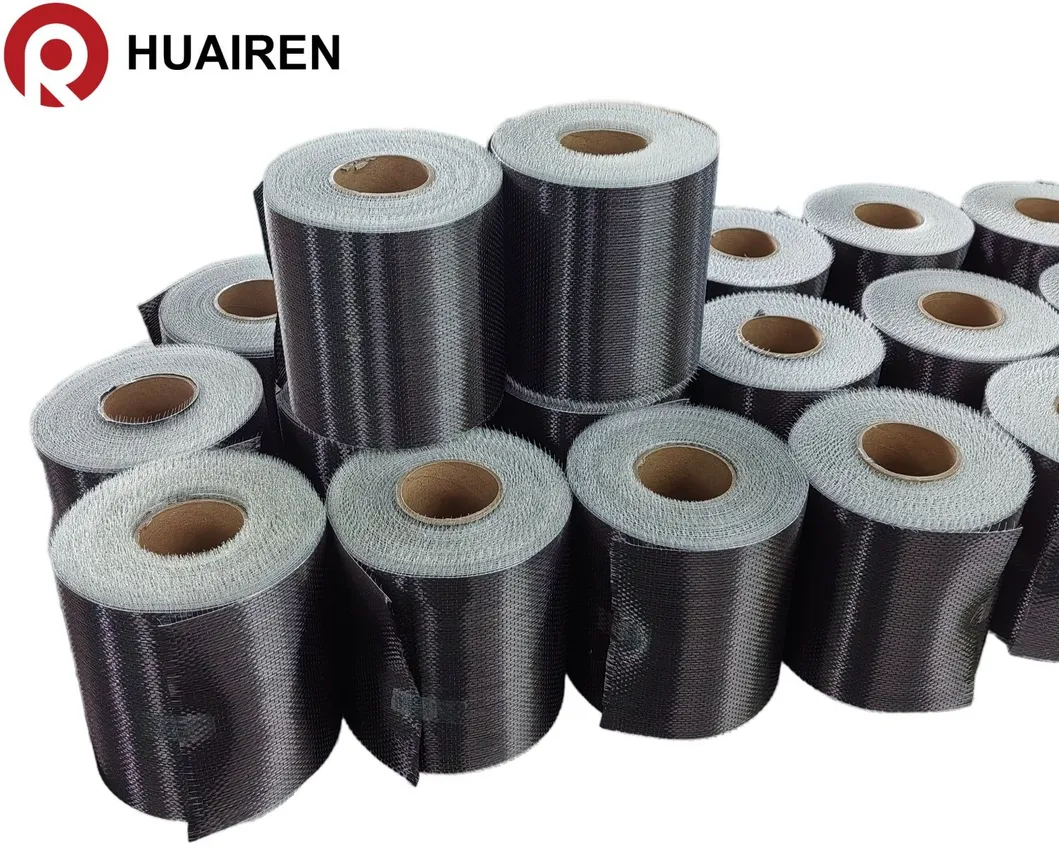

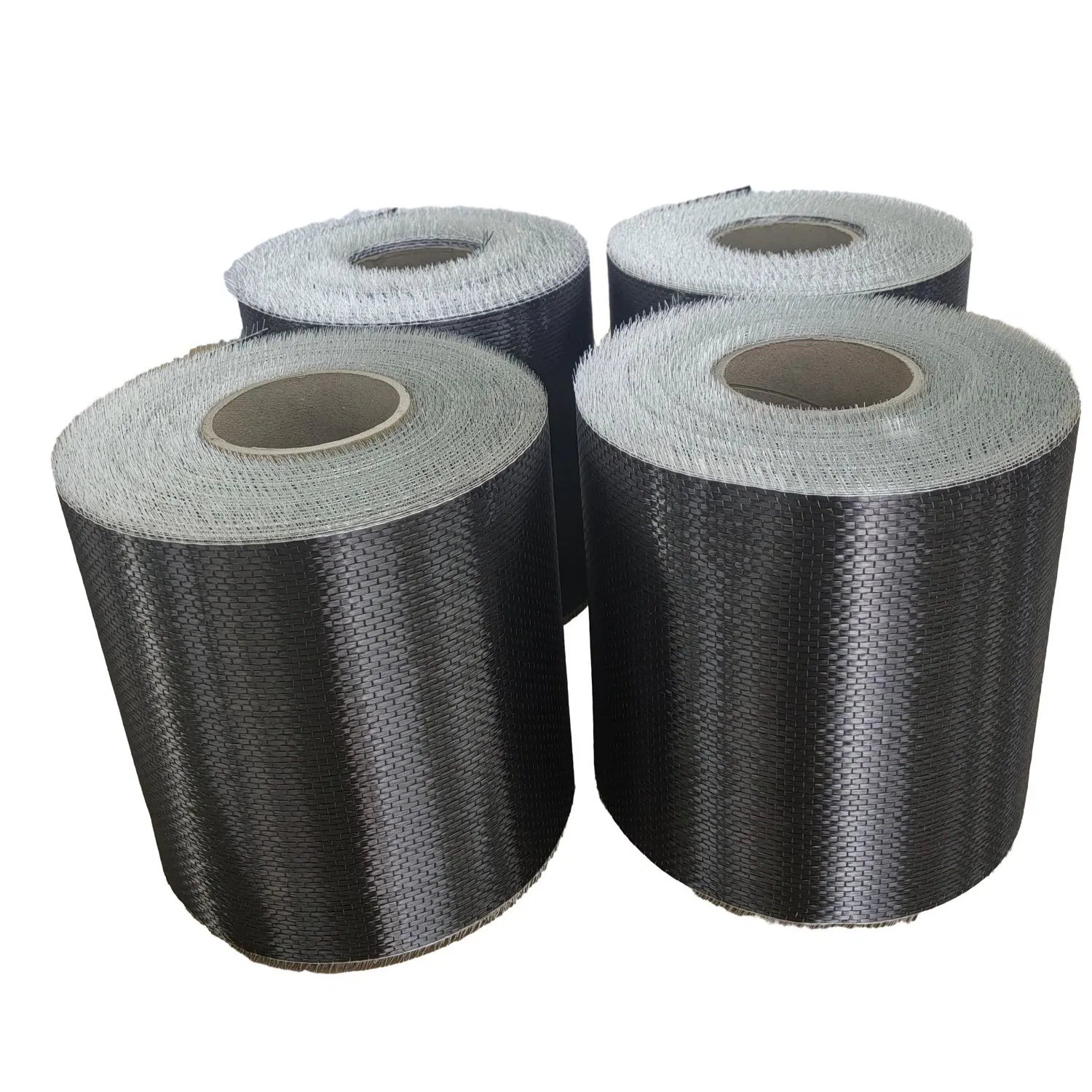

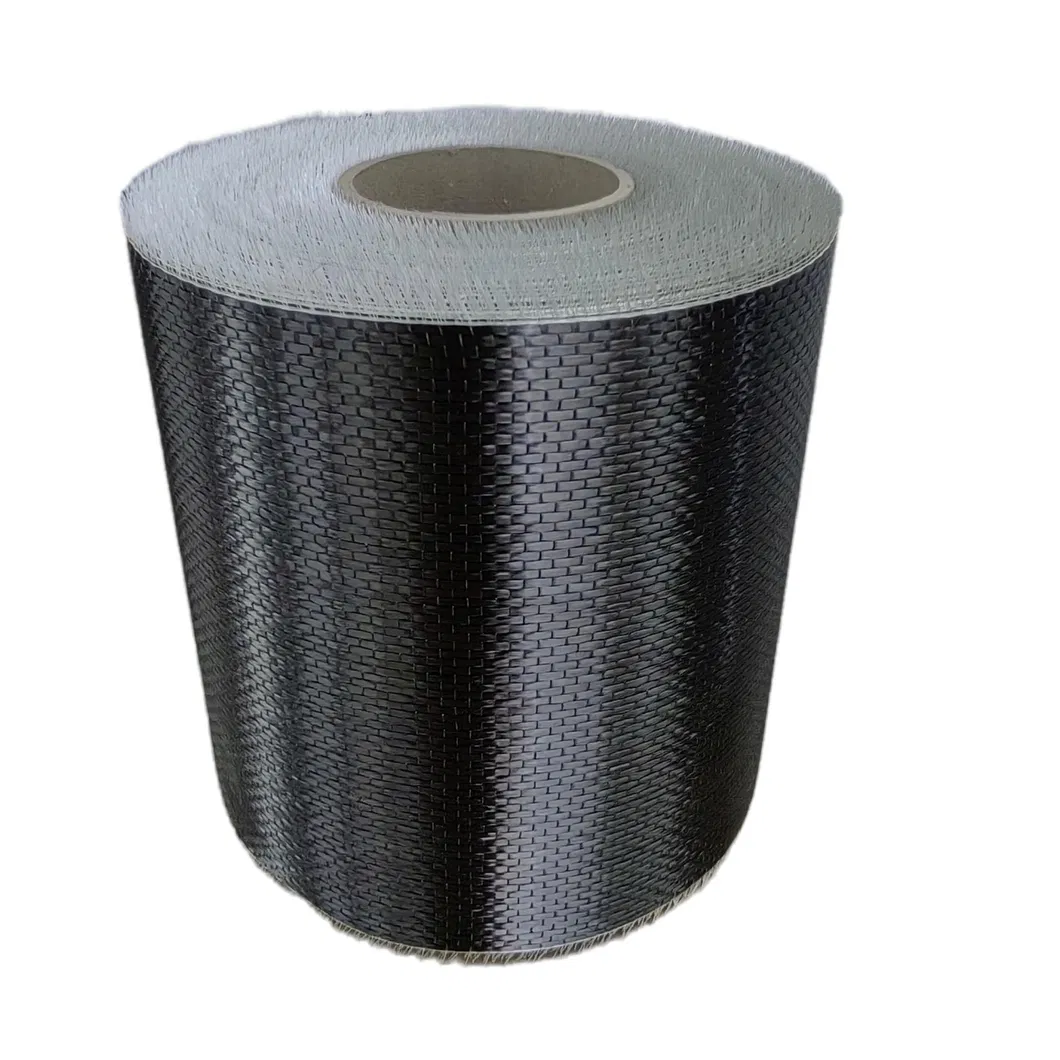

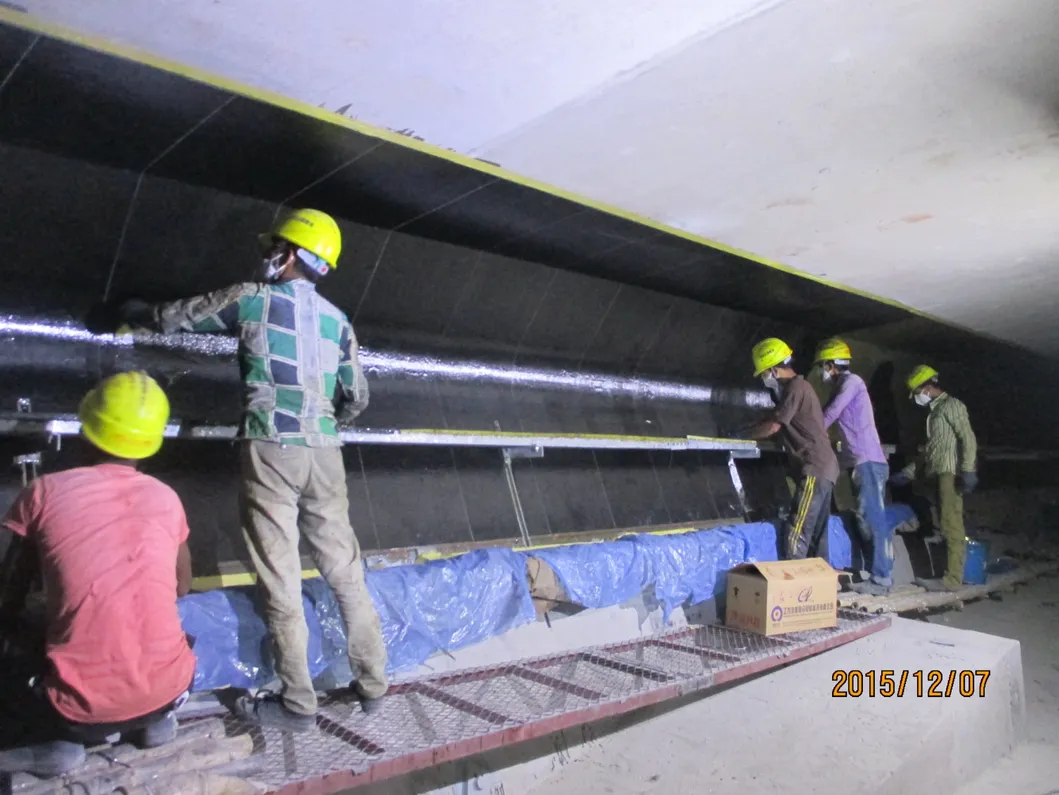

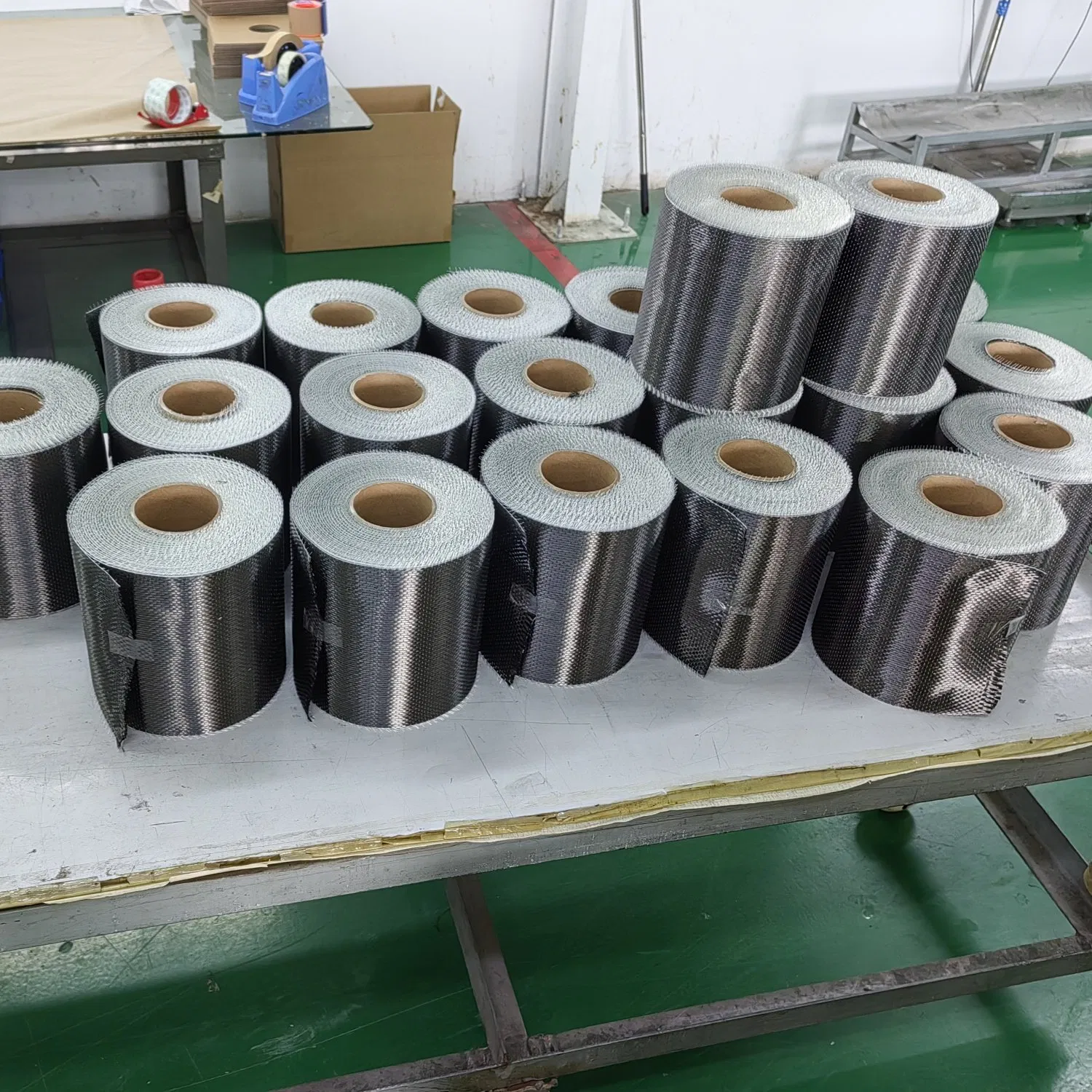

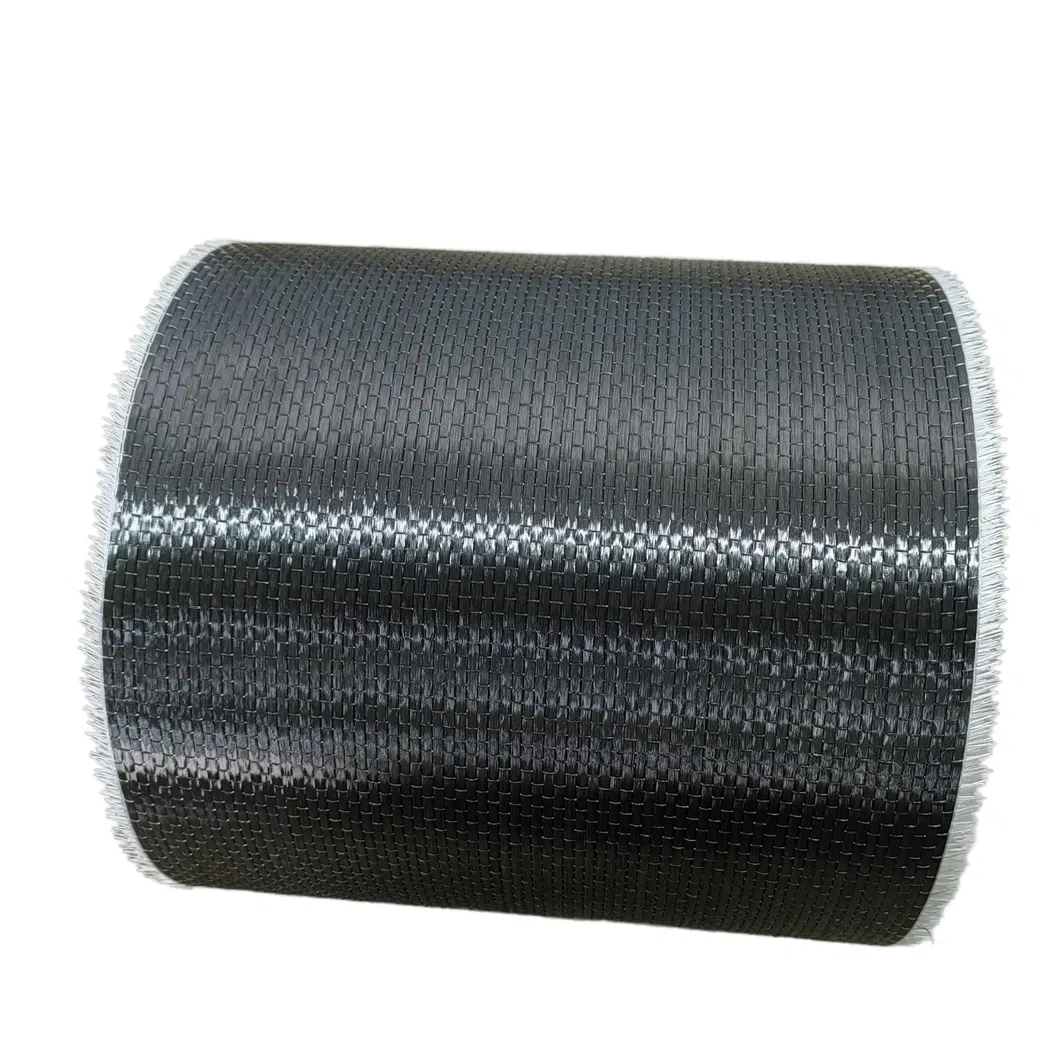

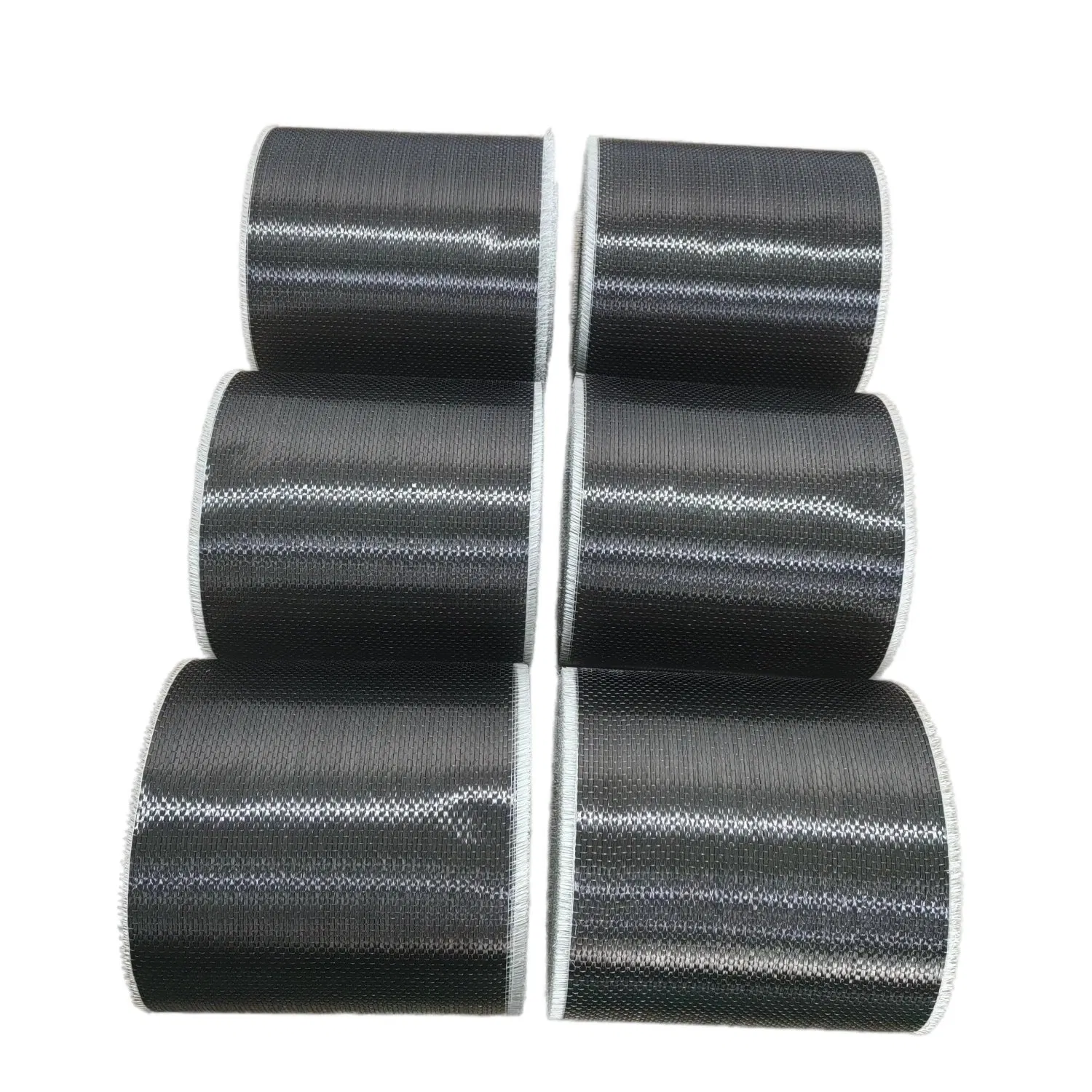

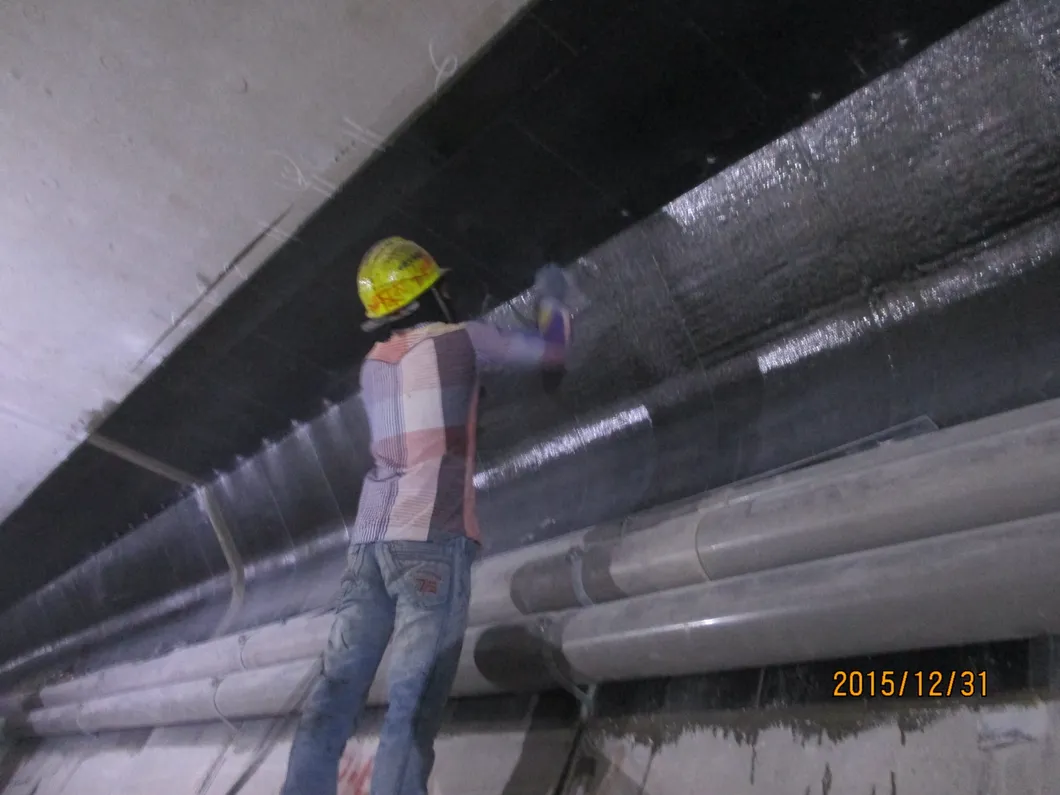

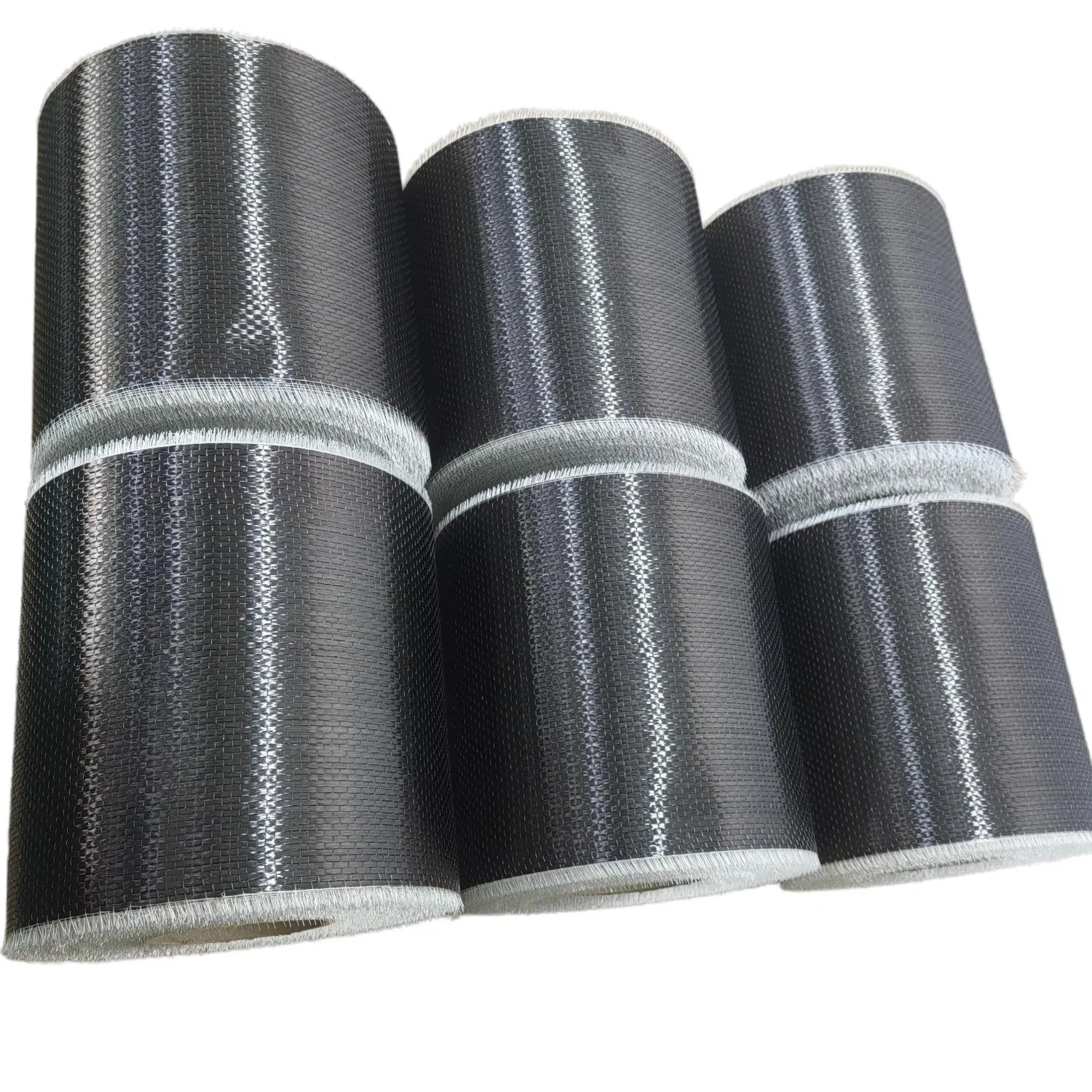

Our UD carbon fabric is a high-performance material widely used for structural reinforcement. In 2015, this UD carbon fabric was successfully utilized on the Bangabadhu Multipurpose Bridge in Bangladesh, demonstrating its reliability in large-scale infrastructure projects.
| Fabric Type | UD (Unidirectional) | Density (Ends/cm) | 3.7x3 |
| Area Weight | 300g/sqm | Tensile Modulus | ≥ 230 Gpa |
| Features | Light weight; High strength; High modulus; Fatigue resistance; Corrosion resistance; Abrasion resistant. | ||

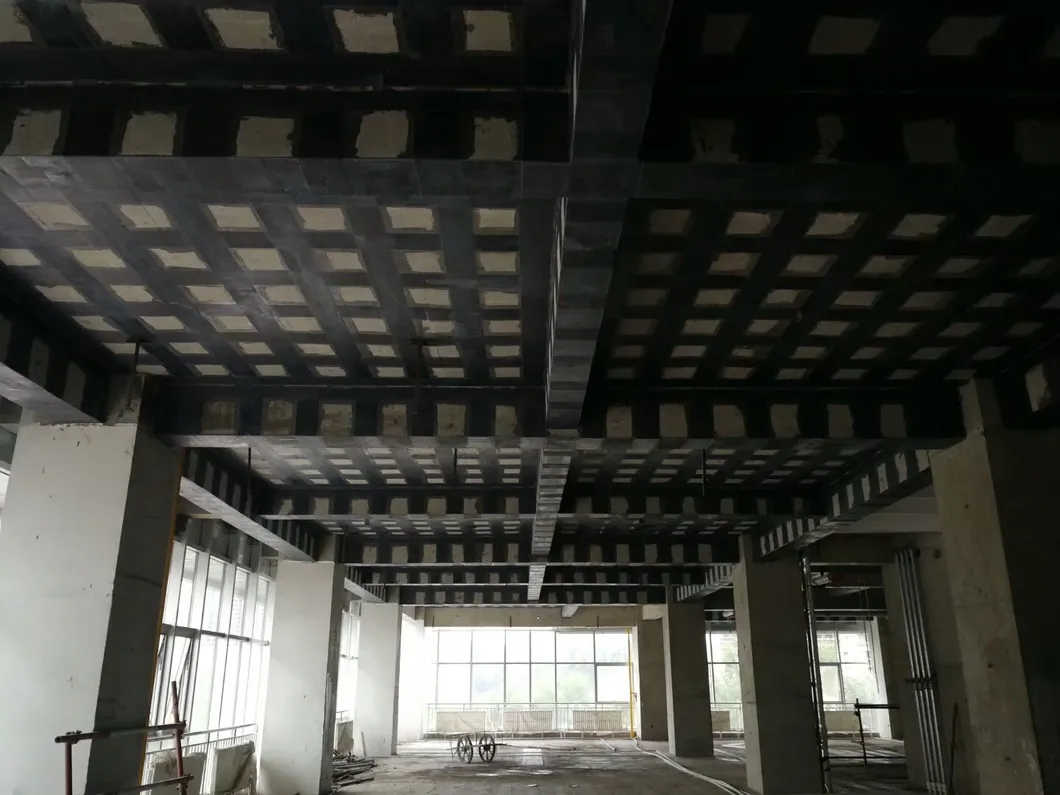

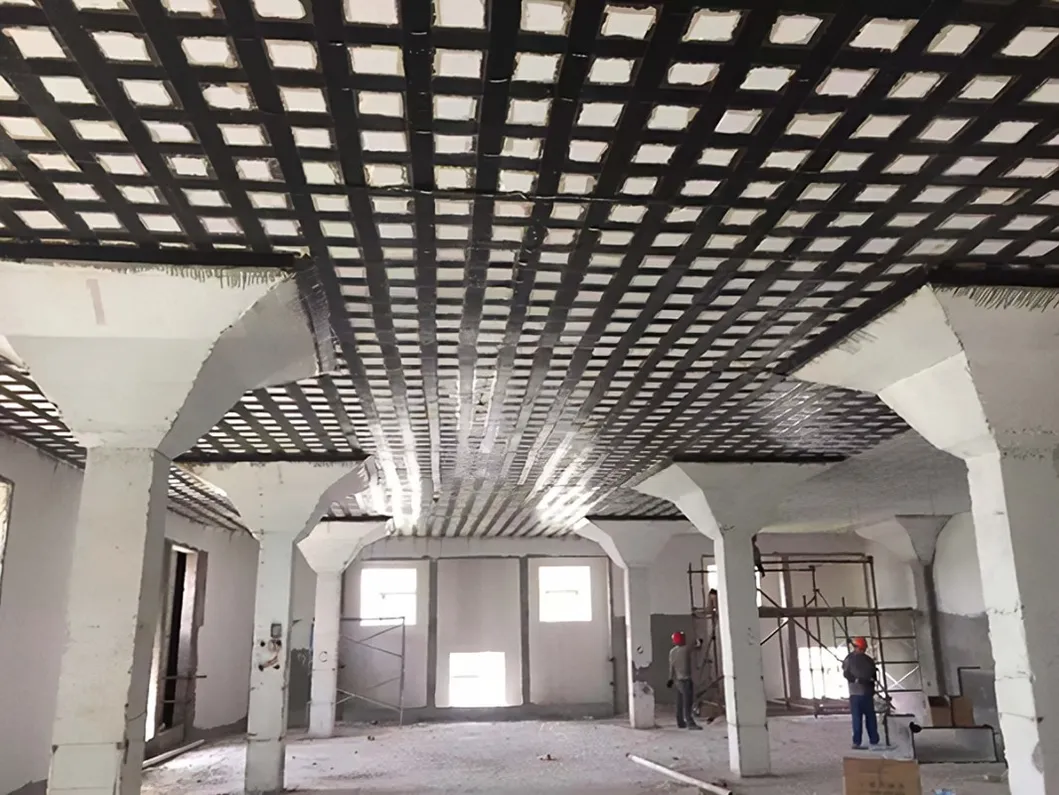

UD carbon fabric is essential for:

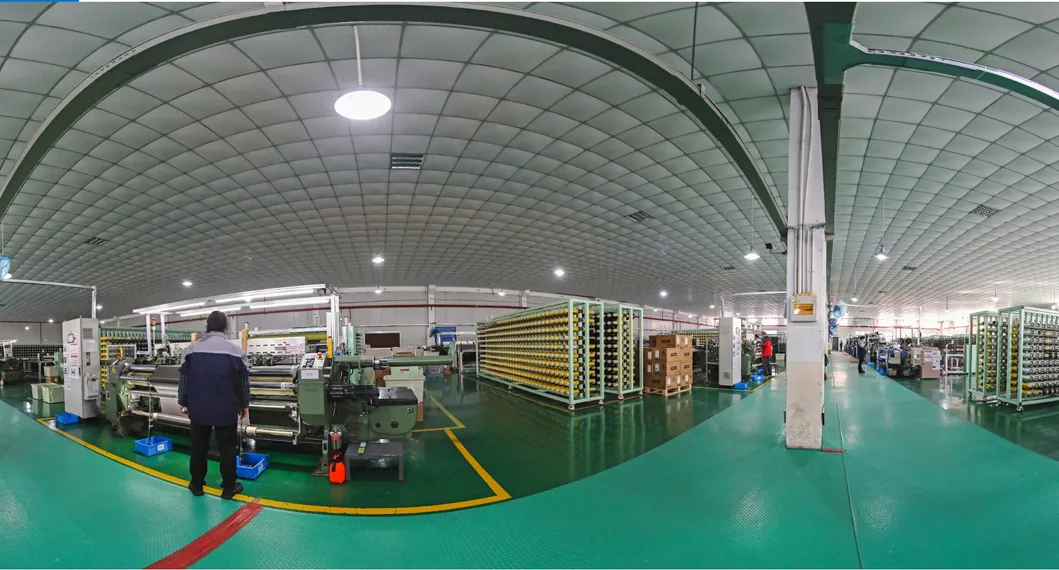

We specialize in the research, development, and production of high-quality woven textiles in all typical weave styles, including unidirectional, plain, twill, satin, and jacquard. Our materials include carbon fibers, glass fibers, and aramid fibers. Our state-of-the-art facilities and experienced team ensure exceptional products that meet evolving market demands.

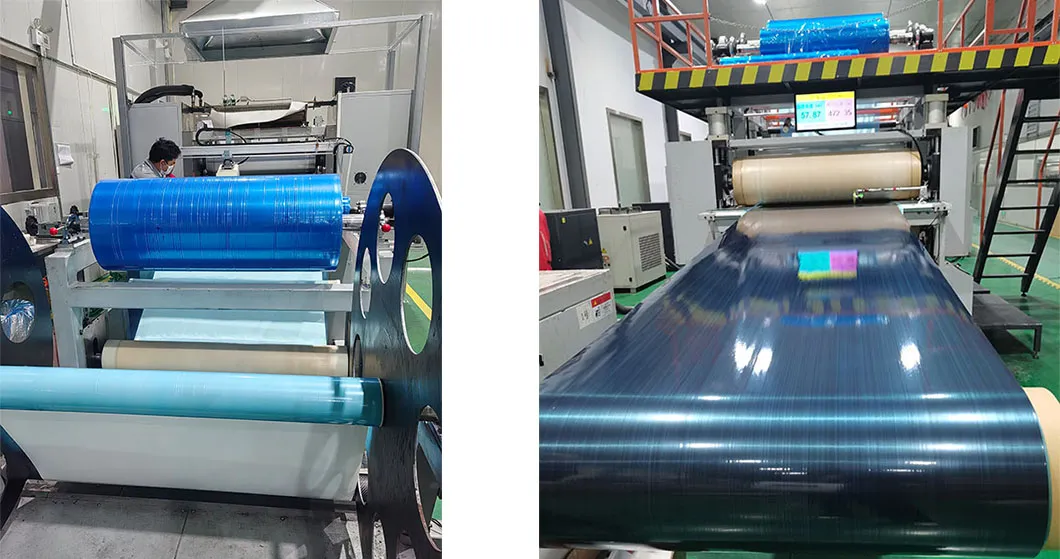

Prepreg Workshop: Our facility features 2 advanced production lines ensuring peak efficiency and high-quality output for aerospace, marine, renewable energy, and automotive industries.

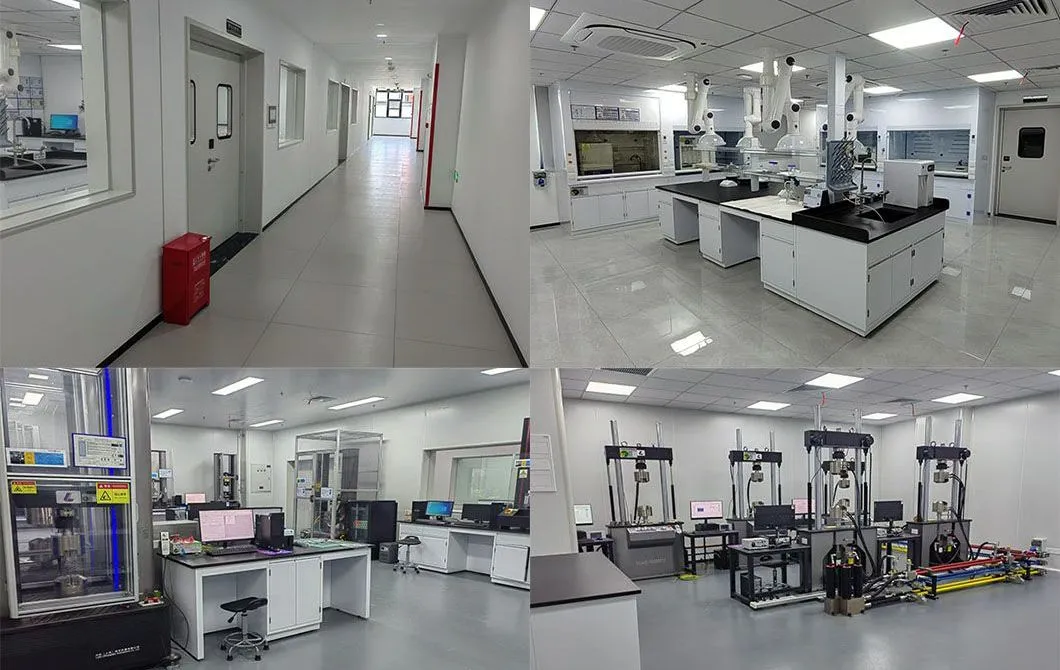

Our CNAS accredited testing center covers 3,100 square meters. We maintain strict control from raw materials to finished products, including tests for tensile strength, compression, bending, fatigue, and chemical analysis.
Certifications & Patents: IATF16949 Certified. We hold 31 patents, including 9 invention patents, 3 design patents, and 19 utility model patents.
