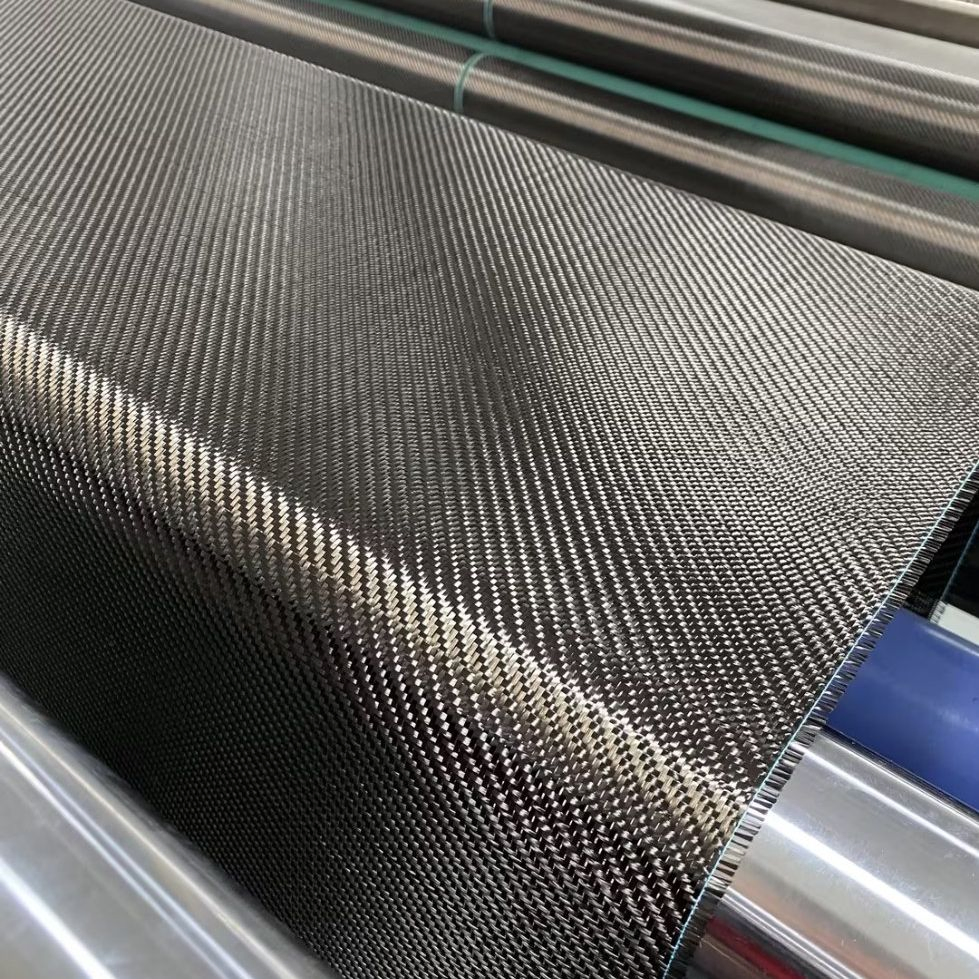

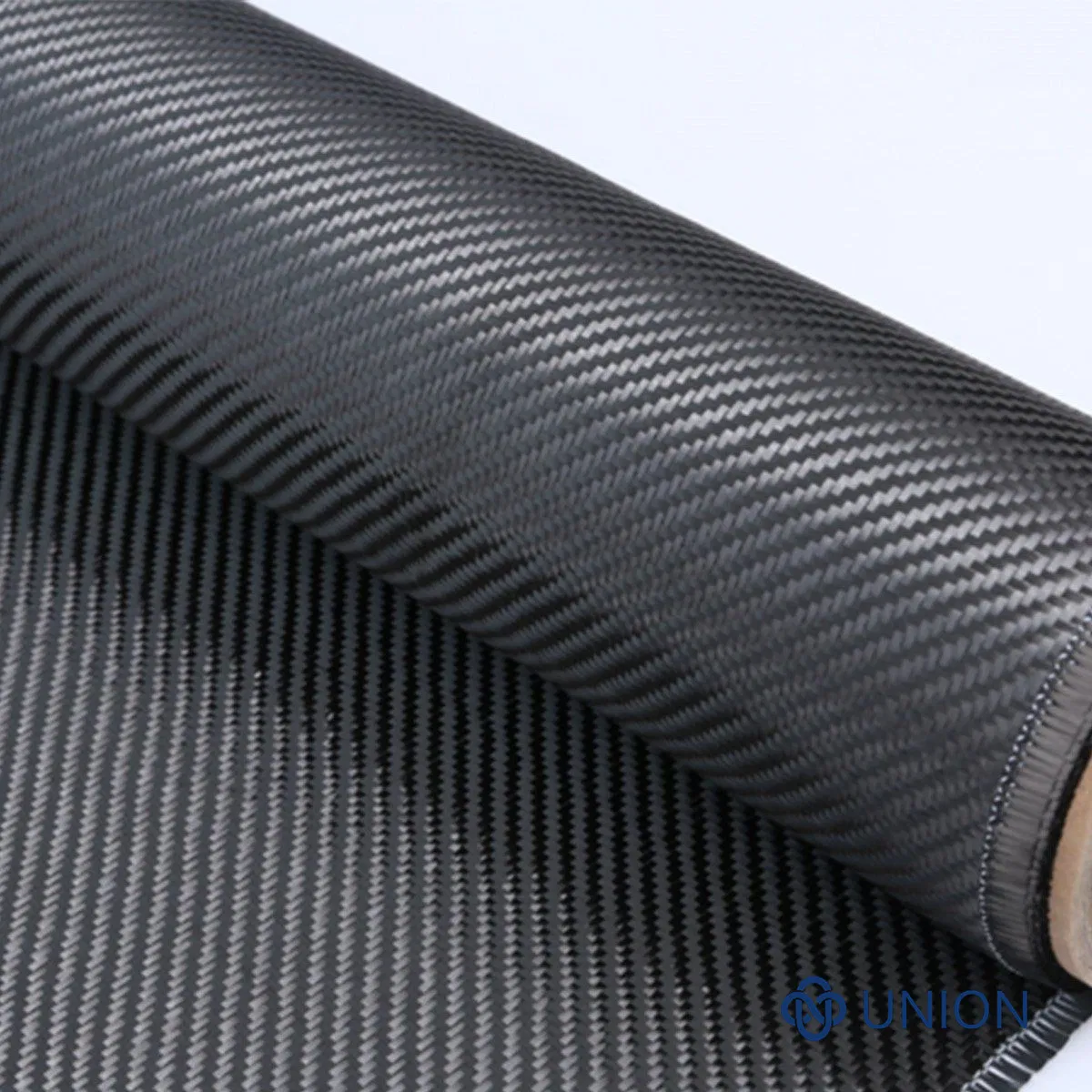

3K 200GSM Twill Carbon Fiber Fabric for Wing Arm of Drones Uav

ℹ️

Basic Information

Model NO.

3K-CT200

Performance

High-Strength Type

State

Filament

Mechanical Property

High-Performance Type

Roll Length

100m

Thickness

0.3mm

Yarn

3K

Area Weight

200GSM

Weave

Twill Weave

Production Capacity

100,000 m²/Month

📝

Scenario Description

Carbon fiber fabric is a lightweight, high-strength material that forms carbon fiber products when combined with epoxy resin. Particularly, the 3K 200GSM variant stands out with the widest usage and application scope.

Main Applications

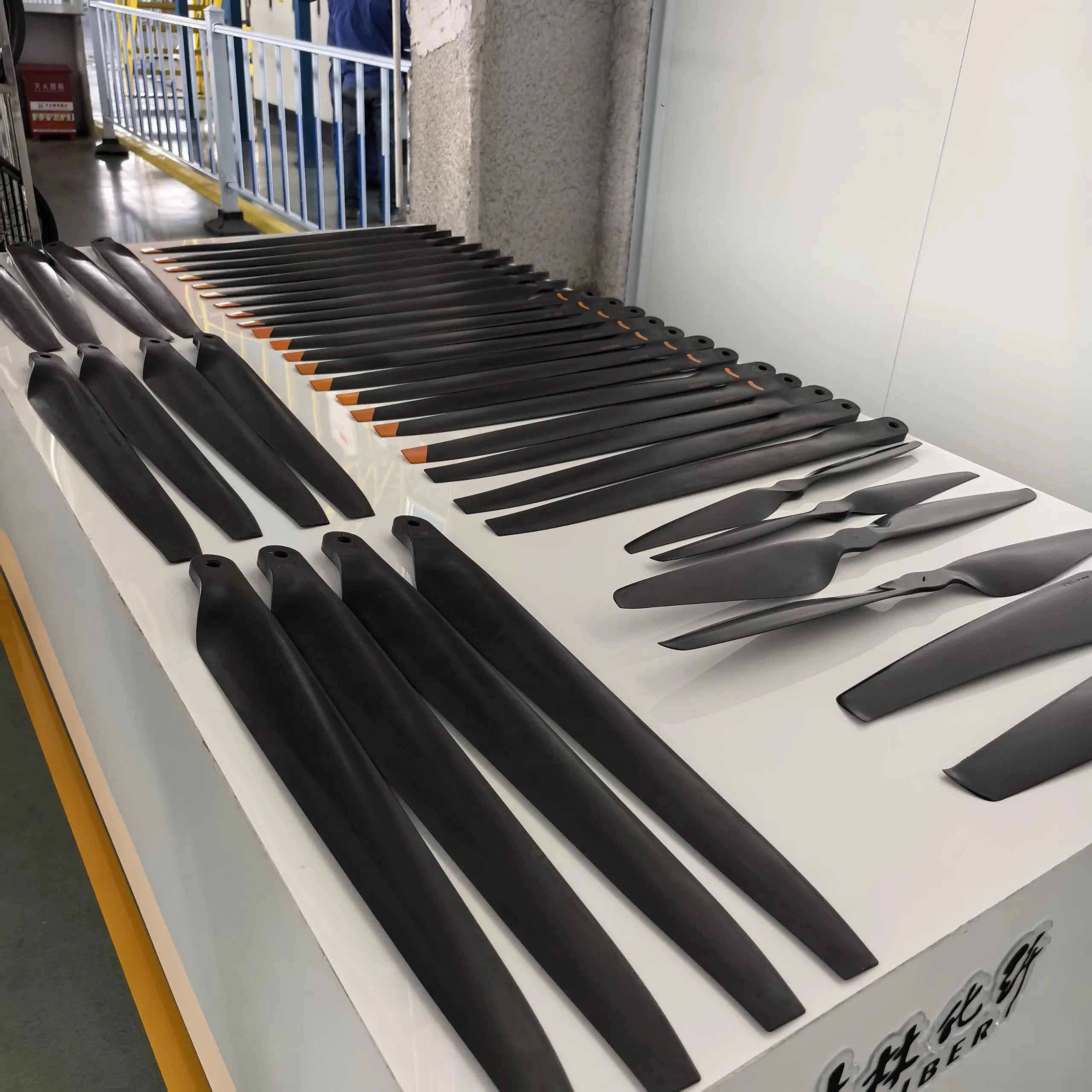

Ideally suited for FPV drones, fixed-wing UAVs, multi-rotor UAVs, aerospace, sports equipment, automobiles, bicycles, surfboards, rail transit, yachts, medical devices, and other fields requiring exceptional lightweight properties, high strength, weather resistance, and corrosion resistance.

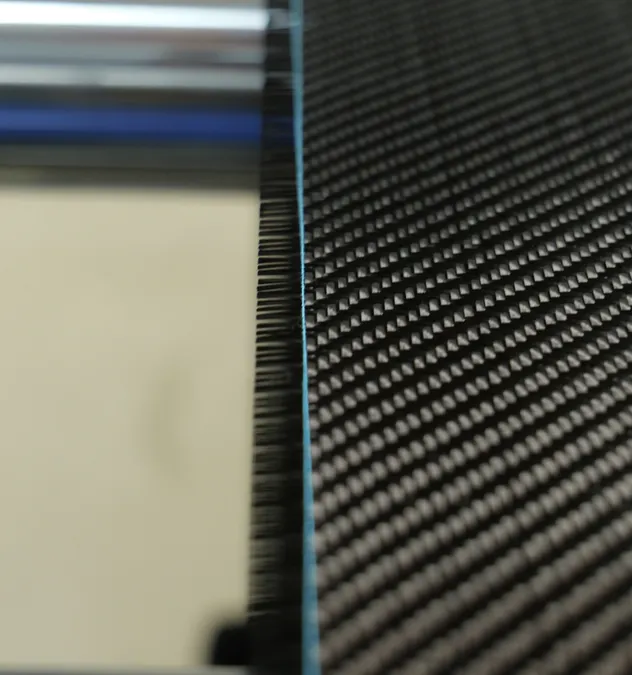

3K 200GSM Carbon Fiber Fabric Application 1

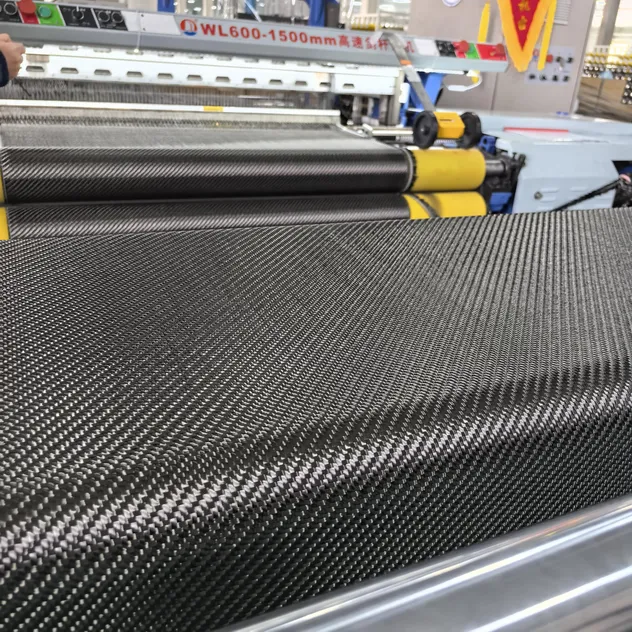

3K 200GSM Carbon Fiber Fabric Application 2

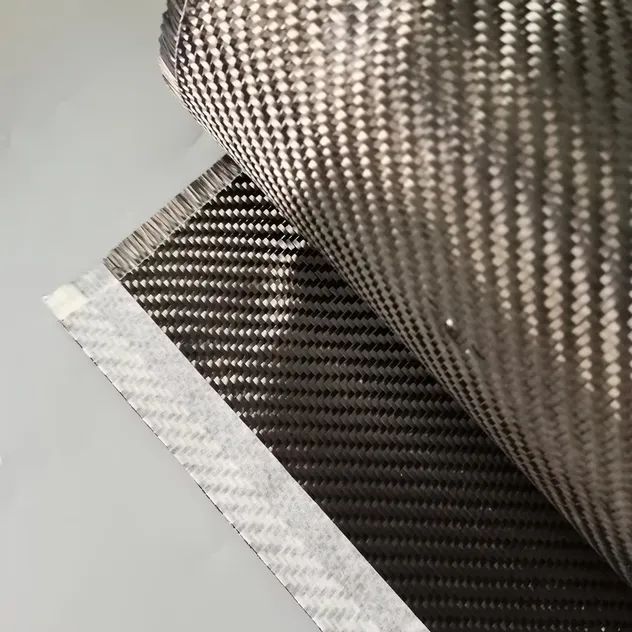

3K 200GSM Carbon Fiber Fabric Application 3

📊

Technical Specification

Product Name		3K 200g Carbon Fiber Twill Woven Cloth
Product Code		CT 3K 200
Structure		Weft	Warp
Yarn Spec	Type	Carbon Fiber	Carbon Fiber
	Linear Density	3K	3K
Weaving Parameters	Density (root/cm)	5.0±0.3	5.0±0.3
	Area Weight (g/m²)	100±6	100±6
	Total Weight	200±10 g/m²
Tensile Strength		≥3500 Mpa
Width / Roll Length		1000mm / 100m (Customizable)

📦

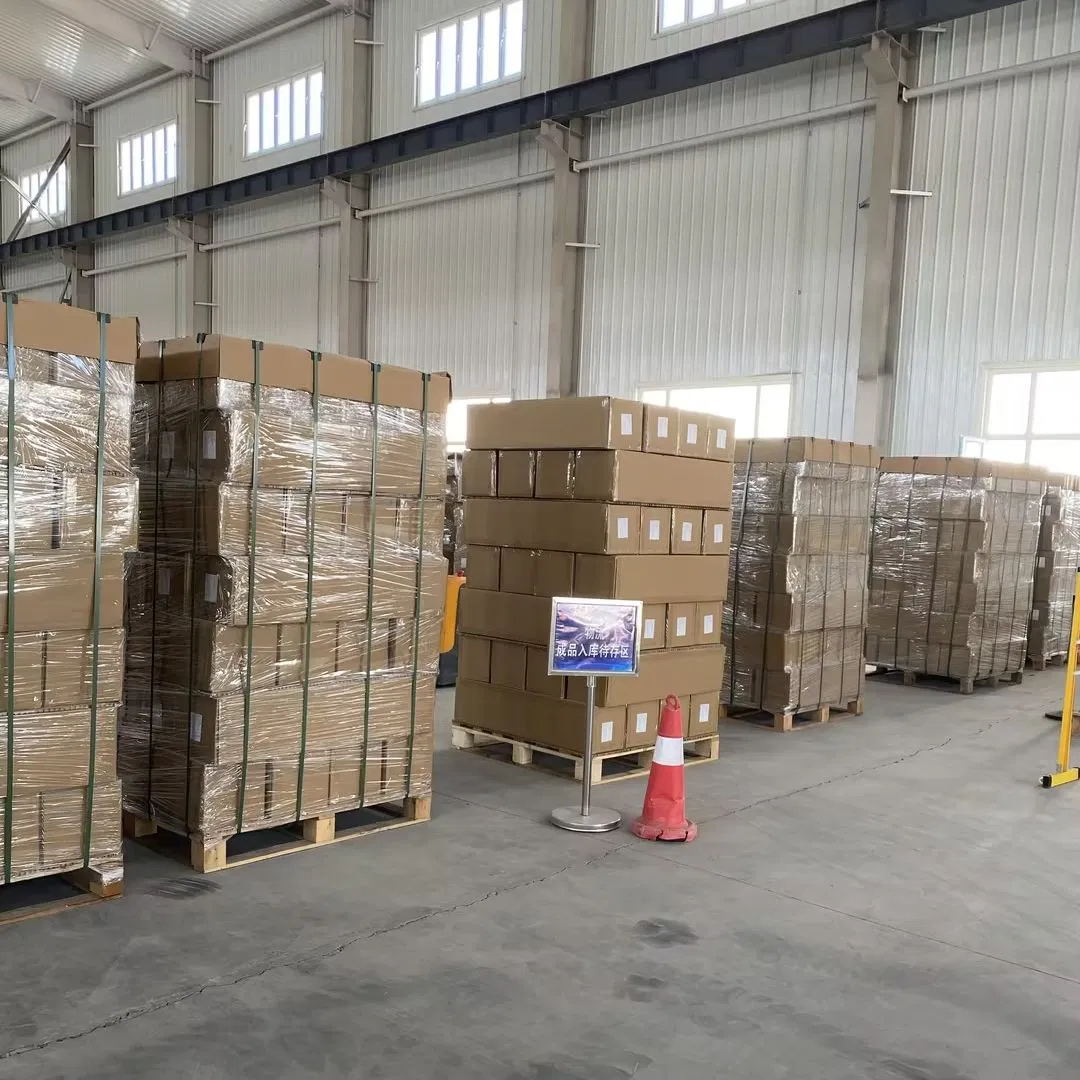

Packing & Delivery

✓Cartoon Size: 255*255*1050mm
✓Pallet Size: 1100*1100*2200mm
✓Details: 4 rolls/Layer, 8 layers/pallet, total 32 rolls/pallet
✓Protection: Overhead packaging prevents surface shifting or indentation defects.
✓Waterproofing: Wrapped with bubble film and a waterproof bag.

🏭

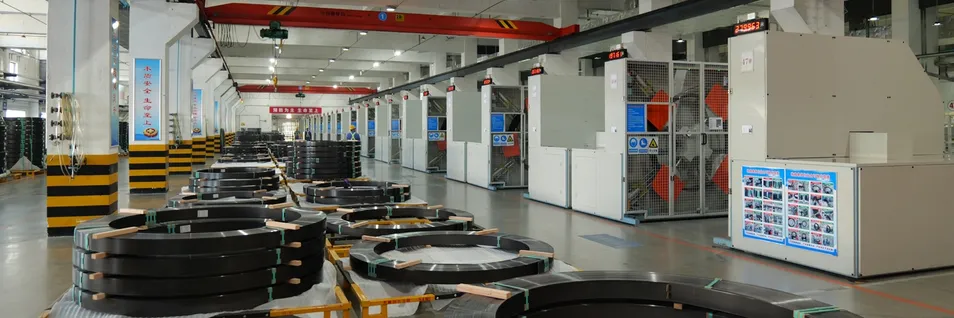

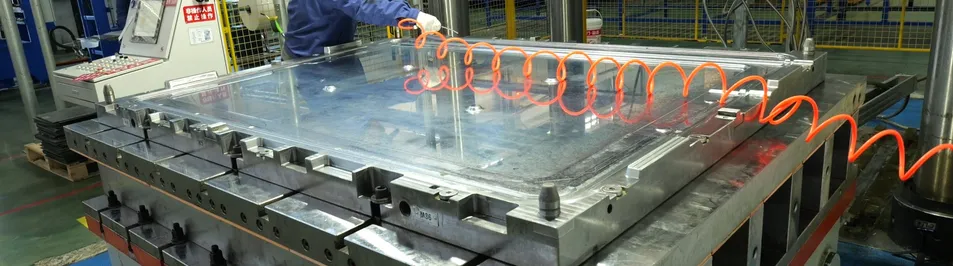

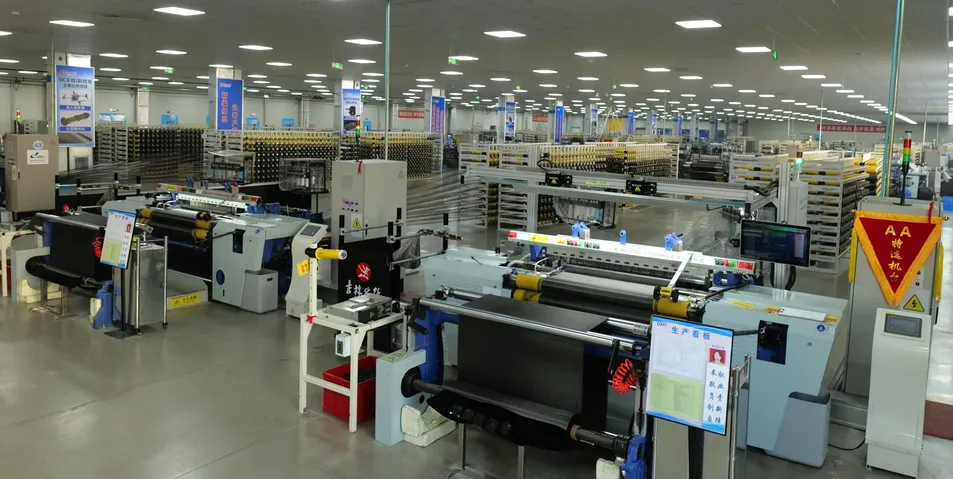

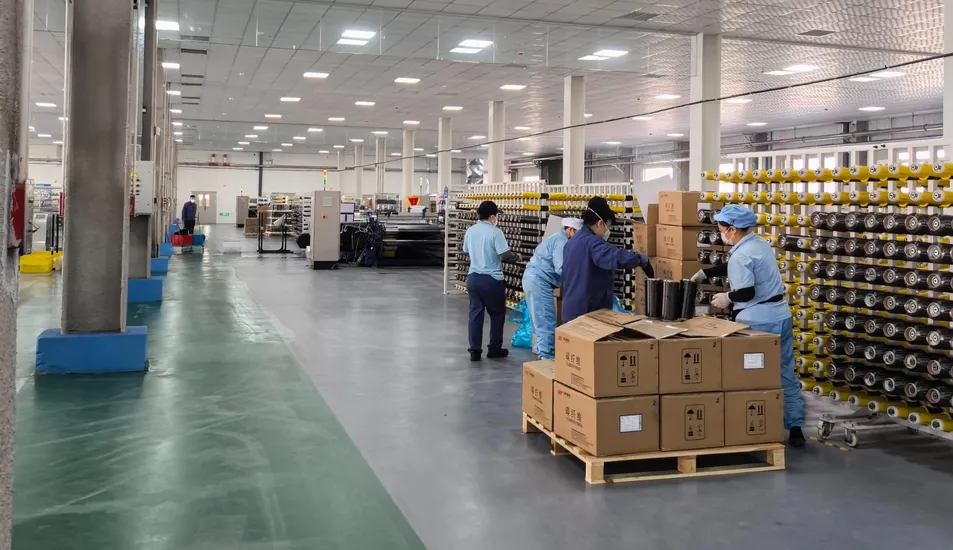

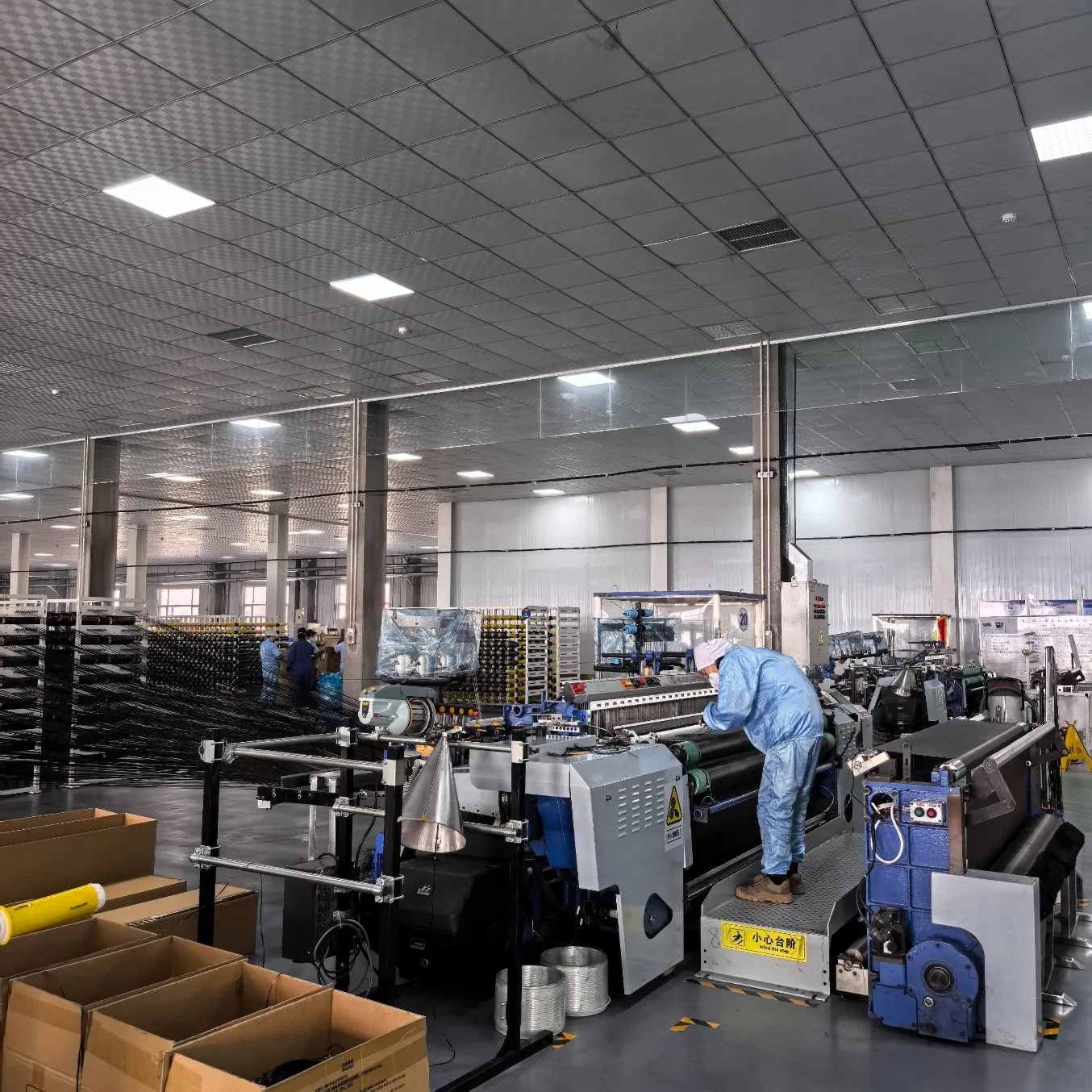

Factories and Production Equipment

🔗

Related Products

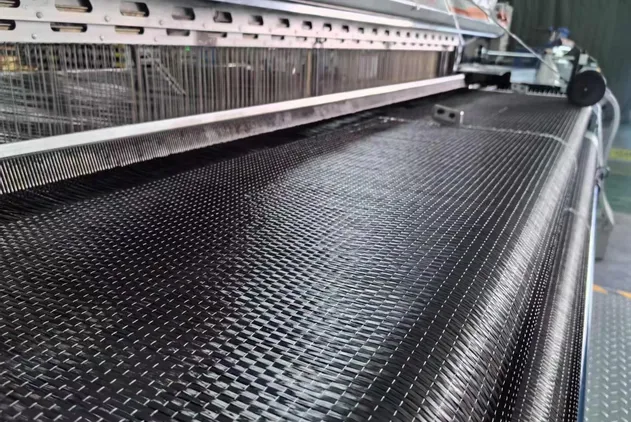

UD200 Carbon Fiber Fabric

Unidirectional 150GSM/200GSM/300GSM

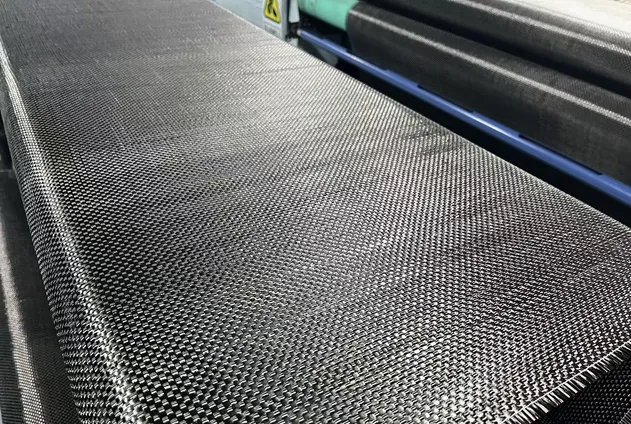

12K 420GSM Carbon Fiber Fabric

1K 120GSM / 3K 200GSM / 6K 300GSM

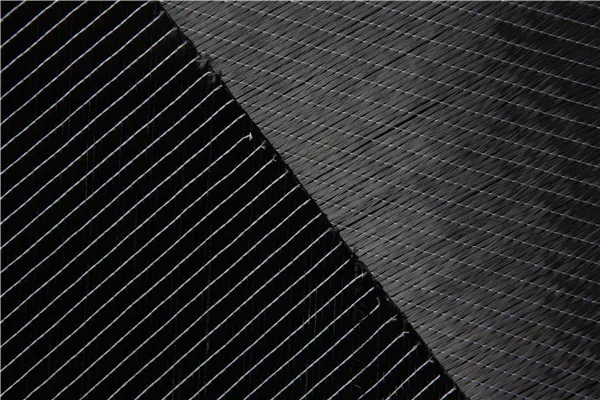

Biaxial Carbon Fabric

±45° 200-600GSM / 0/90° 400GSM

⭐

Why Choose Our Solutions

1Massive Production: Leading global capacity, set to double by 2026.
2Fast Delivery: Ready-to-ship inventory of 300,000 to 500,000 square meters.
3Stable Quality: Intelligent assembly line manufacturing with unified standards.
4Competitive Pricing: Direct manufacturing advantages for large order quantities.
5Market Trust: Serving a vast number of active professional customers globally.

📜

Quality Certifications

❓

Frequently Asked Questions

Q: Which resin can bond best with carbon fiber fabric? A: Epoxy resin offers the best bonding performance and structural integrity for carbon fiber composites.

Q: What is the typical delivery time for orders? A: With over 500,000m² in stock, we typically deliver within 3 days after payment is confirmed.

Q: Do you have a Minimum Order Quantity (MOQ)? A: We have no MOQ requirements. We can also provide free A4-sized samples for quality testing.

Q: What makes your wet spinning process superior? A: Our wet spinning process ensures excellent resin impregnation, lower processing costs, and significantly reduced scrap rates compared to traditional methods.

Q: Is 3K 200GSM carbon fiber suitable for outdoor automotive parts? A: Yes, it offers exceptional weather and corrosion resistance, making it ideal for automobile, yacht, and aerospace applications.

Q: Can the width and roll length be customized? A: Absolutely. While standard width is 1000mm and length is 100m, both parameters can be customized to fit your specific production needs.
