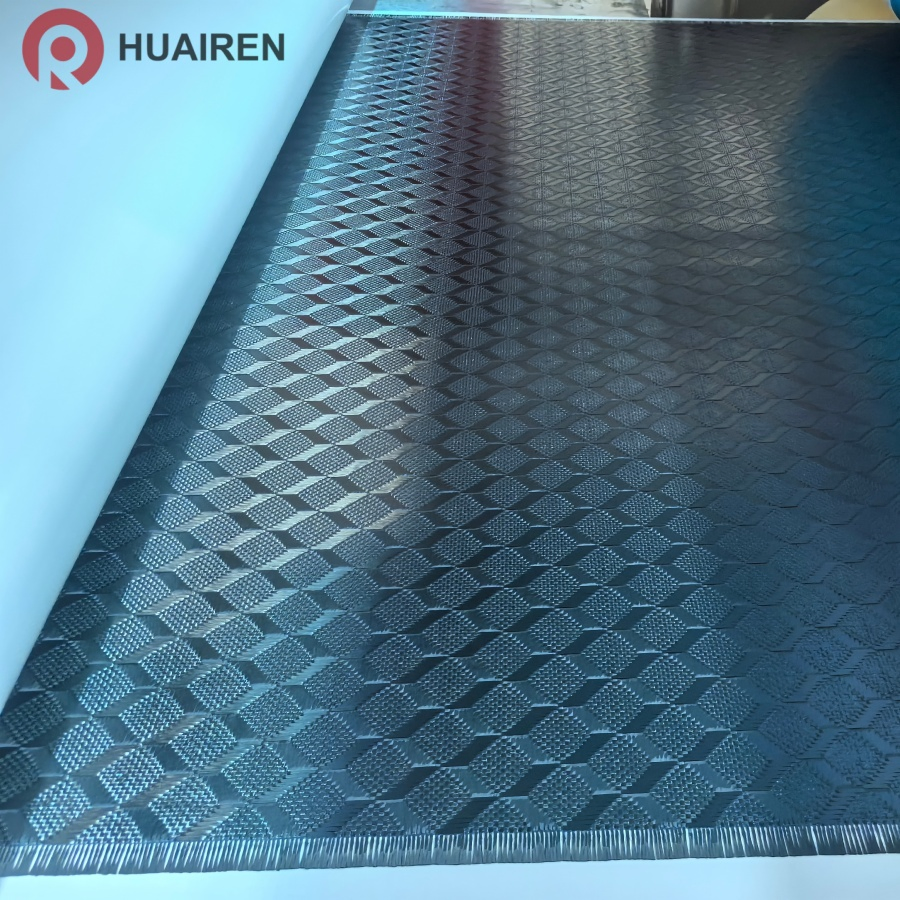

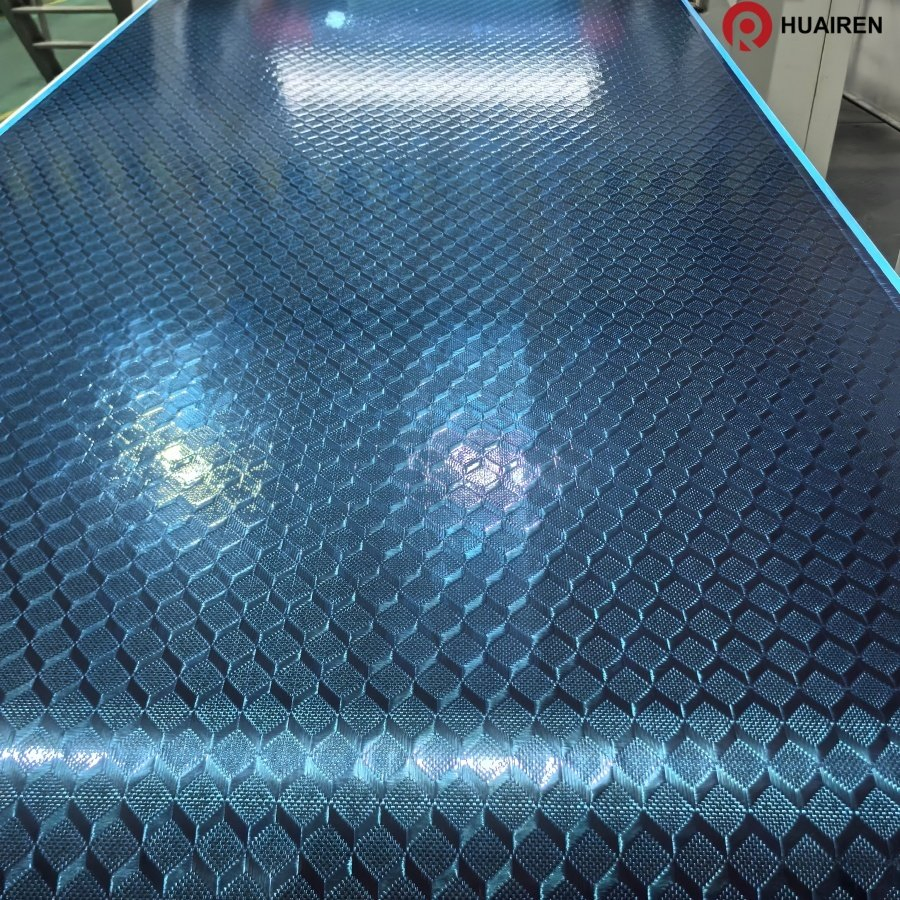

3K 240GSM 45%RC Jacquard Carbon Fiber Jacquard Fabric Prepreg for Auto Parts

📑 Basic Information

Model NO.

30025

Performance

High-Strength Type

State

Prepreg Fabric Fabric

Mechanical Property

High-Performance Type

Carbon Type

Jacquard Weave

Filament Count

3K

Width

100cm

Roll Length

100m or Customized

Material

Carbon Fabric + Resin

Specification

240g/sqm

Capacity

260,000 sqm/Month

HS Code

6815131090

🔍 Product Description

Technical Specifications
Item No.	30025	Carbon Yarn	3K
Area Weight	240g/sqm	Material	Carbon Fabric+Resin
Roll Width	100cm	Resin Content	35% - 45%

🚀 Advantages of Prepreg Carbon Fabric:

Controlled Resin Content for optimized weight
Superior Mechanical Properties and high strength
High Manufacturing Efficiency
Excellent Consistency and Repeatability
Improved Aesthetics for finished parts
Environmental and Safety Benefits during handling

❄️ Storage Temperature: Typically stored at -18°C (0°F) or lower in a freezer to prevent premature curing and maintain shelf life.

📊 Technical Parameters

Fiber Property	Value	Resin Property (Epoxy)	Value
Tensile Strength	≥ 4000 MPa	Tensile Strength	60~70 MPa
Tensile Modulus	220~260 GPa	Bending Strength	100~120 MPa
Elongation	≥ 1.7%	Glass Transition (TG)	125~135 ºC

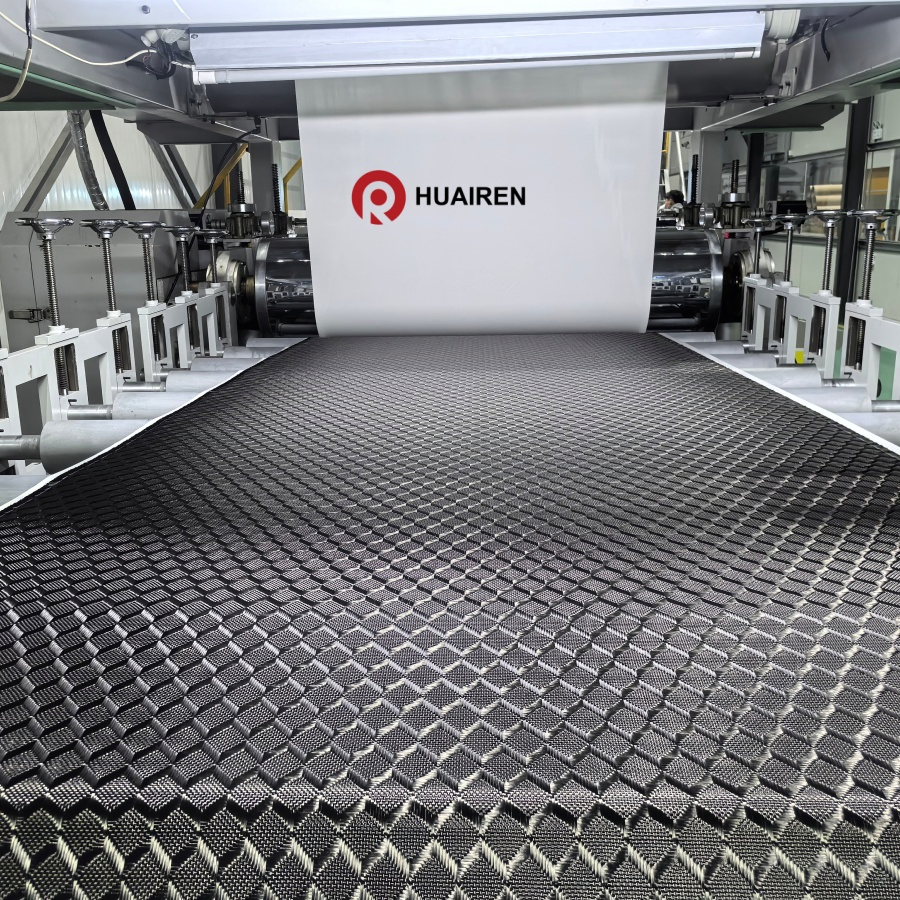

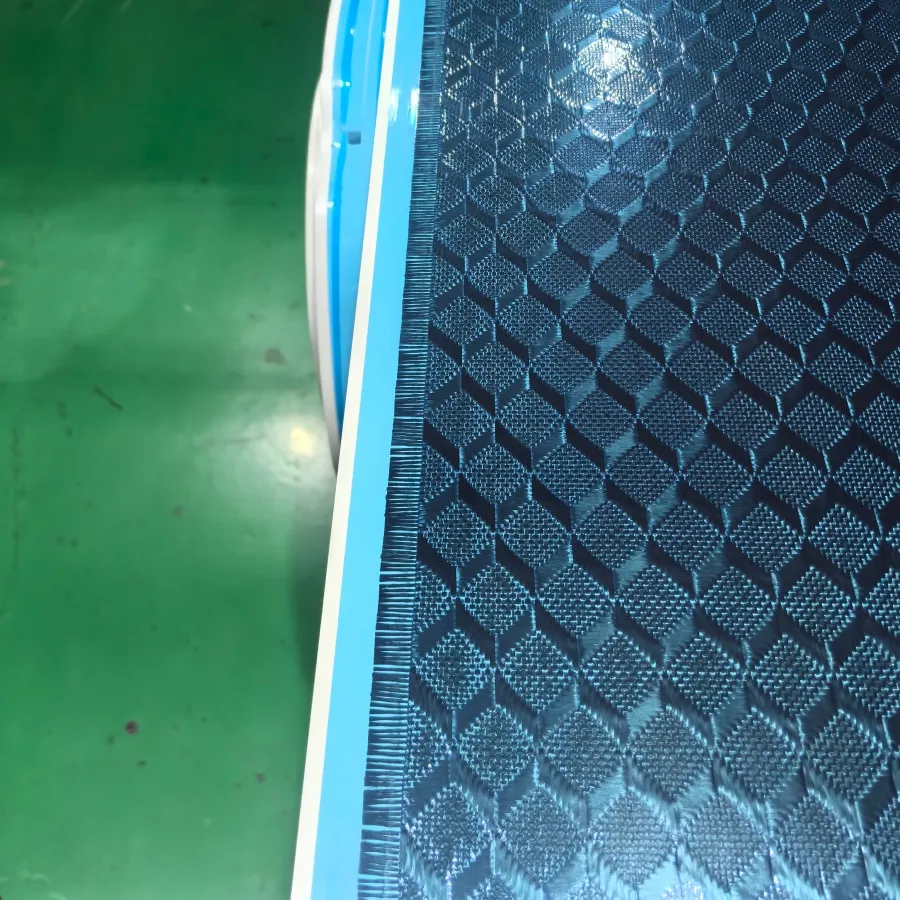

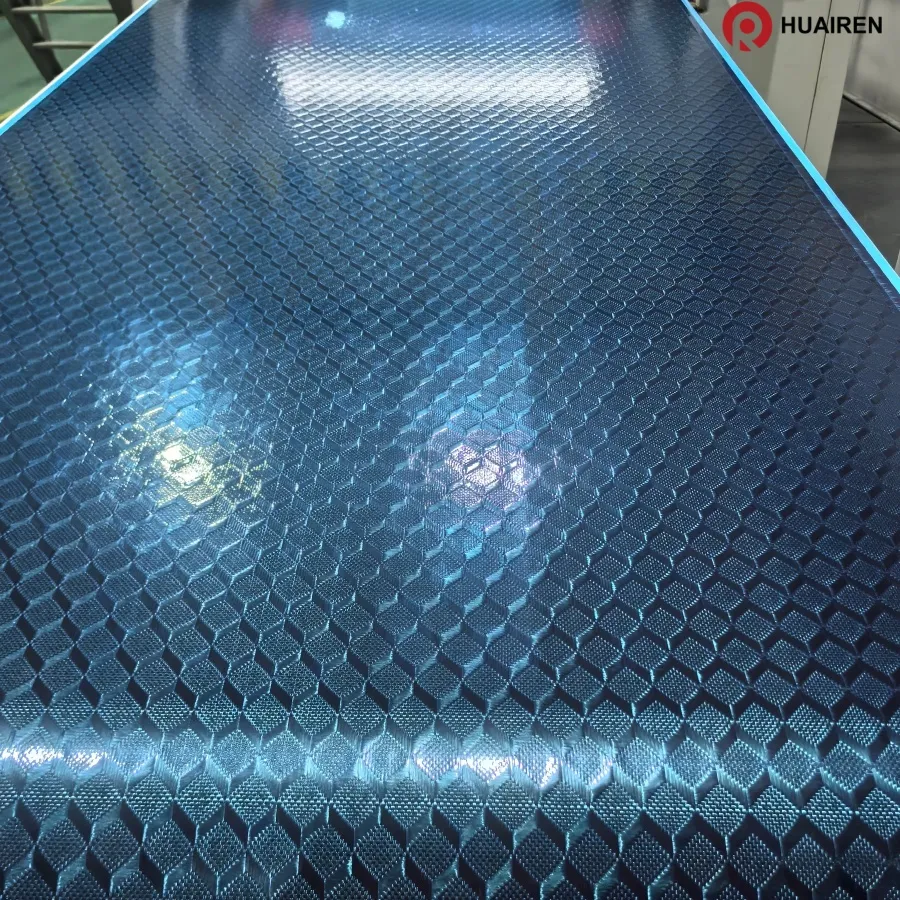

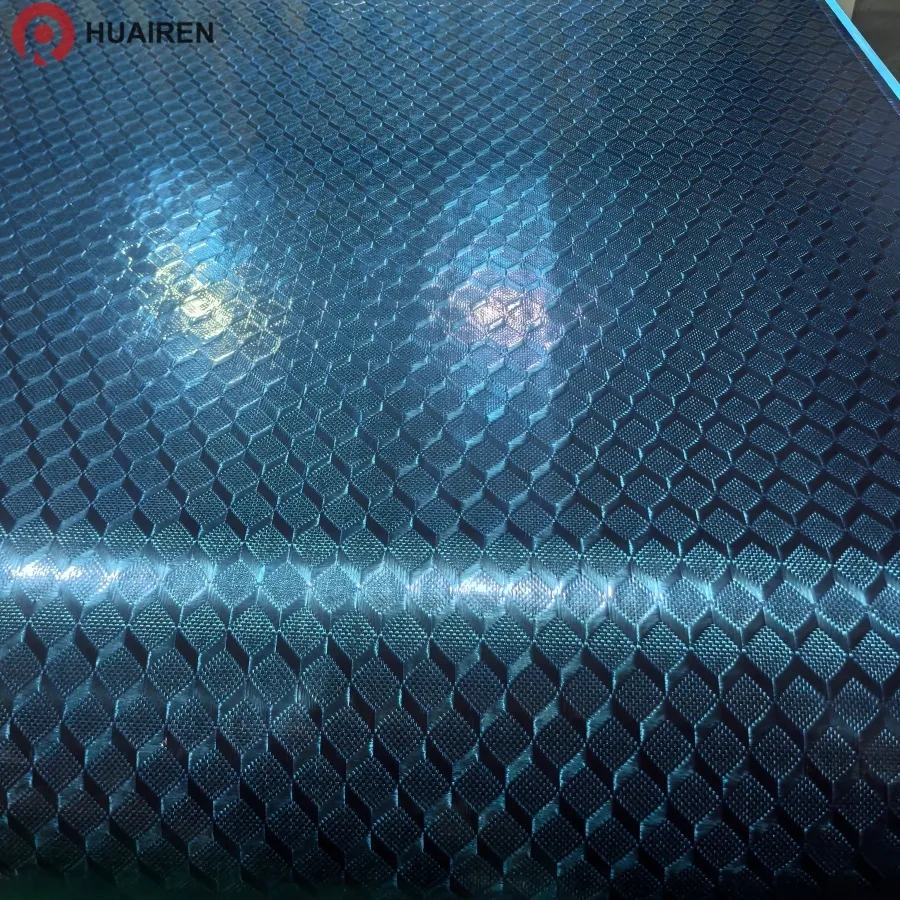

📸 Detailed Product Photos

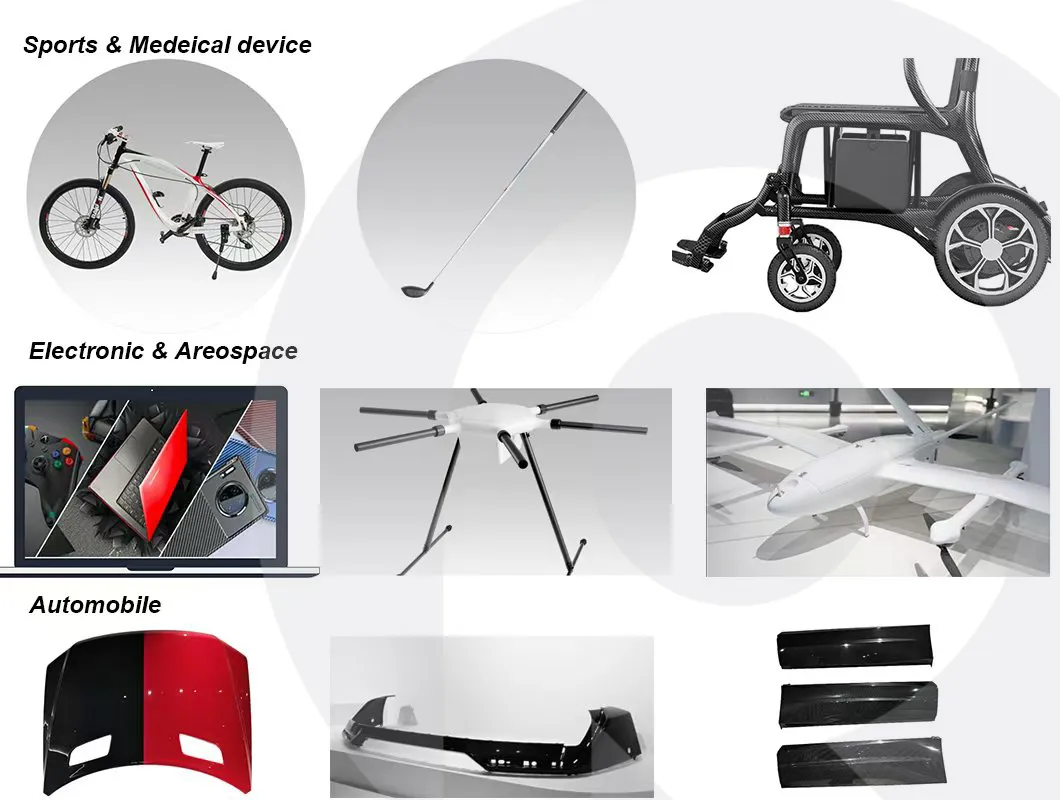

🏎️ Industry Applications

Industry	Application Parts
Aerospace & Aviation	Wings, fuselages, helicopter blades, satellite components
Automotive	Sports car chassis, body panels, electric vehicle components
Sports & Recreation	Bicycles, tennis rackets, golf clubs, hockey sticks, kayaks
Civil Engineering	Bridge reinforcement, building retrofitting, seismic retrofitting
Electronics & Robotics	Drone frames, laptop casings, robotic arms

🏭 Production & Facilities

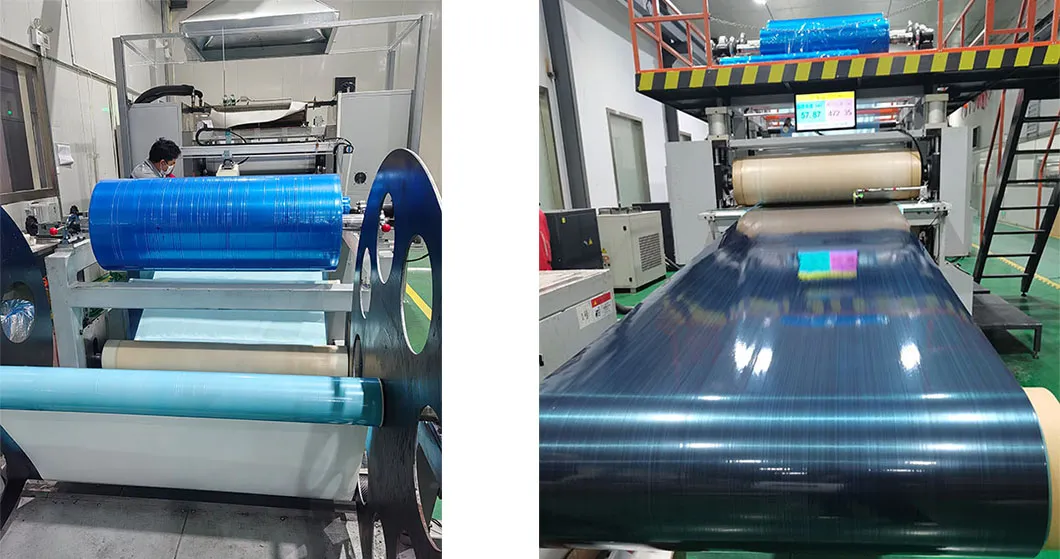

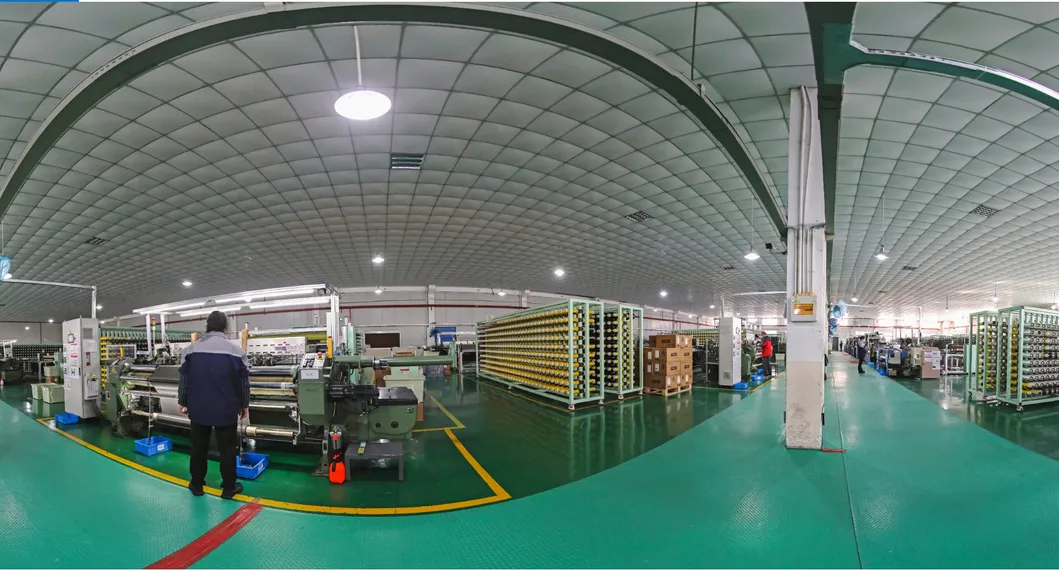

Specializing in high-quality woven textiles including unidirectional, plain, twill, satin, and jacquard styles. Utilizing high-performance fibers like carbon, glass, and aramid fibers. Our facilities include state-of-the-art prepreg production lines and advanced management systems.

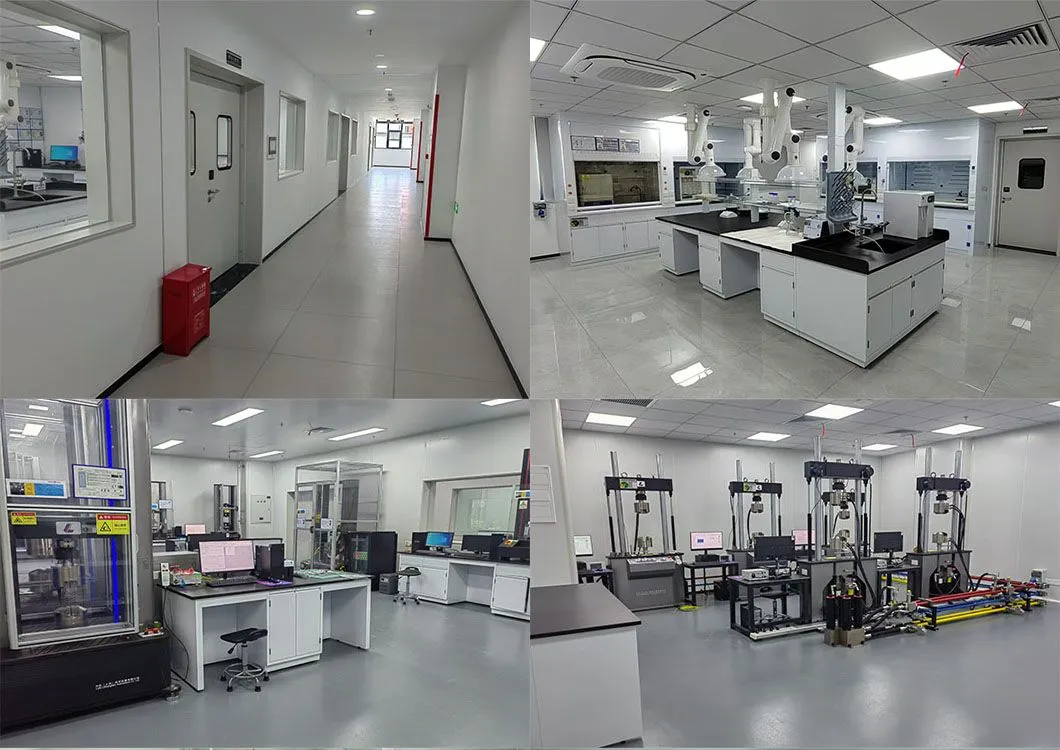

🧪 Test Laboratory & Quality Control

Our testing center covers 3,100 square meters with CNAS accreditation. Capabilities include mechanical properties, weather resistance, and chemical analysis. Key tests: tensile, compression, bending, fatigue, fiber content, and glass transition temperature.

Certification: IATF16949 compliant. Holding 31 patents, including invention and utility model patents.

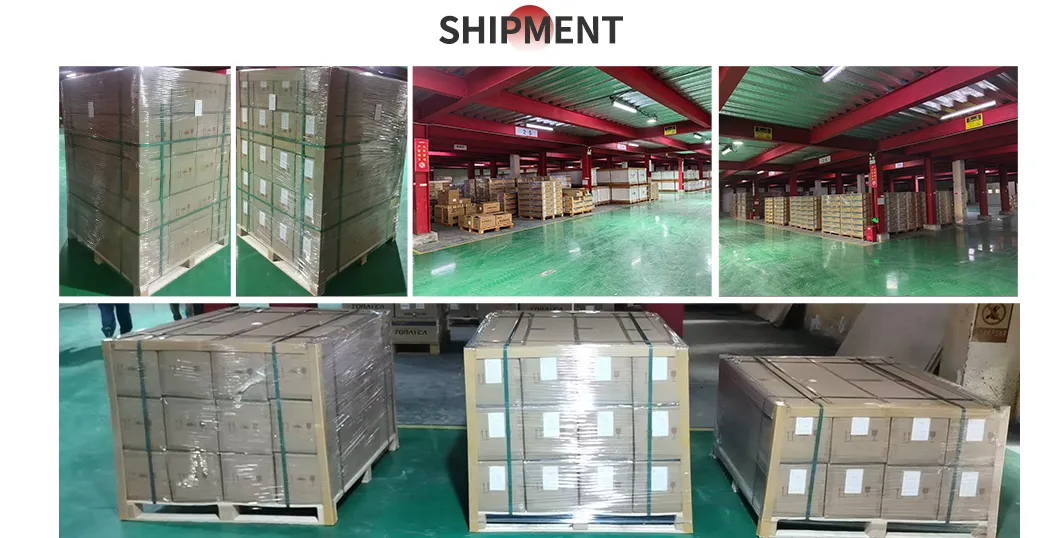

📦 Packaging & Shipping

❓ Frequently Asked Questions

Q1: Are you a factory or a trading company? A: We are a professional factory established in 2014, specializing in the manufacture of carbon fiber fabric and prepreg carbon fabric.

Q2: Can you offer customized services? A: Yes, we provide both OEM and ODM services. Please provide your specific requirements for a tailored solution.

Q3: Do you have a standard product list? A: Due to the diverse needs of our clients, we provide individual quotes based on specific requirements rather than a standard list.

Q4: What is the typical lead time for orders? A: The lead time is generally between 7 to 35 days, depending on the order quantity and stock availability.

Q5: Can I request samples for quality evaluation? A: Yes, we provide free samples (typically less than 1 meter) for quality testing and evaluation.

Q6: What are the shipping and loading port options? A: Our primary loading port is Shanghai, but other ports can be negotiated based on your needs.
