📊 Basic Information
| Model NO. | carbon fiber rod | Performance | High-Strength Type |
| State | Filament | Mechanical Property | High-Performance Type |
| Fiber Type | 3K / 6K / 12K/ 24K | Weave Style | Twill / Plain / Ud |
| Surface Finish | Glossy / Matte / Sanded | Thickness Tolerance | ±0.1mm |
| Density | 1.55 - 1.6 G/Cm³ | Tensile Strength | ≥ 3500 MPa |
| Tensile Modulus | ≥ 230 Gpa | Heat Resistance | -40℃ to +120℃ |
| Electrical Conductivity | Conductive | Machining Service | CNC Cutting / Drilling Available |
| Application Fields | Drone, Automotive, Marine, Sporting Goods | MOQ | 1 Piece (for Sample) |
| Warranty | 12-24 Months | Origin | China |
📝 Product Description

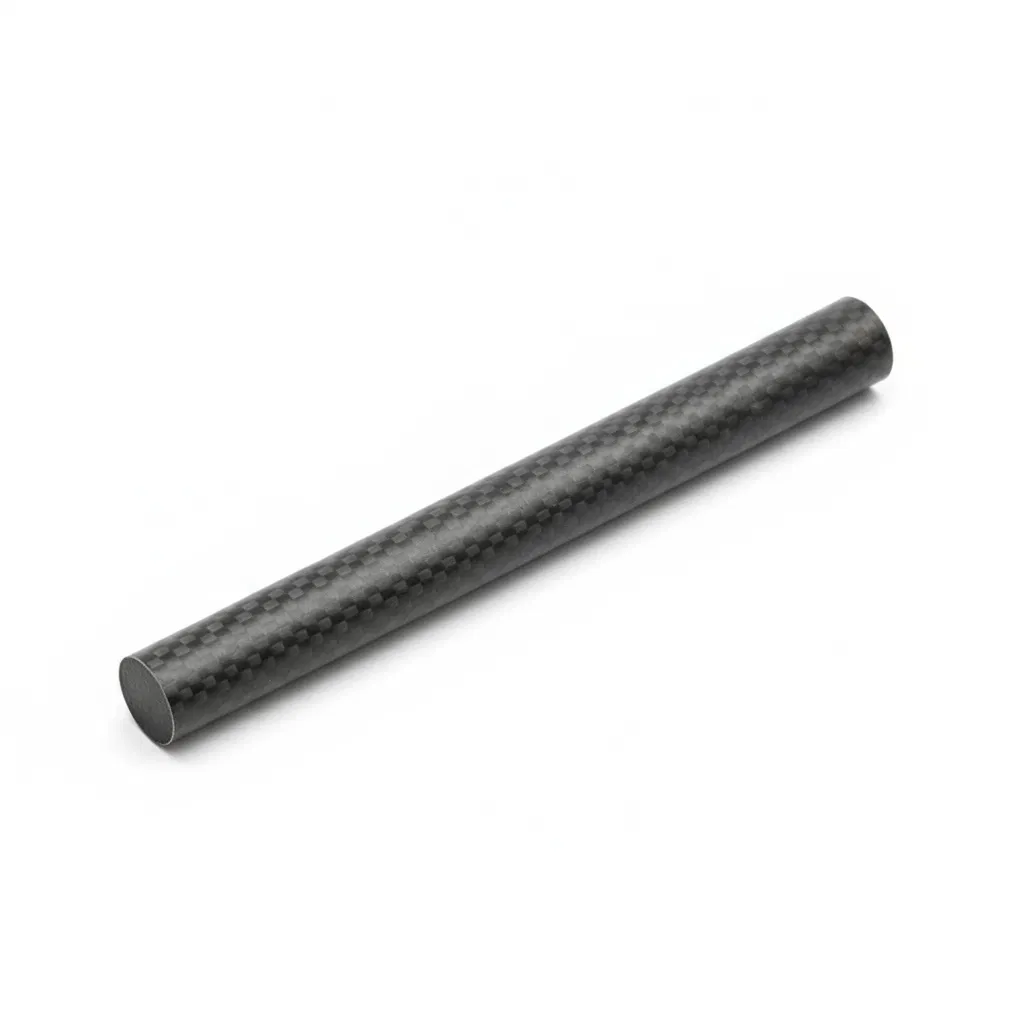

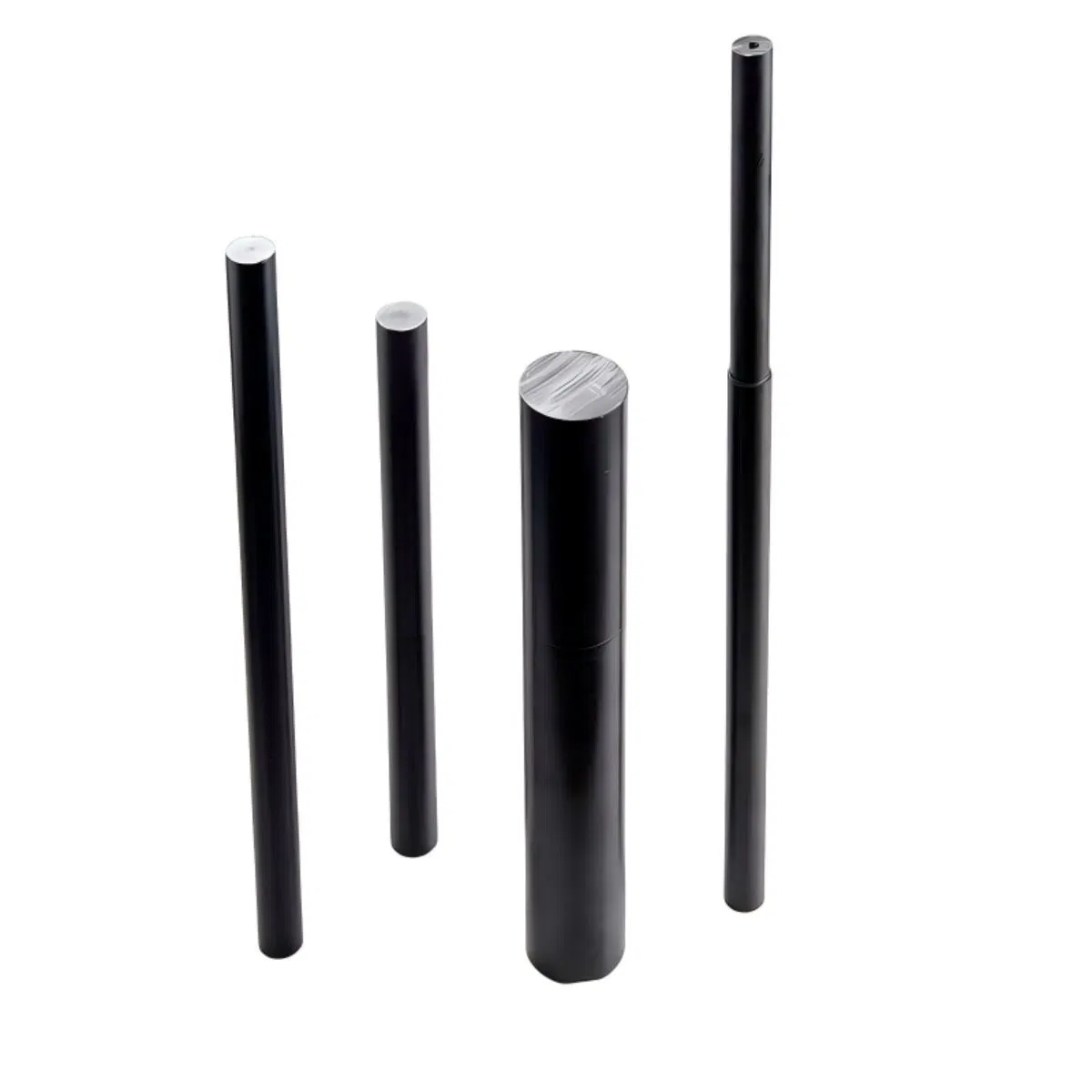

The 8mm 3K twill matte carbon fiber rod represents a pinnacle of composite engineering, combining exceptional mechanical properties with refined aesthetics. This precision-manufactured rod features a distinctive 3K twill weave pattern that not only enhances structural integrity but also provides superior load distribution across the entire cross-section. The 8mm diameter specification offers an optimal balance between weight efficiency and rigidity, making it particularly suitable for applications requiring high stiffness-to-weight ratios.
The 3K carbon fiber construction utilizes 3,000 filaments per tow, creating a dense and uniform fiber architecture that maximizes strength while minimizing potential weak points. The twill weave pattern provides enhanced torsional strength compared to unidirectional layouts, offering superior resistance to twisting forces and multi-directional stress loads. The matte surface finish reduces surface reflectivity and provides a professional, understated appearance, offering improved grip characteristics and better adhesion properties when bonding.
⭐ Key Features & Benefits
- 3K Twill Surface Weave: Added resistance to scratches and wear.
- Lightweight & High Strength: Five times stronger than steel at a fraction of the weight.
- Dimensional Stability: Maintains consistent geometry under temperature shifts.
- Low Thermal Expansion: Ideal for precision assemblies.
- Corrosion Resistant: Performs reliably in marine and industrial environments.
- Superior Fatigue Performance: Handles cyclic loads without deformation.
⚙️ Technical Specifications
| Property | Description |
|---|
| Material Type | Carbon Fiber Reinforced Polymer (CFRP) |
| Surface Texture | 3K Twill Weave |
| Manufacturing Process | Pultrusion and high-temperature curing |
| Density | ~1.55 g/cm³ |
| Tensile Strength | ≥ 900 MPa |
| Tensile Modulus | ~60 GPa |
| Operating Temperature | -40°C to +120°C |
| Standard Lengths | 1000mm / 2000mm / Custom |
🛠️ Material & Manufacturing

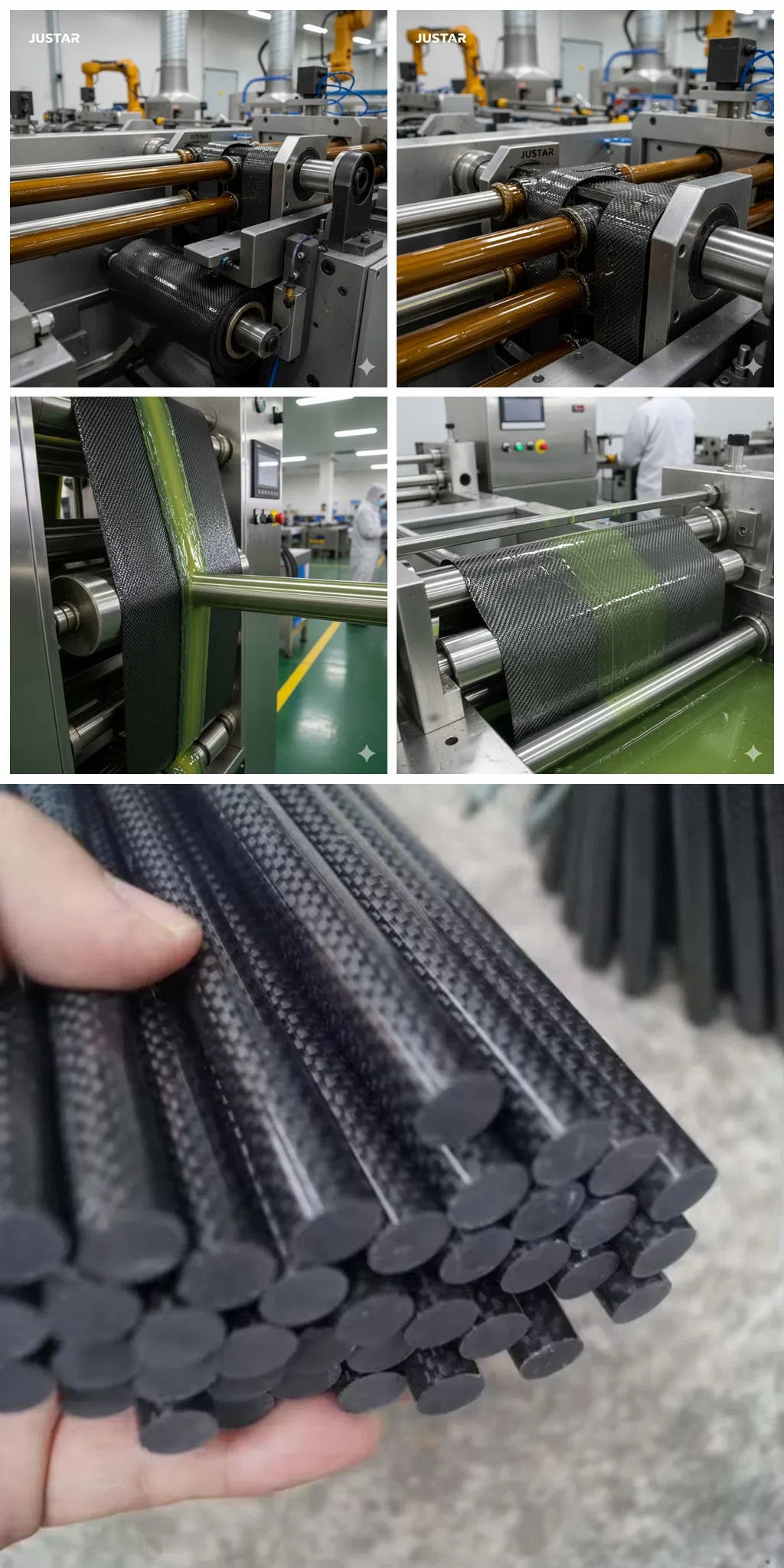

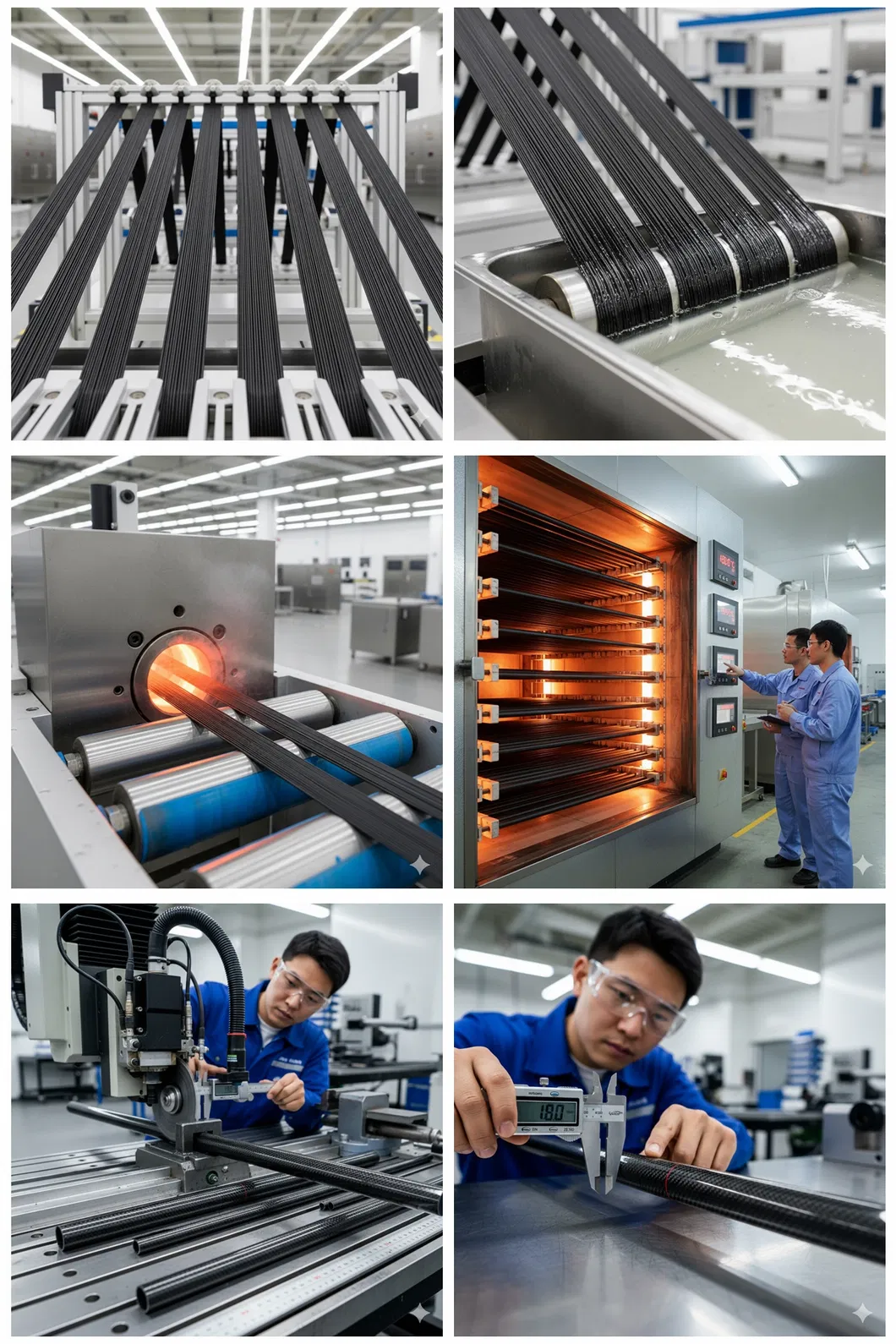

Carbon fiber rods are produced using aerospace-grade carbon fiber prepregs combined with high-performance epoxy resin systems. During production, fibers are precisely aligned and impregnated under controlled temperature and pressure to achieve maximum fiber volume content.
The pultrusion and high-temperature curing processes guarantee consistent fiber orientation and eliminate air voids, resulting in smooth, uniform rods with superior straightness. Each rod undergoes multiple stages of inspection, including resin content verification, surface flatness assessment, and mechanical strength testing.

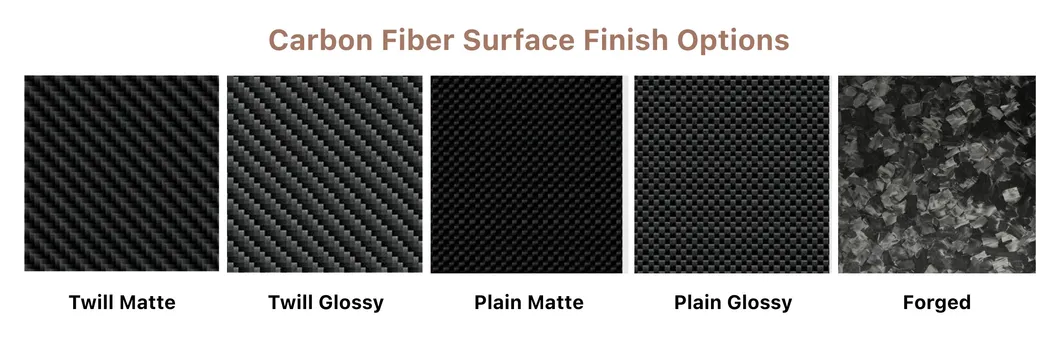

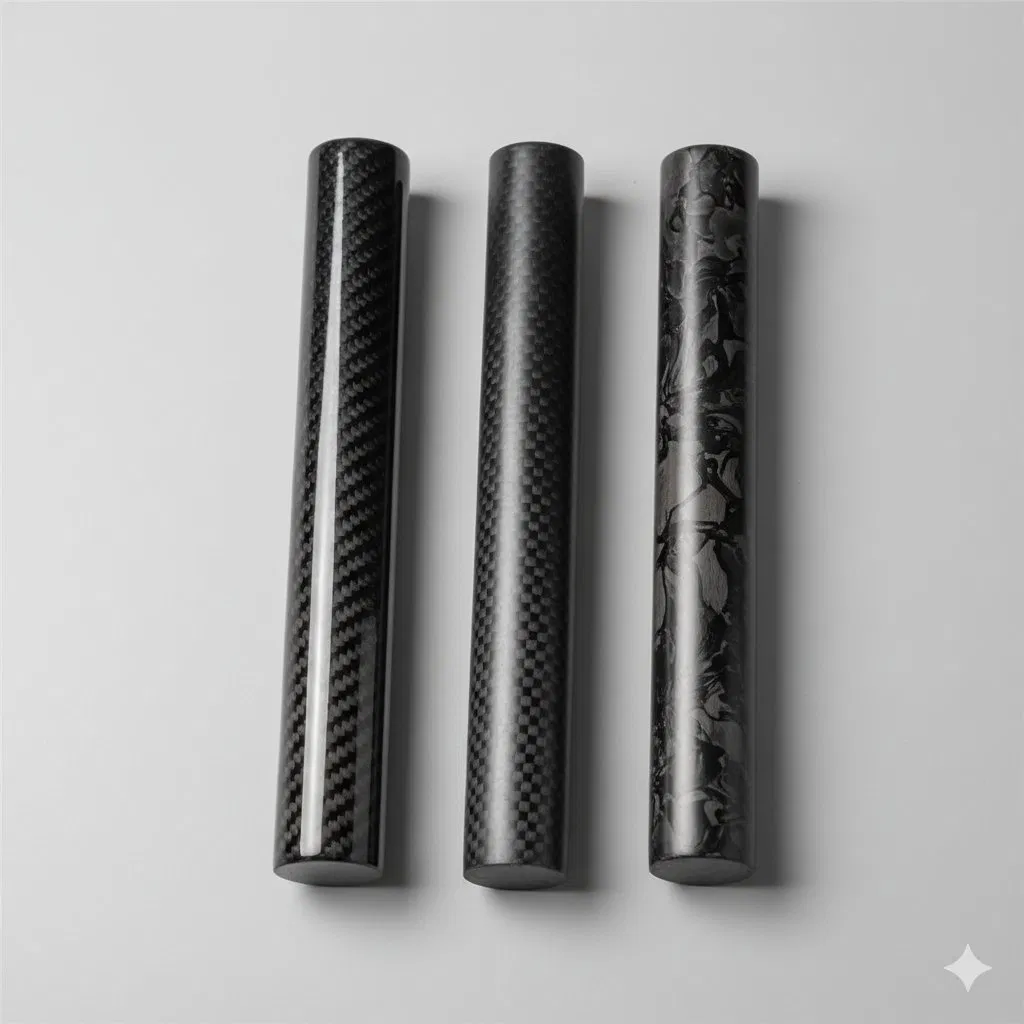

🎨 Surface Finish Options
- 3K Twill Glossy
- 3K Twill Matte
- 3K Plain Glossy
- 3K Plain Matte
- Forged Carbon Texture
🚀 Applications
These carbon fiber rods are designed for a broad range of engineering and industrial applications where performance and precision converge:
- Robotics & Automation: Robotic arms and motion systems.
- Drones & UAVs: Frames, propeller shafts, and gimbals.
- Industrial Machinery: Linear motion systems and support beams.
- Camera Equipment: Stabilizers, tripods, and extension rods.
- Sports & Recreation: Bicycle components and fishing rods.
🔄 Comparison with Traditional Materials
| Property | Carbon Fiber Composite | Aluminum Alloy | Steel |
|---|
| Weight | Ultra-light (70% lighter) | Medium | Heavy |
| Strength | Extremely high | Medium | High |
| Stiffness | Excellent | Fair | Good |
| Corrosion Resistance | Excellent | Limited | Limited |
📦 Packaging & Shipping

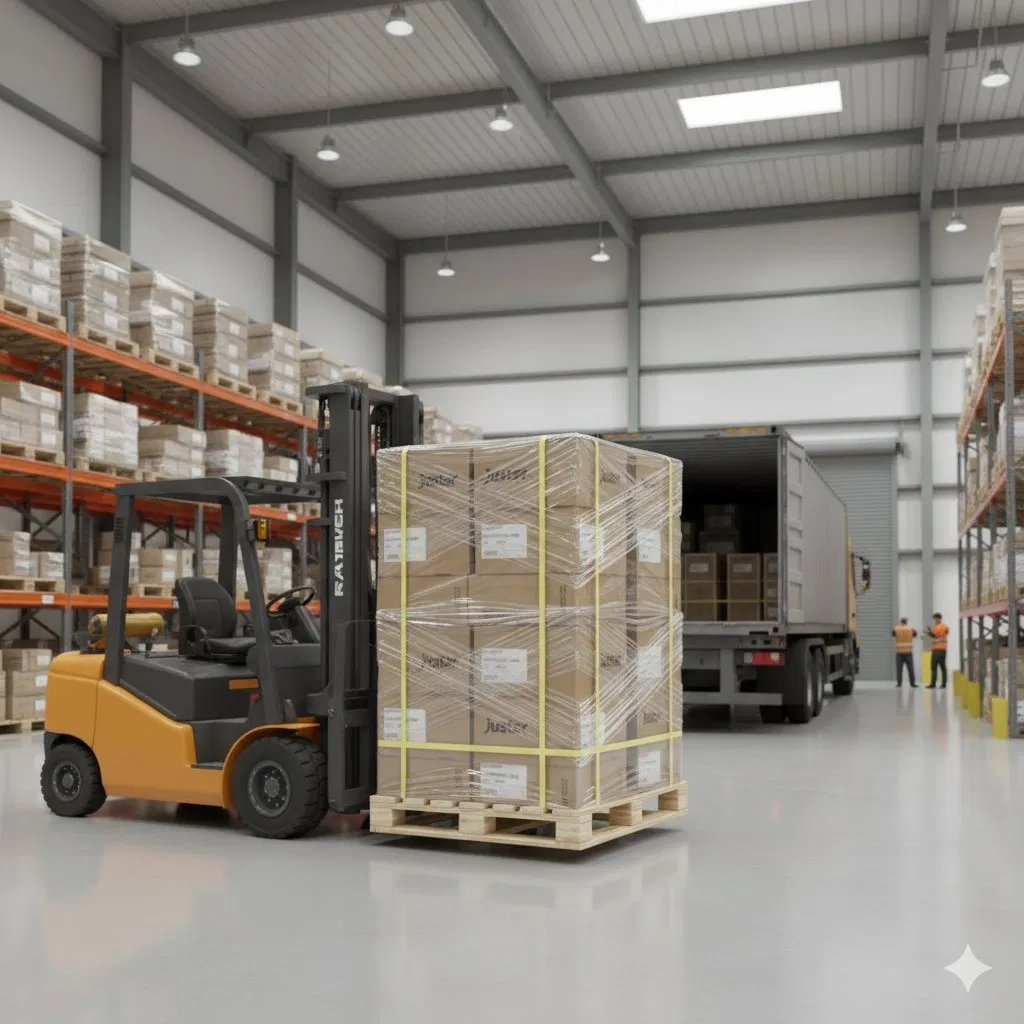

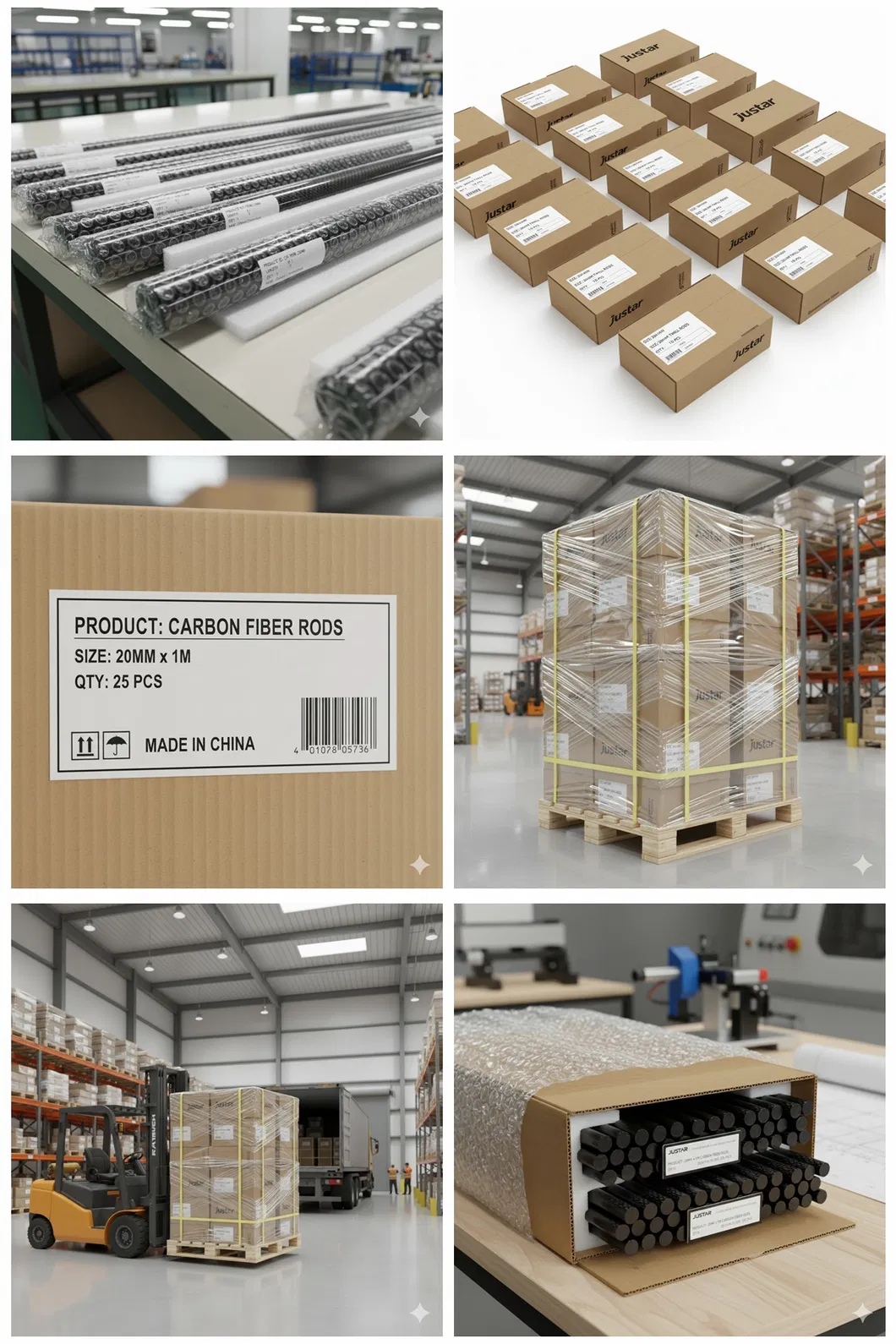

Each rod is individually wrapped in PE film or bubble wrap to guard against scratches. Smaller orders are packed in rigid paper tubes, while bulk shipments use reinforced export cartons and fumigation-free wooden pallets.
⚙️ OEM & Customization

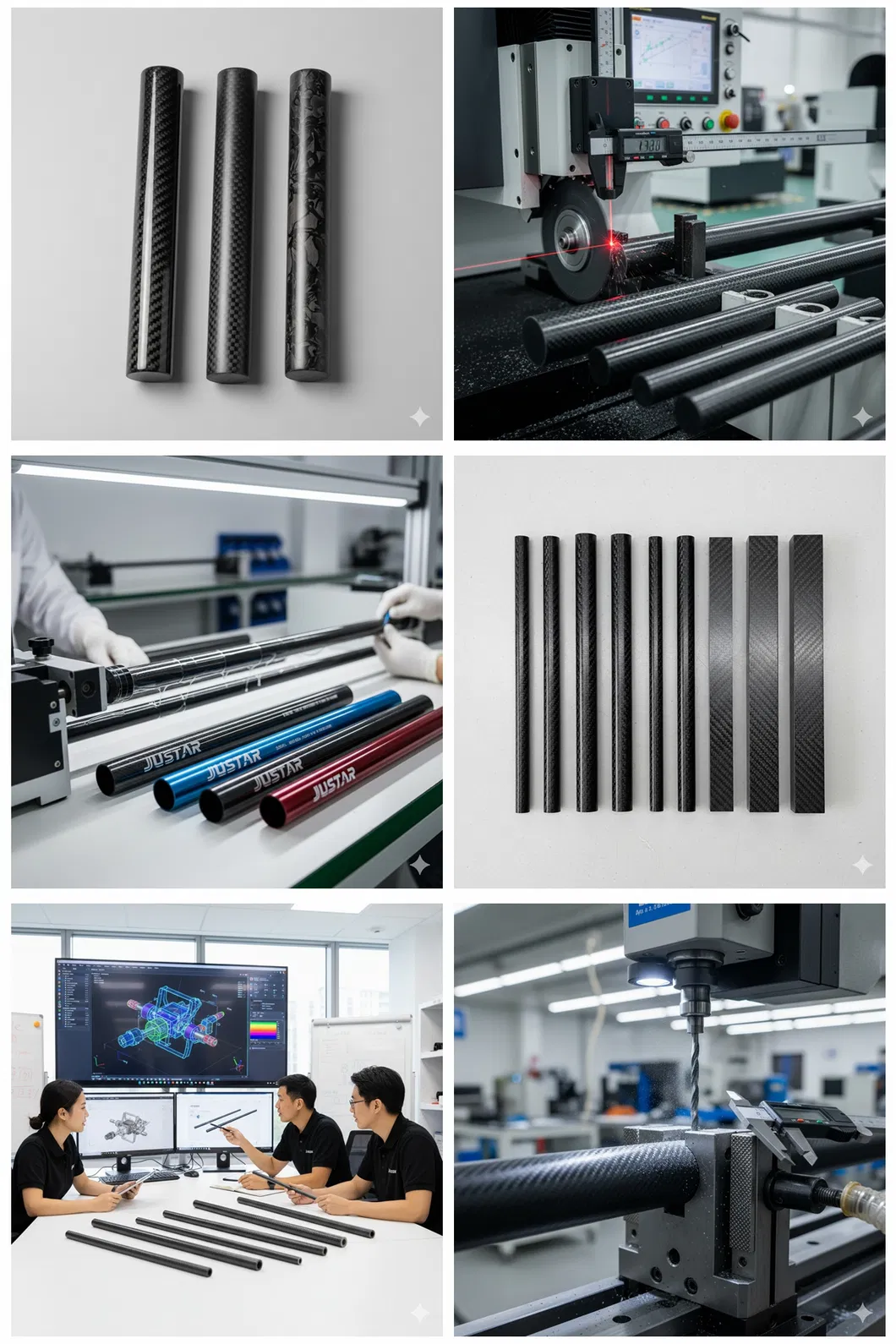

Comprehensive customization services are available, including custom dimensions (diameters, wall thicknesses, and lengths), various surface finishes, and high-accuracy CNC machining for drilling, slotting, and chamfering.
❓ Frequently Asked Questions
Q1: Can you provide customized sizes?
A1: Yes, any dimensions can be produced according to your specific project requirements.
Q2: What is the minimum order quantity (MOQ)?
A2: Normally the MOQ is 1 piece, depending on current stock levels for standard sizes.
Q3: Do you offer OEM logo and CNC machining services?
A3: Yes, we provide laser marking, packaging printing, and precision CNC drilling or cutting services.
Q4: What is the typical delivery time?
A4: Usually 3-7 working days for samples and 15-25 days for bulk production orders.
Q5: How do you ensure the quality of the rods?
A5: Every rod undergoes a 100% inspection for straightness, diameter consistency, and surface finish before shipment.
Q6: Are these rods resistant to environmental factors?
A6: Yes, carbon fiber rods offer excellent resistance to UV exposure, humidity, and various corrosive chemicals.
