400GSM 37%RC Resin Content Twill Weave Carbon Fiber Fabric Prepreg

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

📋 Basic Information

Model NO.	21041	Performance	High-Strength Type
State	Woven Fabric	Mechanical Property	High-Performance Type
Carbon Type	Twill	Filament Count	12K
Width	1m	Roll Length	100m or Customized
Material	Carbon Fabric + Resin	Specification	400g/sqm
Leadtime	7-35 days	Production Capacity	260,000 sqm/Month

⚙ Product Description

Item No.	21041	Carbon Yarn	12K
Fabric area weight	400g/sqm	Resin Content	37%
Material	Carbon Fabric + Resin	Outer carton CBM	0.237CBM/Carton
HS Code	6815131090	Loding Port	Shanghai

Key Advantages

Controlled Resin Content
Superior Mechanical Properties
High Manufacturing Efficiency
Consistency and Repeatability
Enhanced Handling
Improved Aesthetics
Environmental and Safety Benefits
High-Performance Curing

Storage Temperature: Typically stored at -18°C (0°F) or lower in a freezer to prevent premature curing.

🔬 Product Parameters

Carbon Fiber Properties
Tensile Strength	≥ 3500 MPa	Tensile Modulus	≥ 230 GPa
Elongation	≥ 1.5%	Filament	12K
Resin System (Epoxy)
Resin Content	37%	Tensile Strength	60~70 MPa
Bending Strength	100~120 MPa	Glass Transition (TG)	90~110 ºC

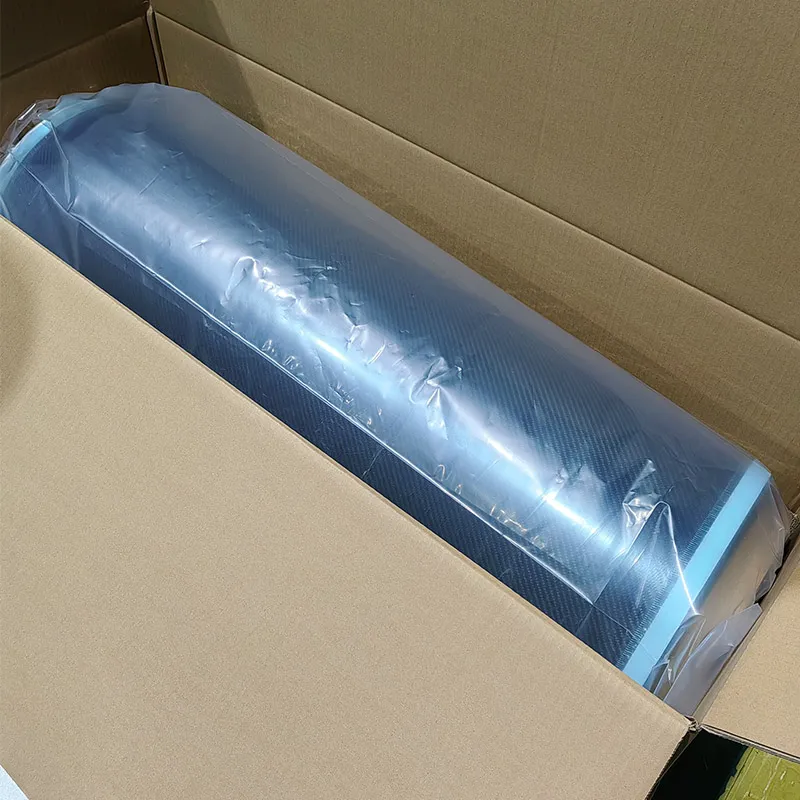

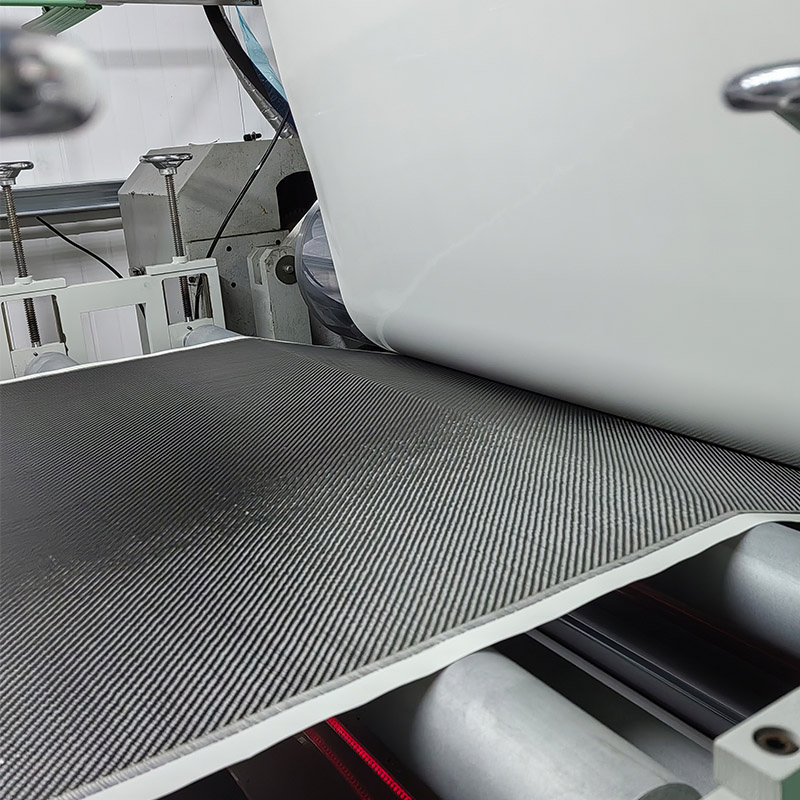

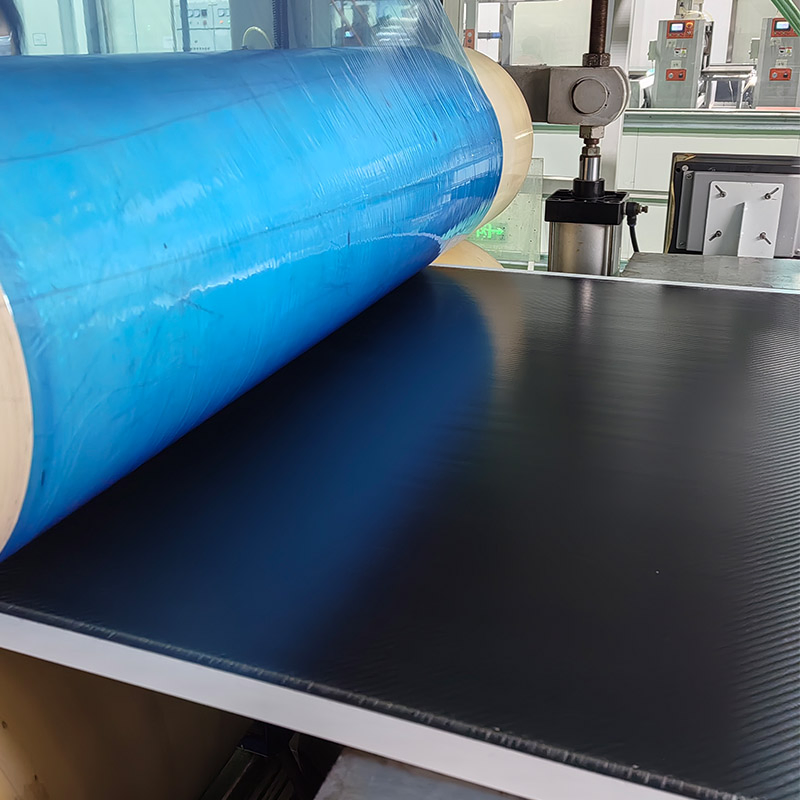

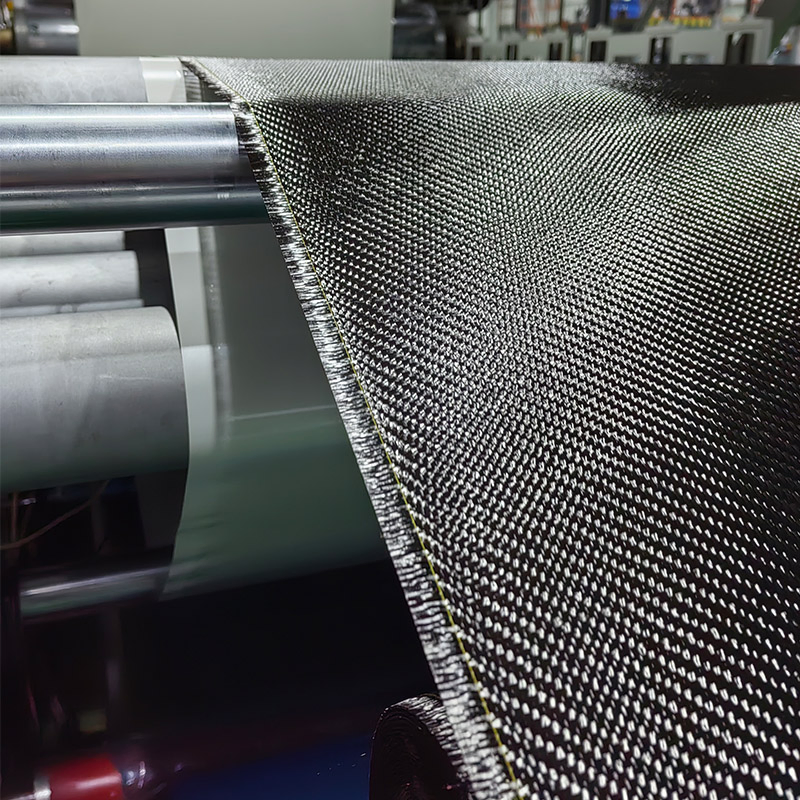

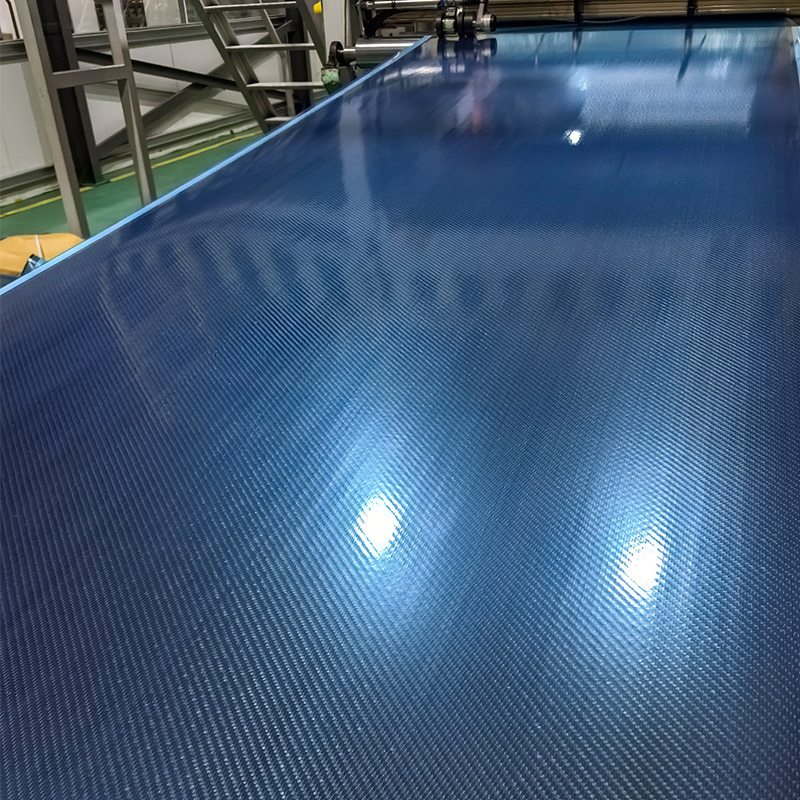

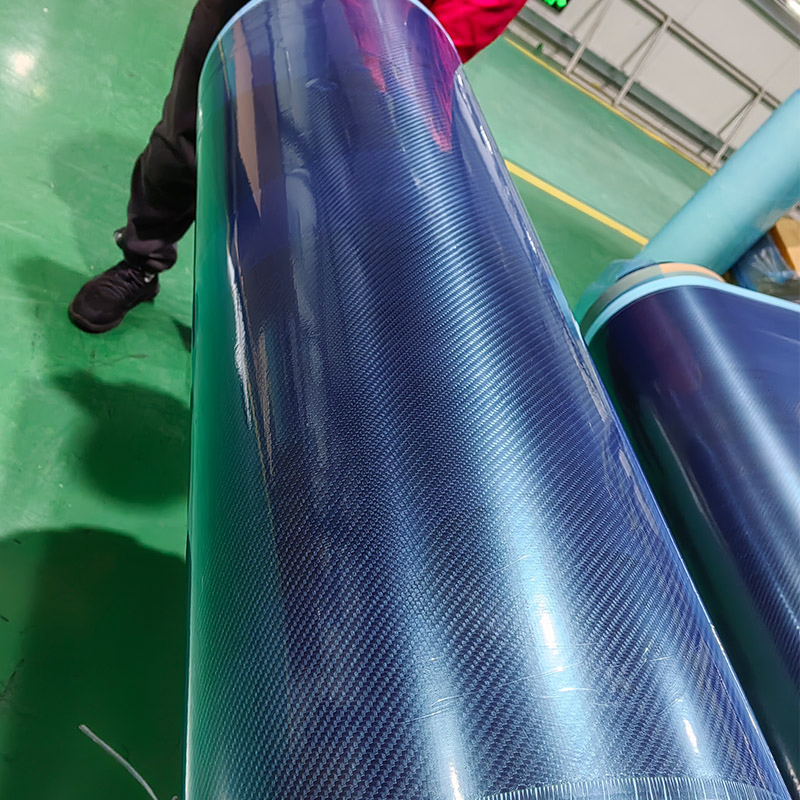

📷 Detailed Photos

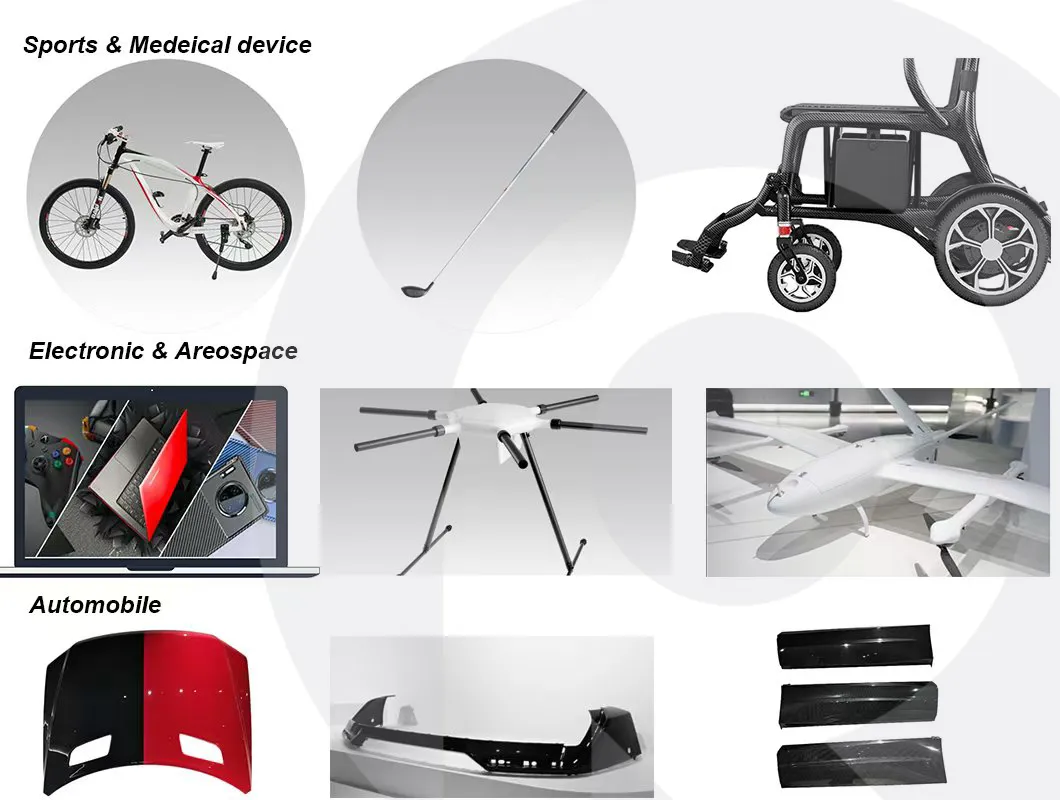

🚀 Industry Applications

Industry	Application Parts
Aerospace & Aviation	Aircraft wings, fuselages, helicopter blades, satellite components.
Automotive	Sports car chassis, body panels, electric vehicle components.
Sports & Recreation	Bicycles, tennis rackets, golf clubs, hockey sticks, Kayaks.
Construction	Bridge reinforcement, building retrofitting, seismic retrofitting.
Renewable Energy	Wind turbine blades, hydrogen storage tanks.
Medical	Prosthetics, orthotic devices, surgical tools, imaging equipment.

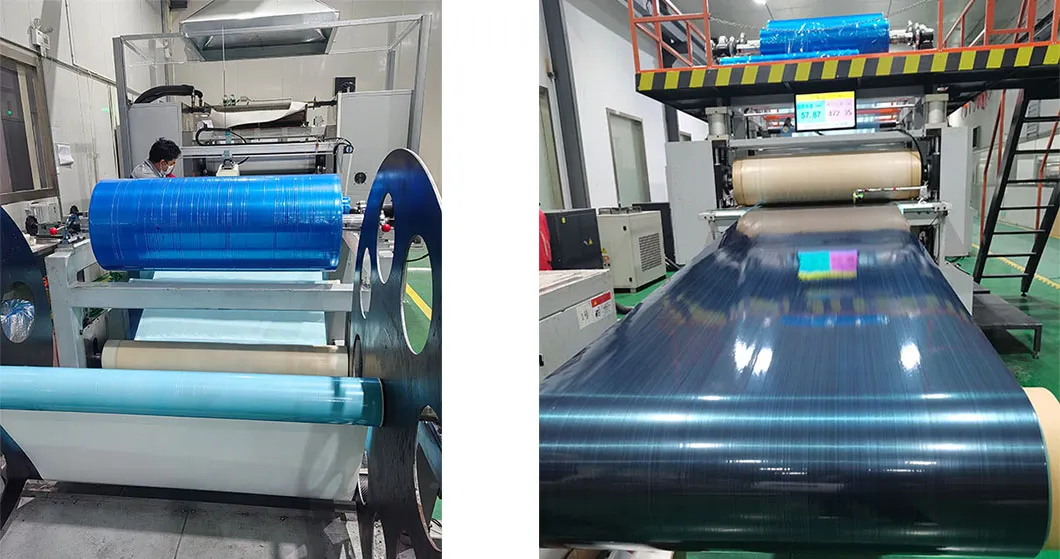

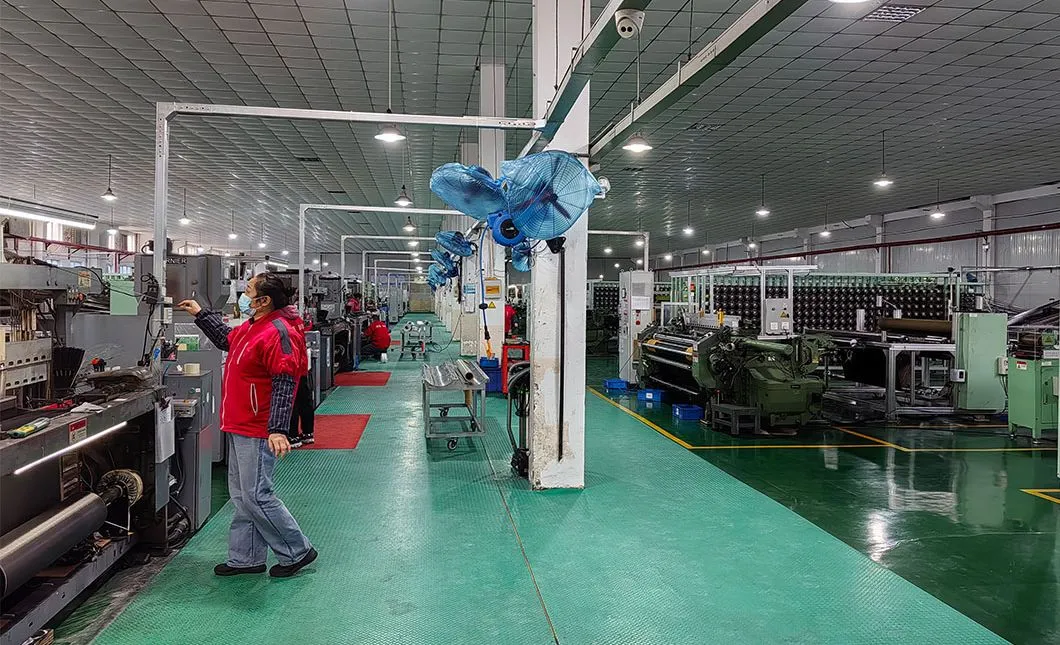

🏭 Manufacturing & Quality Control

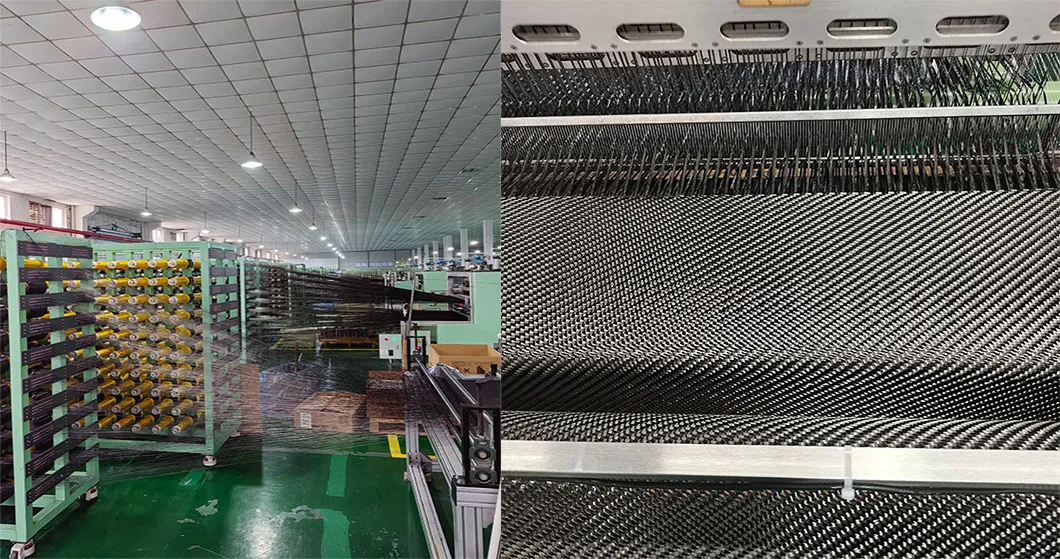

Expertise in the research, development, and production of high-quality woven textiles including unidirectional, plain, twill, satin, and jacquard styles using high-performance fibers like carbon, glass, and aramid.

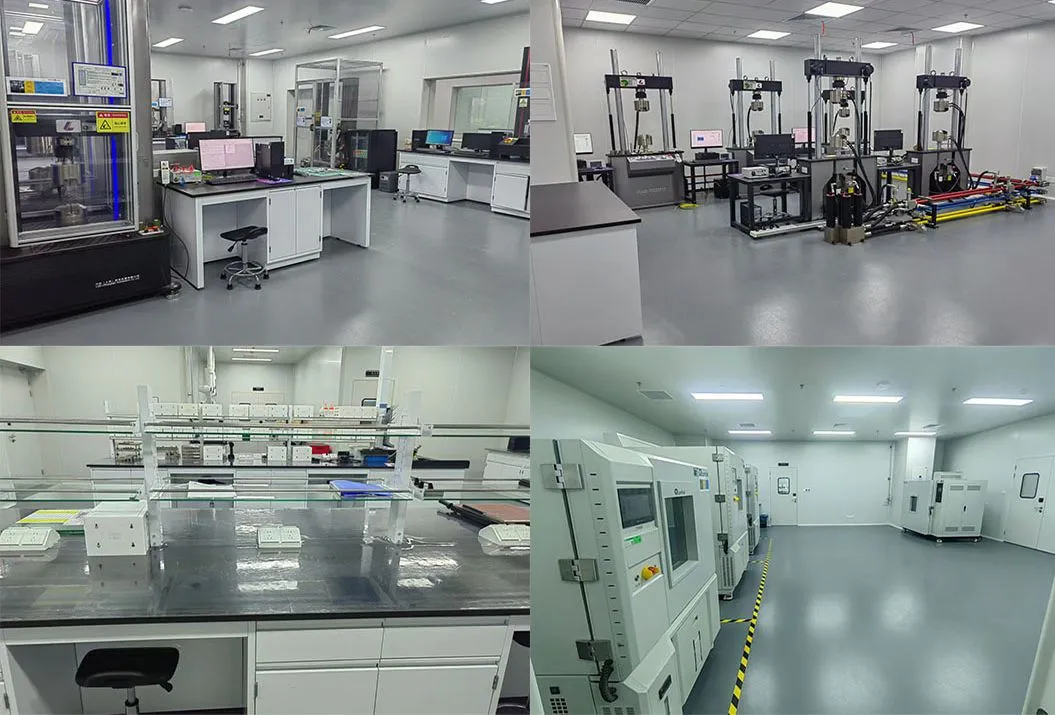

Professional Test Lab

The 3,100 sqm testing center covers all processes from raw materials to finished products. It is accredited for testing mechanical properties, weather resistance, and chemical analysis, including tensile, compression, fatigue, and glass transition temperature tests.

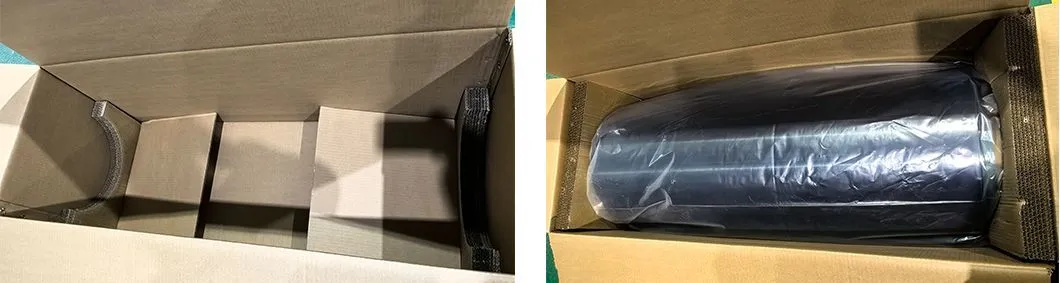

📜 Certifications & Shipping

Standards: IATF16949 certified. 19 patents held, including invention and utility model patents.

❓ Frequently Asked Questions

What types of carbon fiber fabrics do you manufacture?

We specialize in various weave styles including unidirectional, plain, twill, satin, and jacquard, specifically focusing on high-performance carbon fiber and prepreg fabrics.

Can I request customized specifications for prepreg materials?

Yes, we offer comprehensive OEM and ODM services. You can customize the resin content, fabric weight, width, and roll length according to your project requirements.

How should the carbon fiber prepreg be stored?

To maintain material integrity and prevent premature curing, prepreg should be stored in a freezer at -18°C (0°F) or lower.

What is the standard lead time for orders?

The lead time typically ranges from 7 to 35 days, depending on the order quantity and specific customization requirements.

Do you provide samples for quality testing?

Yes, we provide free samples (typically less than 1 meter) for quality evaluation and lab testing purposes.

What quality standards do your products meet?

Our manufacturing processes are IATF16949 certified, and our products undergo rigorous testing in our accredited laboratory to ensure high performance and consistency.
