RAXIS Fiber
1 / 5

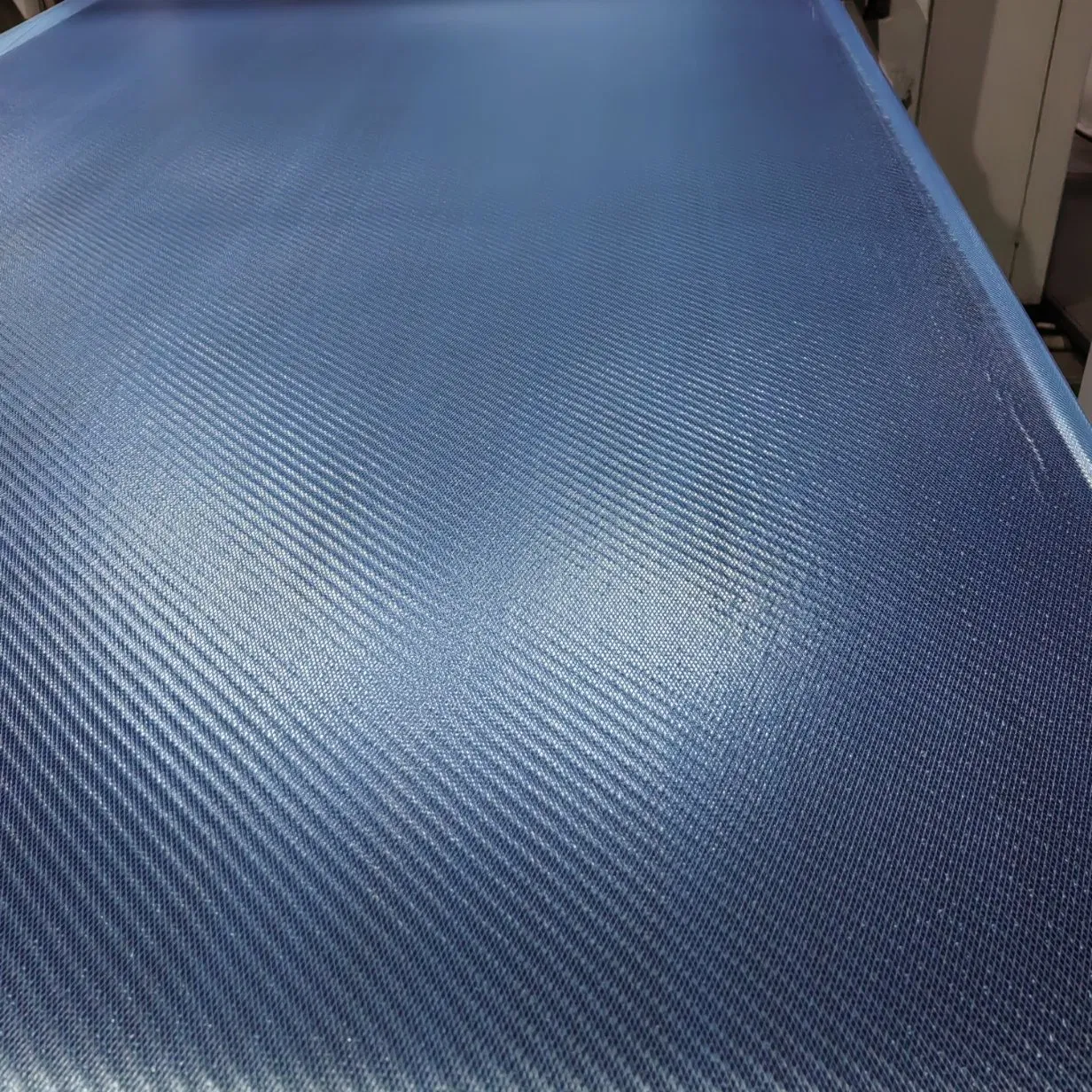

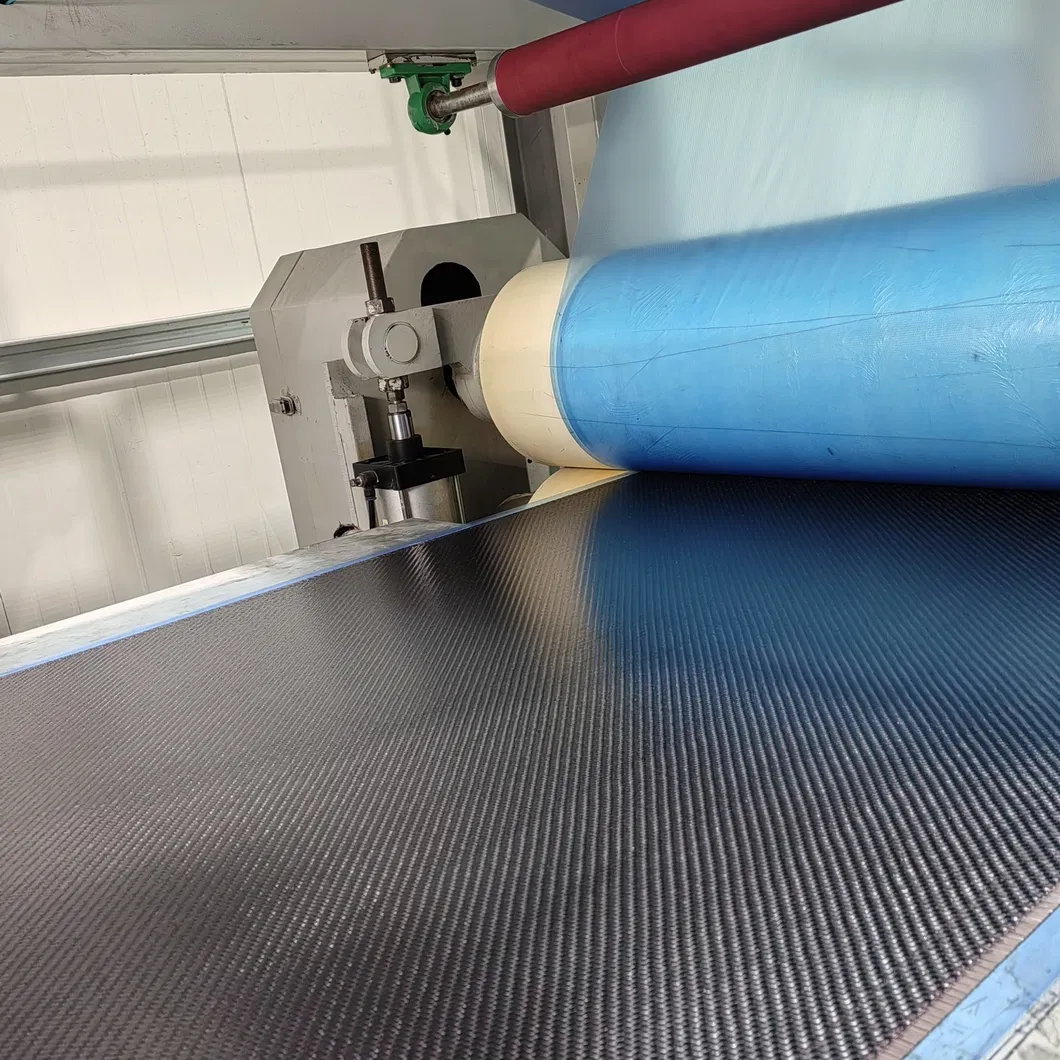

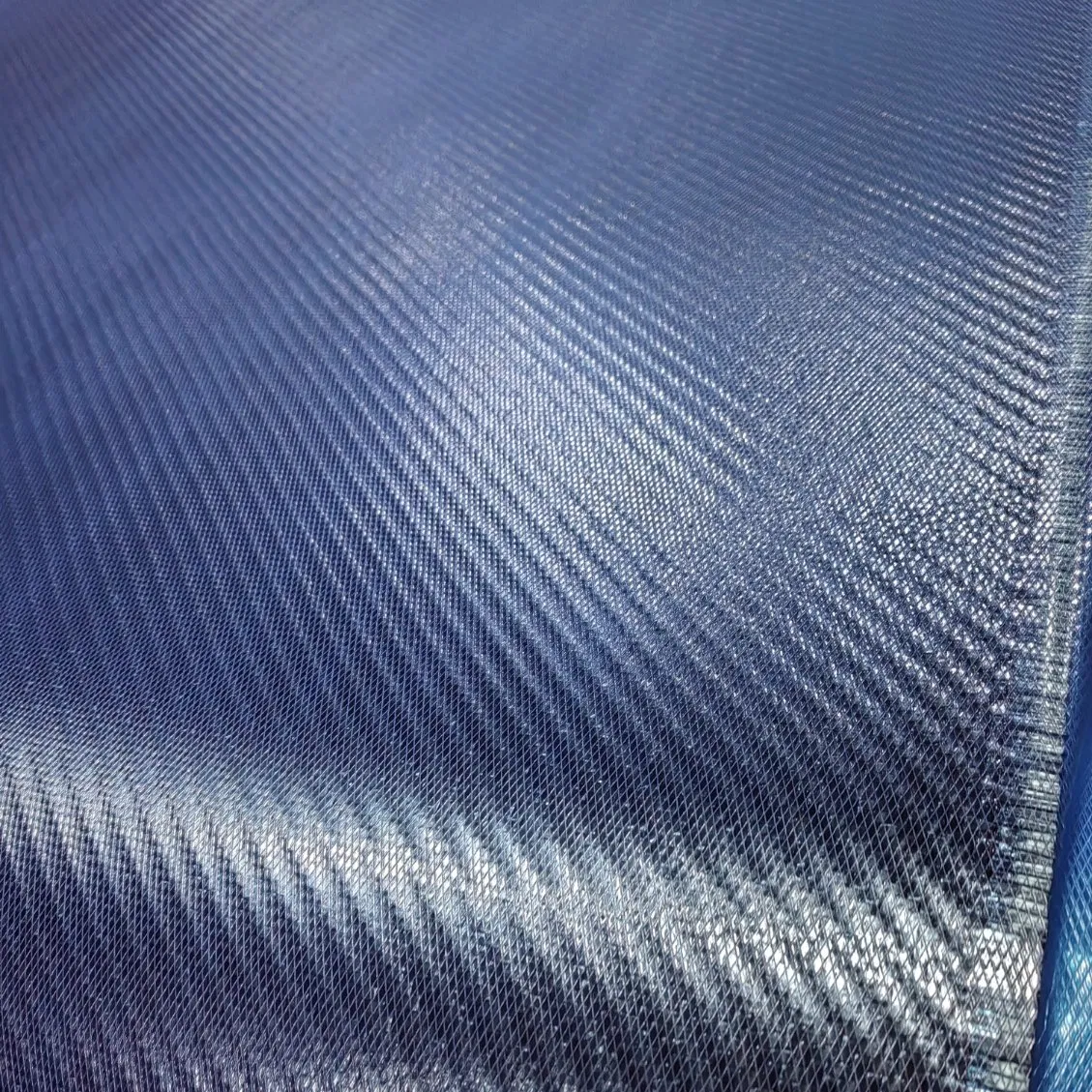

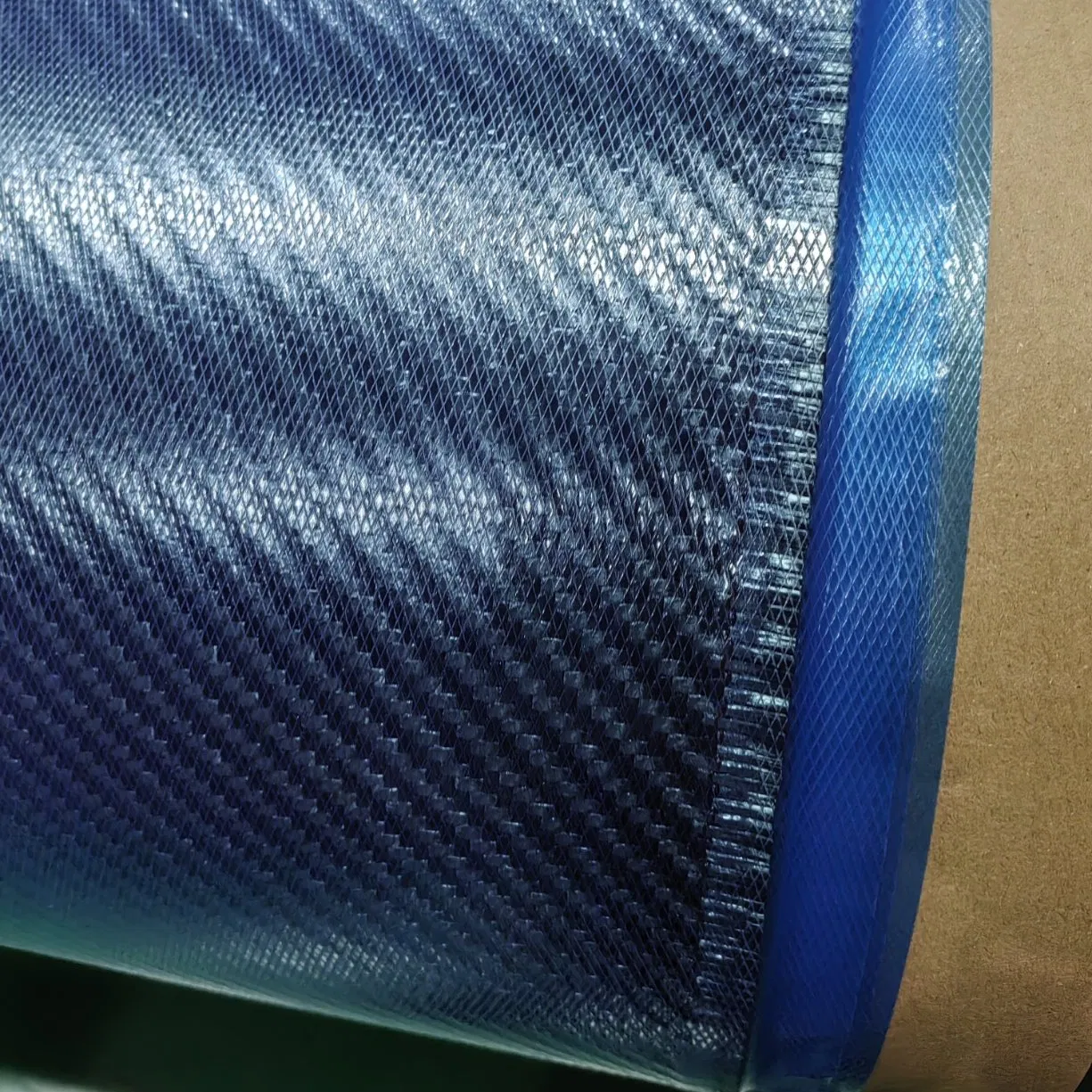

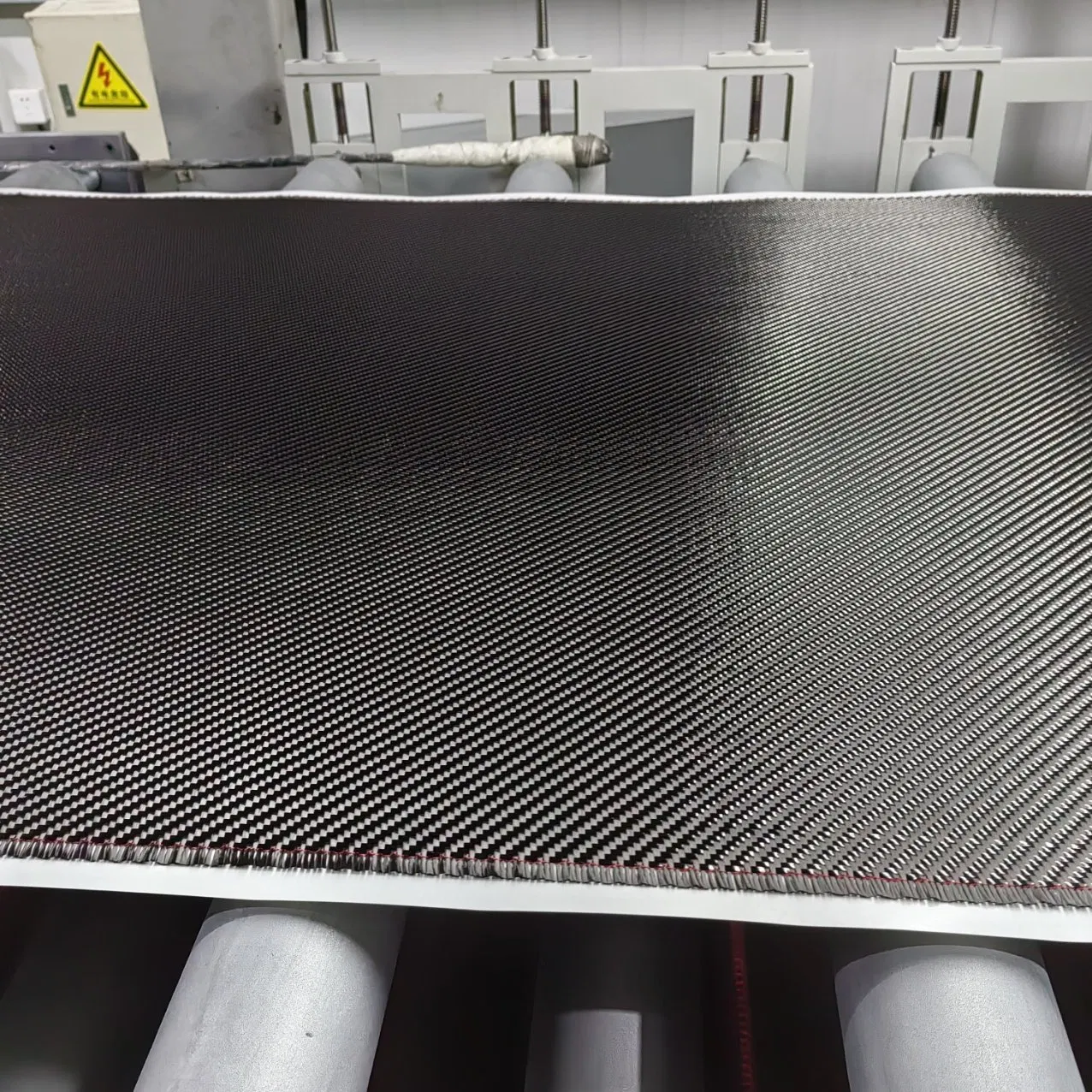

| Model NO. | 21051 | Performance | High-Strength Type |
|---|---|---|---|
| State | Woven Fabric | Mechanical Property | High-Performance Type |

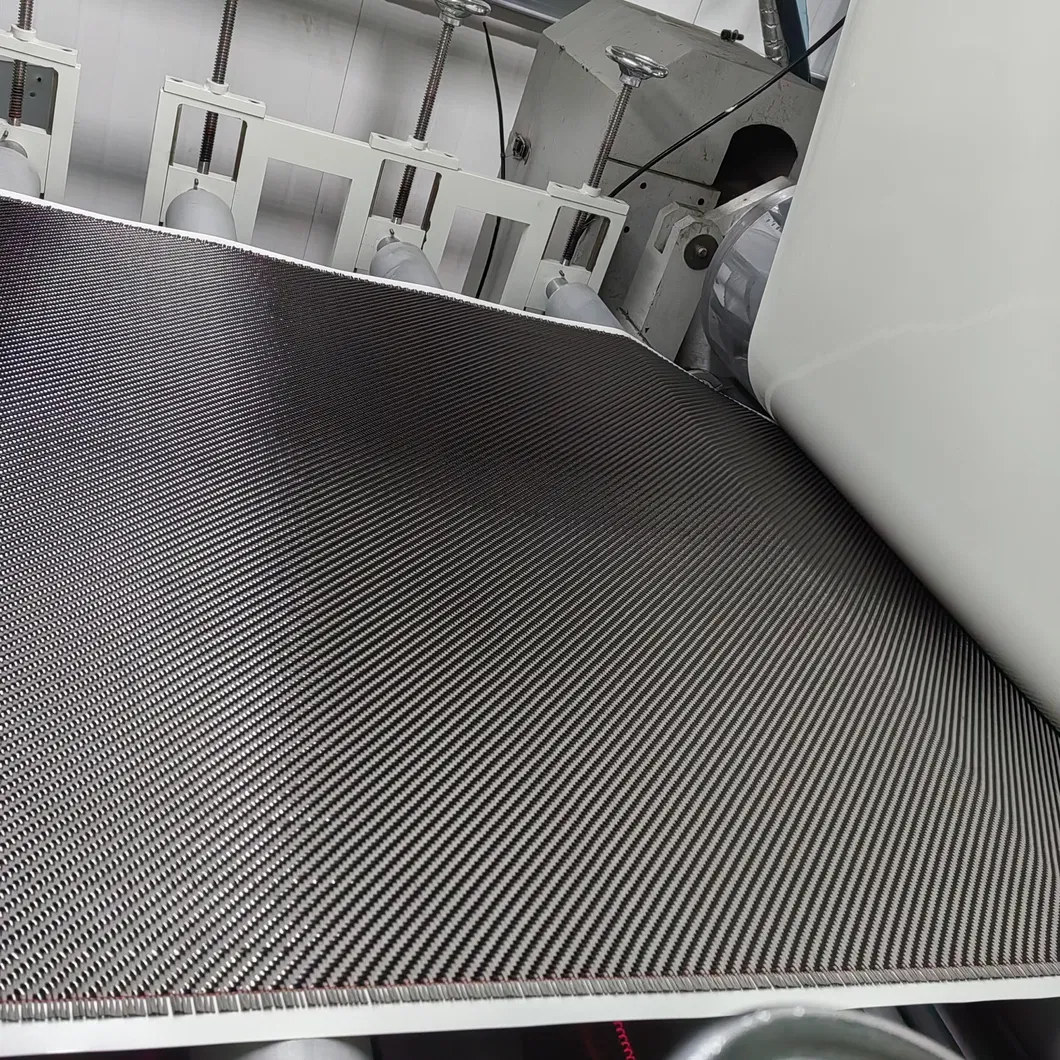

| Carbon Type | Twill | Filament Count | 12K |
| Width | 1m | Roll Length | 50m or Customized |

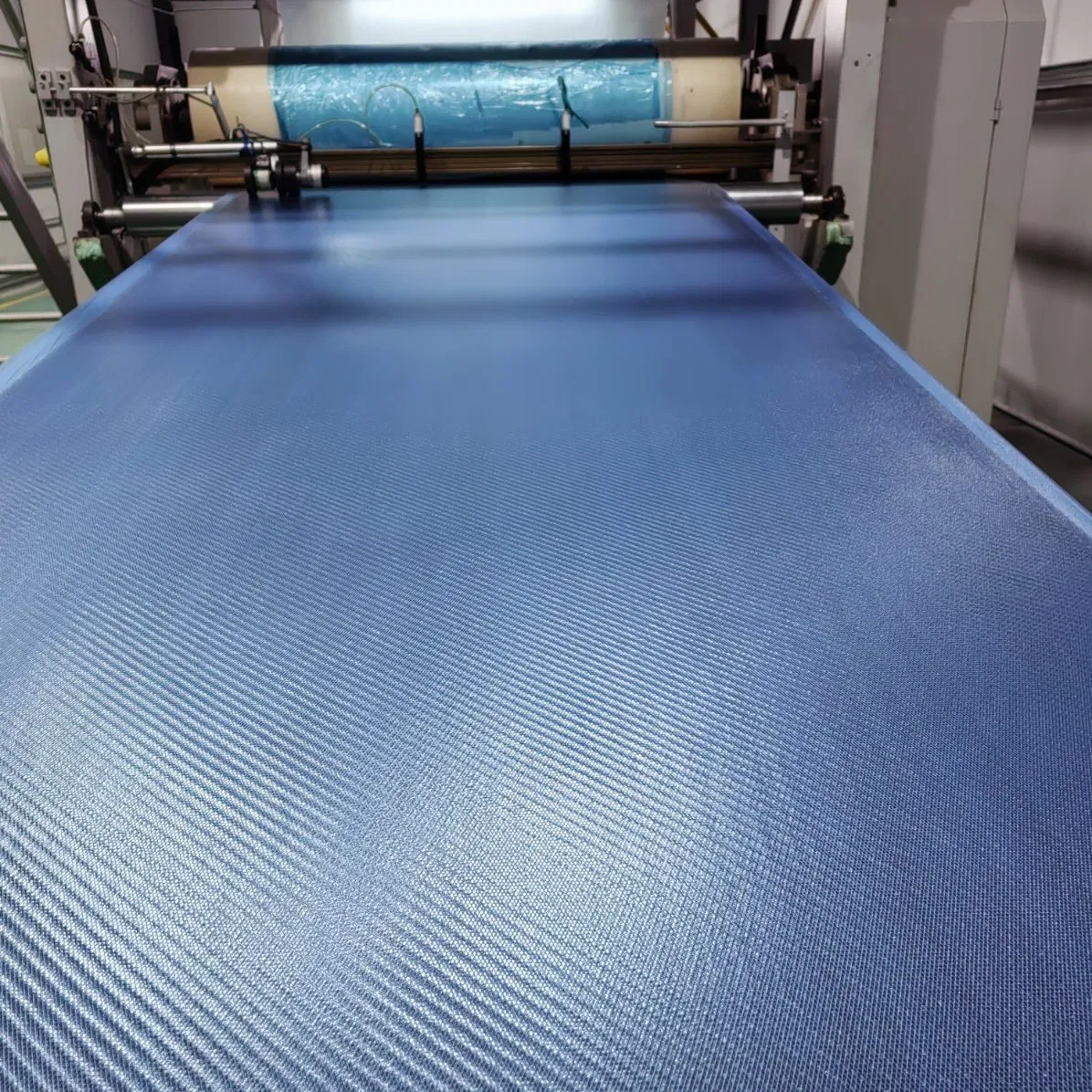

| Material | Carbon Fabric + Resin | Specification | 600g/sqm |
| Production Capacity | 260,000 sqm/Month | HS Code | 6815131090 |
| Item No. | 21051 | Carbon Yarn | 12K |
|---|---|---|---|
| Fabric Area Weight | 600g/sqm | Material | Carbon Fabric + Resin |
| Roll Width | 1 M | Outer Carton CBM | 0.237 CBM/Carton |

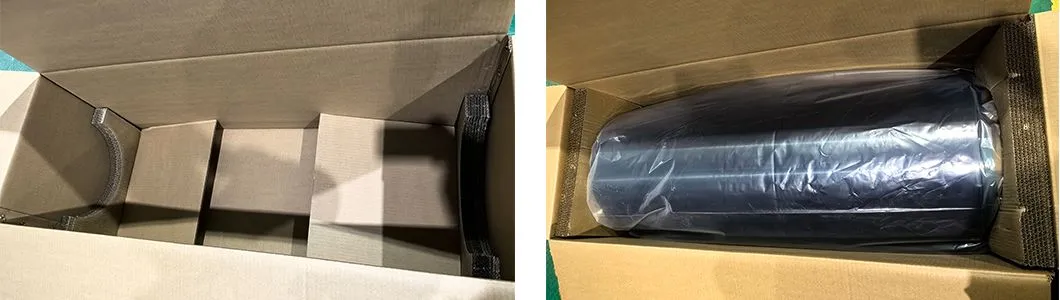

| Roll Length | 100M or Customized | Package | 1 Roll/Carton |
| Carbon Fiber Properties | |||
|---|---|---|---|
| Tensile Strength | ≥ 3500 MPa | Tensile Modulus | ≥ 230 GPa |
| Elongation | ≥ 1.7% | Carbon Yarn | 12K |
| Resin System Properties | |||
| Resin Used | Epoxy Resin | Resin Content | 42% |
| Bending Strength | 100~120 MPa | TG (Glass Transition) | 90~110 ºC |
Storage Temperature: Typically stored at -18°C (0°F) or lower in a freezer to prevent premature curing and slow the chemical reaction.
| Industry | Application Parts |
|---|---|
| Aerospace & Aviation | Aircraft wings, fuselages, helicopter blades, satellite components |
| Automotive | Sports car chassis, body panels, electric vehicle components |
| Sports and Recreation | Bicycles, tennis rackets, golf clubs, kayaks, boat hulls |
| Civil Engineering | Bridge reinforcement, building and seismic retrofitting |
| Renewable Energy | Wind turbine blades, hydrogen storage tanks |
| Medical & Electronics | Prosthetics, surgical tools, drone frames, robotic arms |
We specialize in the research, development and production of high-quality woven textiles in all typical weave styles including unidirectional, plain, twill, satin, and jacquard. Our products utilize high-performance fibers such as carbon fibers, glass fibers, and aramid fibers.

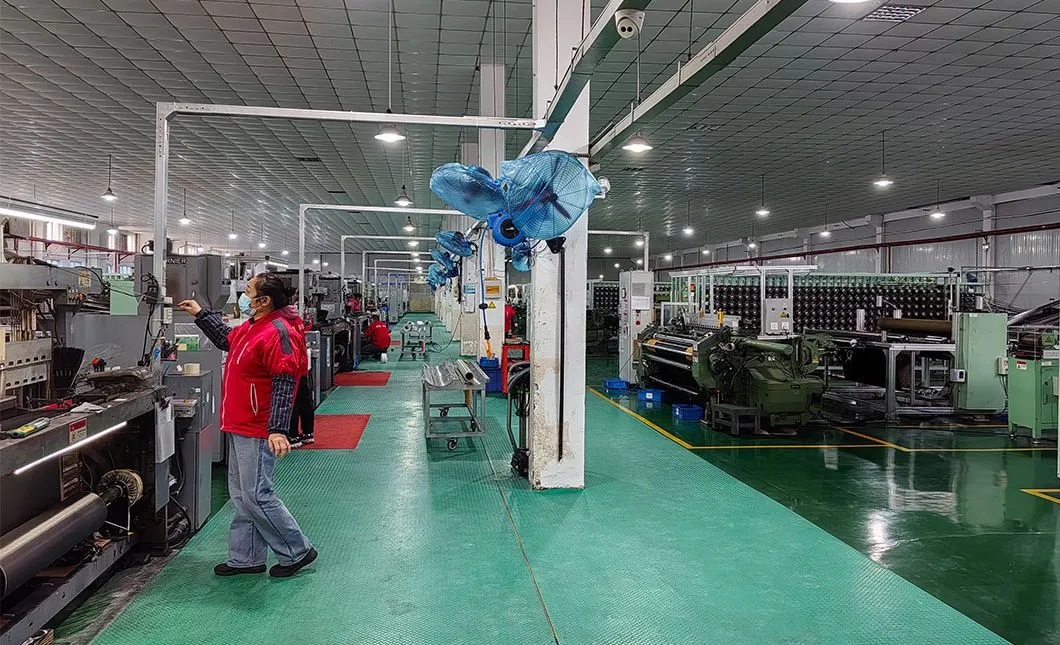

With our state-of-the-art facilities and experienced team, we deliver exceptional woven textiles that meet evolving market demands. We have obtained the prestigious IATF16949 certificate, demonstrating our commitment to the highest industry standards.

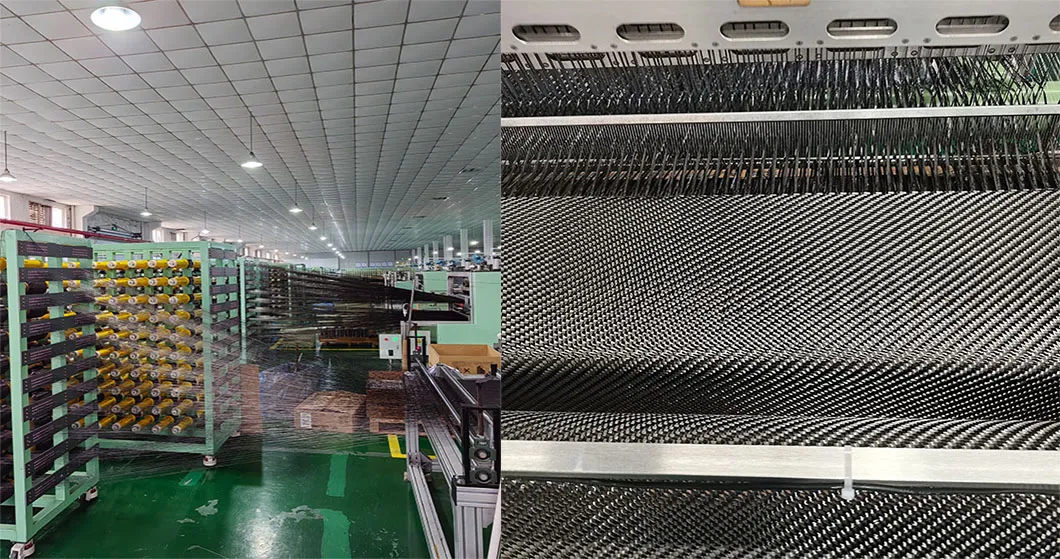

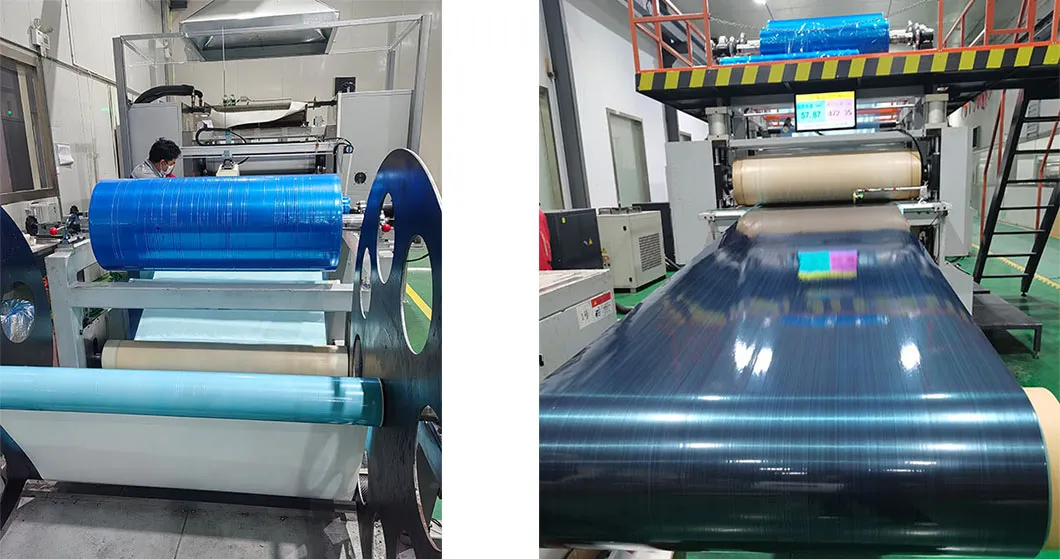

Prepreg Workshop: 2 specialized production lines for consistent quality.

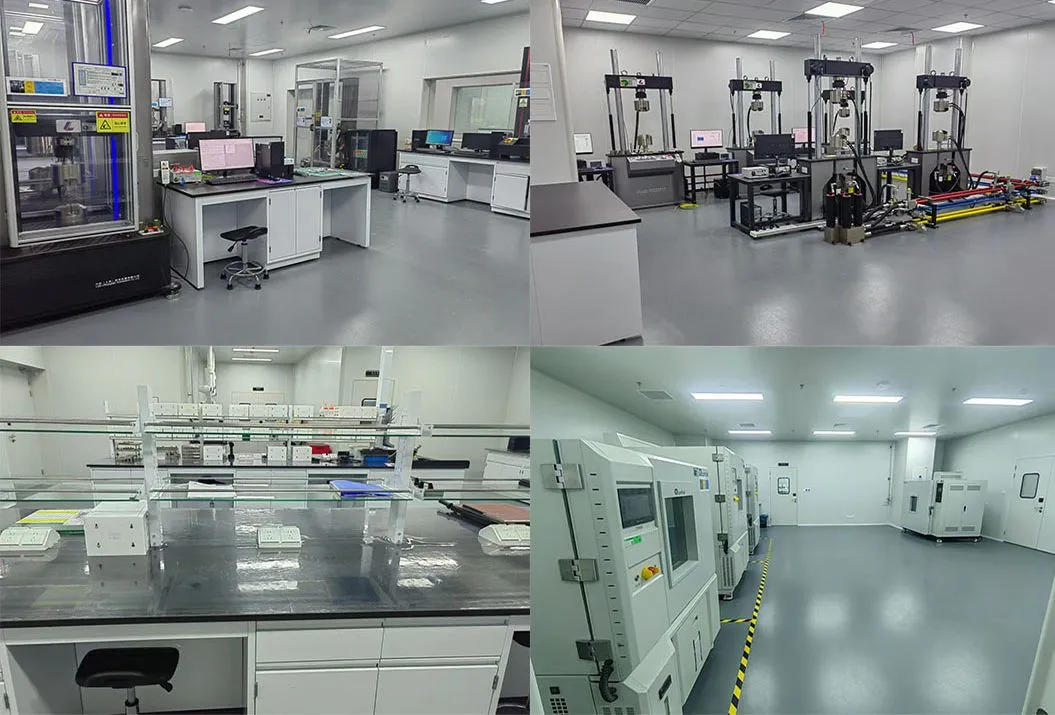

Our testing center covers 3,100 square meters and has passed CNAS laboratory accreditation. We monitor all processes from raw materials to finished products, covering mechanical properties, weather resistance, and chemical analysis. Key tests include tensile, compression, bending, fatigue, fiber content, and glass transition temperature.
Quality Assurance: IATF16949 Certified.
Innovation: 19 total patents, including 5 invention patents and 11 utility model patents.
