| Model NO. | 21045 | Performance | High-Strength Type |
|---|---|---|---|
| State | Woven Fabric | Mechanical Property | High-Performance Type |
| Carbon Type | Twill | Filament Count | 1K |
| Width | 1m | Roll Length | 100m or Customized |
| Material | Carbon Fabric+Resin | Specification | 93g/sqm |
| Capacity | 260,000 sqm/Month | HS Code | 6815131090 |

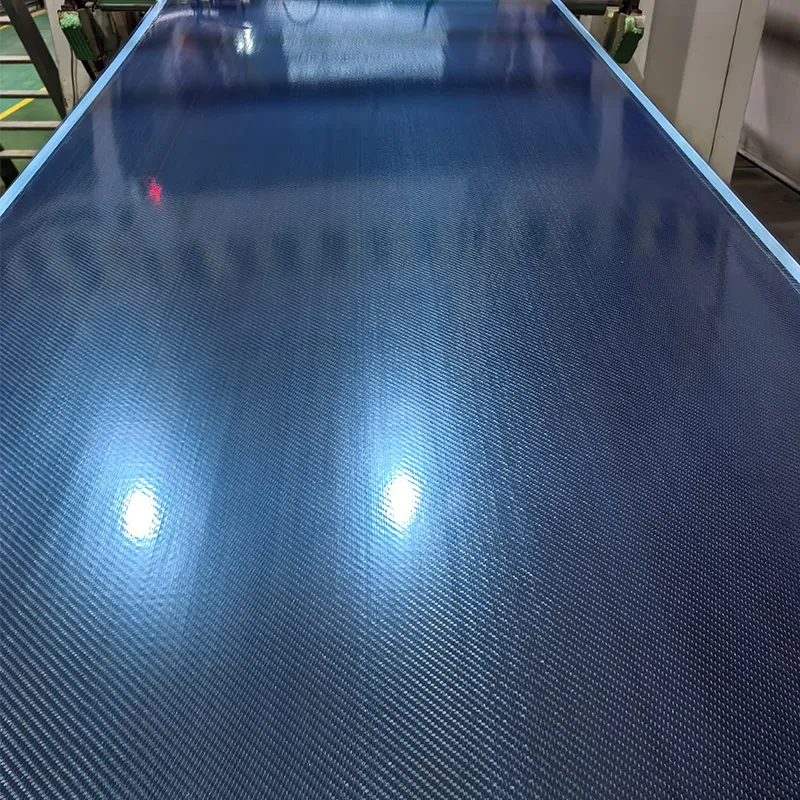

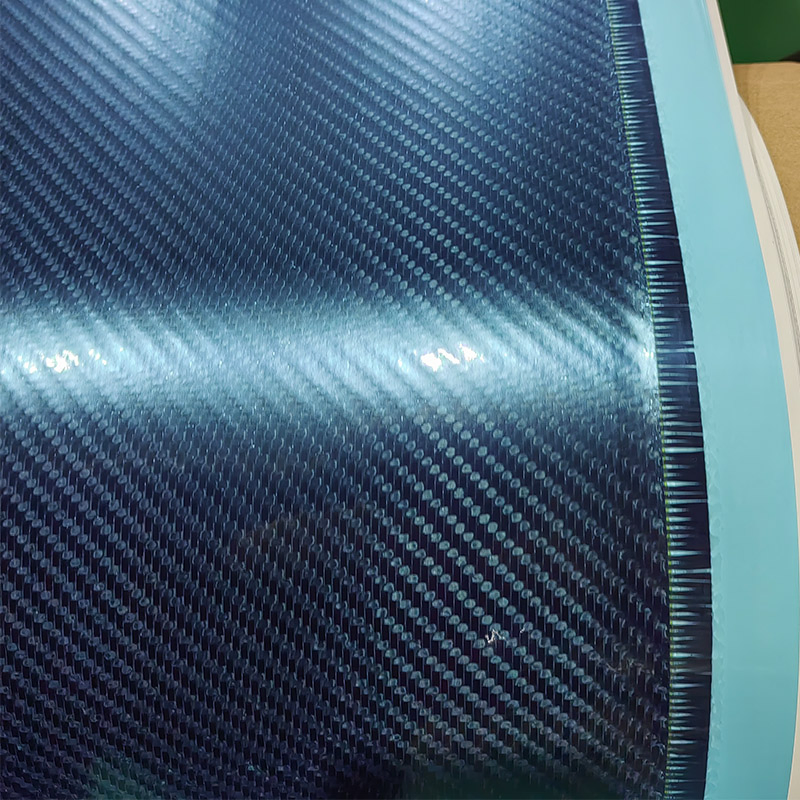

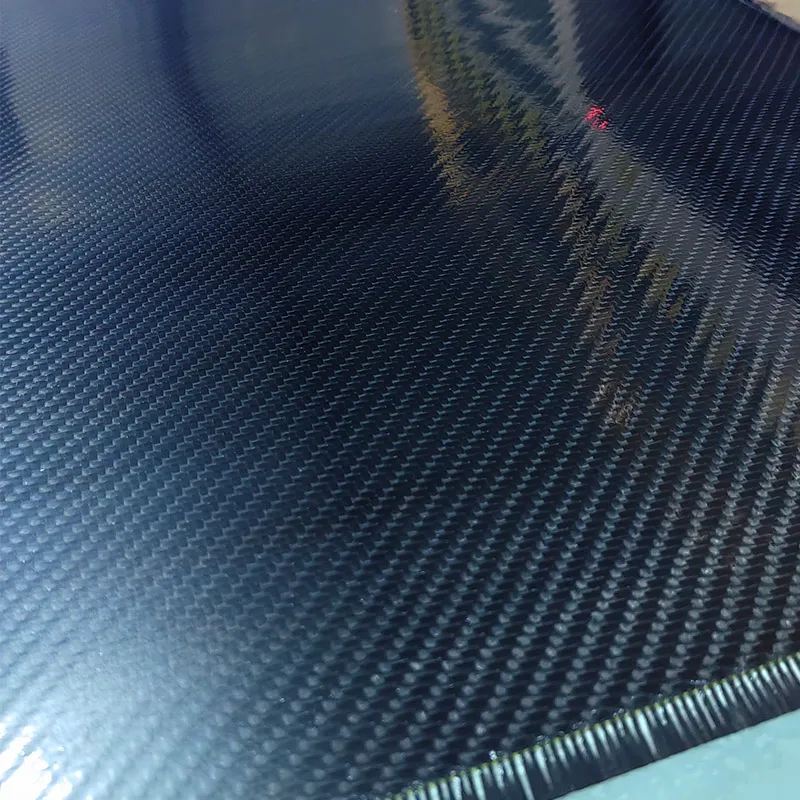

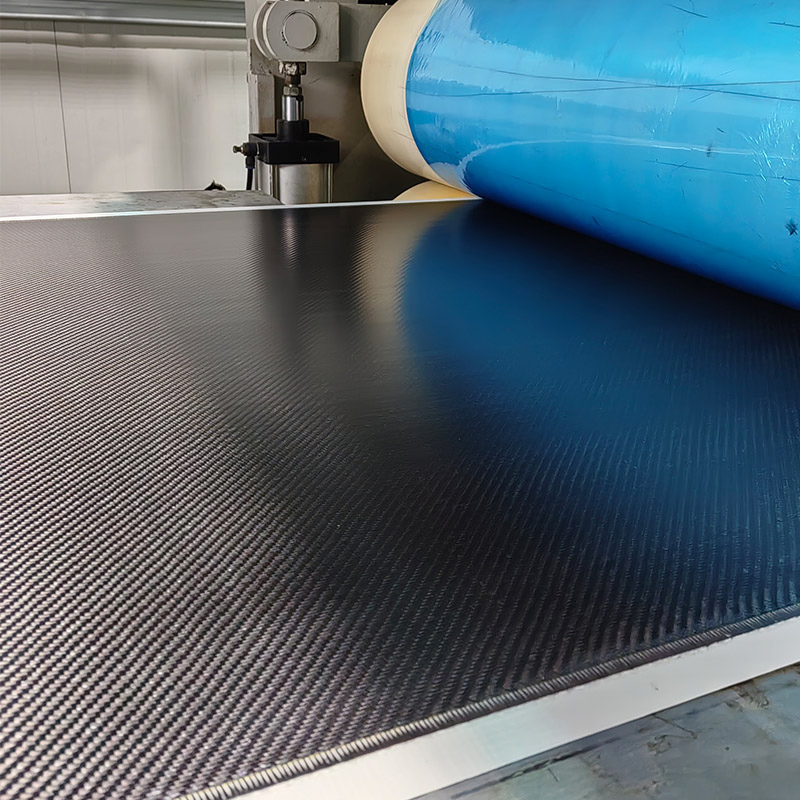

This 93GSM prepreg carbon fiber fabric features a premium 1K twill weave. It is engineered for high-performance applications where strength-to-weight ratio is critical.
Storage Temperature: Typically stored at -18°C (0°F) or lower in a freezer to prevent premature curing and slow down the resin's chemical reaction.
| Carbon Fiber Properties | |||
|---|---|---|---|
| Carbon Yarn | 1K | Tensile Strength | ≥ 3500 MPa |
| Tensile Modulus | ≥ 230 GPa | Elongation | ≥ 1.5% |
| Resin System (Epoxy) | |||
| Resin Content | 33% | TG (Glass Transition) | 90~110 ºC |
| Bending Strength | 100~120 MPa | Elongation | ≥ 2.5% |
| Industry | Application Parts |
|---|---|
| Aerospace & Aviation | Aircraft wings, fuselages, helicopter blades, satellite components. |
| Automotive | Sports car chassis, body panels, electric vehicle components. |
| Sports & Recreation | Bicycles, tennis rackets, golf clubs, hockey sticks, kayaks. |
| Medical | Prosthetics, orthotic devices, surgical tools, imaging equipment. |
| Robotics | Drone frames, laptop casings, robotic arms. |

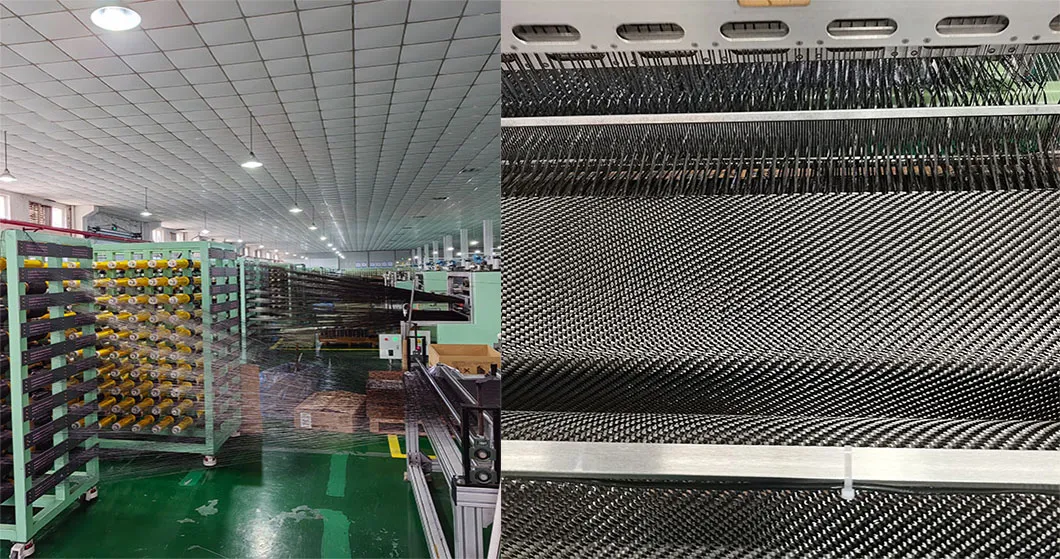

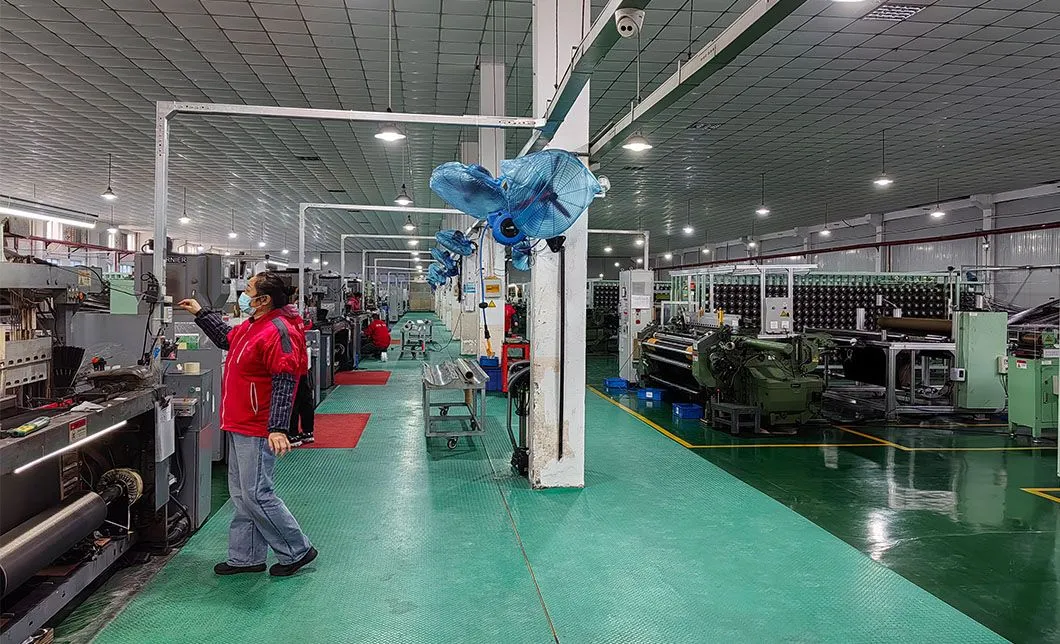

Our facility specializes in the research, development, and production of high-quality woven textiles. We utilize advanced fibers including carbon, glass, and aramid to meet evolving market demands. With state-of-the-art facilities and a commitment to quality, we hold the IATF16949 certificate.

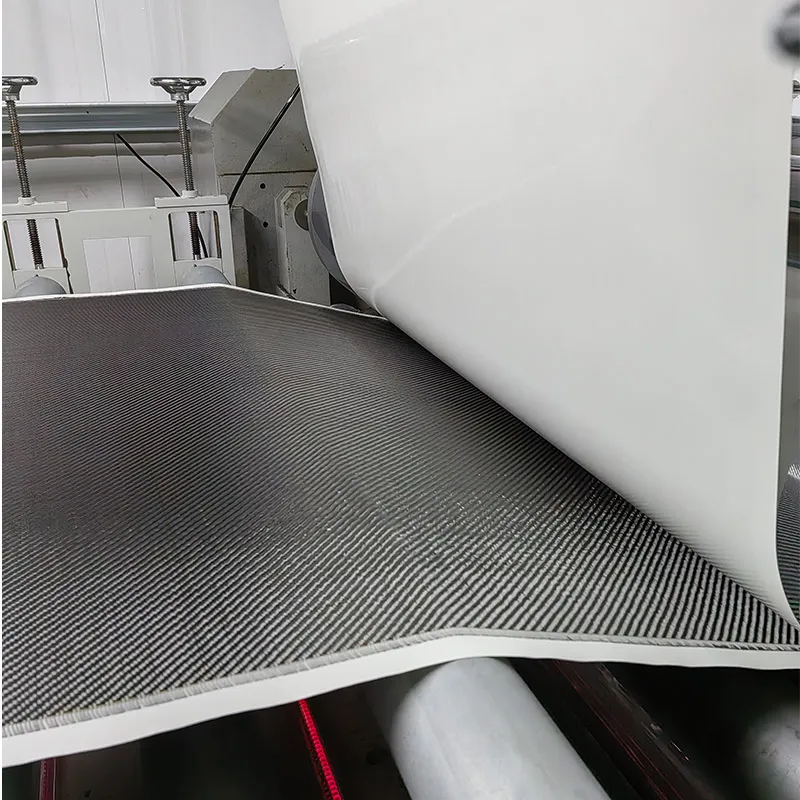

Prepreg Workshop: Equipped with 2 specialized production lines for high-consistency output.

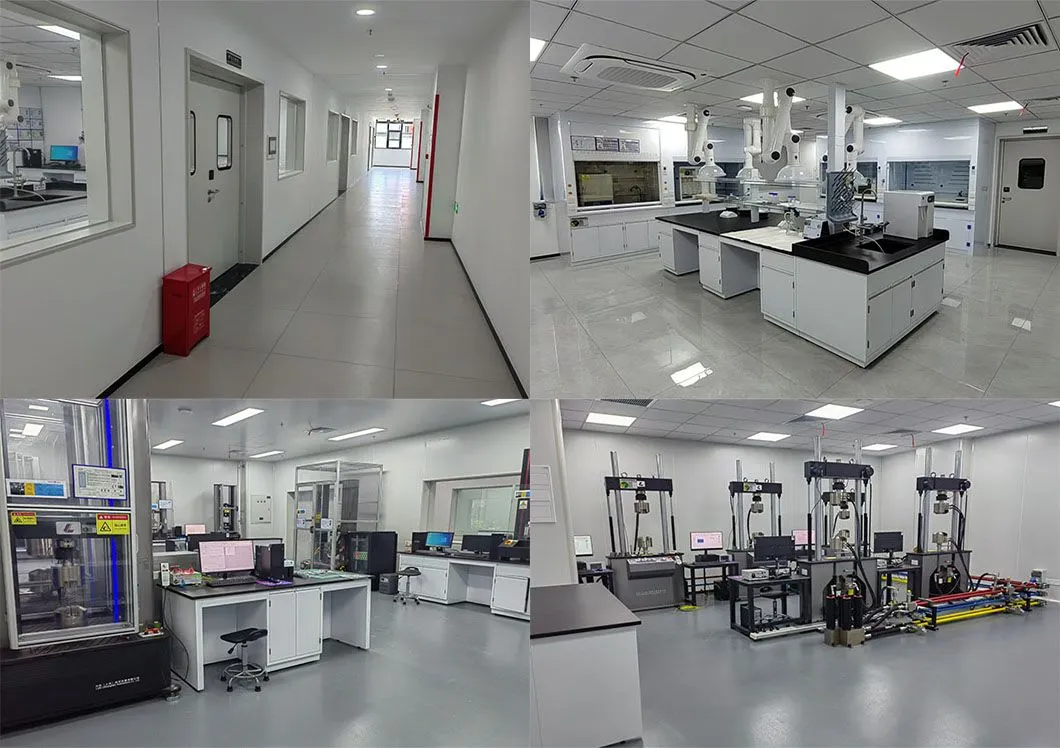

Our CNAS accredited testing center covers 3,100 square meters. We conduct rigorous testing on mechanical properties, weather resistance, and chemical analysis, including tensile, compression, and fatigue tests.
We hold 19 patents (including invention and utility models) and adhere to strict international quality standards.
