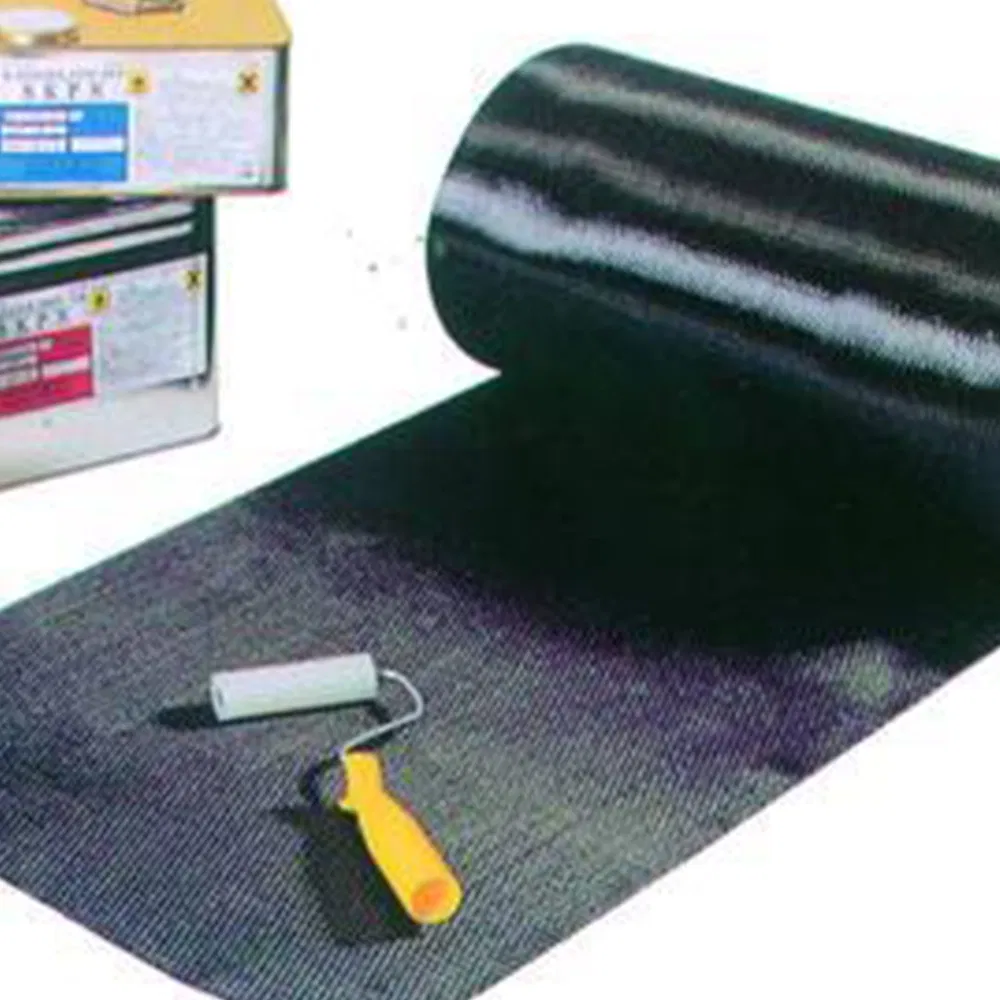

Biaxial 200GSM Unidirectional Woven Carbon Fiber Fabric 3K 200g

Customization:	Available
Shape:	Carbon Fiber Cloth
Raw Materials:	Polyacrylonitrile-Based Carbon Fiber

■ Basic Specification

Model NO.

1

Performance

General Type

State

Filament

Mechanical Property

High-Performance Type

Material

Carbon Fiber

Property

High Strength & Light Weight

Style

Plain

Specification

200gsm

Package Size

116.00cm * 29.00cm * 29.00cm

Gross Weight

20.000kg

■ Product Parameters

Carbon Fiber Woven Fabric Data:

No.	Model	Style	Filament		Density (±0.2)		Dimension (mm)		Weight (g/sq.m)
No.	Model	Style	Warp	Weft	Warp	Weft	Width	Thick (±0.2)	Weight (g/sq.m)
1	W-3011	Plain	3K	3K	5.00	5.00	1000-1005	0.25	200
2	W-3021	2/2 Twill	3K	3K	5.00	5.00	1000-1005	0.25	200
3	W-3022	2/2 Twill	3K	3K	5.50	5.50	1000-1005	0.25	220
4	W-3085	Satin	3K	3K	9.30	9.10	1000-1005	0.37	370±10
7	W-7011	Plain	12K	12K	4.00	4.00	1000-1005	0.64	640
11	W-3012	Plain	3K	3K	2.5	2.5	1000-1005	0.18	100

Carbon Fiber Knitted Fabric Data:

Model	Fiber Axial	Weight (g/sq.m, ±5%)	Width (mm)
KUC400	0°	405	1270±10
KWC600	0°/90°	605	1270±10
KTC600	0°/±45°	605	1270±10
KQC1200	0°/90°/±45°	1205	1270±10

■ Advantages & Features

✔ High-End Equipment: Imported Germany waving machines guarantee superior mechanical properties.

✔ Full Customization: Width, axial, and fiber areal weight can all be custom made.

✔ Lightweight & Soft: Easy to operate, cut freely, and thin for overlapping.

✔ Superior Strength: High tensile strength and high elasticity for demanding applications.

✔ Chemical Resistance: Acid and alkali resistant, suitable for harsh environments.

✔ Safety: Non-toxic and non-irritant, safe for construction during building occupancy.

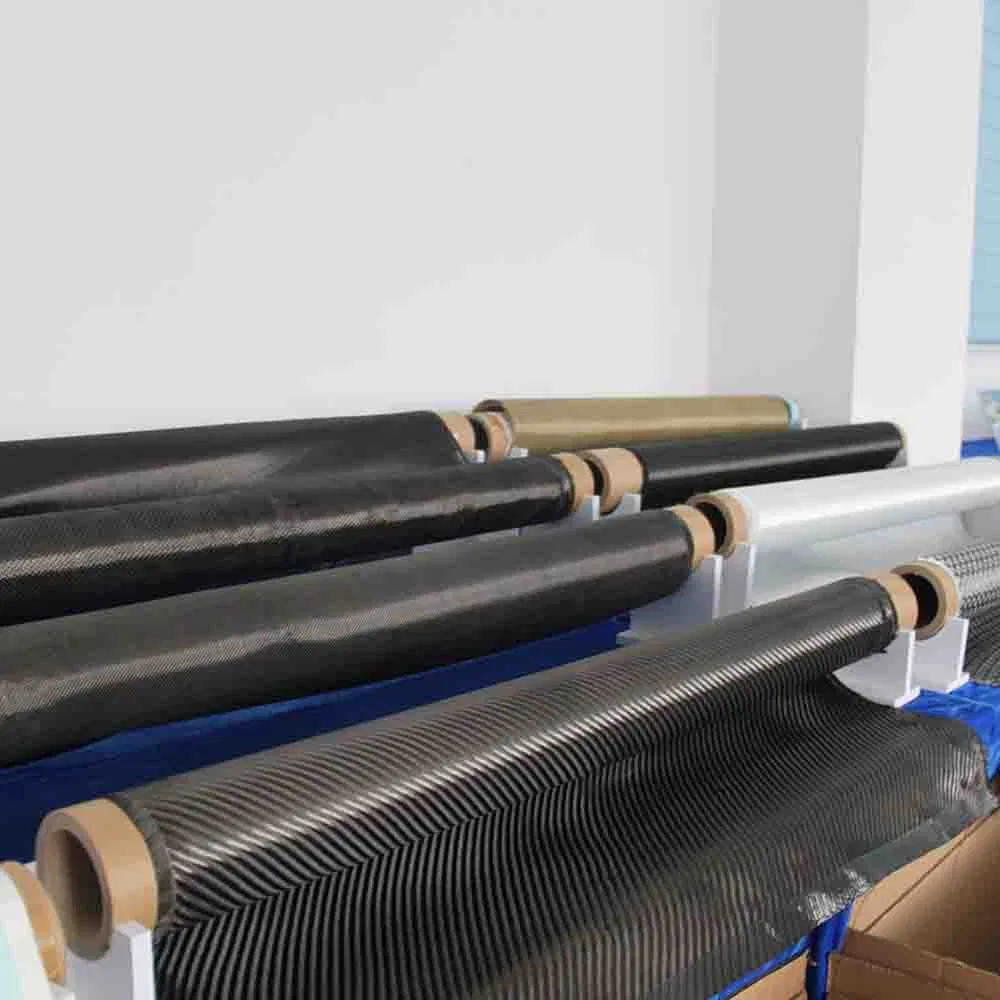

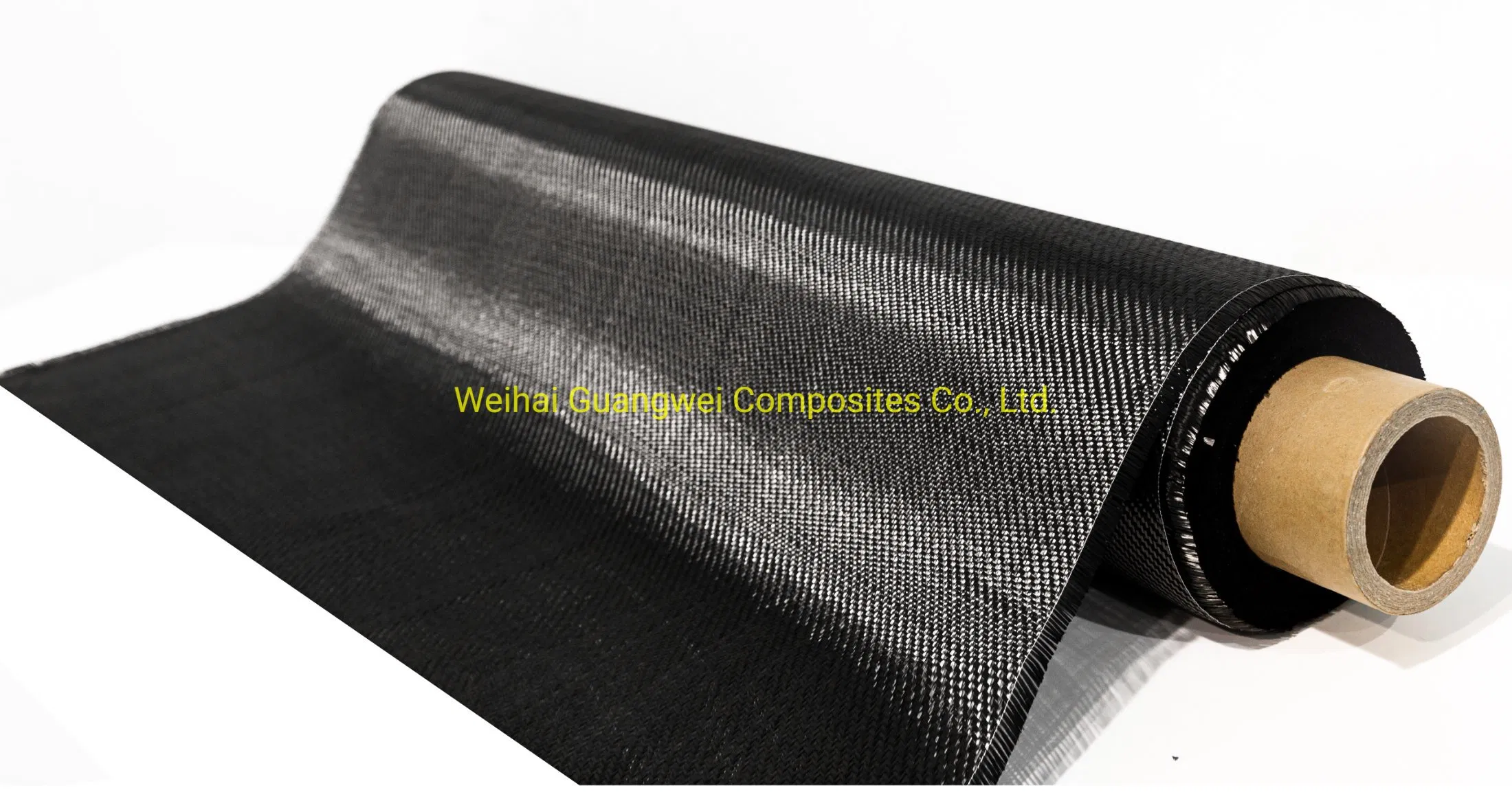

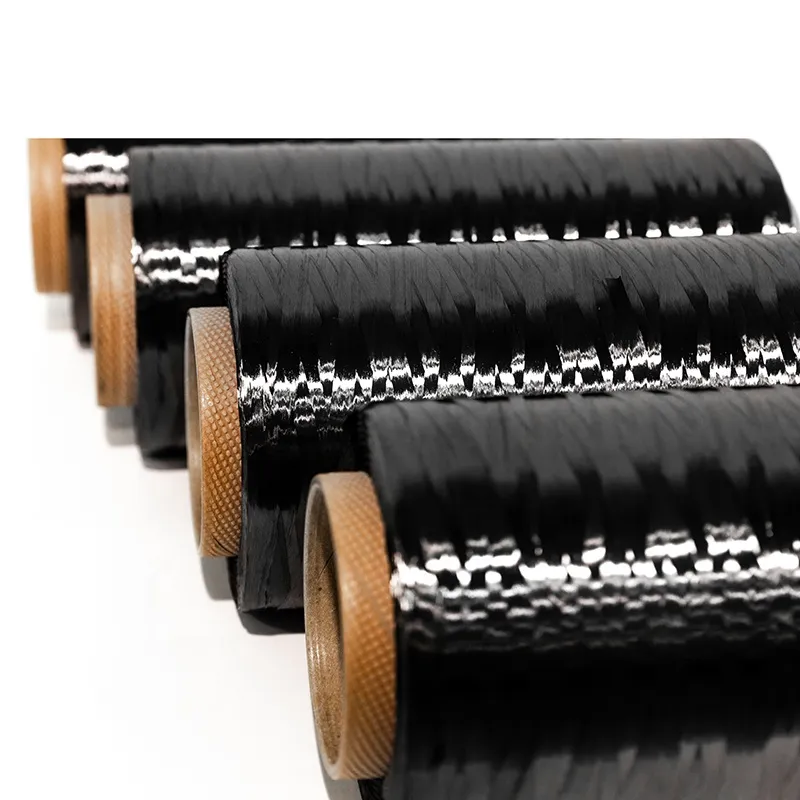

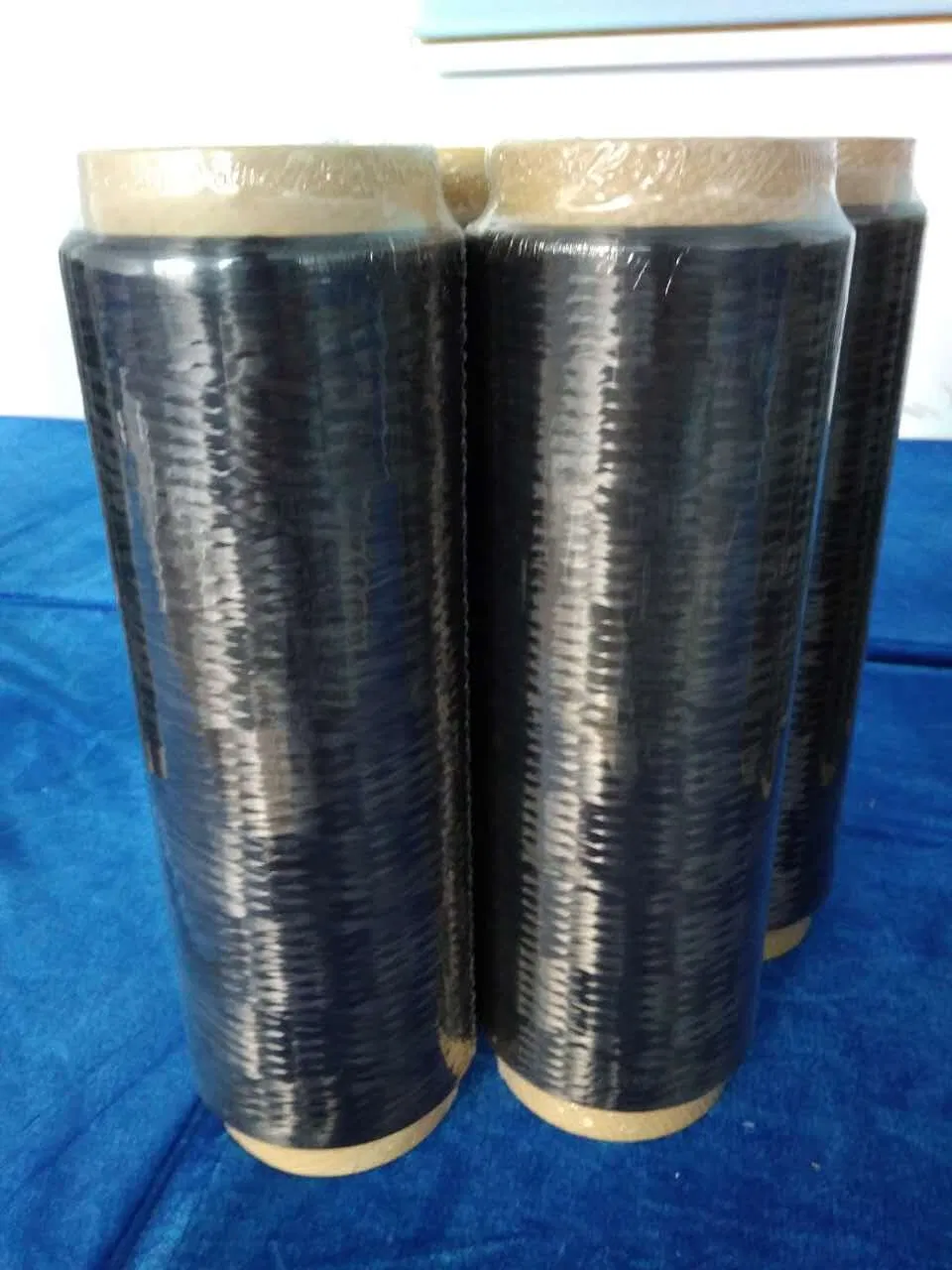

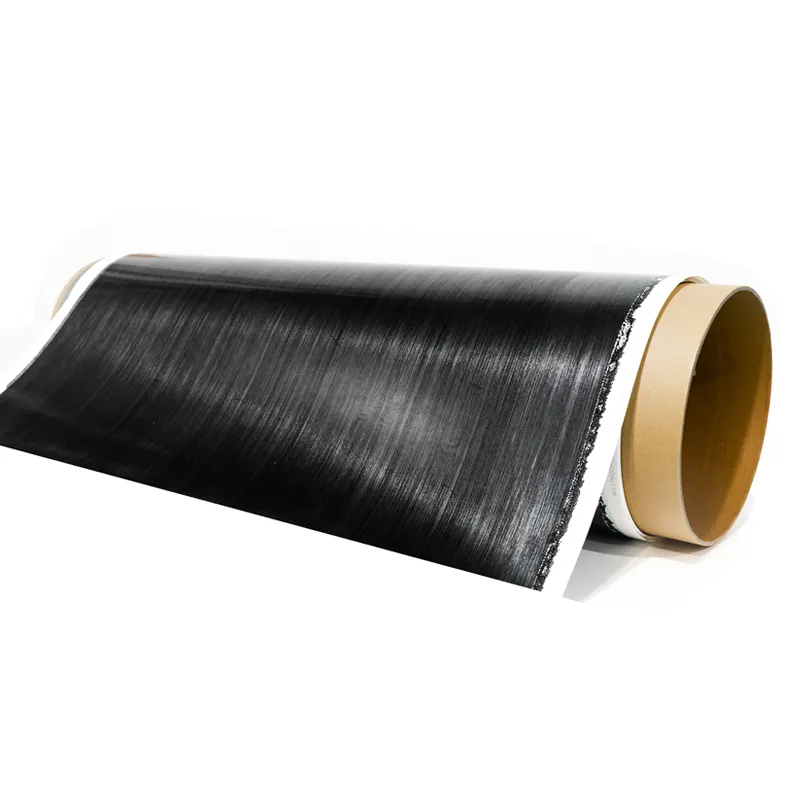

■ Detailed Photos

■ Frequently Asked Questions

How can I get the price of these products?

As these are mostly custom-made products, please provide as many specifications as possible (width, weight, weave style) to save time in the quoting process.

Are samples available for quality checking?

Yes, while we may not have exact custom dimensions in stock, we can provide regular product samples for your quality inspection.

What is the standard lead time for orders?

Normally 7-15 days. The exact production time depends on the specific products and the quantity ordered.

Is there a discount for bulk orders?

Yes, for quantities exceeding 1000pcs, please contact us directly to discuss the best possible pricing.

How do you ensure the quality of finished products?

Every production step and all finished items undergo a rigorous inspection by our QC department before shipment.

What are the main applications for this fabric?

This high-strength fabric is widely used in structural reinforcement, aerospace components, and automotive light-weighting due to its superior mechanical properties.
