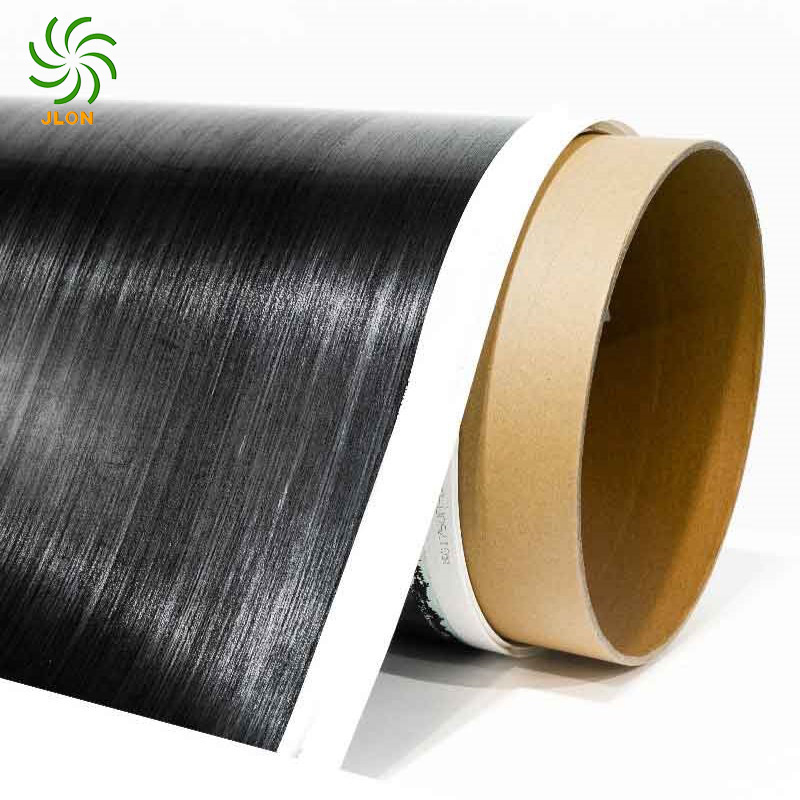

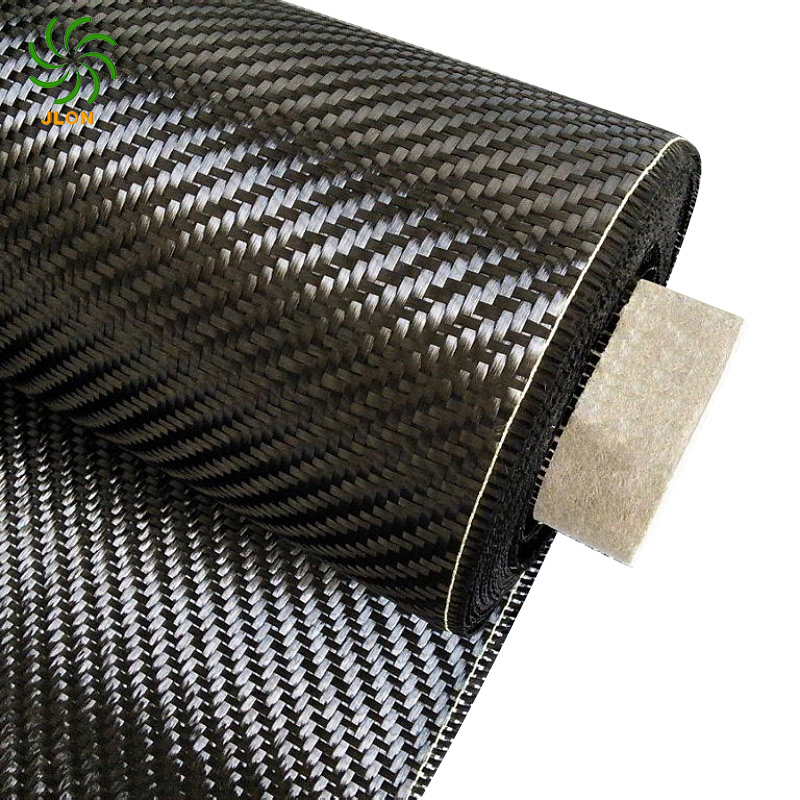

3K 6K 12K Black Ud Plain Twill Weave Pre Preg Carbon Fiber Fabric Prepreg Carbon Cloth

Still deciding? Get samples of $ !
Order Sample

Product Description

i

Overview

Model NO.
UD150
Shape
Carbon Fiber Cloth
Performance
General Type
State
Chopped Fiber
Mechanical Property
General Type
Raw Materials
Carbon Prepreg
Width
1000-1270mm
Transport Package
Refrigerated Containers
Origin
China
HS Code
6815131090
Production Capacity
100000
Package Gross Weight
5.000kg
D

Product Description

Leveraging the unparalleled advantages of high-performance carbon fiber materials and warp knitted fabrics, we introduce our state-of-the-art high-precision carbon fiber multi-axial warp knitted fabric prepreg production line. Offering a fiber area weight range of 100-600g/m² and T300-T800 grade unidirectional or fabric prepreg production capabilities, we have established a fully standardized prepreg material system. Utilizing thermosetting epoxy resins with features like medium-temperature curing, flame retardancy, and rapid curing, our products are engineered to meet the highest quality and performance demands across diverse industries, including wind power, rail transit, automobile, aviation, sports goods, and more.
P

Product Parameters

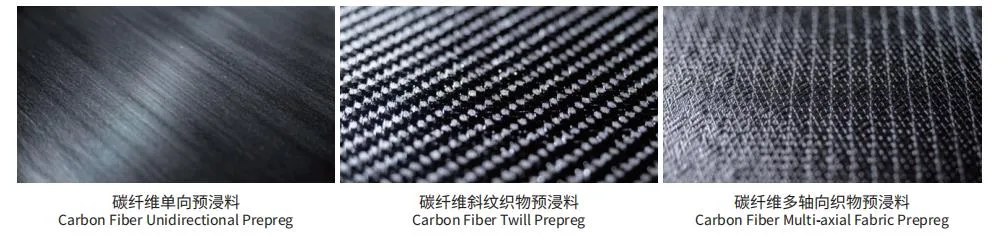

Carbon Fiber Fabric Parameters
Type Fiber Fiber area weight g/m² Resin content % Prepreg area weight g/m Width mm
UD150HFC20-25K150±335±2231±71000~1270
UD200HFC20-25K200±435±2308±91000~1270
UD300HFC20-25K300±635±2462±141000~1270
PN300±45°Biaxial carbon fiber warp knitted fabric30045±2555±201000~1270
LT4000°/90°carbon fiber warp knitted fabric40045±2733±211000~1270
TW200Carbon fiber twill fabric20042±2345±111000~1270
Note: The types shown in this table are representative, not all, and specific specifications should be determined according to customer requirements.
A

Application

Carbon Fiber Applications
S

Packaging & Shipping

Our products can maintain their optimal quality for up to a year when stored at -18ºC. Shipped using refrigerated containers to ensure product integrity.
Packaging Detail 1
Packaging Detail 2
Packaging Detail 3
F

Frequently Asked Questions

What is the shelf life of the carbon fiber prepreg?
The products can maintain optimal quality for up to one year when stored properly at -18ºC.
How is the material transported to ensure quality?
We use refrigerated containers for shipping to maintain the required temperature and ensure product integrity during transit.
What grades of carbon fiber do you provide?
We offer production capabilities for T300-T800 grade unidirectional or fabric prepregs.
What industries are these materials suitable for?
Our carbon fiber prepregs are designed for diverse industries including wind power, rail transit, automotive, aviation, and sports goods.
What resin systems are used in your prepreg?
We utilize thermosetting epoxy resins that feature medium-temperature curing, flame retardancy, and rapid curing capabilities.
Can specific specifications be customized?
Yes, while we have standard types like UD150 and UD300, specific specifications can be determined based on unique customer requirements.
