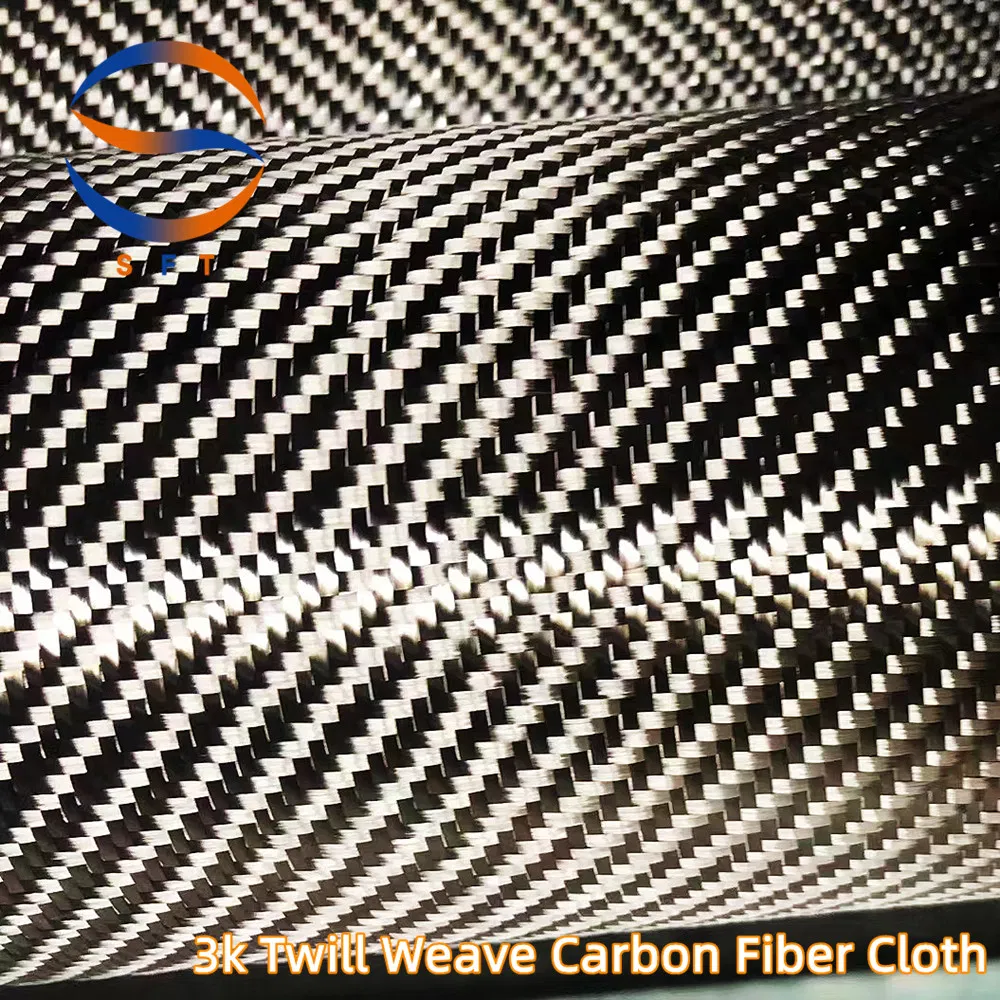

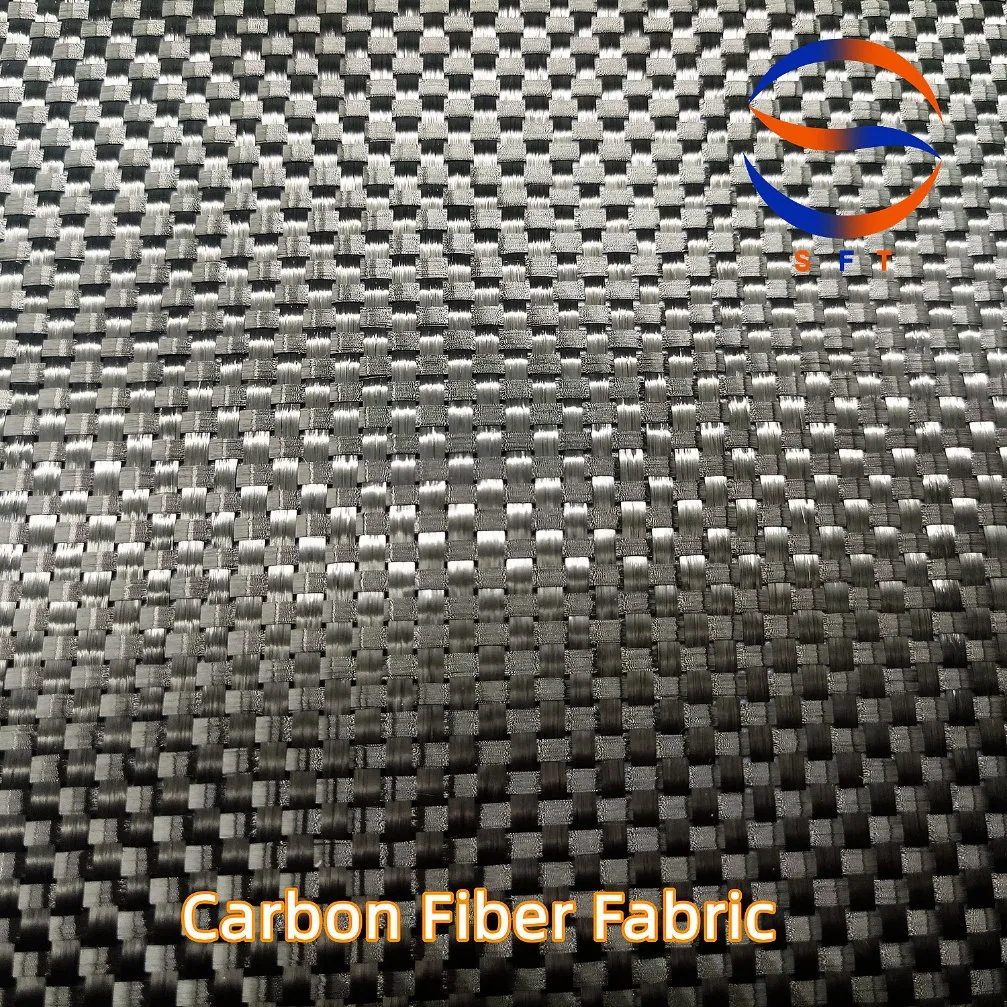

Plain Twill Satin Unidirectional Carbon Fiber Fabric for FRP Industry

Basic Information

Model NO.

200GSM

Performance

High-Strength Type

State

Filament

Mechanical Property

High-Performance Type

Spec

1K 3K 6K 12K

Standard Width

800-1500mm

Warp Density

5/10mm

Weft Density

5/10mm

Thickness

0.3mm

Color

Black

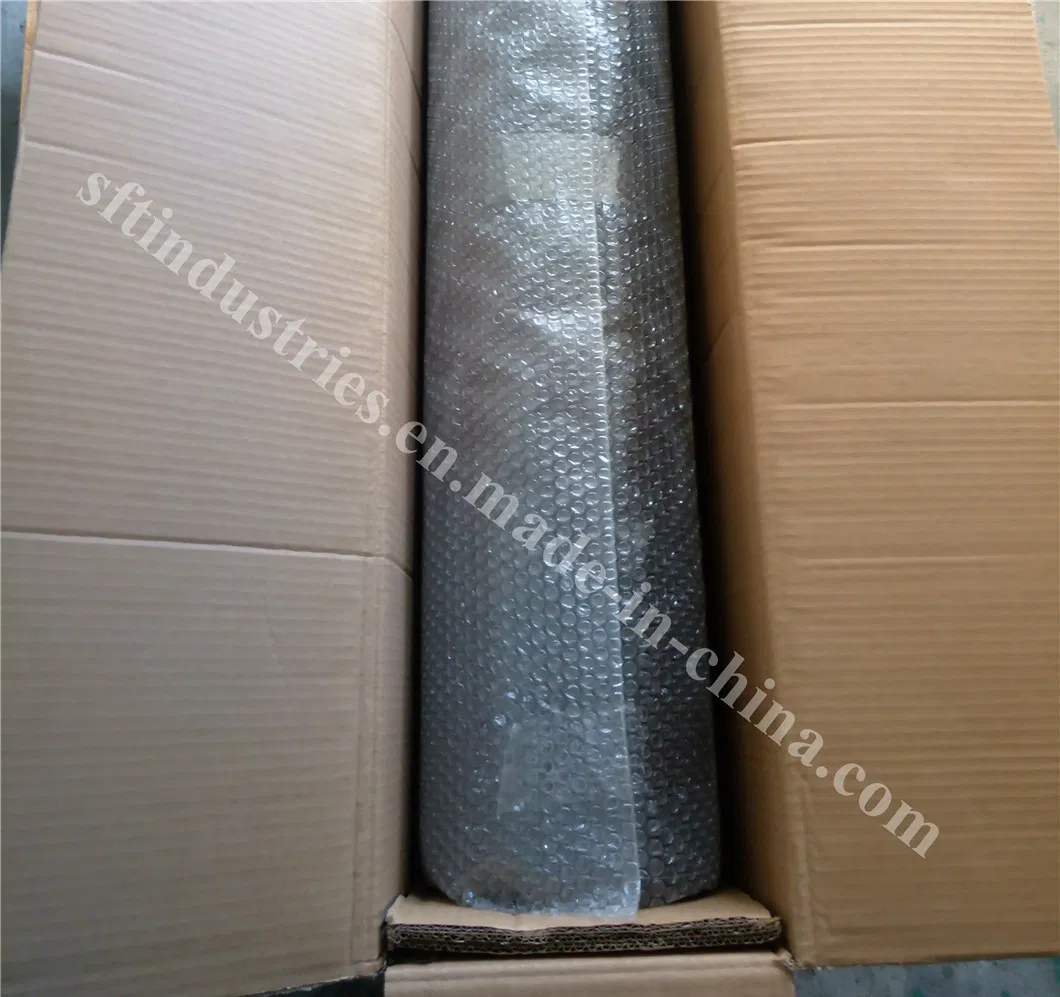

Package Size

30.00cm * 10.00cm * 10.00cm

Gross Weight

1.000kg

Product Description

Plain Twill Satin Unidirectional Carbon Fiber Fabric

High-quality carbon fiber fabrics designed for the FRP industry, offering superior strength-to-weight ratios and exceptional durability for demanding applications.

Key Features

Light weight
High strength
High modulus
Fatigue resistance
Corrosion resistance

Main Applications

Aerospace components
Wind power blades
Marine and Shipbuilding
Automobile decoration
Sports equipment

Technical Data Sheet

Type	Yarn		Weave	Density (10mm)		Weight (g/m2)	Thickness (mm)	Width (cm)
Type	Warp	Weft	Weave	Warp	Weft	Weight (g/m2)	Thickness (mm)	Width (cm)
01P-100	1k	1k	plain	7.5	7.5	100	0.14	80-150
01T-100	1k	1k	twill	7.5	7.5	100	0.14	80-150
03P-200	3k	3k	plain	5	5	200	0.3	80-150
03T-200	3k	3k	twill	5	5	200	0.3	80-150
06P-280	6k	6k	plain	3.5	3.5	280	0.36	80-150
12T-400	12k	12k	twill	2.5	2.5	400	0.46	80-150
12T-640	12k	12k	twill	4	4	640	0.64	80-150

Product Visuals

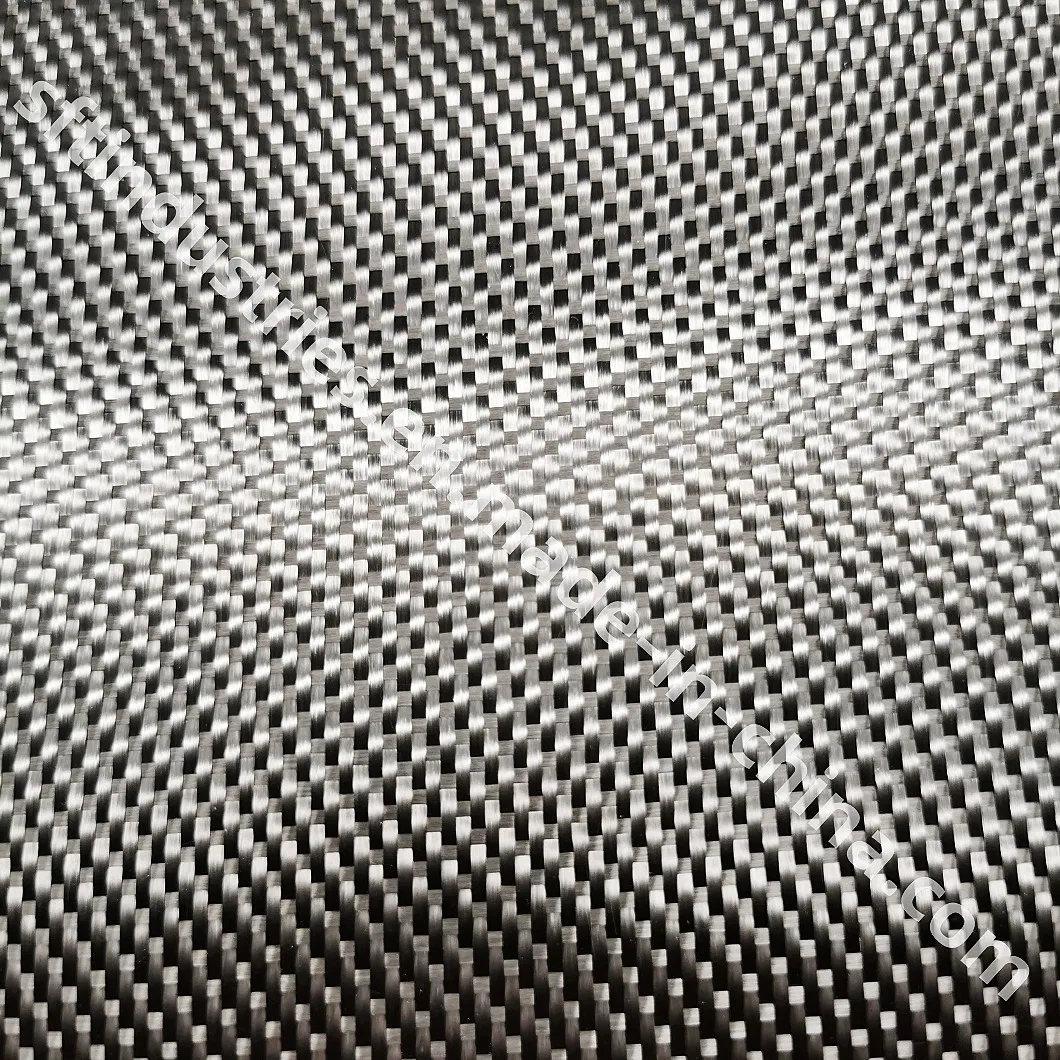

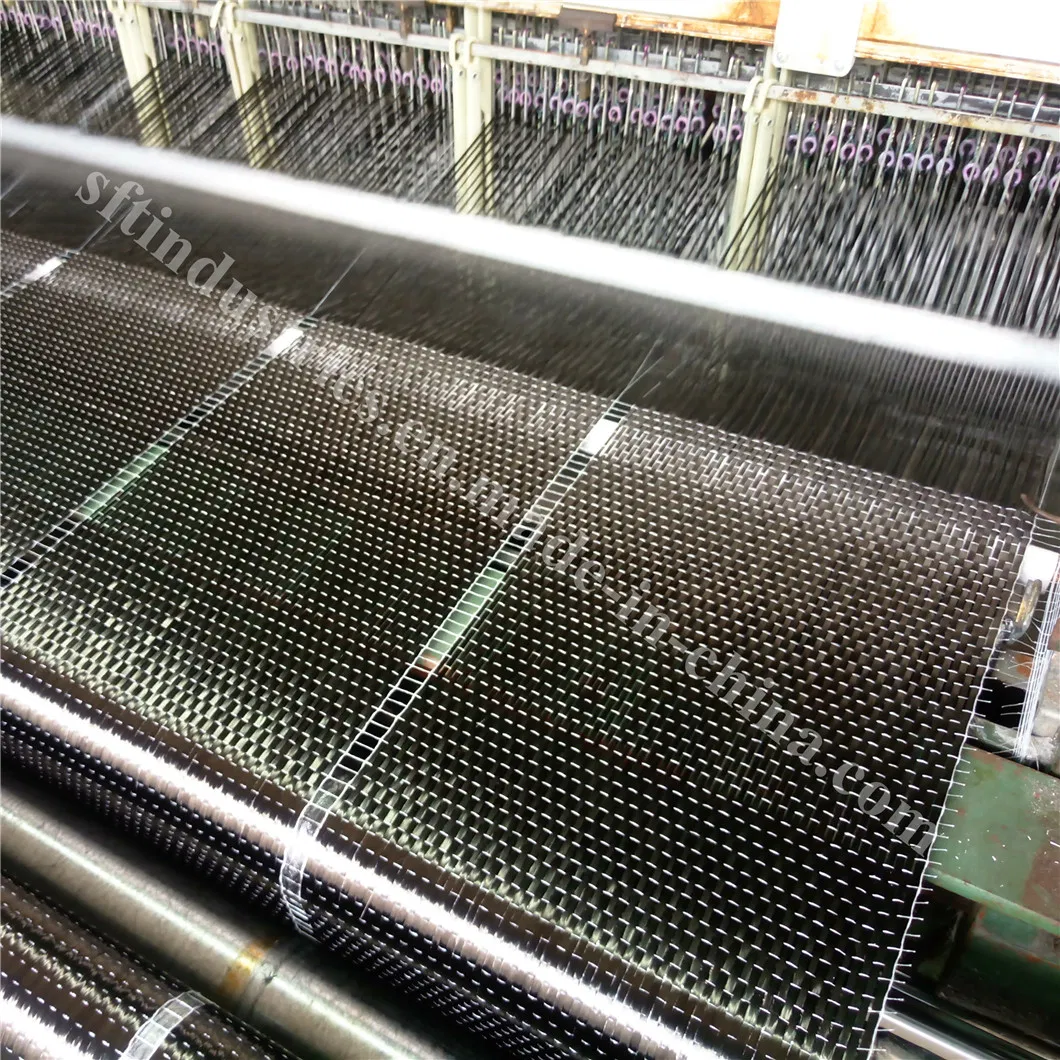

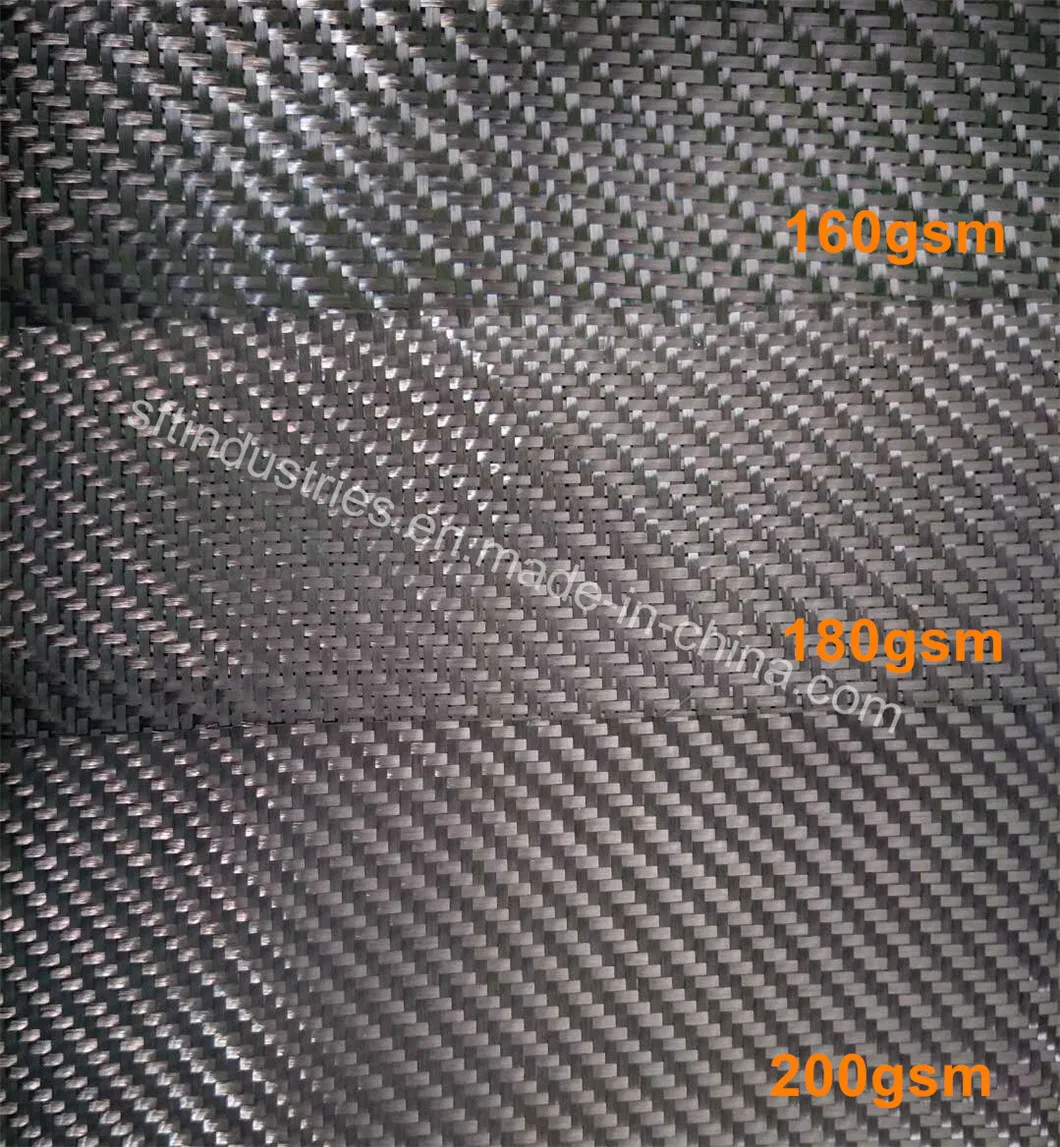

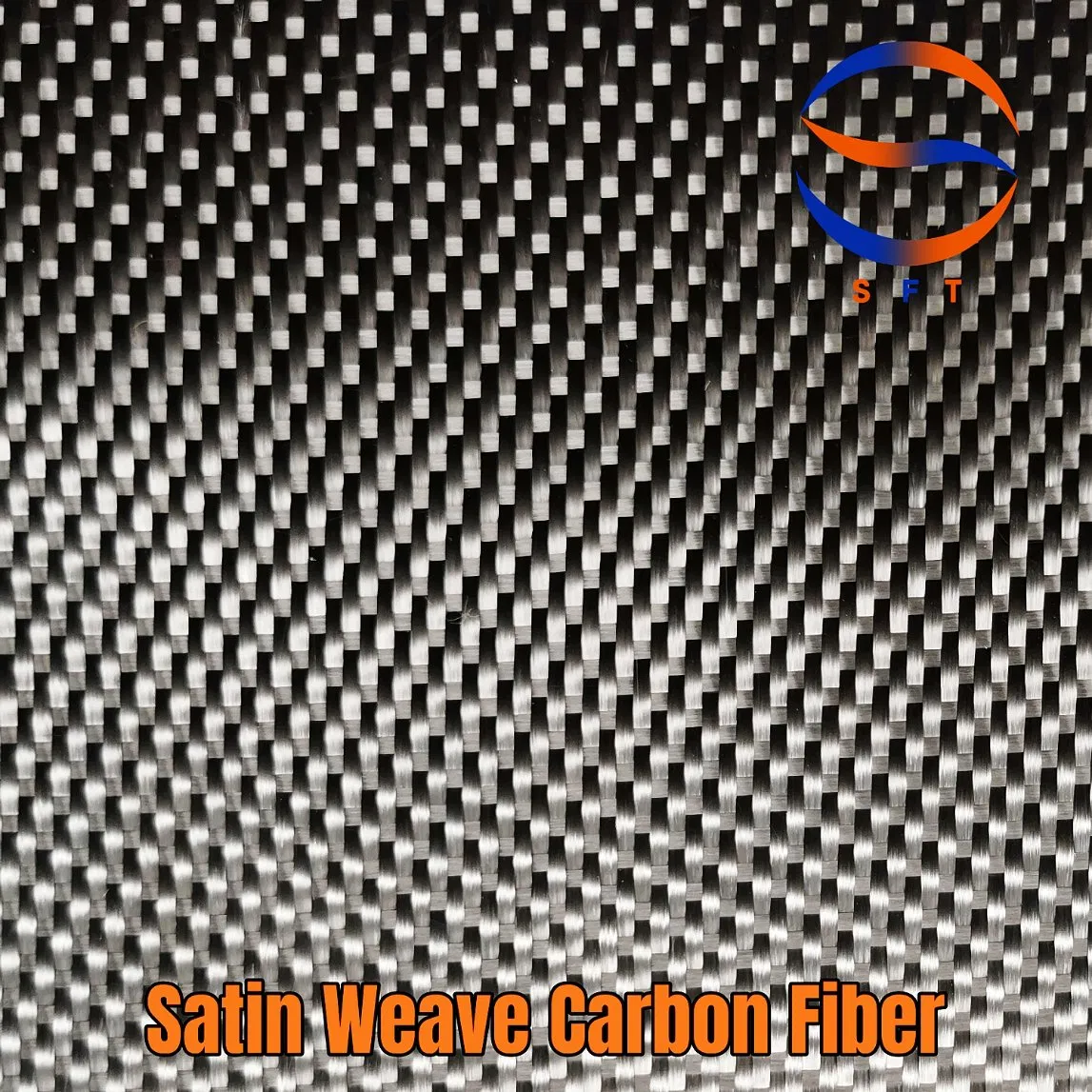

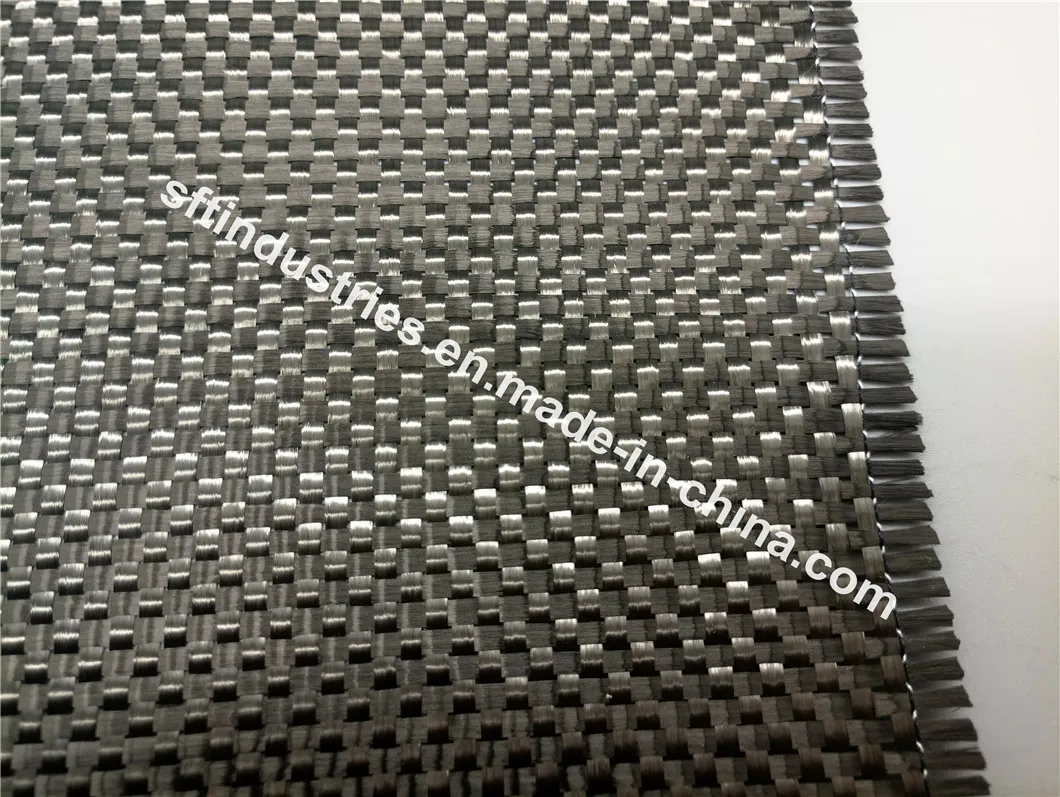

Showcase of Various Weave Patterns and Specialties

Frequently Asked Questions

Q1: What are the primary advantages of carbon fiber fabric in FRP industry? A: Carbon fiber offers an exceptional strength-to-weight ratio, high modulus, and excellent resistance to fatigue and corrosion, making it ideal for aerospace, marine, and automotive structural components.

Q2: What is the difference between Plain and Twill weave? A: Plain weave is more stable but less pliable, while Twill weave (like 2x2) is more drapeable, making it easier to form around complex curves while providing a distinct aesthetic look.

Q3: What does the "K" value (1K, 3K, 12K) represent? A: The "K" stands for thousands of filaments per tow. For example, 3K carbon fiber means there are 3,000 individual carbon filaments in each bundle or tow.

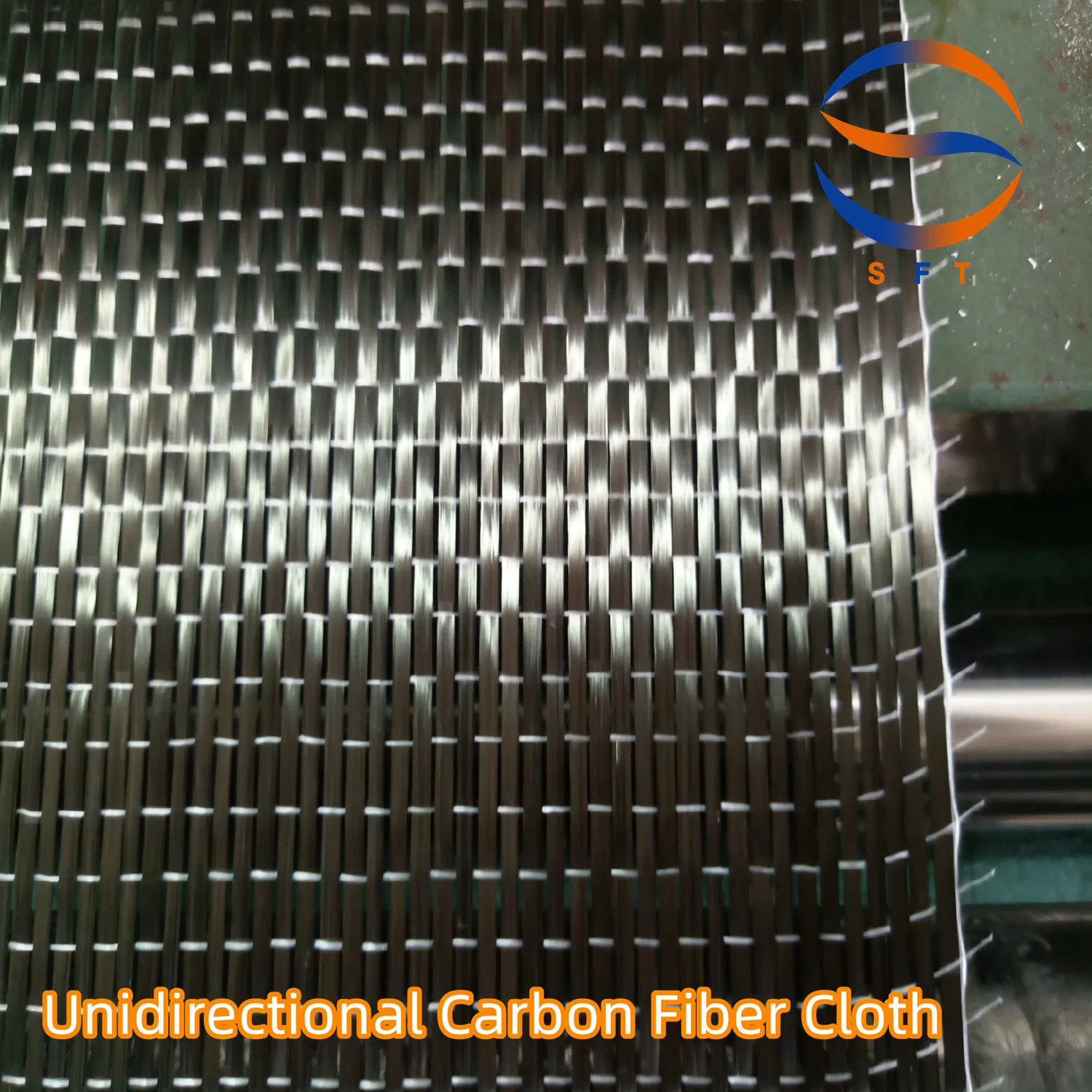

Q4: Can this fabric be used for structural reinforcement? A: Yes, particularly the Unidirectional (UD) carbon fiber fabric, which is widely used in construction and civil engineering to strengthen beams, columns, and walls.

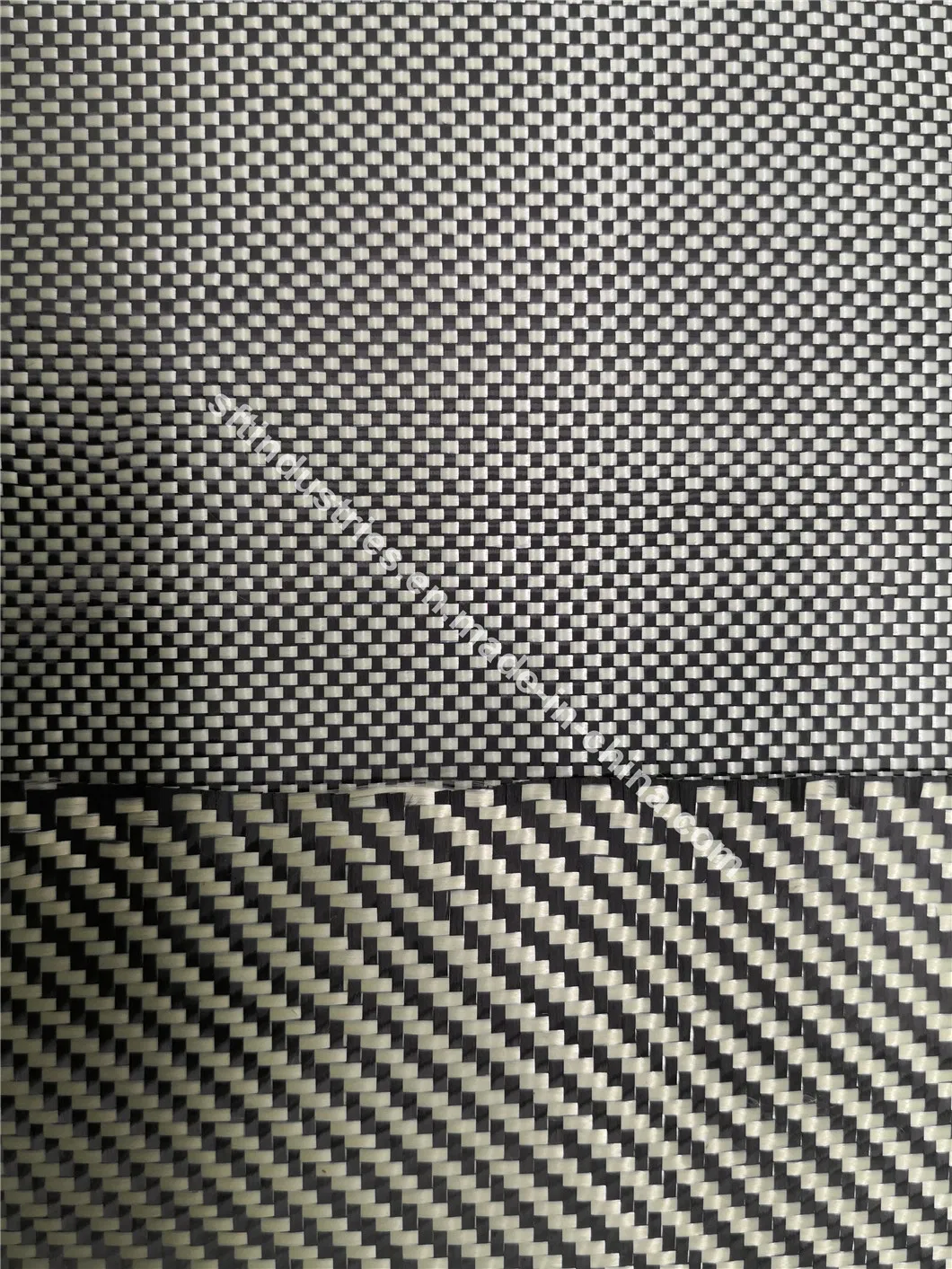

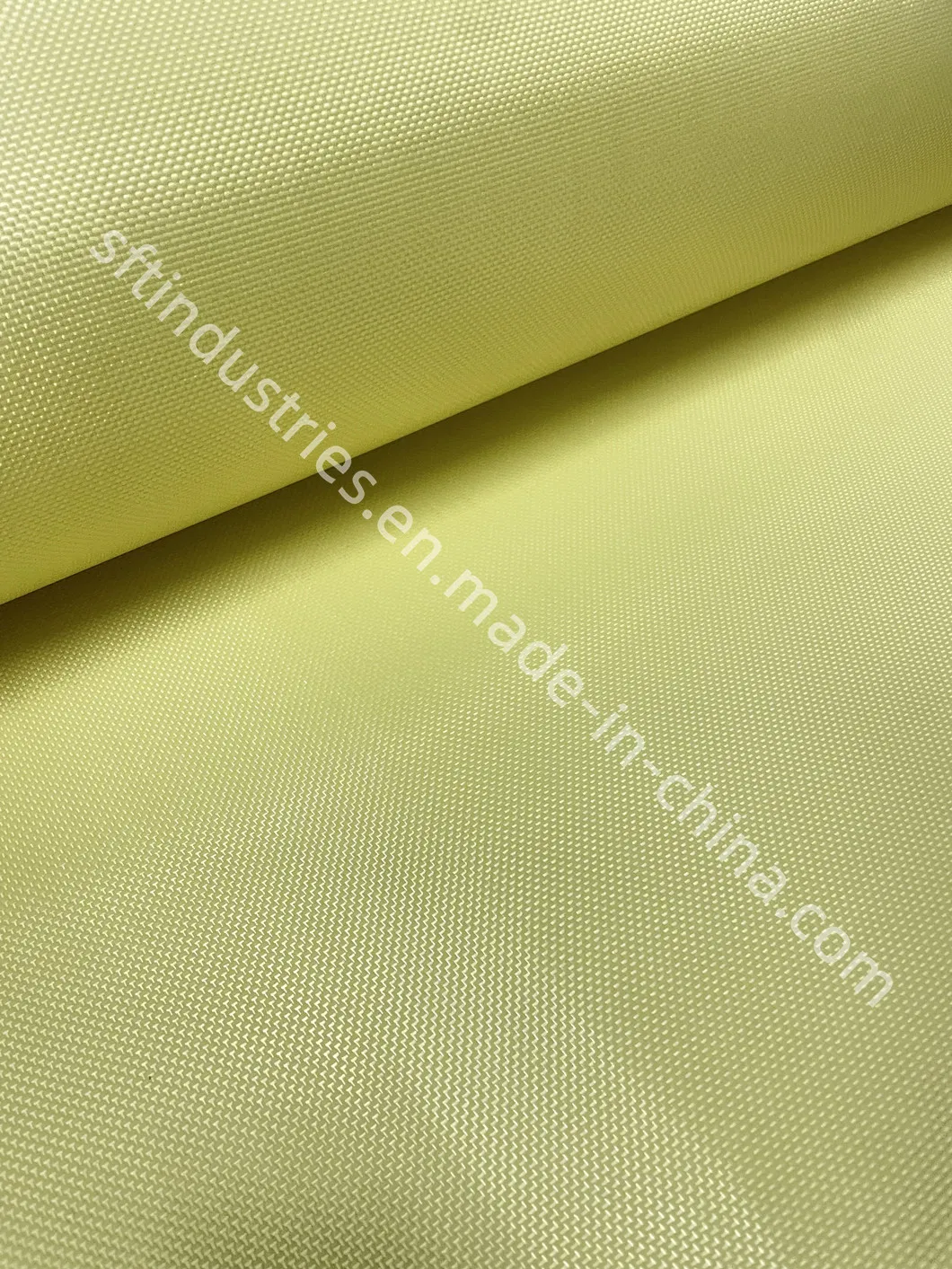

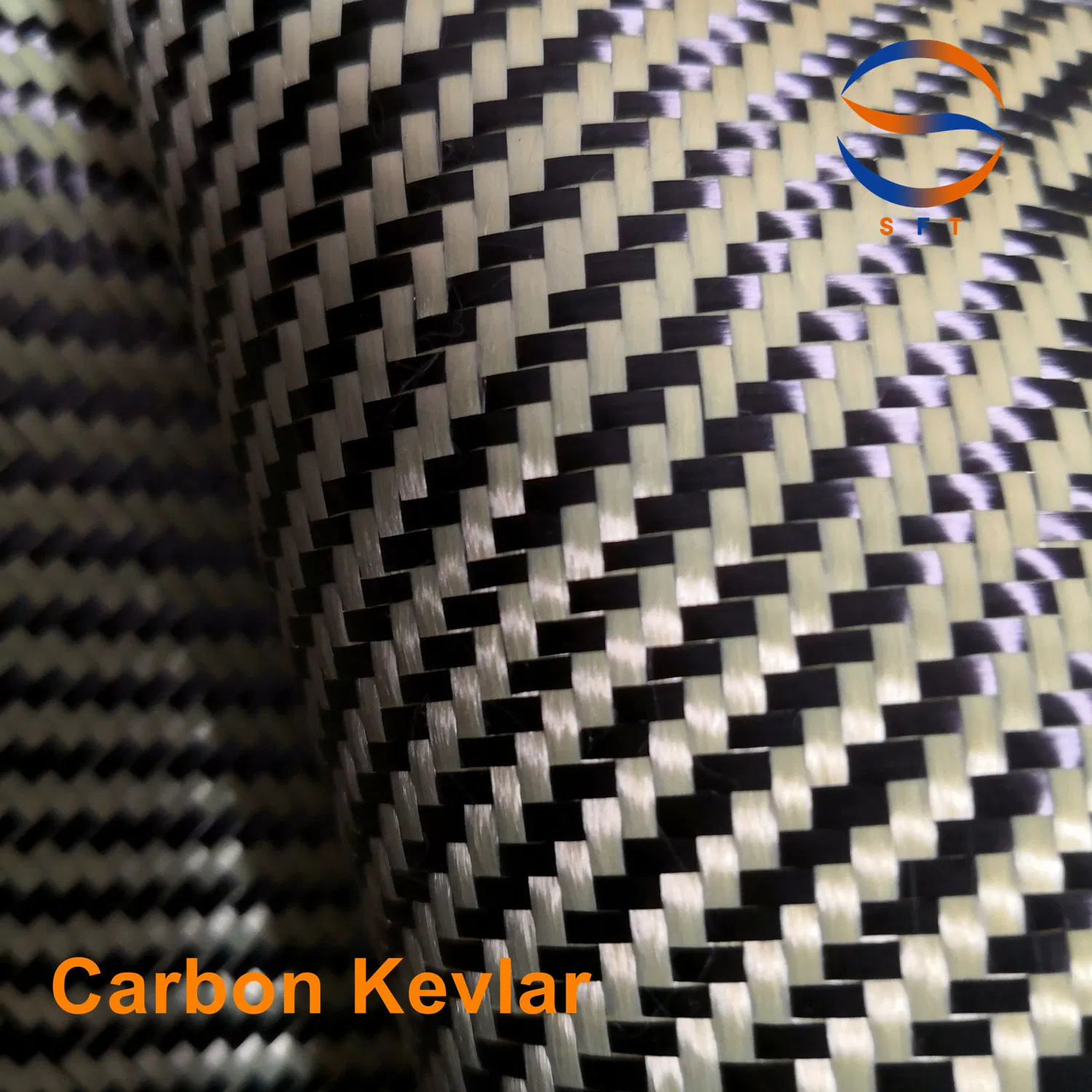

Q5: Is hybrid fabric available? A: Yes, we offer hybrid fabrics that combine carbon fiber with other materials like Aramid (Kevlar) to provide a balance of high strength and improved impact resistance.

Q6: What widths are standard for these fabrics? A: Our standard widths typically range from 800mm to 1500mm, but customized widths can often be accommodated depending on the specific type of weave and material.
