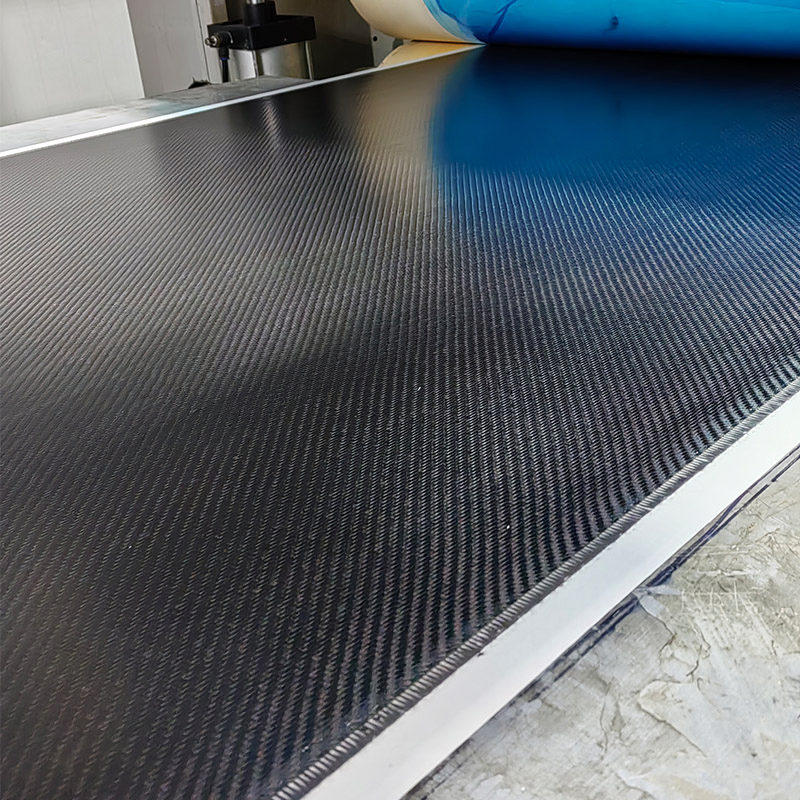

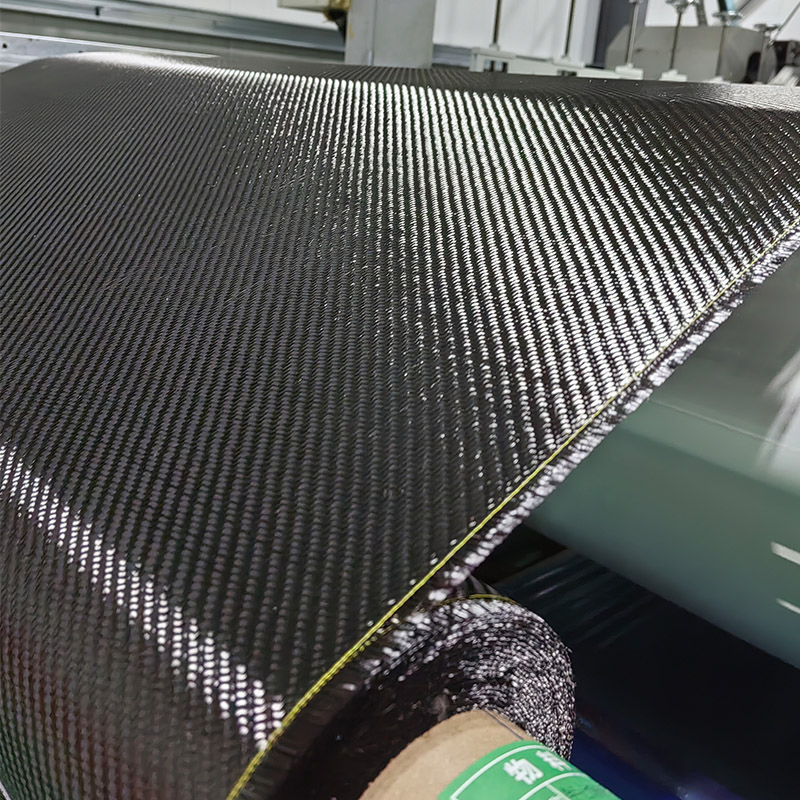

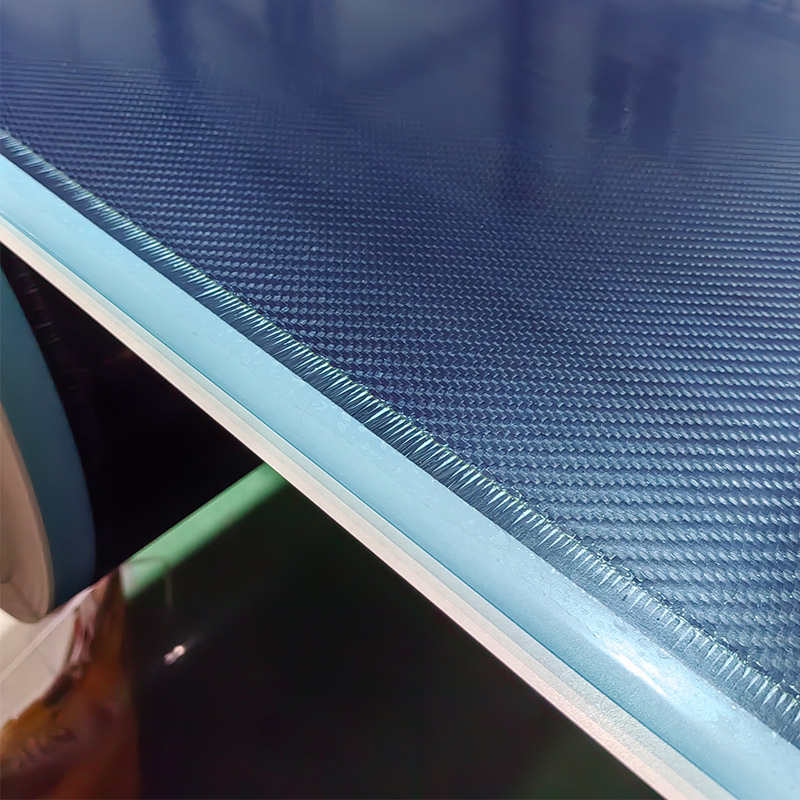

245GSM 37%RC Resin Content Twill Weave Carbon Fiber Fabric Prepreg
245GSM 37%RC Resin Content Twill Weave Carbon Fiber Fabric Prepreg
245GSM 37%RC Resin Content Twill Weave Carbon Fiber Fabric Prepreg
245GSM 37%RC Resin Content Twill Weave Carbon Fiber Fabric Prepreg
245GSM 37%RC Resin Content Twill Weave Carbon Fiber Fabric Prepreg
1 / 5
245GSM 37%RC Resin Content Twill Weave Carbon Fiber Fabric Prepreg
245GSM 37%RC Resin Content Twill Weave Carbon Fiber Fabric Prepreg
245GSM 37%RC Resin Content Twill Weave Carbon Fiber Fabric Prepreg
245GSM 37%RC Resin Content Twill Weave Carbon Fiber Fabric Prepreg
245GSM 37%RC Resin Content Twill Weave Carbon Fiber Fabric Prepreg

245GSM 37%RC Resin Content Twill Weave Carbon Fiber Fabric Prepreg

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

i

Basic Information

Model NO.
21038
Performance
High-Strength Type
State
Woven Fabric
Carbon Type
Twill
Filament Count
3K
Width
1m
Material
Carbon Fabric + Resin
Specification
245g/sqm
✓

Product Specifications

Item No.21038 Carbon Yarn3K
Fabric area weight245g/sqm MaterialCarbon Fabric + Resin
Roll Width1 M Roll Length100M or Customized
Transport PackagePolybag and Carton HS Code6815131090
⚙

Technical Parameters

Carbon Fiber Properties
Tensile Strength≥ 3500 MPa Tensile Modulus≥ 230 GPa
Elongation≥ 1.5% Carbon Yarn3K
Resin Properties (Epoxy)
Resin Content37% Bending Strength100~120 MPa
Tensile Strength60~70 MPa Glass Transition (TG)90~110 ºC

Applications: Widely used in Automotive industry, Aerospace, Rail transit, Energy industry, Sports equipment, and other high-performance fields.

P

Detailed Photos

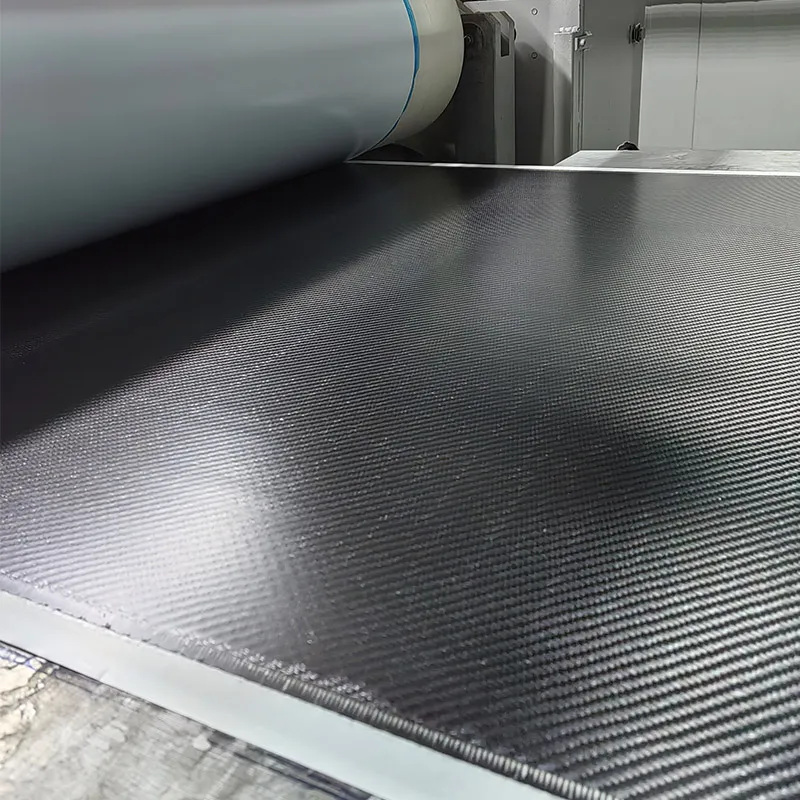

Carbon Fiber Prepreg 1
Carbon Fiber Prepreg 2

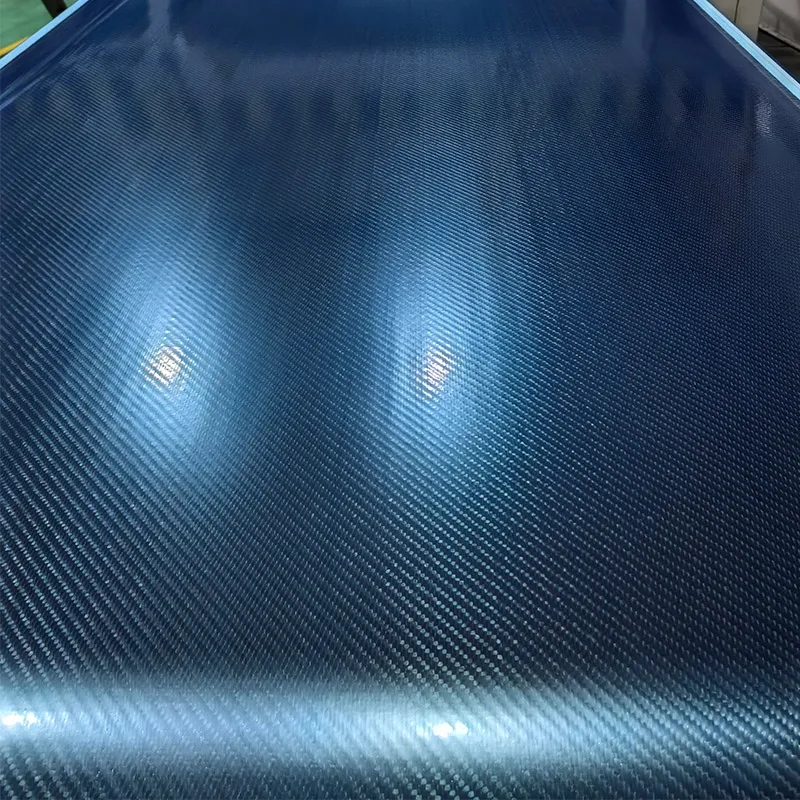

Carbon Fiber Prepreg 3
Carbon Fiber Prepreg 4
C

Professional Profile

Specializing in the research, development, and production of high-quality woven textiles. Our styles include unidirectional, plain, twill, satin, and jacquard, made from high-performance fibers such as carbon, glass, and aramid fibers.

With state-of-the-art facilities and an experienced professional team, we deliver exceptional woven textiles that meet evolving market demands. Our commitment to excellence is reflected in our IATF16949 certification.

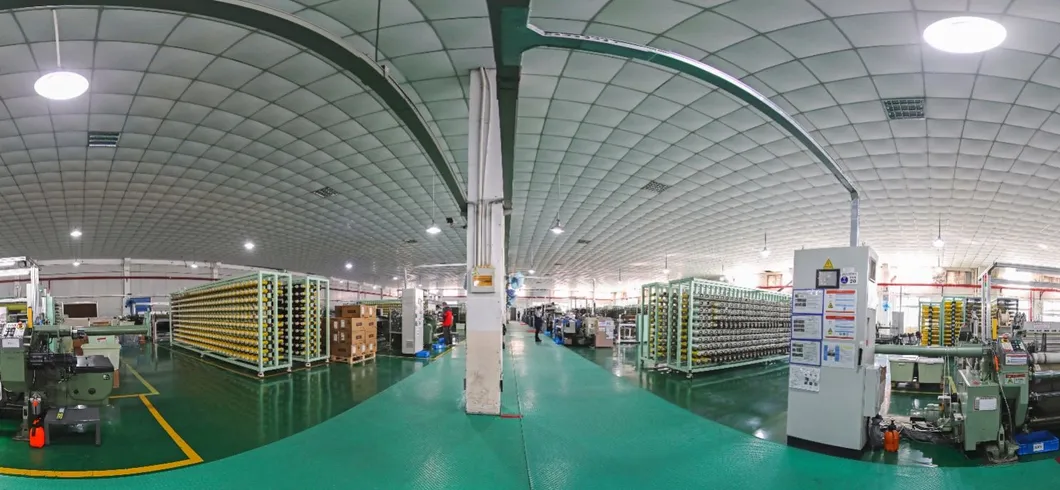

Production Facility 1

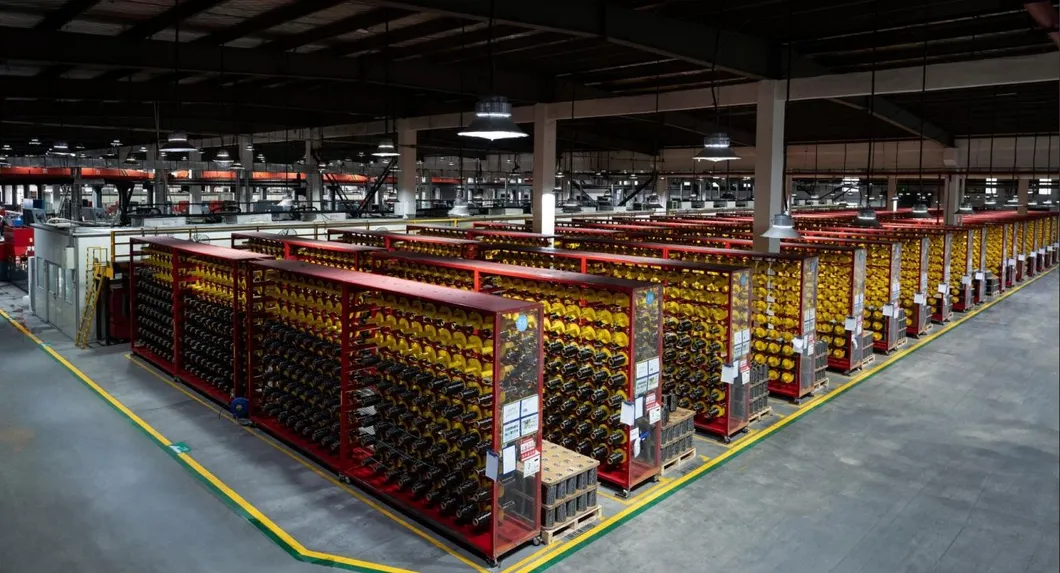

Production Facility 2

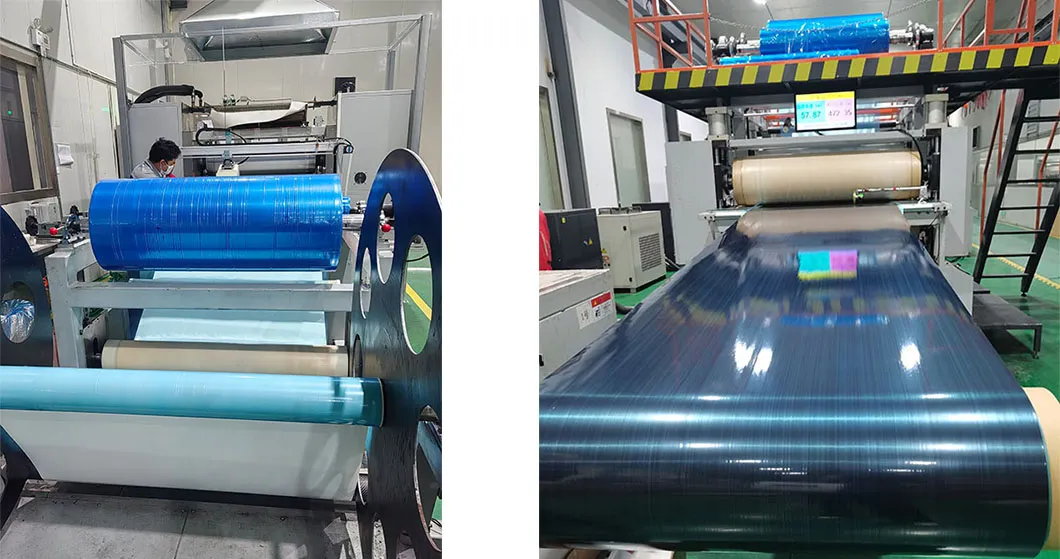

Prepreg Workshop: 2 Specialized Production Lines

Workshop
L

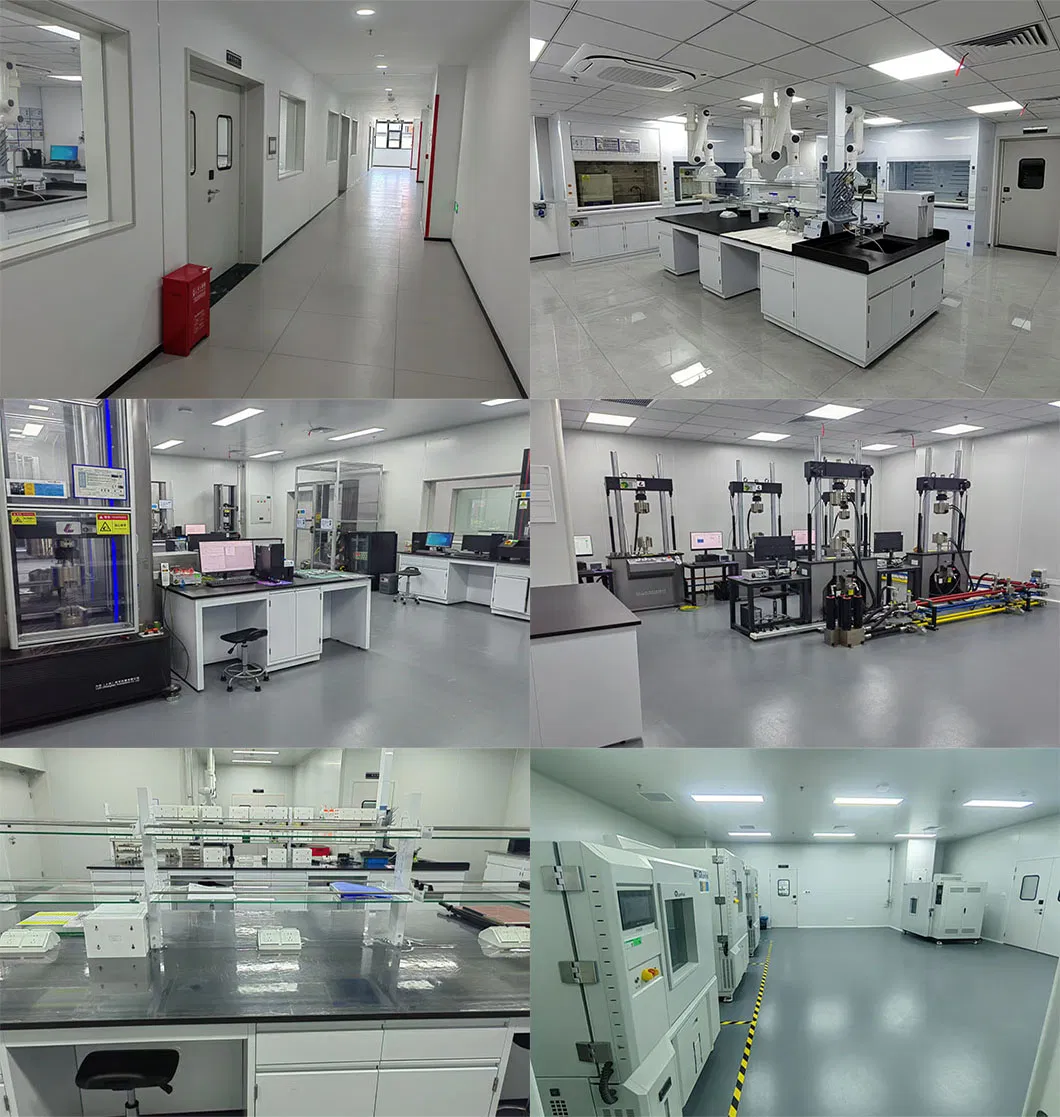

Testing Laboratory

Our testing center covers 3,100 square meters and has passed CNAS laboratory accreditation. We maintain a control system for all processes from raw materials to finished products. Testing scope includes mechanical properties, weather resistance, physical properties, and chemical analysis.
Test Laboratory
★

Certifications & Patents

Certified by IATF16949. We hold a total of 19 patents, including 3 design patents, 5 invention patents, and 11 utility model patents.
Certificates
S

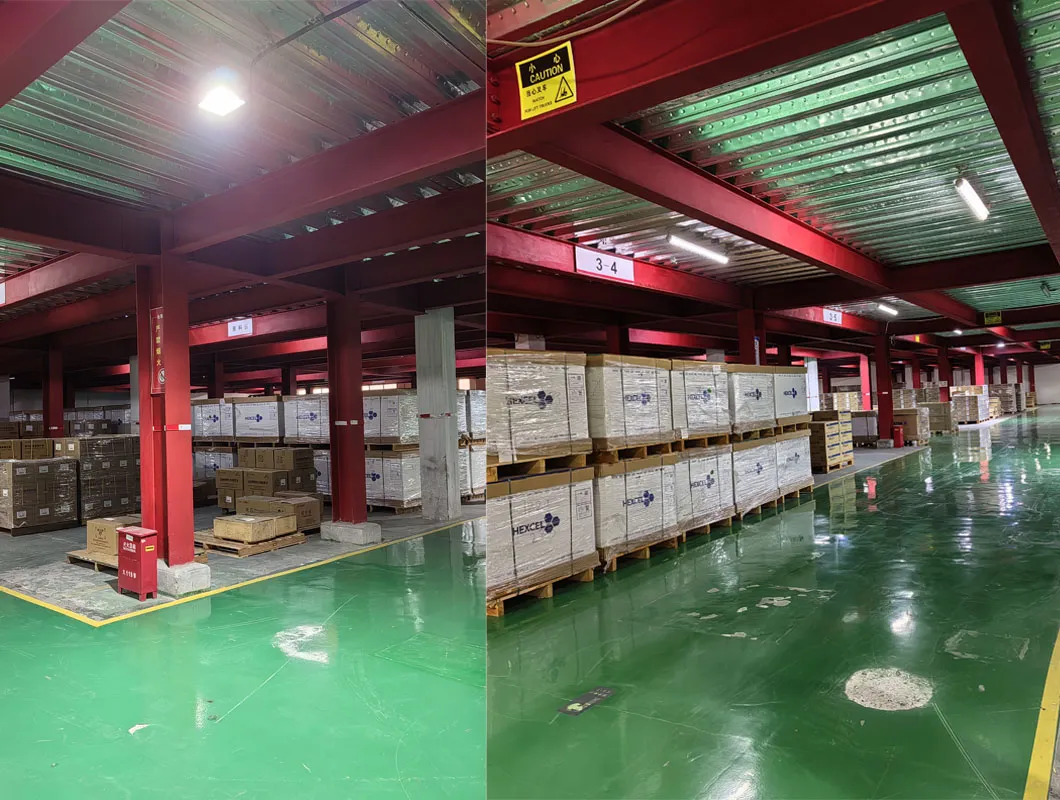

Packaging & Shipping

Packaging
?

Frequently Asked Questions

Are you a factory or a trading company?
We are a specialized factory established in 2014, primarily manufacturing carbon fiber fabrics and prepreg carbon products.
Do you offer customized services?
Absolutely. We provide both OEM and ODM services. Please provide your technical specifications for a tailored solution.
Do you have a standard product list?
We do not maintain a standard list as each customer requirement is unique. Every project is quoted individually based on specific needs.
What is your typical lead time?
Lead time is generally between 7-35 days, depending on the order quantity and current stock for specific items.
Can we request samples?
Yes, we provide free samples (under 1 meter) for quality evaluation and testing.
What is your primary loading port?
Our standard loading port is Shanghai, though other ports are negotiable based on your requirements.
