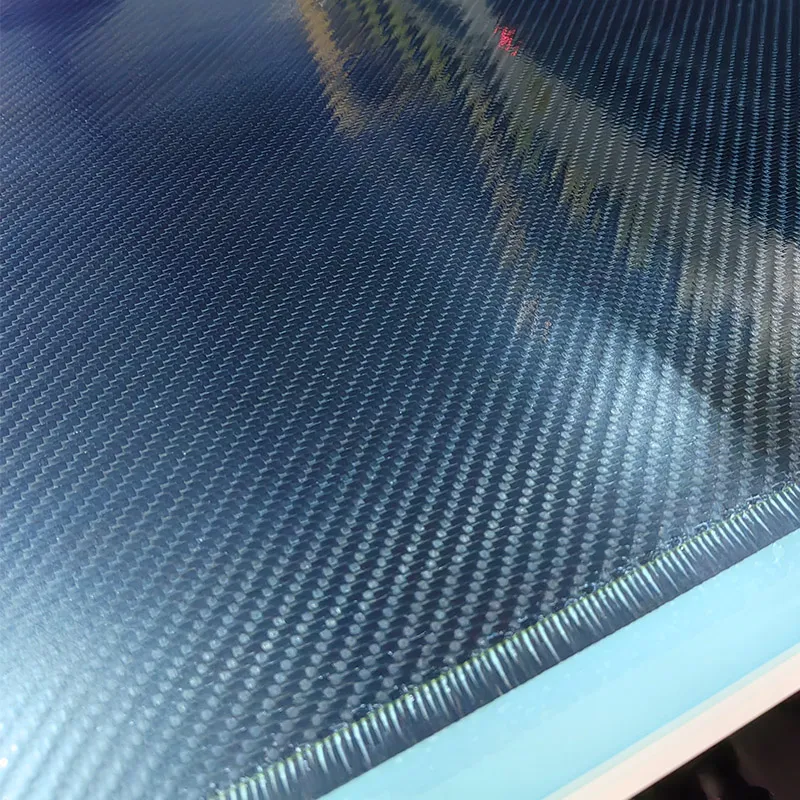

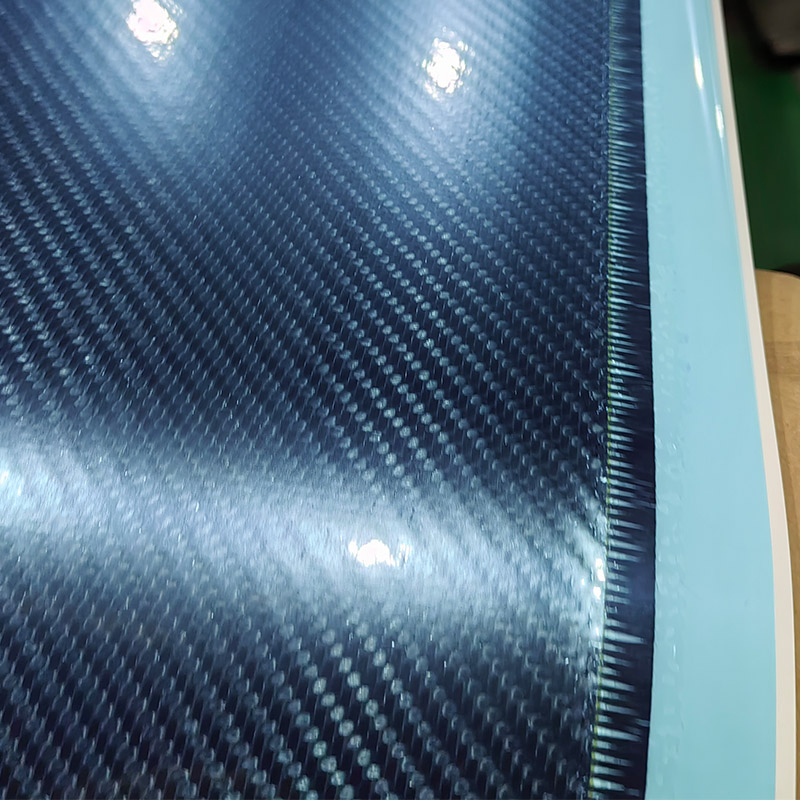

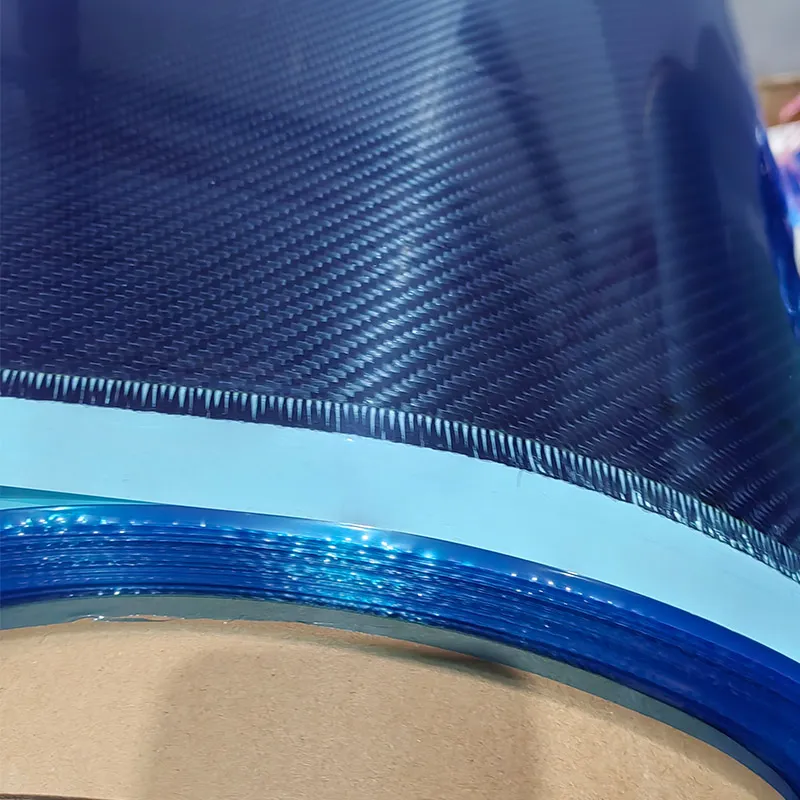

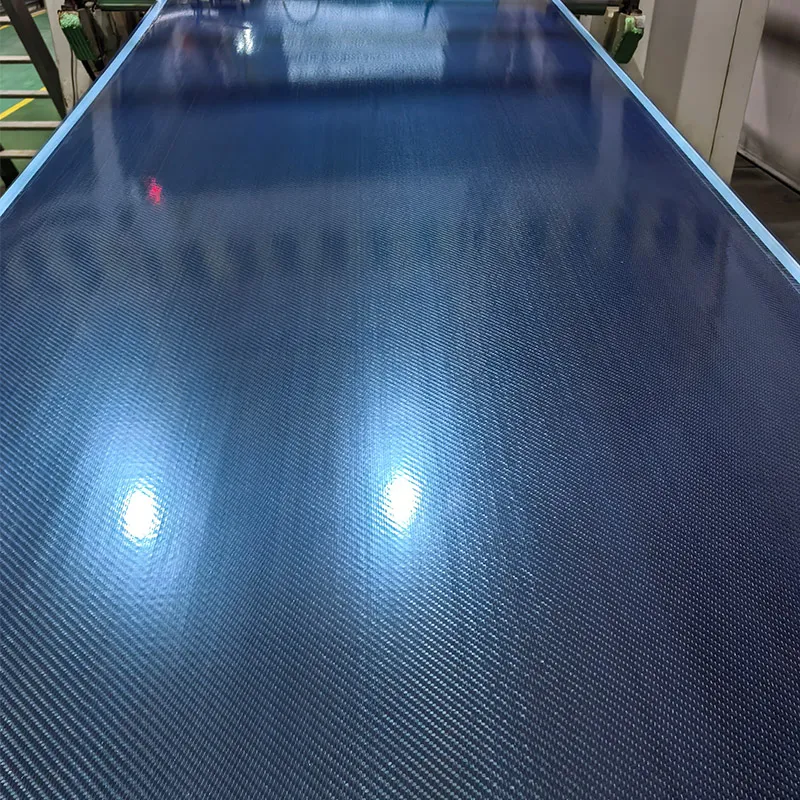

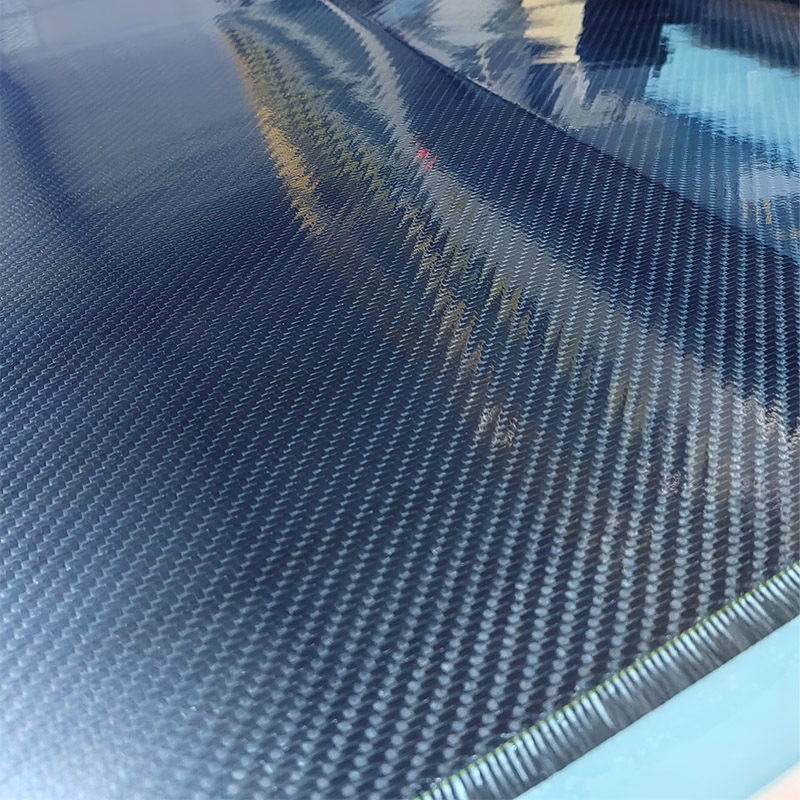

| Item No. | 21042 | Carbon Yarn | 12K |
|---|---|---|---|
| Fabric Weight | 480g/sqm | Material | Carbon Fabric + Resin |
| Roll Width | 1 M | Outer Carton CBM | 0.237CBM/Carton |
| Roll Length | 100M or Customized | Lead Time | 7-35 Days |
| Carbon Fiber Properties | |||
|---|---|---|---|
| Tensile Strength | ≥ 3500 MPa | Tensile Modulus | ≥ 230 GPa |
| Elongation | ≥ 1.5% | Carbon Yarn | 12K |
| Resin System Properties | |||
| Resin Type | Epoxy Resin | Resin Content | 37% |
| Bending Strength | 100~120 MPa | Glass Transition (TG) | 90~110 ºC |
Storage Tip: Typically stored at -18°C (0°F) or lower in a freezer to prevent premature curing.
| Industry | Application Parts |
|---|---|
| Aerospace & Aviation | Aircraft wings, fuselages, helicopter blades, satellite components |
| Automotive | Sports car chassis, body panels, electric vehicle components |
| Sports and Recreation | Bicycles, tennis rackets, golf clubs, kayaks, boat hulls |
| Civil Engineering | Bridge reinforcement, building retrofitting, seismic retrofitting |
| Renewable Energy | Wind turbine blades, hydrogen storage tanks |
| Medical | Prosthetics, orthotic devices, surgical tools |

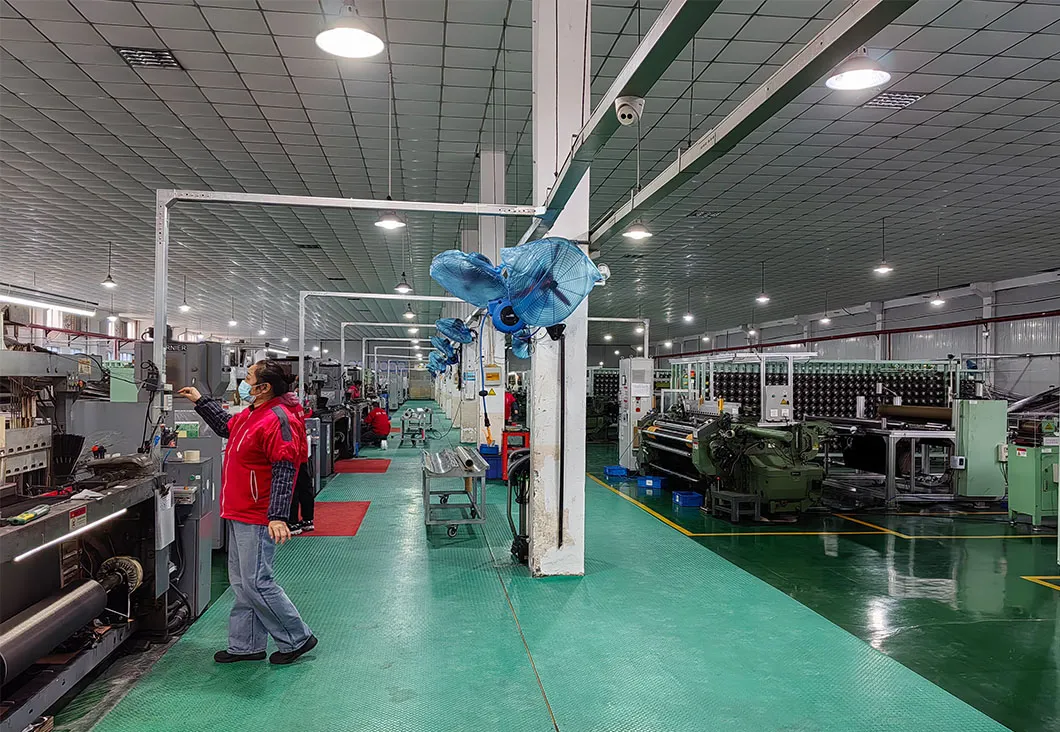

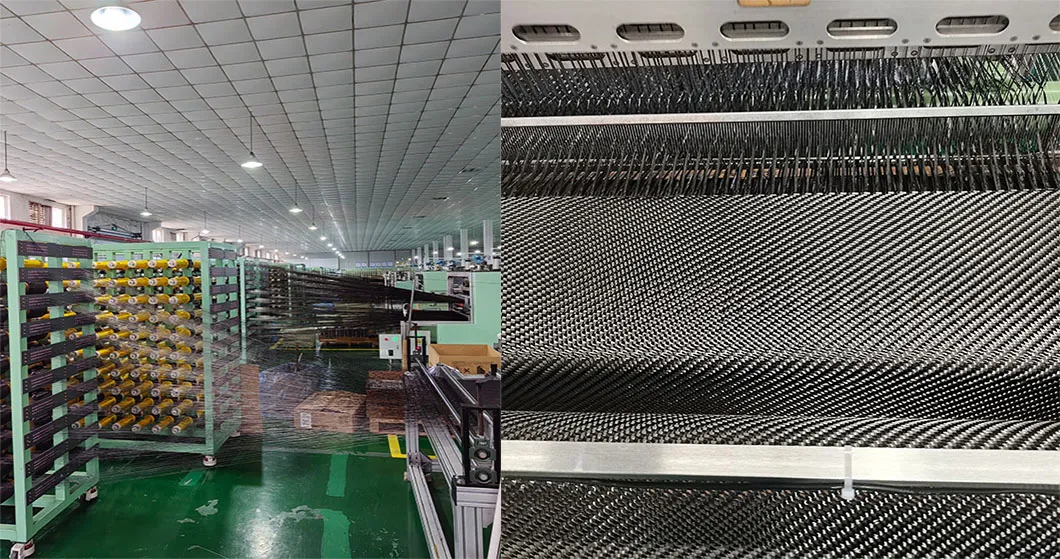

Our facility specializes in the research, development, and production of high-quality woven textiles. We utilize unidirectional, plain, twill, satin, and jacquard styles using high-performance fibers such as carbon, glass, and aramid.

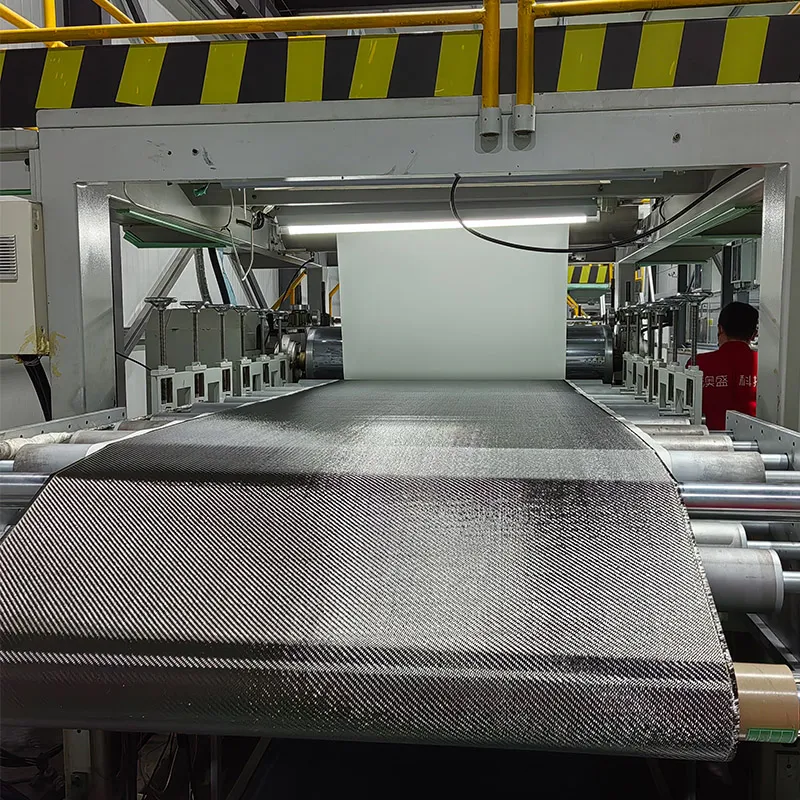

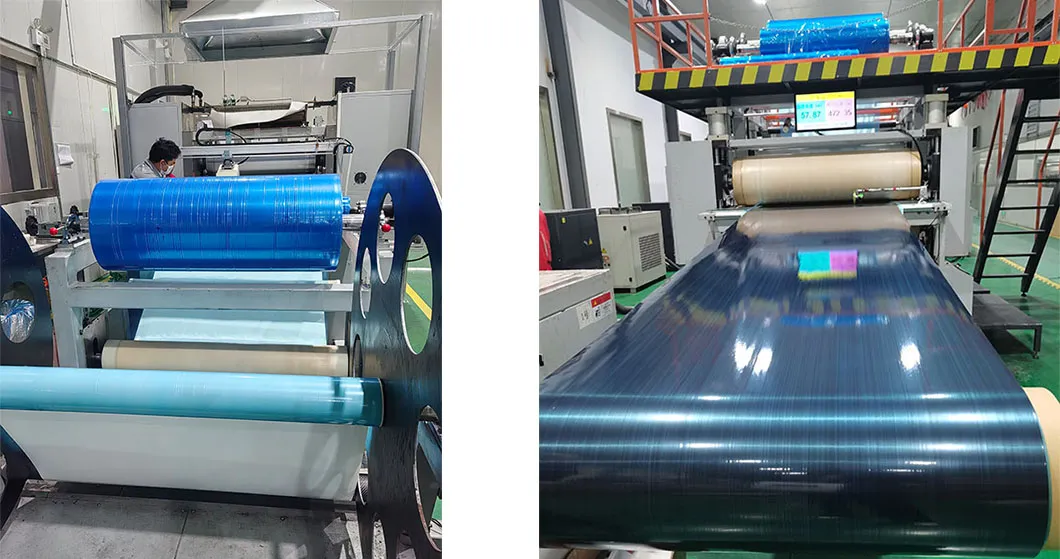

With a commitment to excellence, we have obtained the IATF16949 certificate. Our prepreg workshop features 2 advanced production lines ensuring consistency and high output capacity.

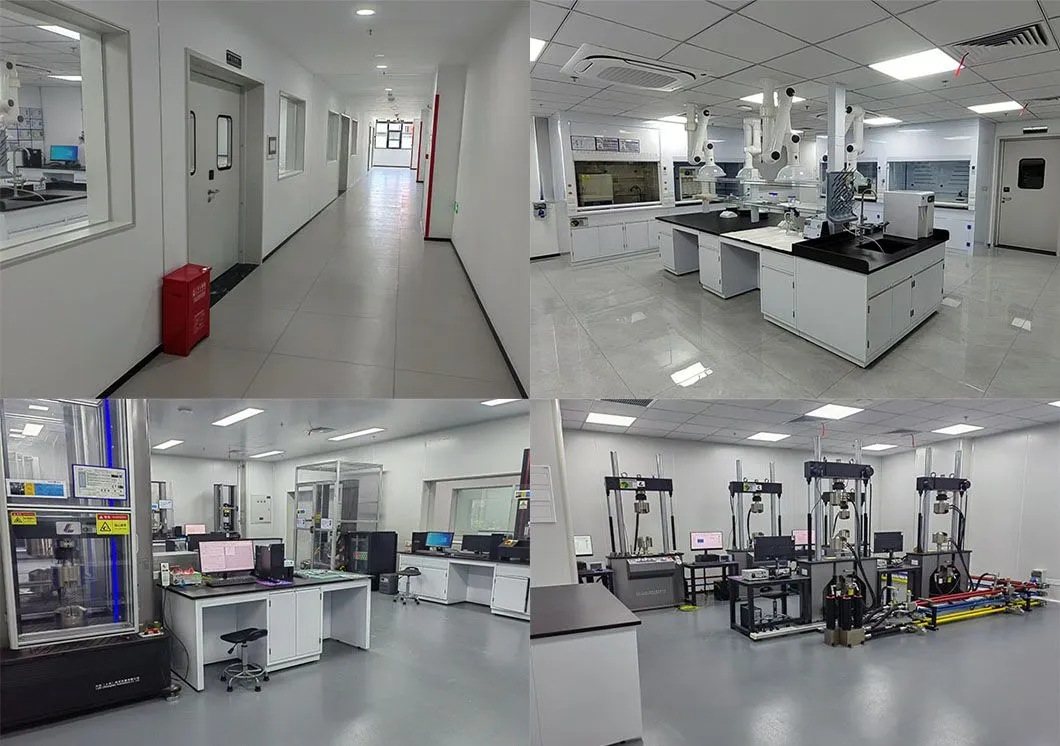

The testing center covers 3,100 square meters, managing everything from raw materials to final products. Capability includes tensile, compression, bending, fatigue, fiber content, and epoxy equivalent tests.
Certificates: IATF16949; 19 Patents (including 3 design, 5 invention, and 11 utility model patents).
