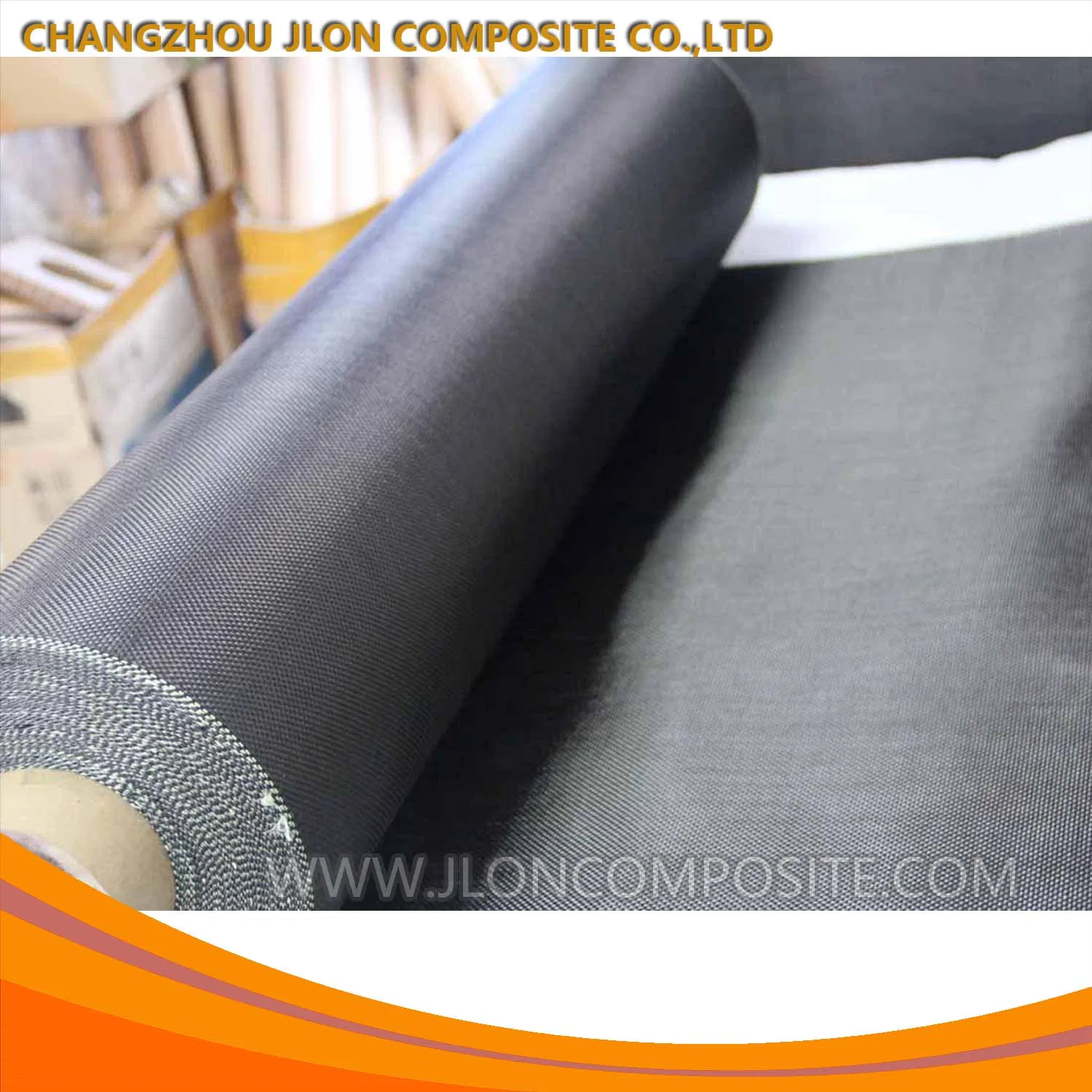

1K 100GSM 120GSM Plain Twill Weave Carbon Fiber Fabric for Automobile, Surfboard, Reinforcement
Carbon fabric Introduction:
Carbon fabric is light weight, high strength and high modulus. It has good resistance to fatigue, heat and corrosion.
Typical Uses:

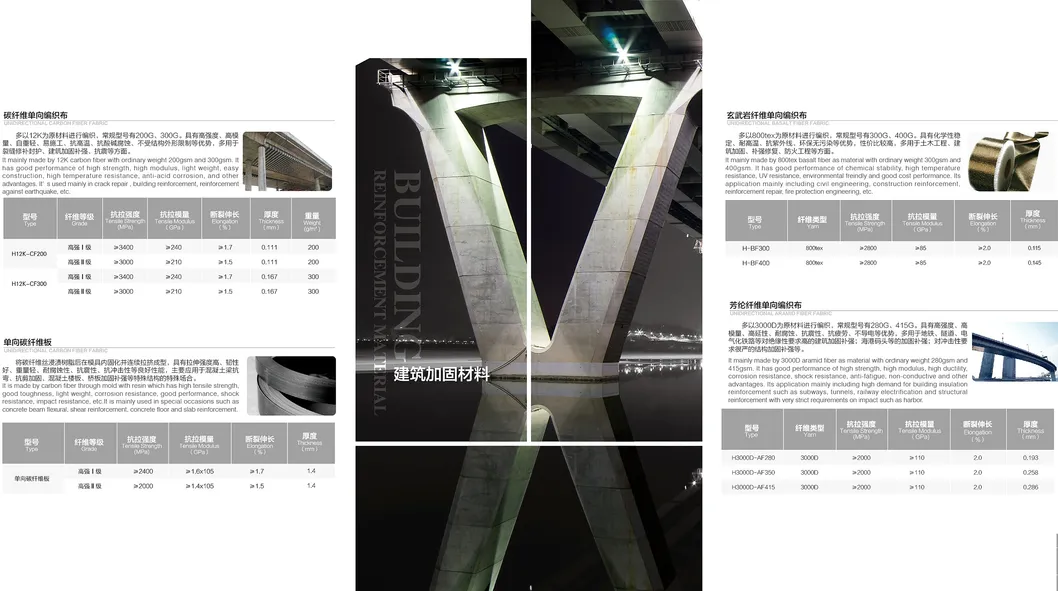

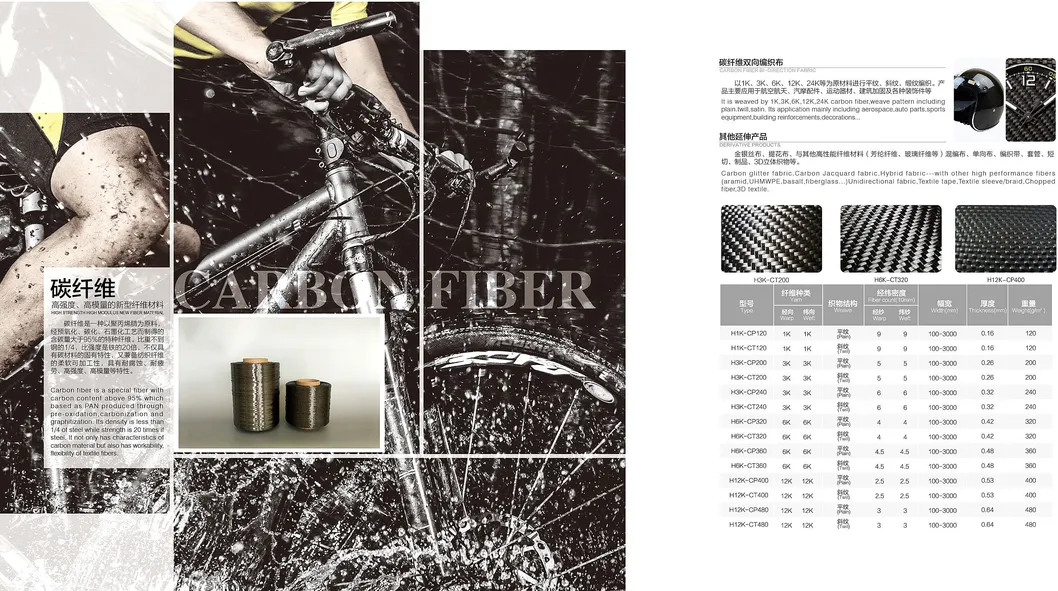

Aviation, automobile, bicycle, surfboard, suite case, reinforcement to helmet, buildings...
| Type | Yarn | Weave | Density(10mm) | Weight (g/m2) | Thickness (mm) | Width (cm) | ||
|---|---|---|---|---|---|---|---|---|
| Warp | Weft | Warp | Weft | |||||
| JZZ01P-100 | 1k | 1k | plain | 7.5 | 7.5 | 100 | 0.14 | 80-150 |
| JZZ01T-100 | 1k | 1k | twill | 7.5 | 7.5 | 100 | 0.14 | 80-150 |
| JZZ01P-120 | 1k | 1k | plain | 9 | 9 | 120 | 0.16 | 80-150 |
| JZZ01T-120 | 1k | 1k | twill | 9 | 9 | 120 | 0.16 | 80-150 |
| JZZ01P-140 | 1k | 1k | plain | 10.5 | 10.5 | 140 | 0.17 | 80-150 |
| JZZ01T-140 | 1k | 1k | twill | 10.5 | 10.5 | 140 | 0.17 | 80-150 |
| JZZ03P-200 | 3k | 3k | plain | 5 | 5 | 200 | 0.3 | 80-150 |
| JZZ03T-200 | 3k | 3k | twill | 5 | 5 | 200 | 0.3 | 80-150 |
| JZZ06P-280 | 6k | 6k | plain | 3.5 | 3.5 | 280 | 0.36 | 80-150 |
| JZZ12T-400 | 12k | 12k | twill | 2.5 | 2.5 | 400 | 0.46 | 80-150 |
Other specifications are available upon request.
