| Model NO. | JCF-SHEET | Performance | High-Strength Type |
| State | Filament | Mechanical Property | High-Performance Type |
| Fiber Type | 3K / 6K / 12K | Weave Style | Twill / Plain / Ud |
| Surface Finish | Glossy / Matte / Sanded | Density | 1.55 - 1.6 G/Cm³ |
| Tensile Strength | ≥ 3500 MPa | Tensile Modulus | ≥ 230 Gpa |
| Heat Resistance | -40℃ to +120℃ | Machining Service | CNC Cutting / Drilling Available |

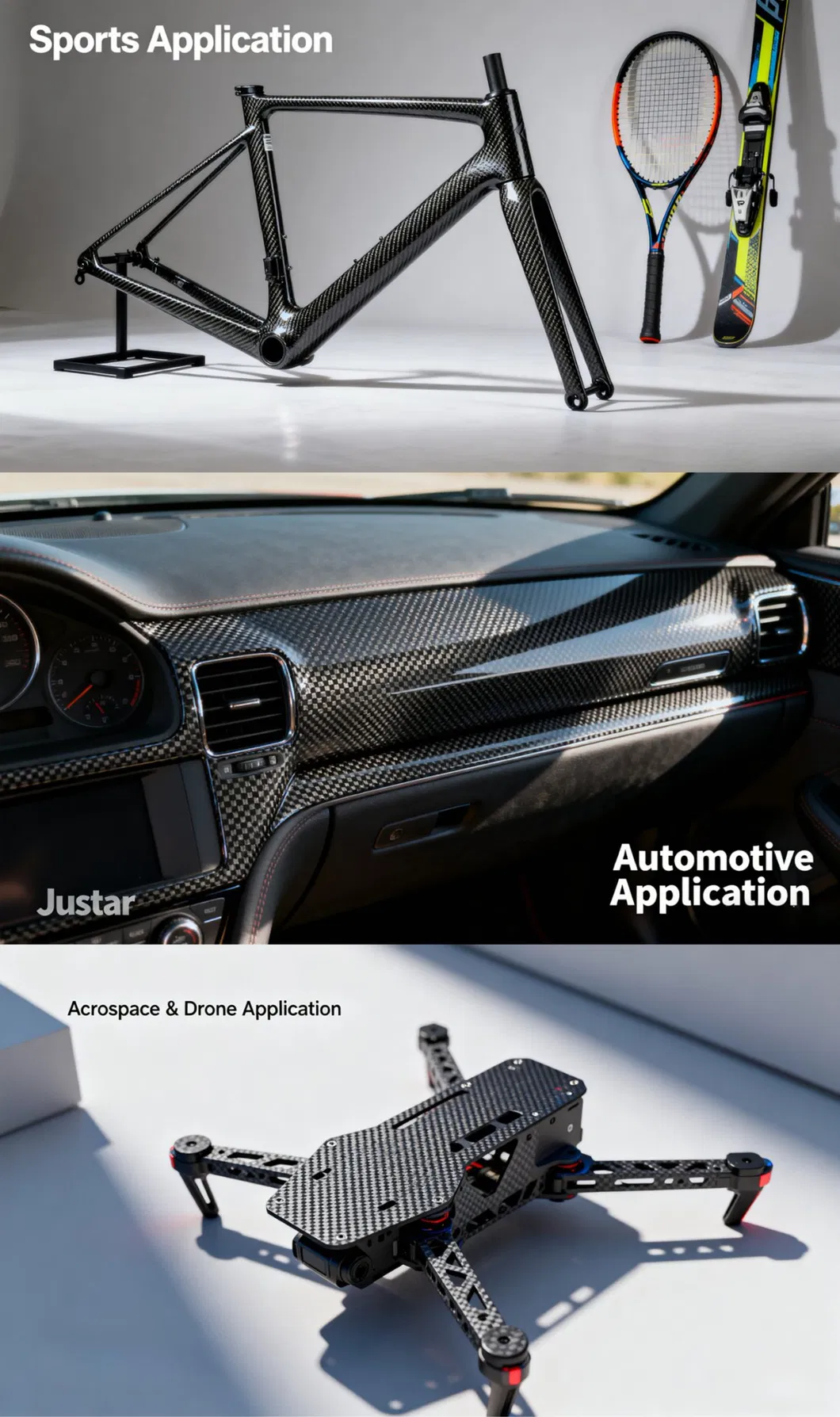

| Application Fields | Drone, Automotive, Marine, Sporting Goods, Industrial | ||

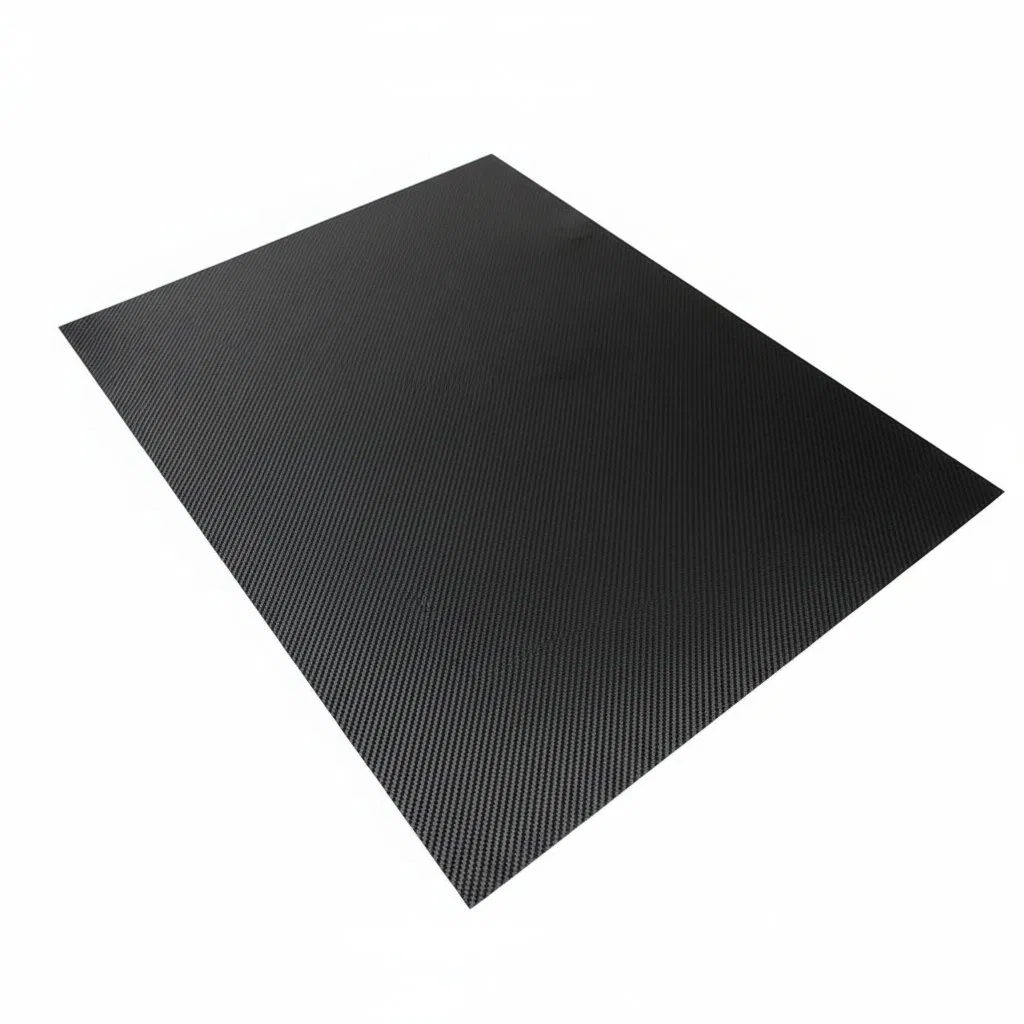

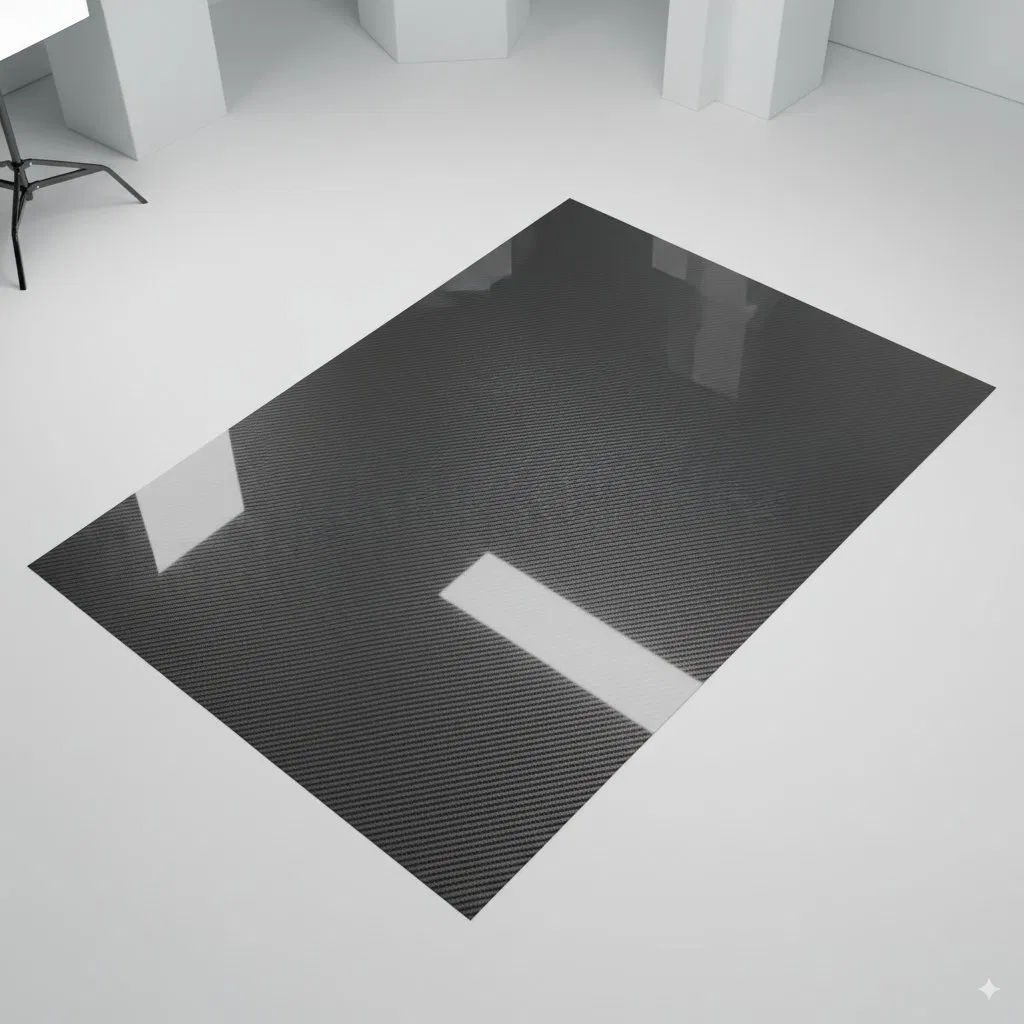

Carbon Fiber Plate Durable Strength Board for Industrial and Marine
The Carbon Fiber Plate Durable Strength Board for Industrial and Marine applications is engineered to meet the highest standards of performance and reliability in challenging environments. Designed for structural reinforcement and precision components, this composite plate combines the inherent advantages of carbon fiber with epoxy resin lamination to provide maximum strength, lightweight properties, and long-lasting durability.
| Property | Description |
|---|---|

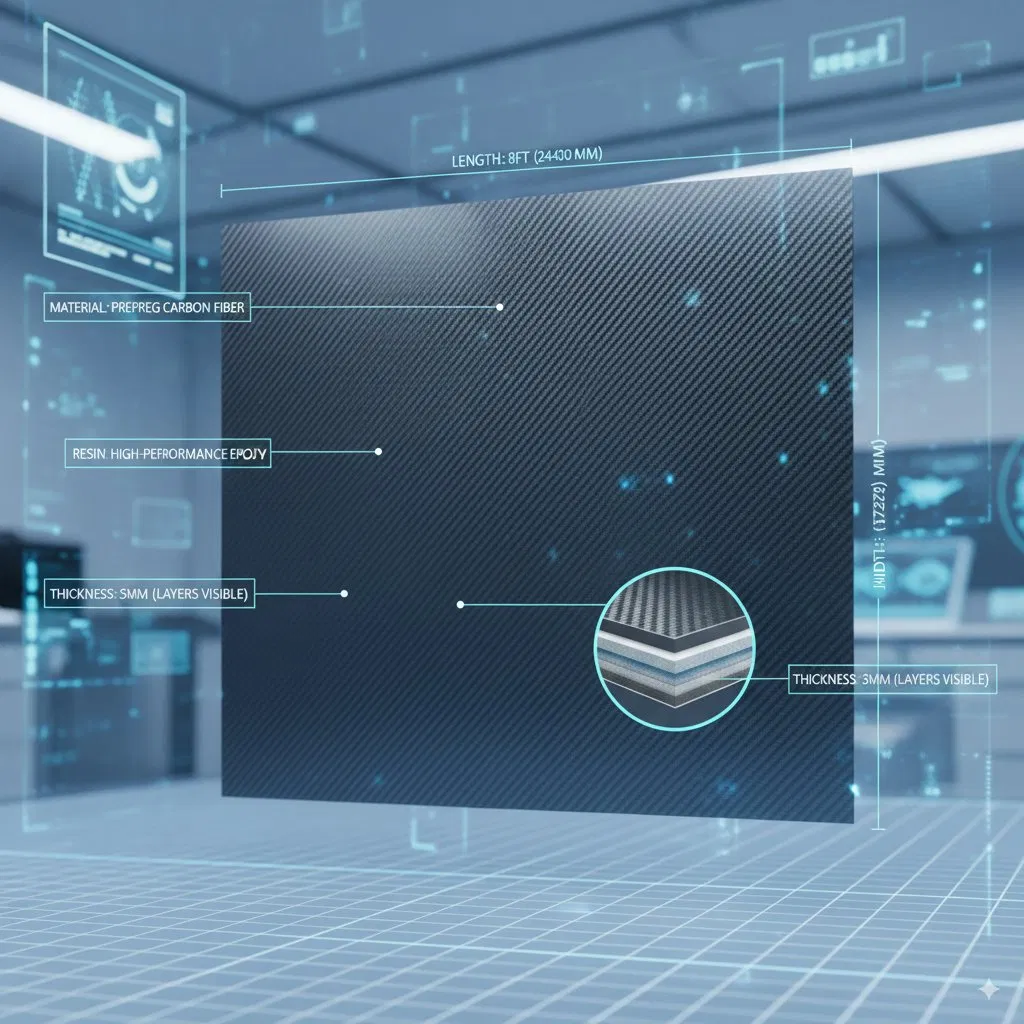

| Material Composition | 100% Carbon Fiber Reinforced Polymer (CFRP) with epoxy resin |

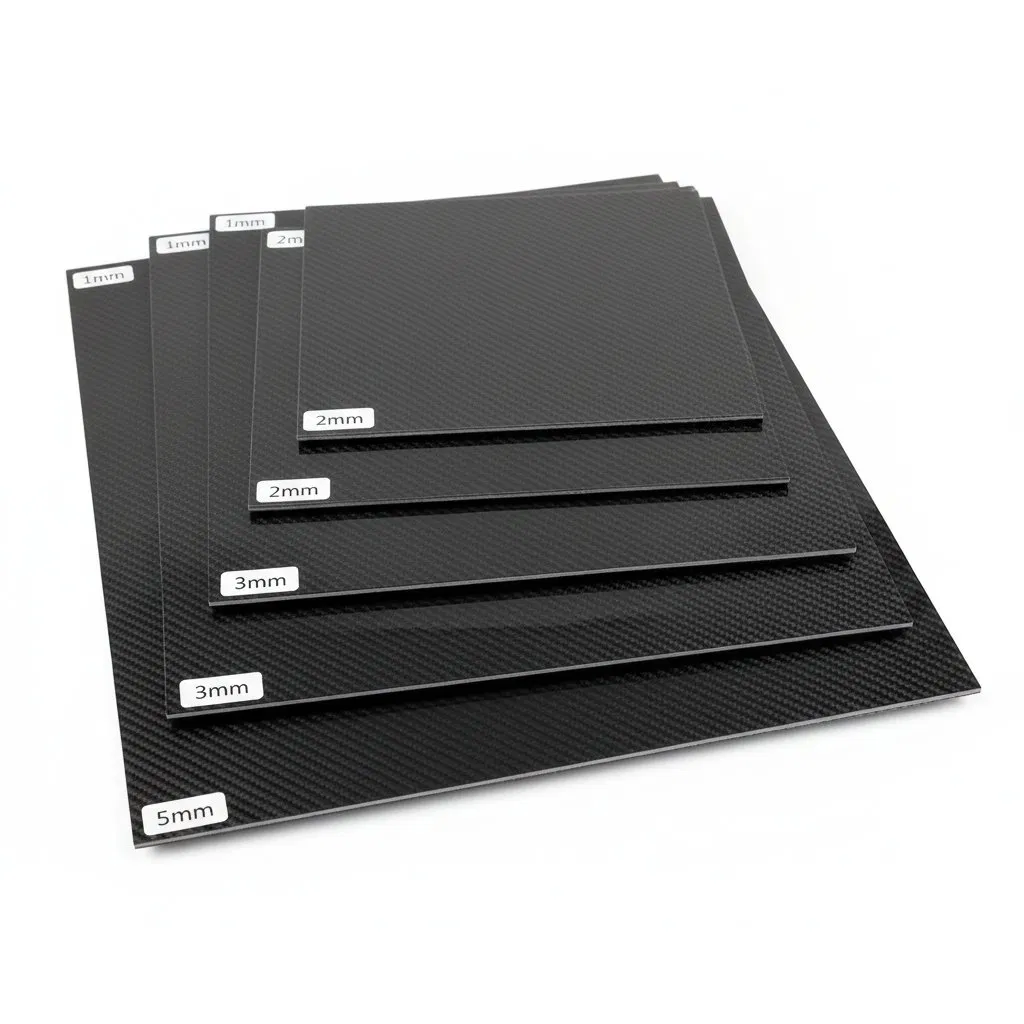

| Thickness Range | 2 mm - 10 mm standard; custom thickness available |

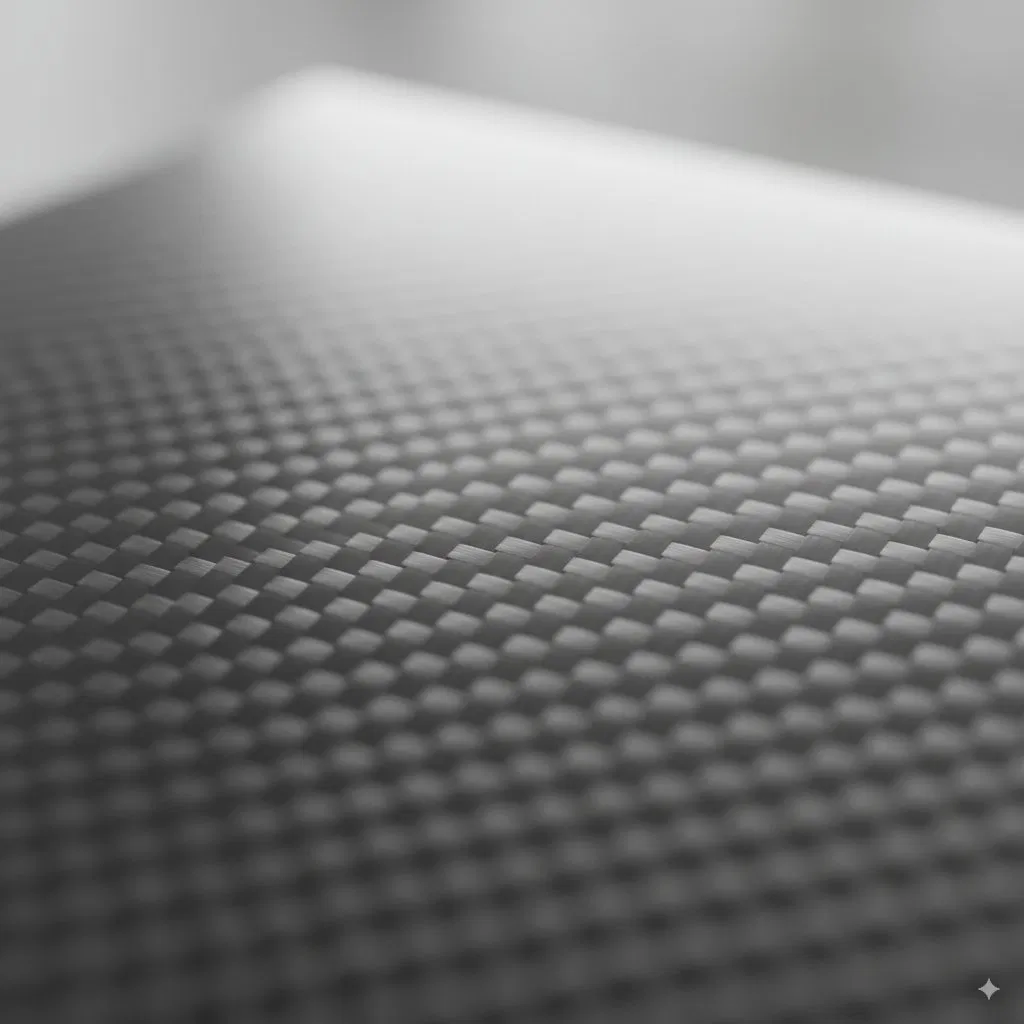

| Weave Type | 3K twill weave (diagonal pattern) |
| Density | ~1.55 g/cm³ |
| Tensile Strength | >600 MPa |
| Thermal Resistance | Continuous operating temperature up to 120°C |
| Moisture Resistance | High resistance to humidity and saltwater |
Aerospace-grade carbon fiber fabrics (3K, T300, or T700) and high-quality epoxy resin systems are used.
Uniform resin distribution through advanced prepreg technology ensuring stable fiber orientation.
Layers are arranged at specific angles and cured in an autoclave or hot press to eliminate voids.

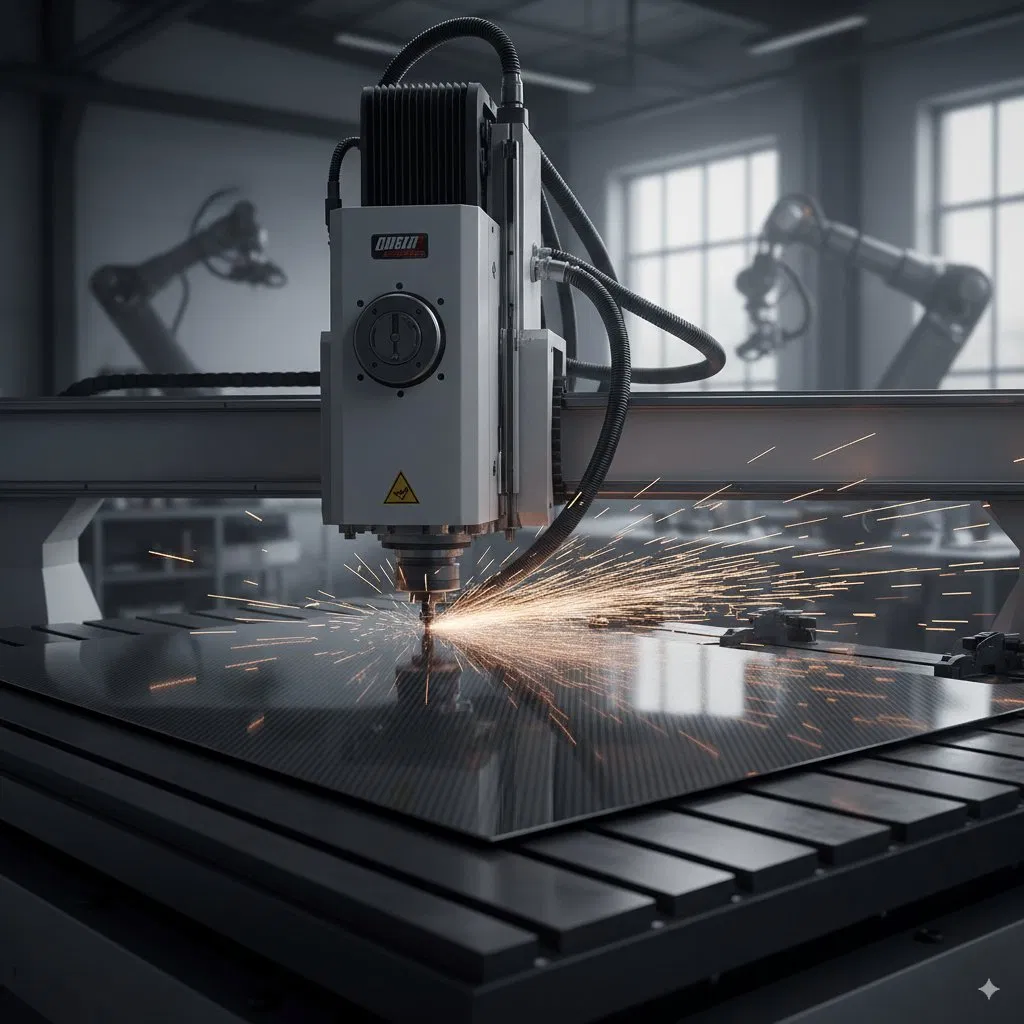

CNC machining and waterjet cutting achieve high dimensional accuracy and tight tolerances.
| Property | Carbon Fiber Sheet | Aluminum | Steel |
|---|---|---|---|
| Density (g/cm³) | 1.55-1.6 | 2.7 | 7.8 |
| Strength-to-Weight | Excellent | Good | Average |
| Corrosion Resistance | Excellent | Average | Poor |
| Aesthetic Appearance | Premium weave look | Ordinary | Ordinary |

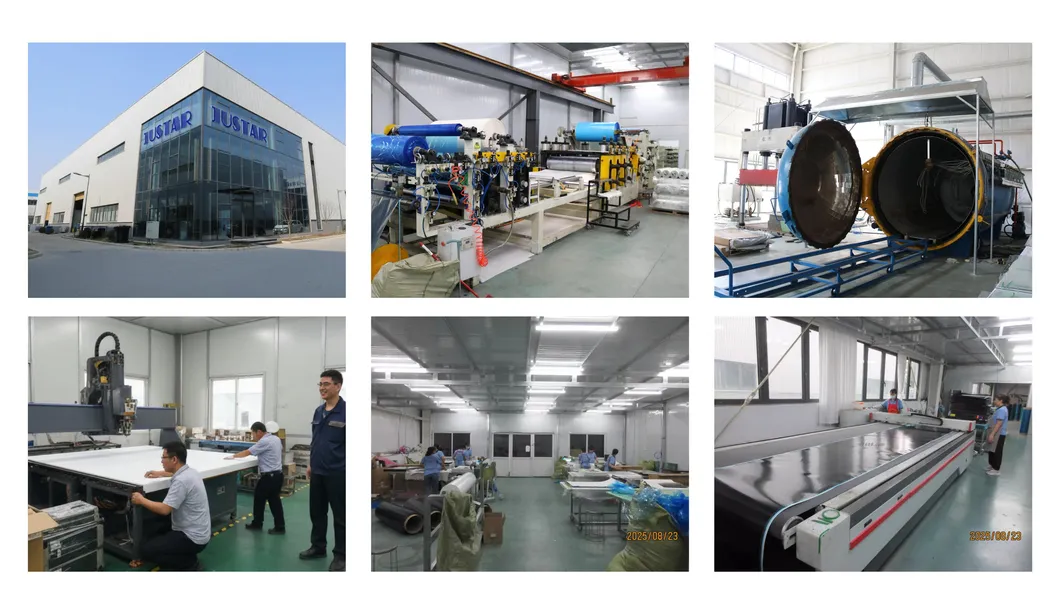

With over 15 years of experience, we provide high-performance composite solutions for global industries. Our facility operates under strict ISO9001 quality management systems.
