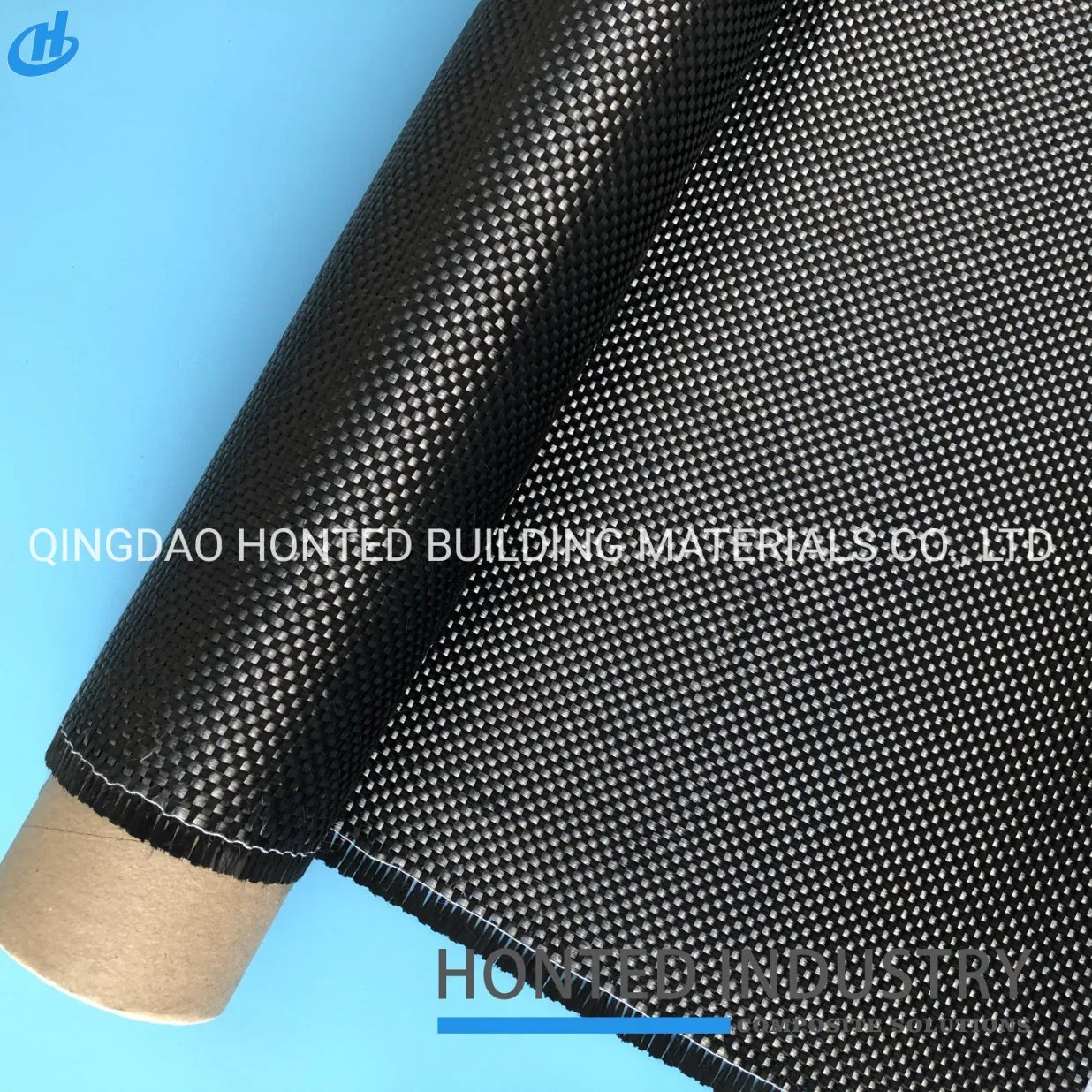

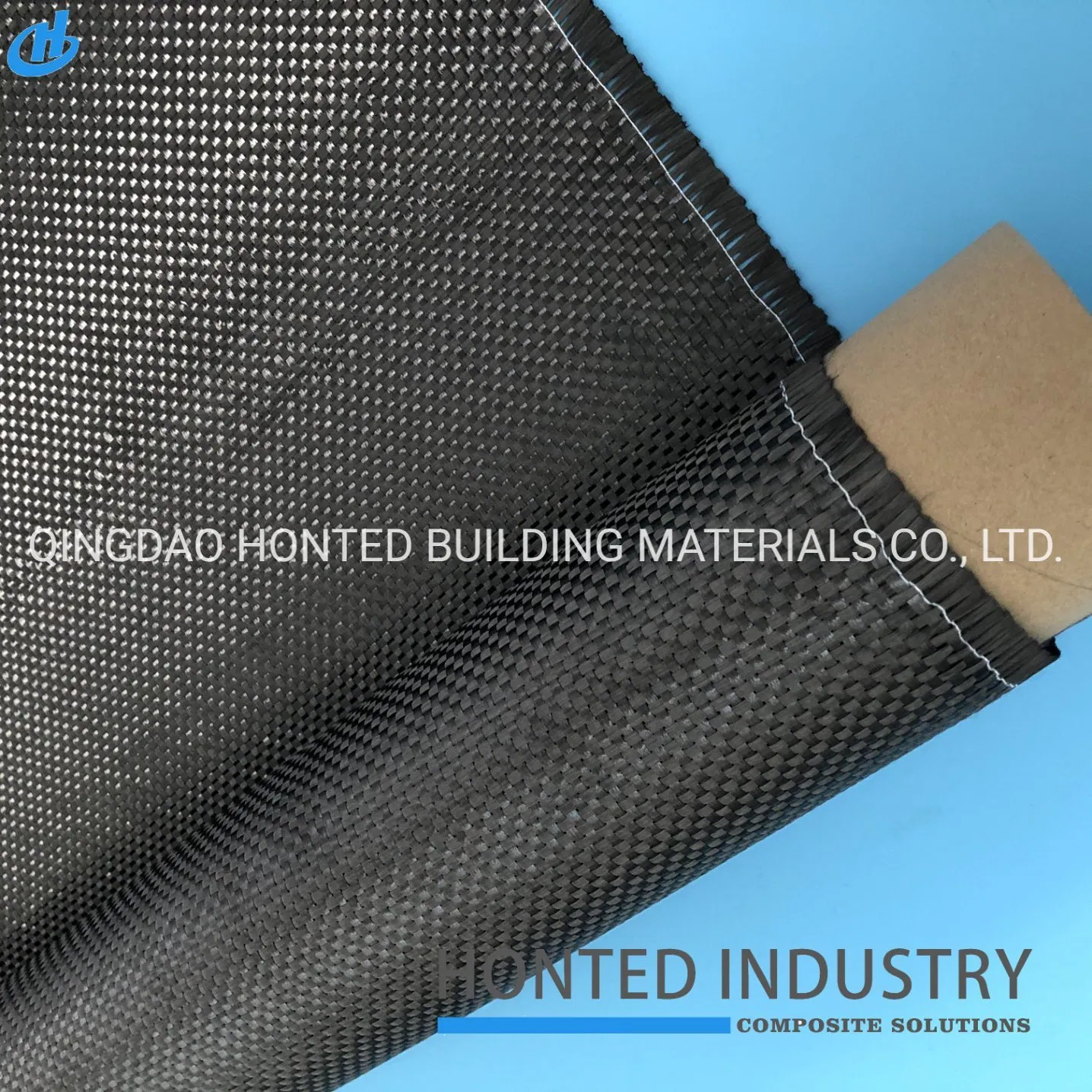

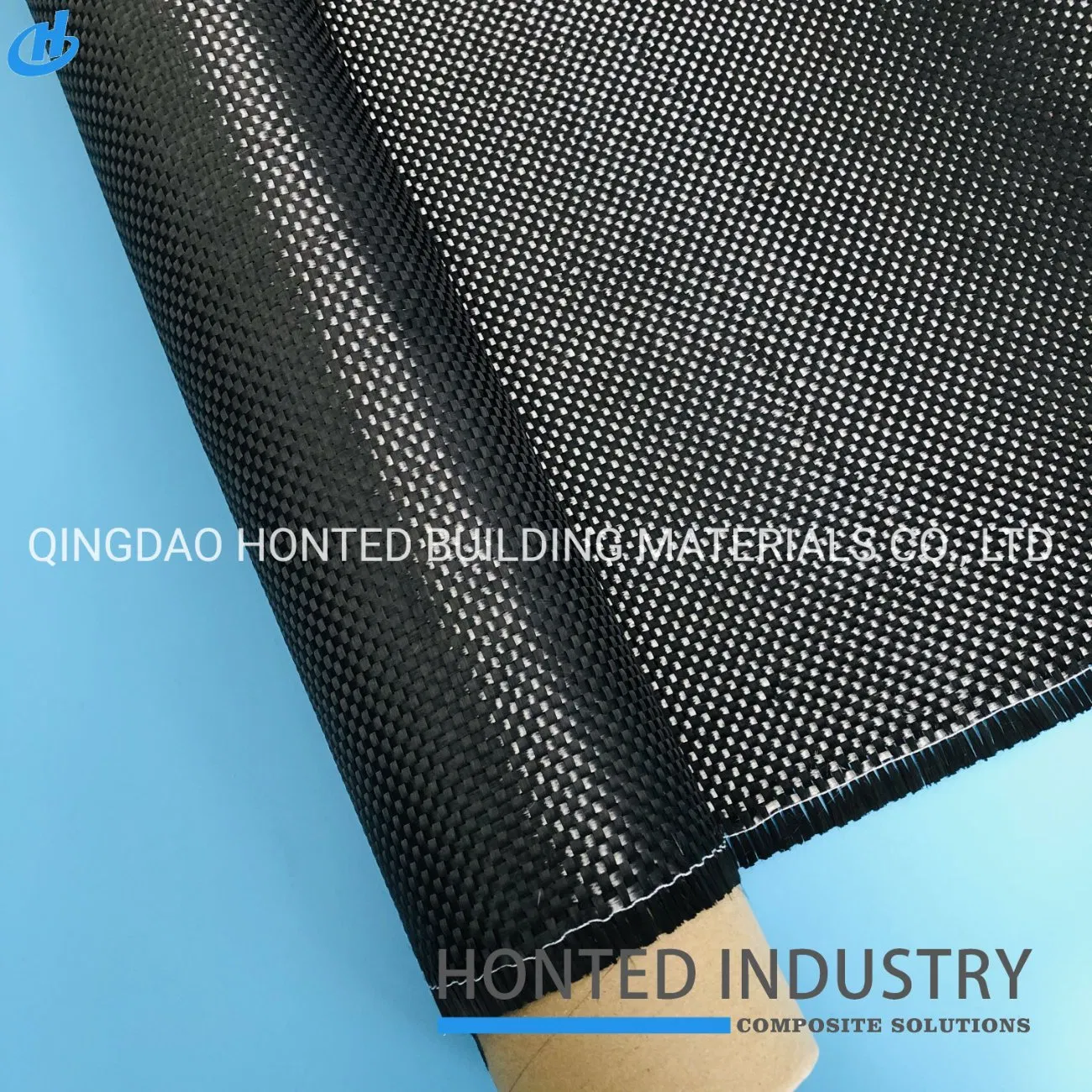

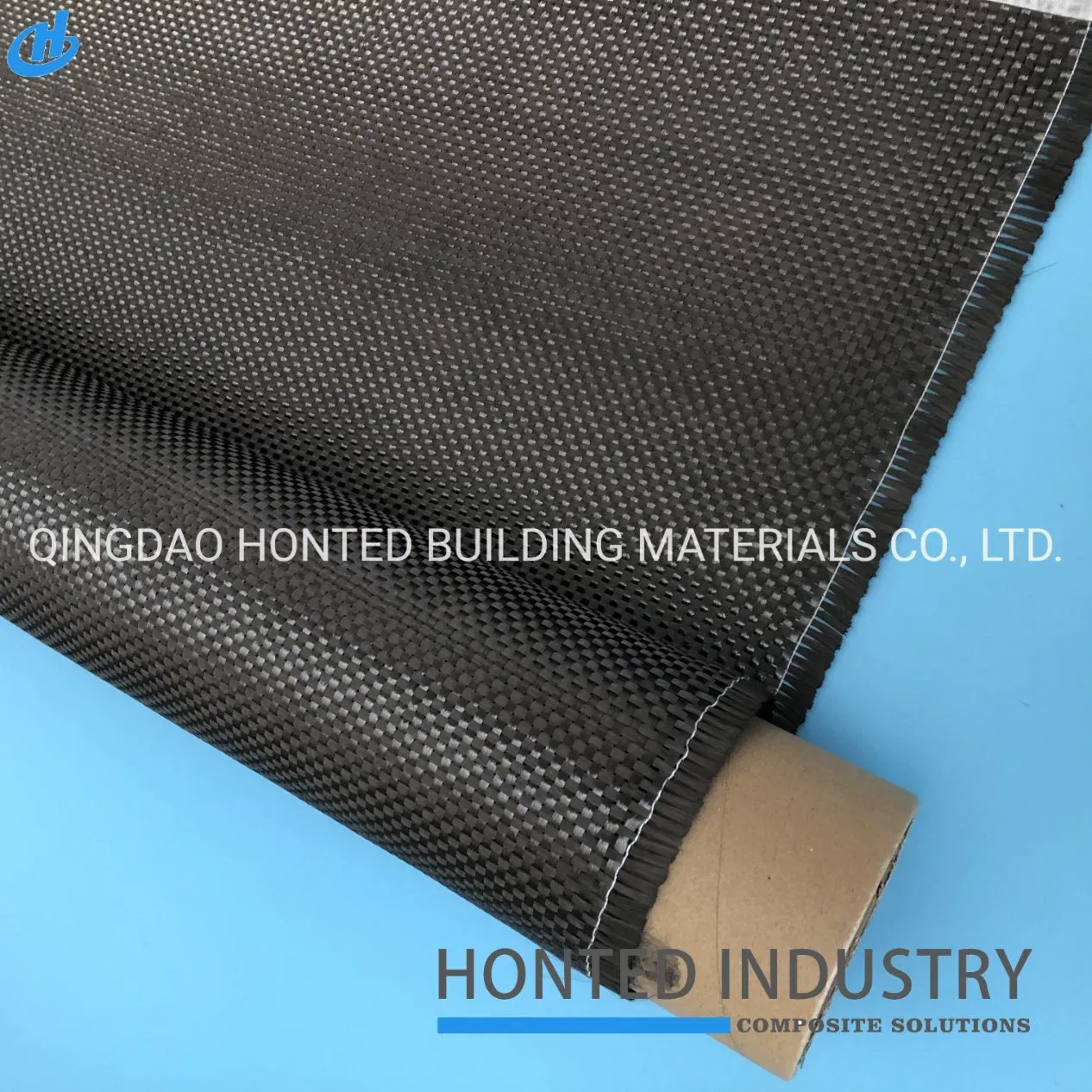

Prepreg Carbon Fiber Fabric Price /100% Carbon Fiber / Carbon Fiber Prepreg

Basic Specifications

Model NO.HTDCF

PerformanceHigh-Strength Type

StateFabric

PropertyHigh-Performance Type

Unit Weight80G/M2 - 640G/M2

Width80cm-150cm (Customizable)

Length50m / 100m (Customizable)

Weave TypePlain, Twill, Unidirectional

Specification1K, 3K, 6K, 12K

HS Code68151200

Product Description

Carbon fibers are a key ingredient in advanced composite materials. It features a combination of high strength, high stiffness, extremely light weight, and low density. This material remains unaffected by high temperatures, fuels, and oils, while providing excellent anti-corrosion properties.

Carbon Fiber fabric is engineered for high performance. Its resistance to fatigue and heat makes it ideal for critical structural applications. Axial parameters and fiber areal weight can be fully customized to meet specific project requirements.

Type	Yarn		Weave	Density(10mm)		Weight (g/m2)	Thickness (mm)	Width (cm)
Type	Warp	Weft	Weave	Warp	Weft	Weight (g/m2)	Thickness (mm)	Width (cm)
HTC01P-100	1k	1k	plain	7.5	7.5	100	0.14	80-150
HTC01T-100	1k	1k	twill	7.5	7.5	100	0.14	80-150
HTC03P-200	3k	3k	plain	5	5	200	0.3	80-150
HTC03T-200	3k	3k	twill	5	5	200	0.3	80-150
HTC06P-280	6k	6k	plain	3.5	3.5	280	0.36	80-150
HTC12P-400	12k	12k	plain	2.5	2.5	400	0.46	80-150
HTC12T-640	12k	12k	twill	4	4	640	0.64	80-150

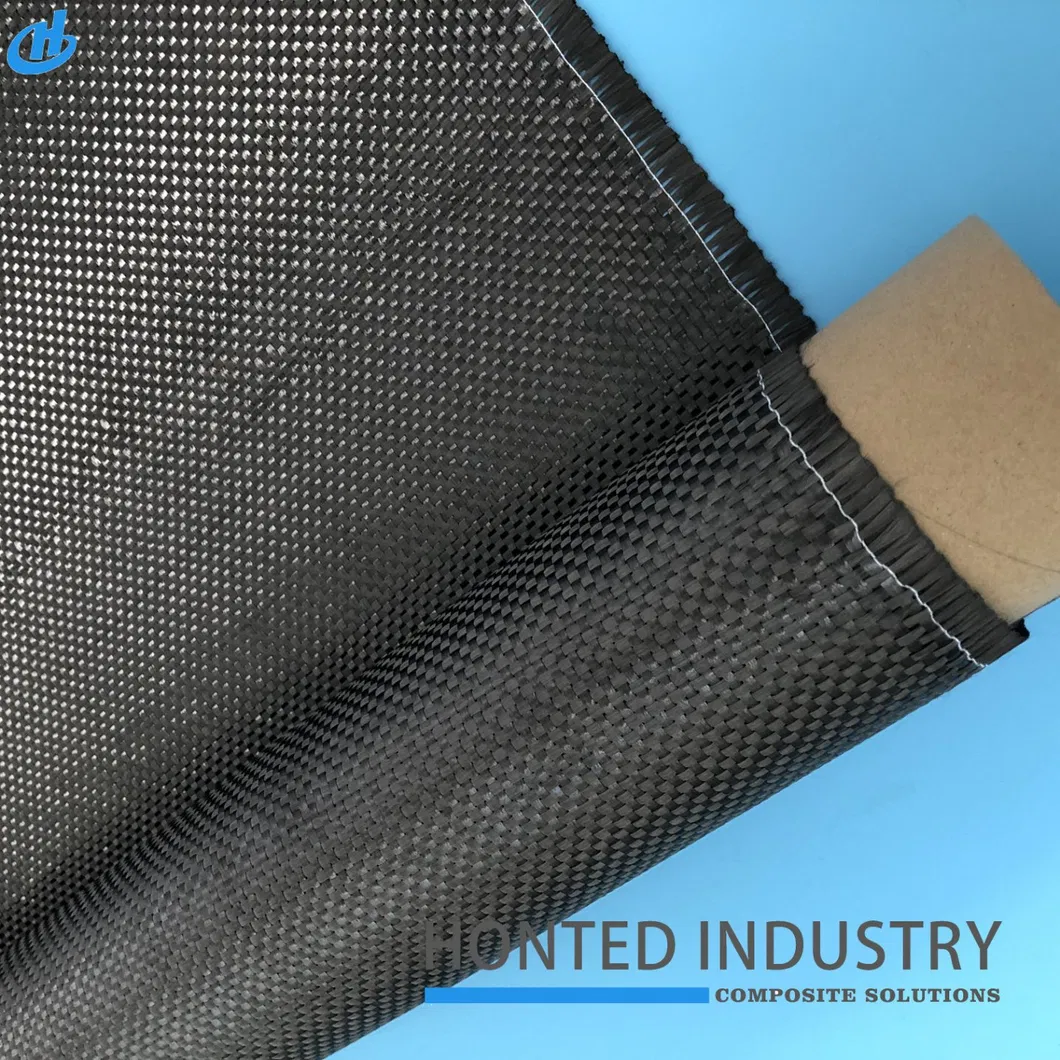

Product Features

01Light weight and extremely easy to operate
02Soft texture, can be cut freely into any shape
03Thin thickness for easy overlapping and layering
04High tensile strength combined with high elasticity
05Superior acid and alkali resistance for harsh environments
06Excellent permeability for epoxy resin systems
07Non-toxic and non-irritant material properties

Applications

Our high-performance carbon fiber materials are widely utilized across various demanding industries:

Aerospace

Wind Power

Marine Industry

Automobile Decoration

Construction Reinforcement

Sports Equipment

Frequently Asked Questions

What are the primary benefits of using Carbon Fiber fabric?

Carbon fiber offers an exceptional strength-to-weight ratio, high stiffness, and excellent resistance to corrosion and heat, making it superior to traditional materials like steel or aluminum in many applications.

Can the width and length of the fabric be customized?

Yes, while standard widths range from 80cm to 150cm and lengths are typically 50m or 100m, we can provide customized dimensions based on your specific project needs.

What is the difference between Plain and Twill weave?

Plain weave is more stable but less flexible, whereas Twill weave (like 3K twill) offers better drape-ability, making it easier to form around complex curves and shapes.

Is the material resistant to chemicals?

Yes, our carbon fiber fabric is highly resistant to acids and alkalis, allowing it to maintain structural integrity in harsh industrial or marine environments.

How thick is the carbon fiber fabric?

Thickness varies by type; for example, 1K fabric is approximately 0.14mm thick, while 12K fabric can reach up to 0.64mm thickness depending on the weight per square meter.

Which industries typically use these products?

The material is extensively used in aerospace, automotive parts, marine hulls, wind turbine blades, sporting goods (like rackets and bicycles), and building reinforcement.
