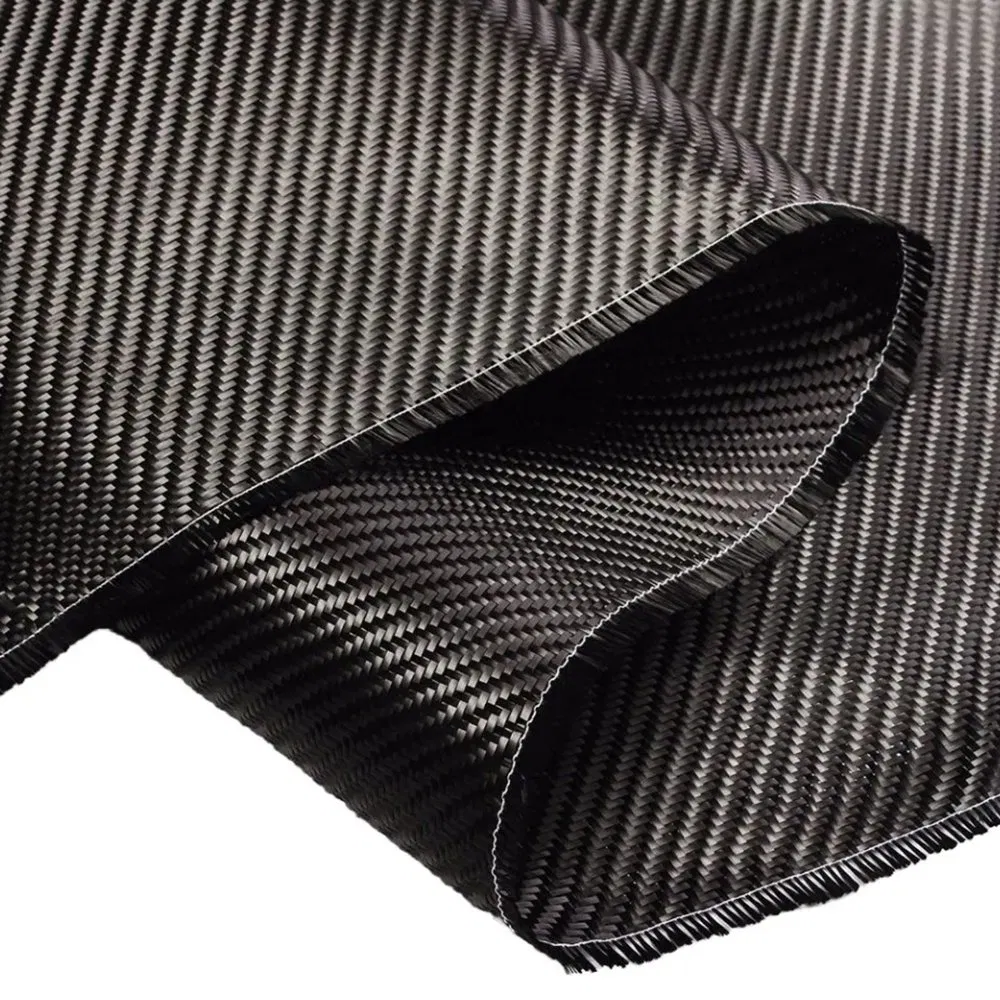

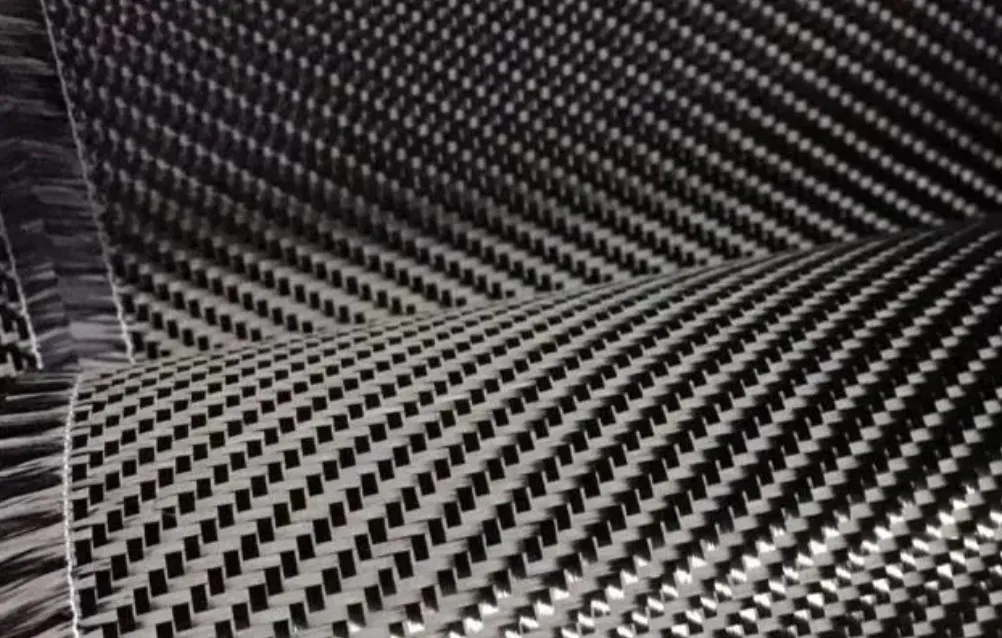

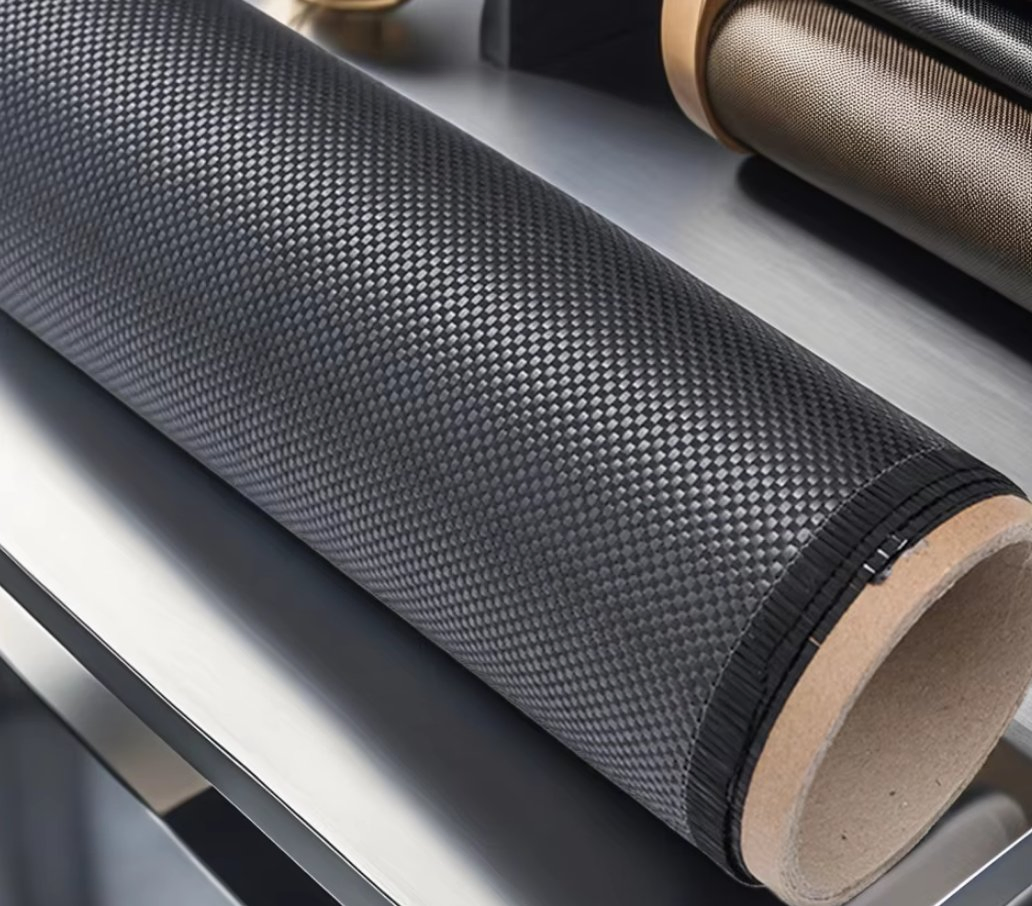

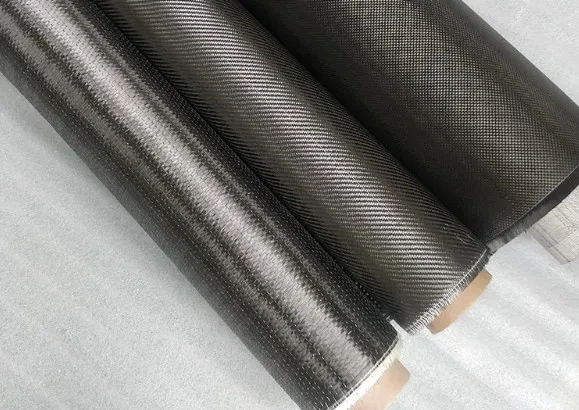

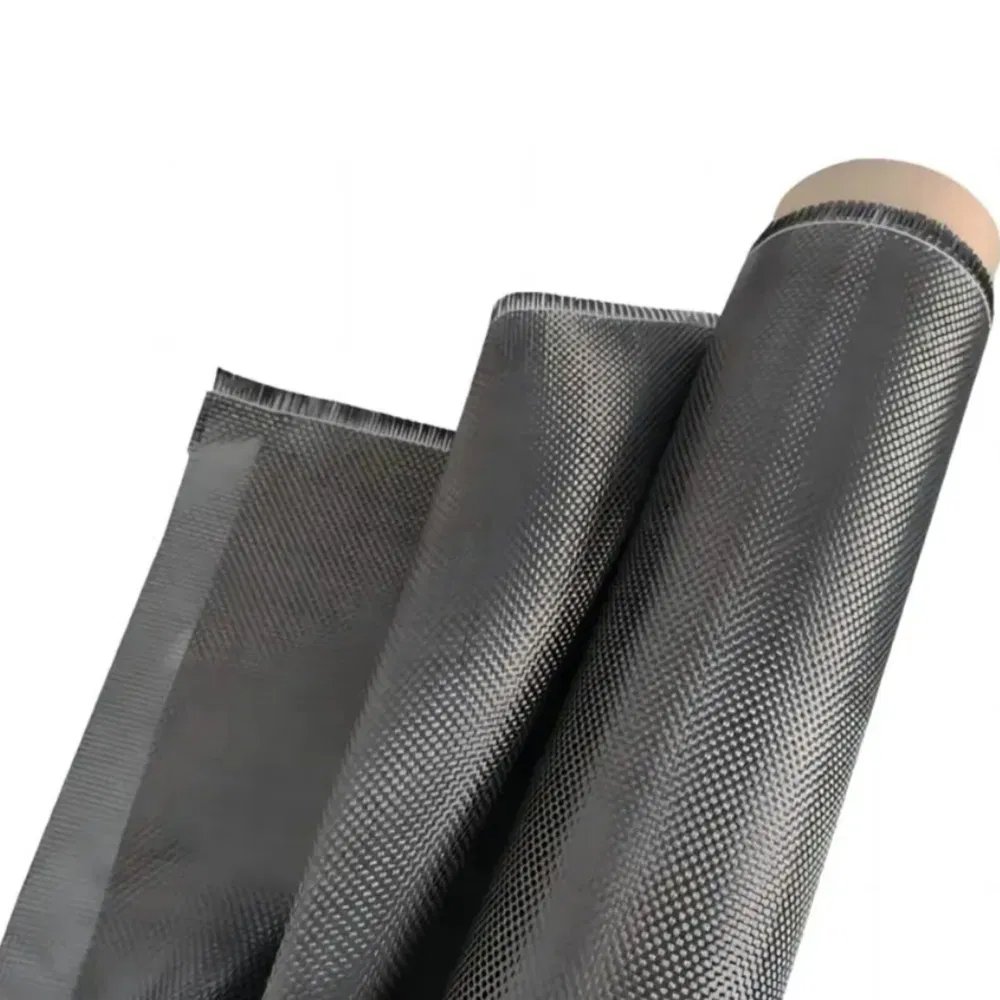

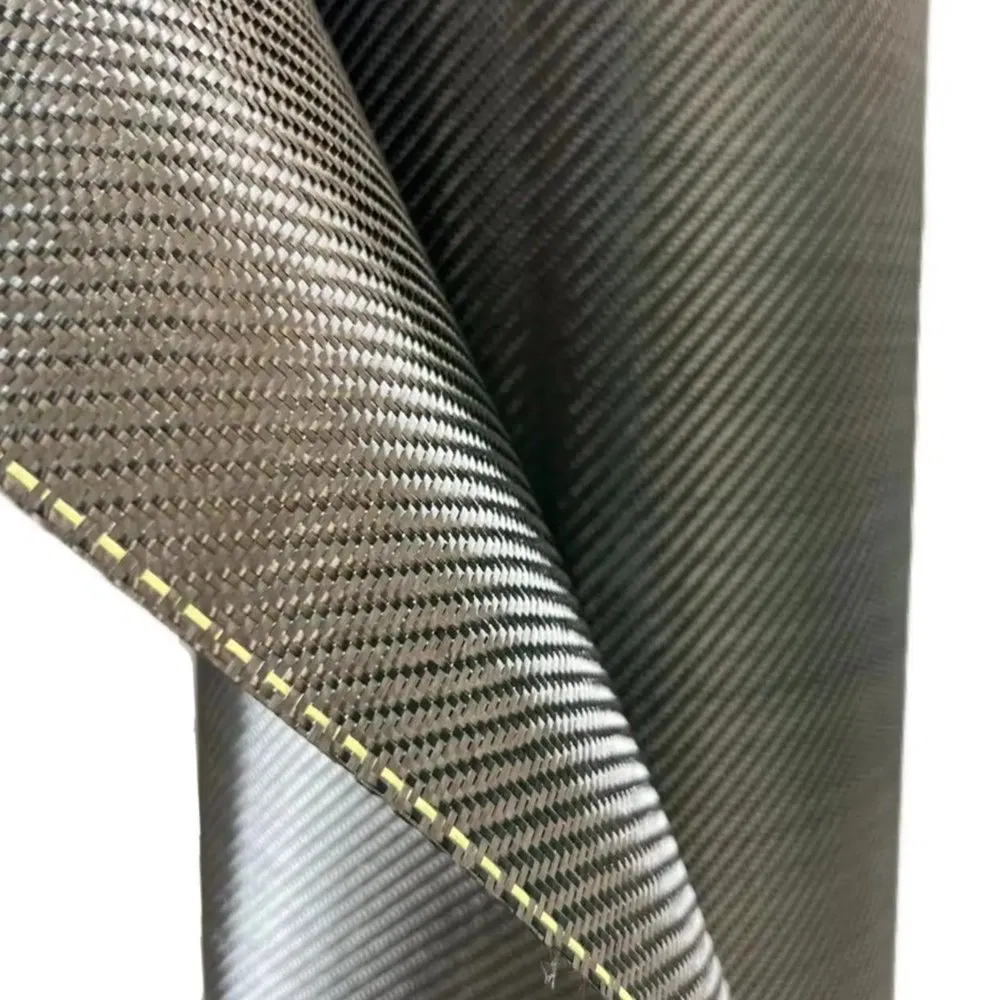

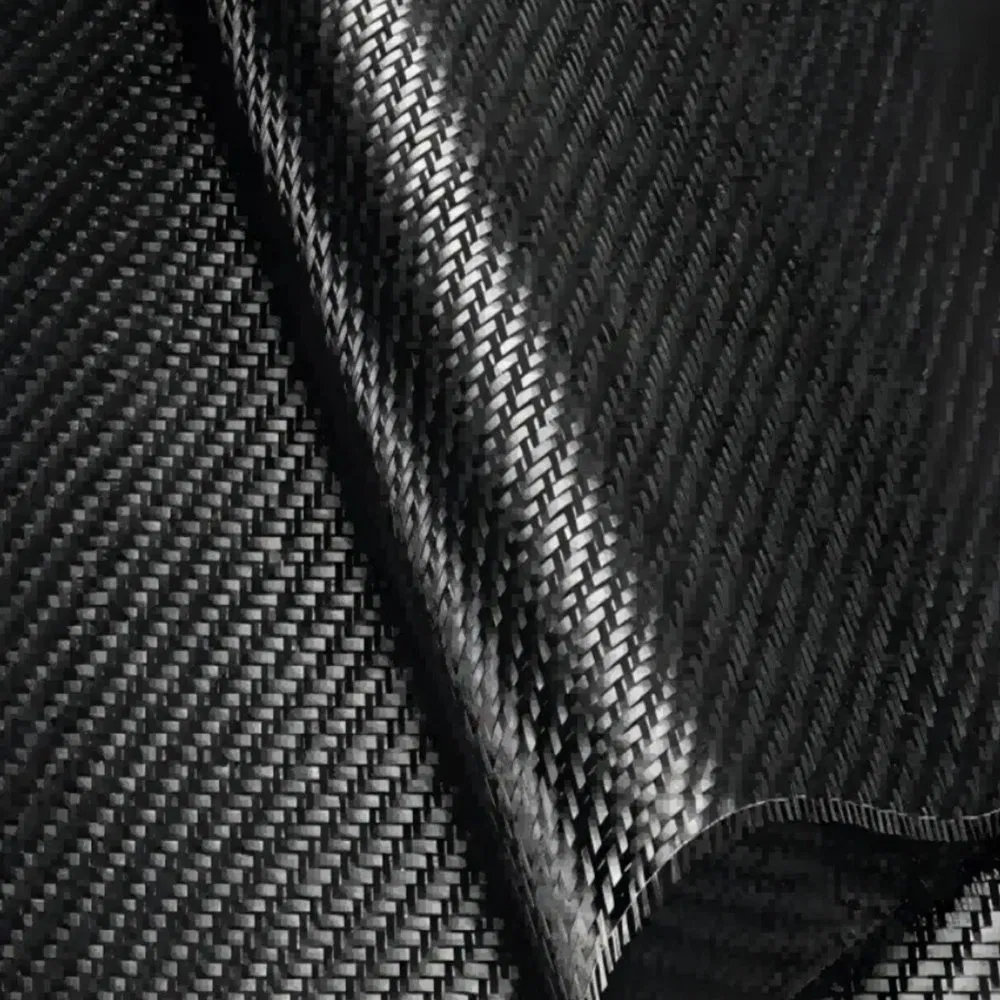

Carbon fiber cloth is a high-performance material also known as carbon fiber braided cloth, reinforced fabric, or carbon fiber sheet. It is a one-way reinforced product typically manufactured using 12K carbon fiber silk. It serves as a critical component in structural reinforcement systems when used with impregnated adhesives.
Available Specifications:
Thickness: 0.111mm (200g) and 0.167mm (300g).
Widths: 100mm, 150mm, 200mm, 300mm, 500mm, and custom project-specific widths.
| Code | Pattern | Yam | Density(/1cm) | Weight(g/sm) | Thickness(mm) | Width(mm) | Length(m) | ||
|---|---|---|---|---|---|---|---|---|---|
| warp | weft | warp | weft | ||||||
| C-200 | Plain | 3K | 3K | 5 | 5 | 200 | 0.25 | 1000-1600 | 100-400 |
| C-200 | Twill | 3K | 3K | 5 | 5 | 200 | 0.25 | 1000-1600 | 100-400 |
| C-220 | Plain | 3K | 3K | 5.5 | 5.5 | 220 | 0.28 | 1000-1600 | 100-400 |
| C-240 | Twill | 3K | 3K | 6 | 6 | 240 | 0.30 | 1000-1600 | 100-400 |
| C-280 | Plain | 6K | 6K | 3.5 | 3.5 | 280 | 0.36 | 1000-1600 | 100-400 |
| C-400 | Twill | 12K | 12K | 2.5 | 2.5 | 400 | 0.46 | 1000-1600 | 100-400 |
| C-640 | Plain | 12K | 12K | 4 | 4 | 640 | 0.64 | 1000-1600 | 100-400 |

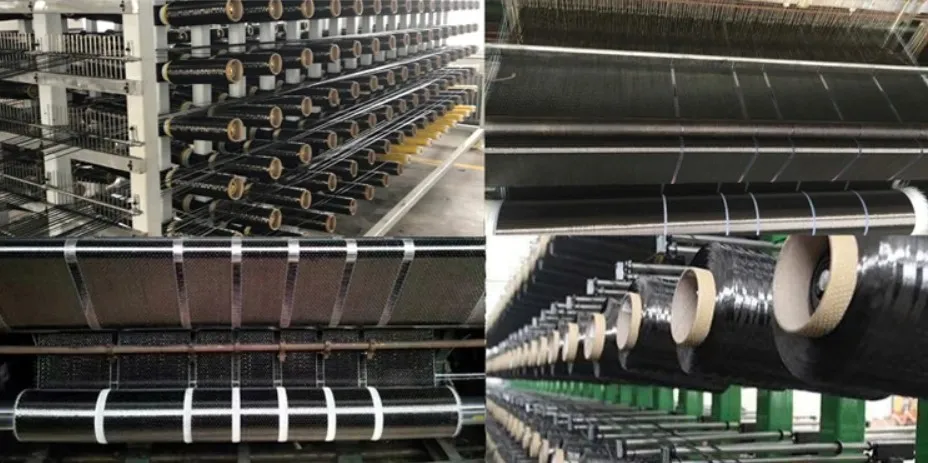

Specializing in the production of silicone cloth, acrylic cloth, high-temperature fireproof cloth, glass fiber aluminum foil cloth, and other specialized fiber products. Our materials are widely utilized in aerospace, chemical, petroleum, power generation, machinery, and metallurgy sectors.
With years of integrity-based operations, we have been recognized as a "National High-Tech Enterprise" and have successfully developed 14 patented technologies.
