Home > Carbon Fiber Fabric > High Density Triaxial Carbon Fiber Knitted Fabric 600GSM 12K Carbon Fiber Fabric

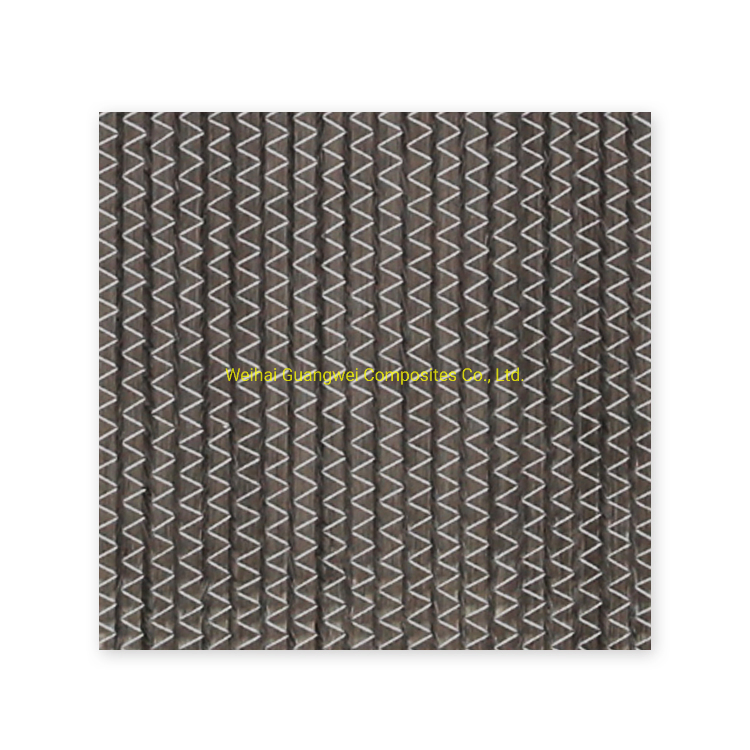

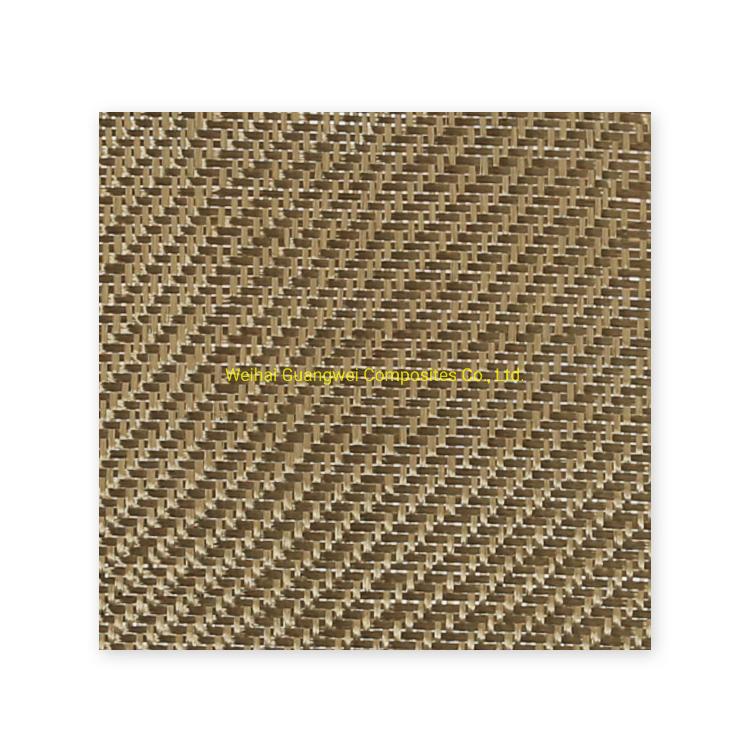

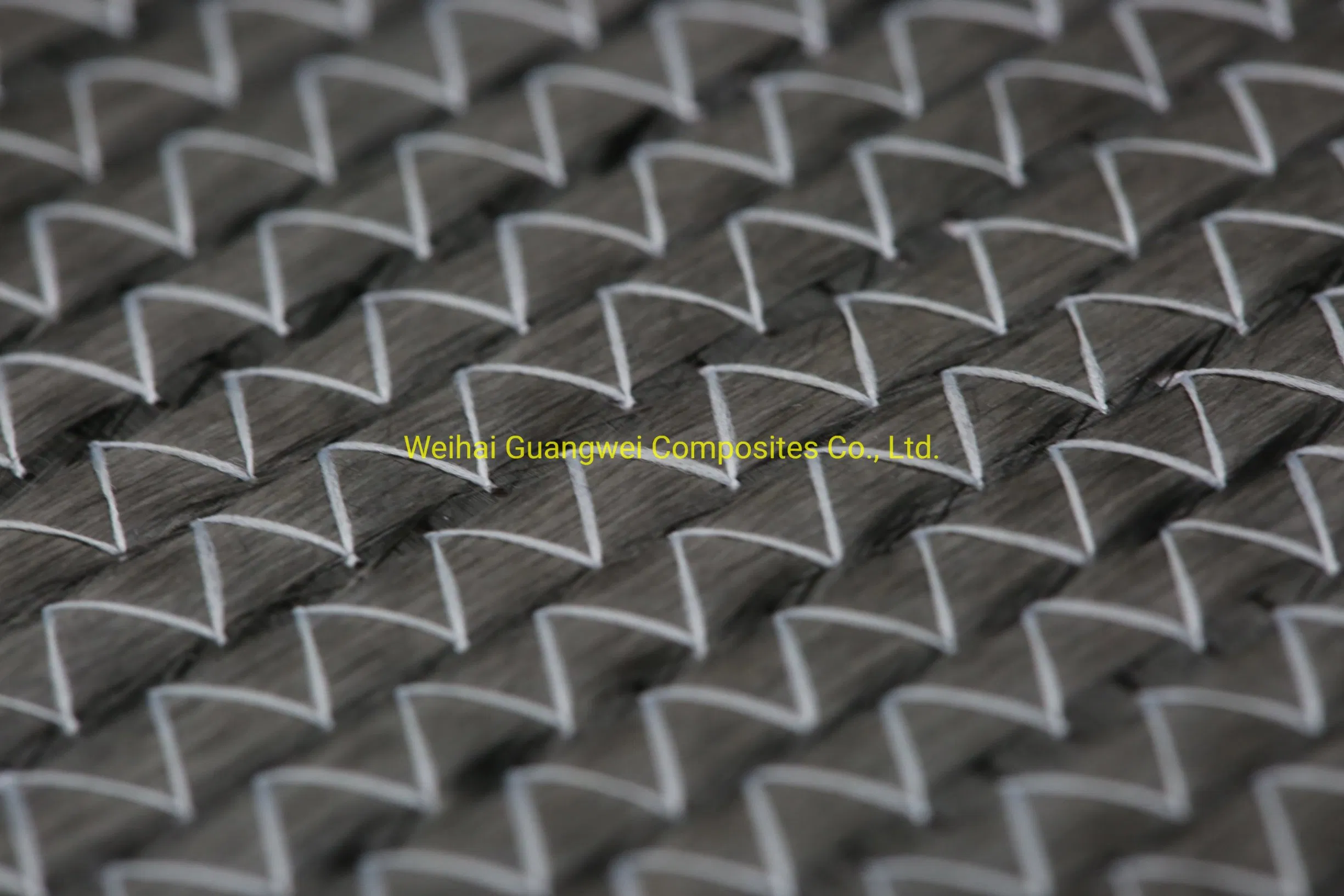

High Density Triaxial Carbon Fiber Knitted Fabric 600GSM 12K Carbon Fiber Fabric
High Density Triaxial Carbon Fiber Knitted Fabric 600GSM 12K Carbon Fiber Fabric
High Density Triaxial Carbon Fiber Knitted Fabric 600GSM 12K Carbon Fiber Fabric
High Density Triaxial Carbon Fiber Knitted Fabric 600GSM 12K Carbon Fiber Fabric
High Density Triaxial Carbon Fiber Knitted Fabric 600GSM 12K Carbon Fiber Fabric
1 / 5
High Density Triaxial Carbon Fiber Knitted Fabric 600GSM 12K Carbon Fiber Fabric
High Density Triaxial Carbon Fiber Knitted Fabric 600GSM 12K Carbon Fiber Fabric
High Density Triaxial Carbon Fiber Knitted Fabric 600GSM 12K Carbon Fiber Fabric
High Density Triaxial Carbon Fiber Knitted Fabric 600GSM 12K Carbon Fiber Fabric
High Density Triaxial Carbon Fiber Knitted Fabric 600GSM 12K Carbon Fiber Fabric

High Density Triaxial Carbon Fiber Knitted Fabric 600GSM 12K Carbon Fiber Fabric

Customization: Available
Shape: Carbon Fiber Cloth
Raw Materials: Polyacrylonitrile-Based Carbon Fiber
Send Inquiry

Product Description

Basic Information
Performance
General Type
State
Filament
Mechanical Property
High-Performance Type
Material
Carbon Fiber
Property
High Strength & Light Weight
Width
Custom
Weight
Custom
Style
Plain
Specification
200gsm
HS Code
6815993100
Transport Package
Bubble Bag and Carton
Origin
China
Product Display

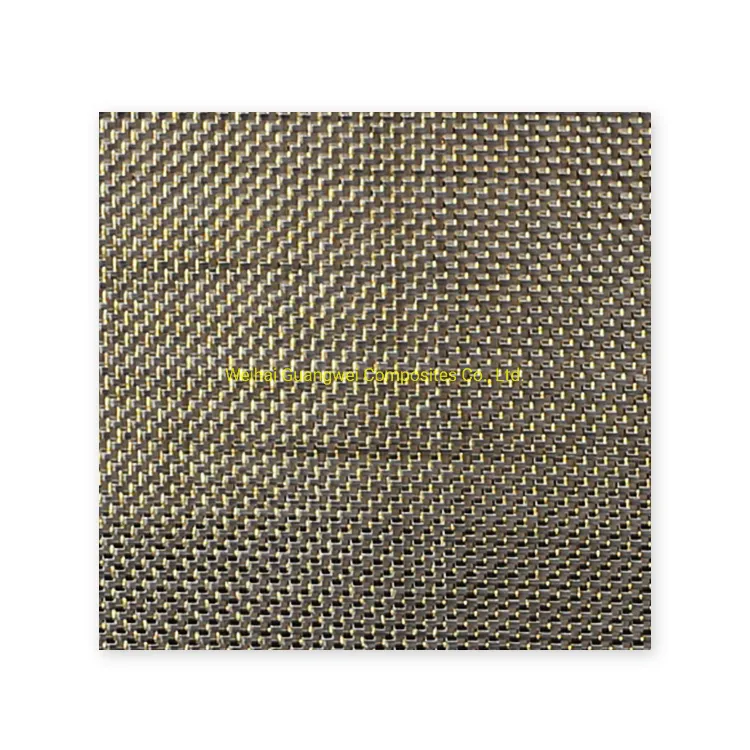

Carbon Fiber Fabric 1
Carbon Fiber Fabric 2

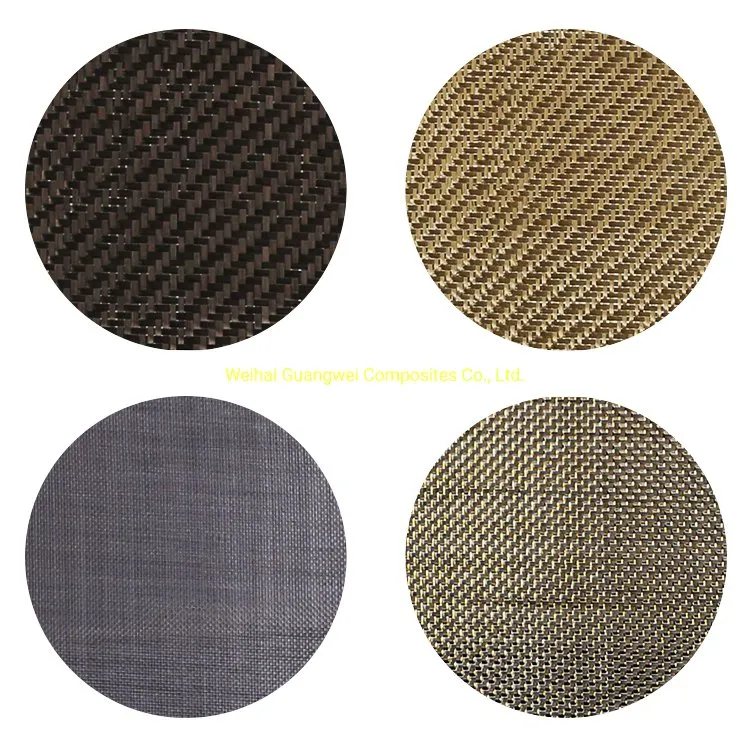

Carbon Fiber Fabric 3

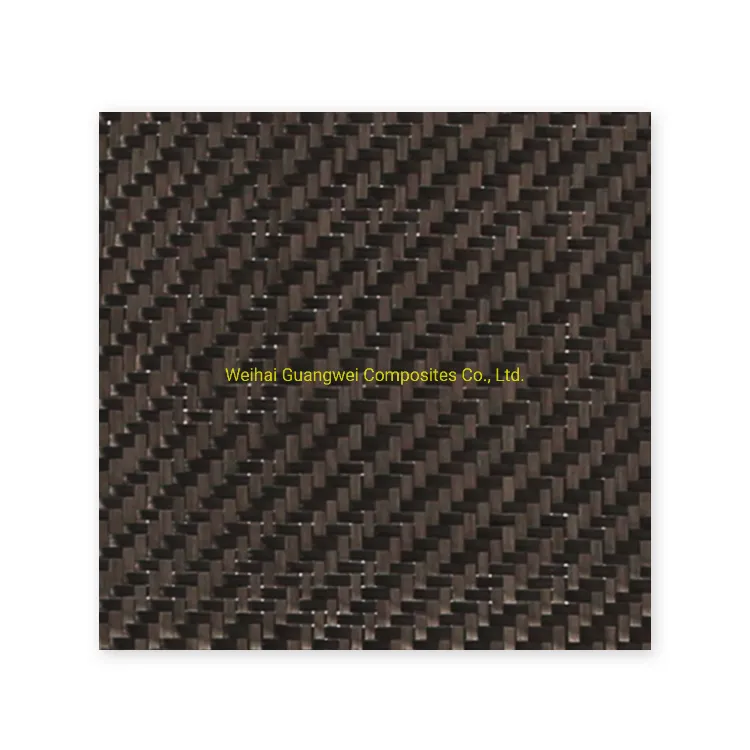

Carbon Fiber Fabric 4
Technical Parameters

Carbon Fiber Woven Fabric Specifications:

No. Model Weaving Style Filament Density (filament No./10mm) Dimension (mm) Weight (g/sq.m)
Warp Weft Warp Weft Width Thickness
1W-3011Plain3K3K5.005.001000-10050.25200
2W-30212/2 Twill3K3K5.005.001000-10050.25200
3W-30222/2 Twill3K3K5.505.501000-10050.25220
4W-3085Satin3K3K9.309.101000-10050.37370±10
7W-7011Plain12K12K4.004.001000-10050.64640
8W-70212/2 Twill12K12K4.004.001000-10050.64640
9W-3083Satin3K3K9.509.201000-10050.35370
10W-70242/2 Twill12K12K2.752.751000-10050.47440±10

Carbon Fiber Knitted Fabric Index:

Model Fiber Axial Fiber Areal Weight (g/sq.m) Width (mm)
KUC4000°4051270±10
KWC6000°/90°6051270±10
KTC6000°/±45°6051270±10
KQC12000°/90°/±45°12051270±10
KBC400±45°405.41270±10
Product Advantages & Features
  • Imported Germany waving machine to guarantee superior mechanical properties.
  • Customizable width, axial, and fiber areal weight.
  • Lightweight design, easy to operate and cut freely.
  • High tensile strength and high elasticity for demanding applications.
  • Acid and alkali resistant, suitable for harsh environments.
  • Good permeability for epoxy resin.
  • Non-toxic and non-irritant material.
Frequently Asked Questions
1. How can I get the prices for your carbon fiber products?
Since most products in this series are custom-made, please provide as many specifications as possible (width, weight, weaving style) to help us provide an accurate quote quickly.
2. Are samples available for quality checking?
Yes, we can provide regular product samples for your quality inspection, even if they aren't the exact dimensions of your final requirement.
3. What is the typical lead time for an order?
The normal lead time is 7-15 days. Production time depends on the specific product type and the total quantity ordered.
4. Do you offer discounts for bulk purchases?
Yes, for quantities exceeding 1000pcs, please contact us directly to discuss volume-based pricing and discounts.
5. What quality control measures do you have in place?
Each step of production and all finished products undergo a rigorous inspection by our QC department before shipping to ensure consistent quality.
6. Can dimensions like width and thickness be customized?
Absolutely. We use professional German machinery that allows for full customization of width, axial orientation, and fiber areal weight.
