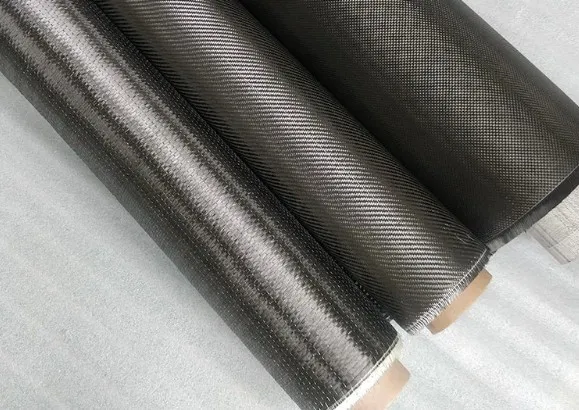

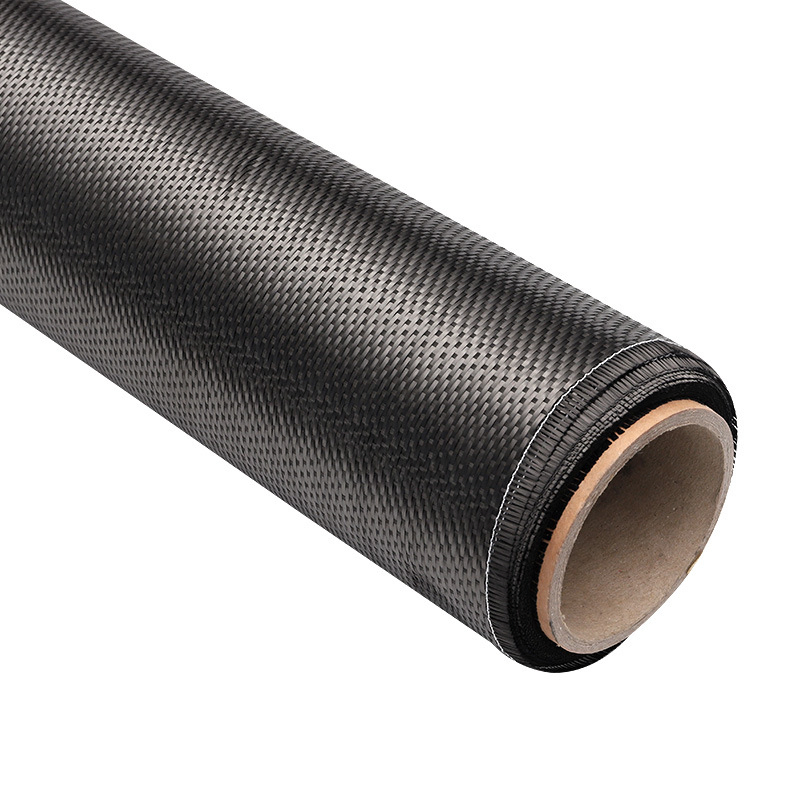

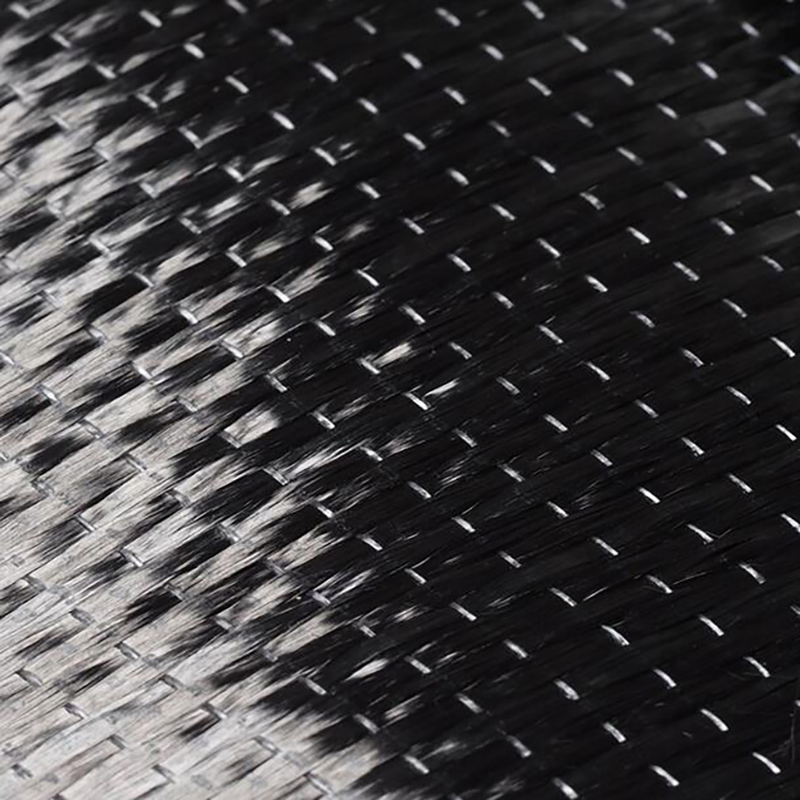

High Performance Soft and Heat Resistant Carbon Fiber Fabric 24K

1 / 5

High Performance Soft and Heat Resistant Carbon Fiber Fabric 24K

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

📊 Basic Information

Model NO.

BINJIN 5485

State

Short Fiber

Mechanical Property

High-Performance Type

Length

50m / 100m, Customized

Weave Type

Plain/ Twill/ Satin

Delivery Time

14-21 Days

Application

Anti-Acid and Alkali, Corrosion Resistance

Thickness

0.15mm 0.2mm 0.5mm

HS Code

85168000

Capacity

1000PCS/Month

📝 Product Description

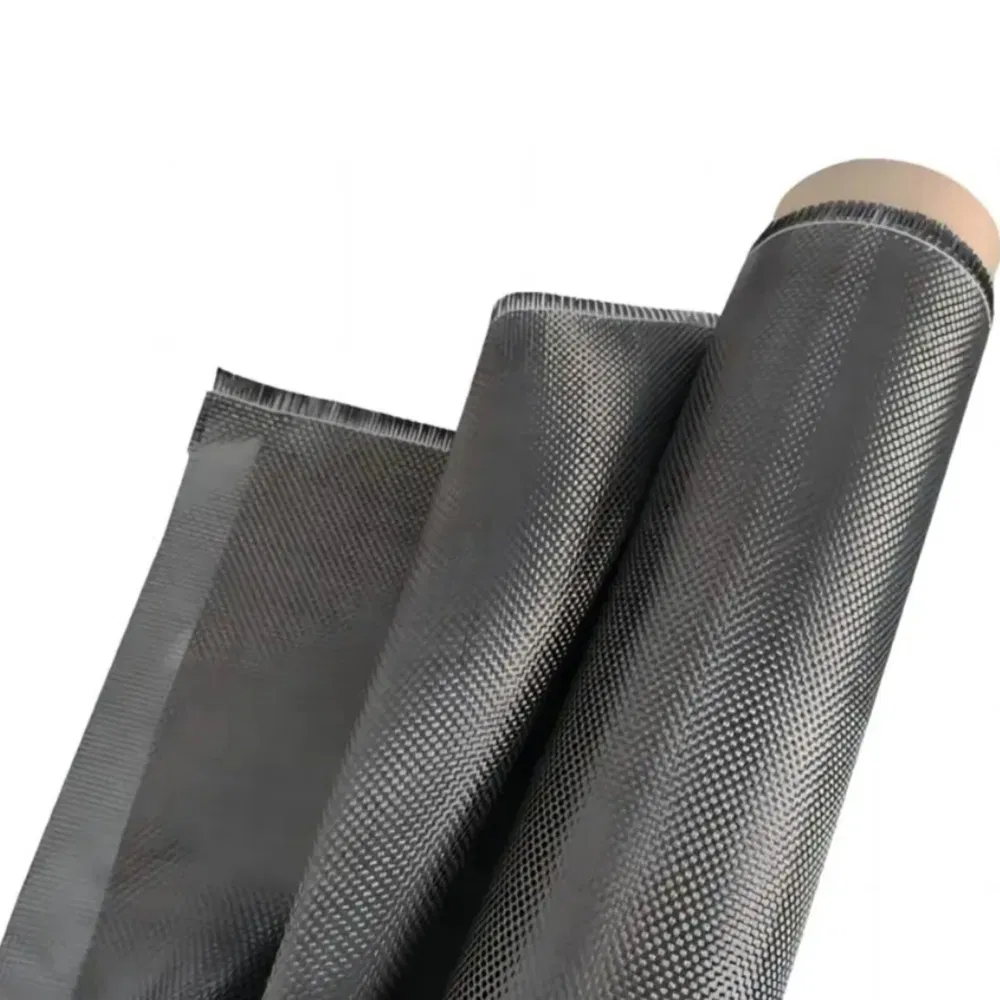

Carbon fiber cloth, also known as carbon fiber fabric or braided tape, is a high-strength reinforcement material. Usually made from 12K carbon fiber silk, it is a one-way reinforced product designed for demanding structural applications.

Available in two primary thicknesses: 0.111mm (200g) and 0.167mm (300g), with standard widths ranging from 100mm to 500mm. Custom widths are available for specific project requirements.

Key Performance Features:

Lightweight and easy to construct
High tensile strength (10-15x ordinary steel)
Flexible for various structural shapes
Excellent corrosion & acid resistance
Small thickness for easy overlapping
Non-toxic and low odor during construction

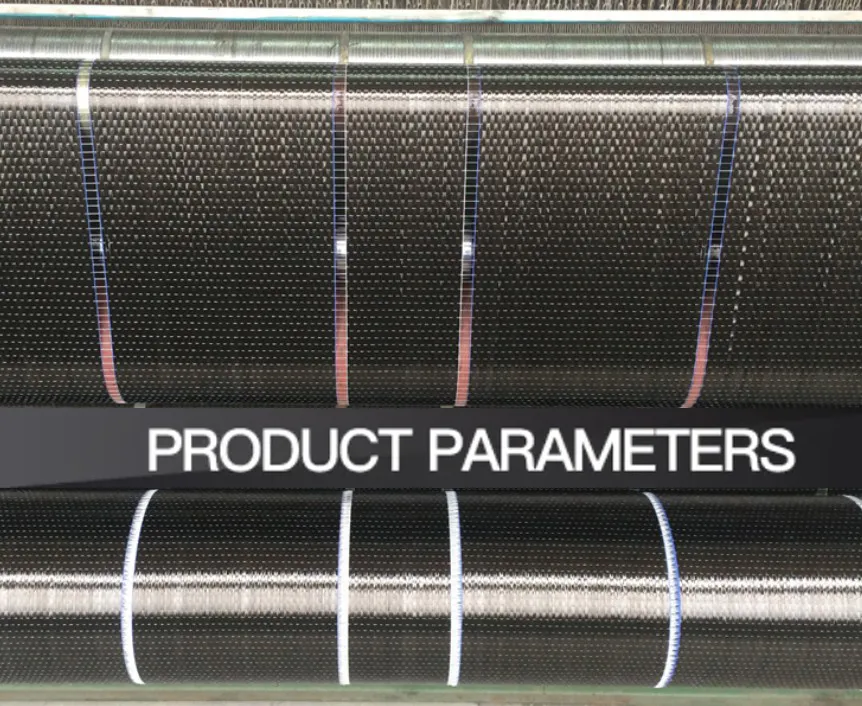

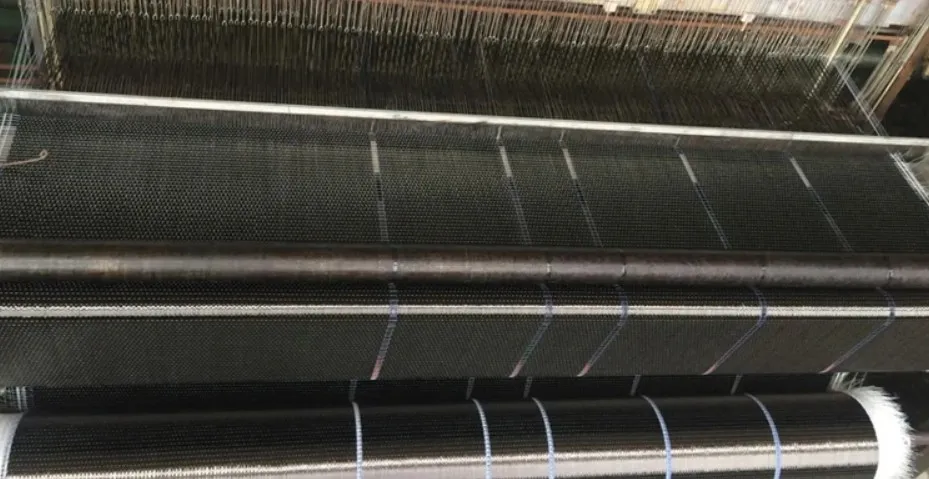

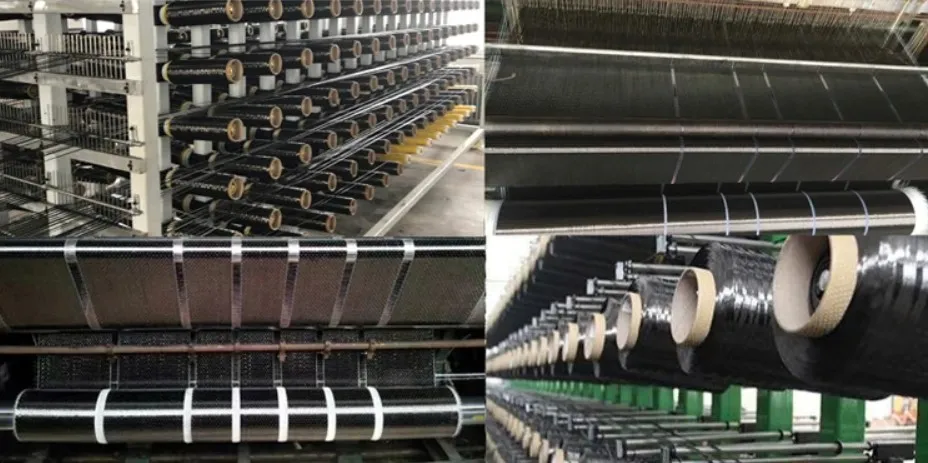

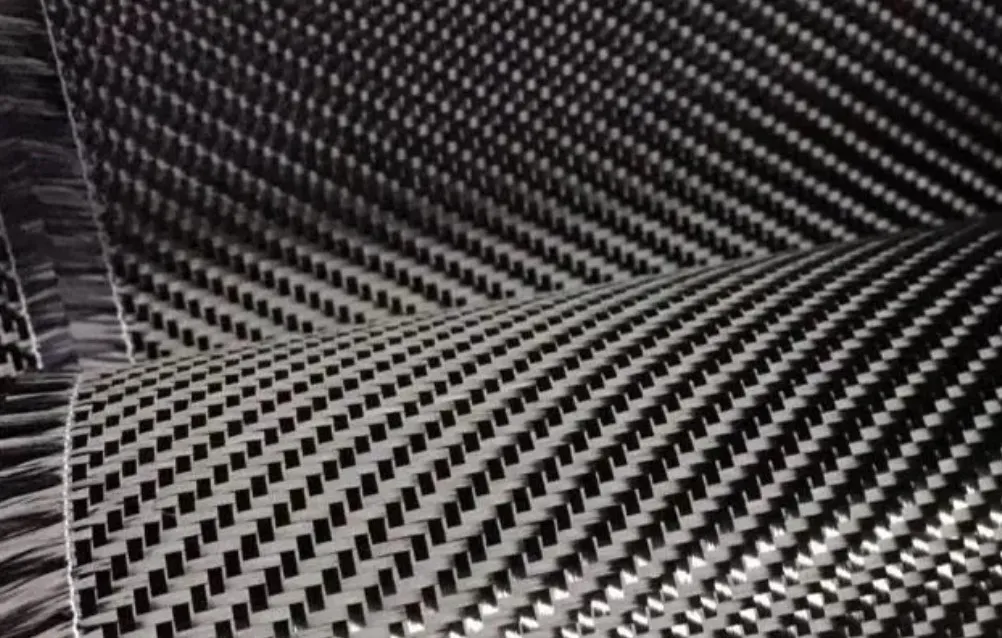

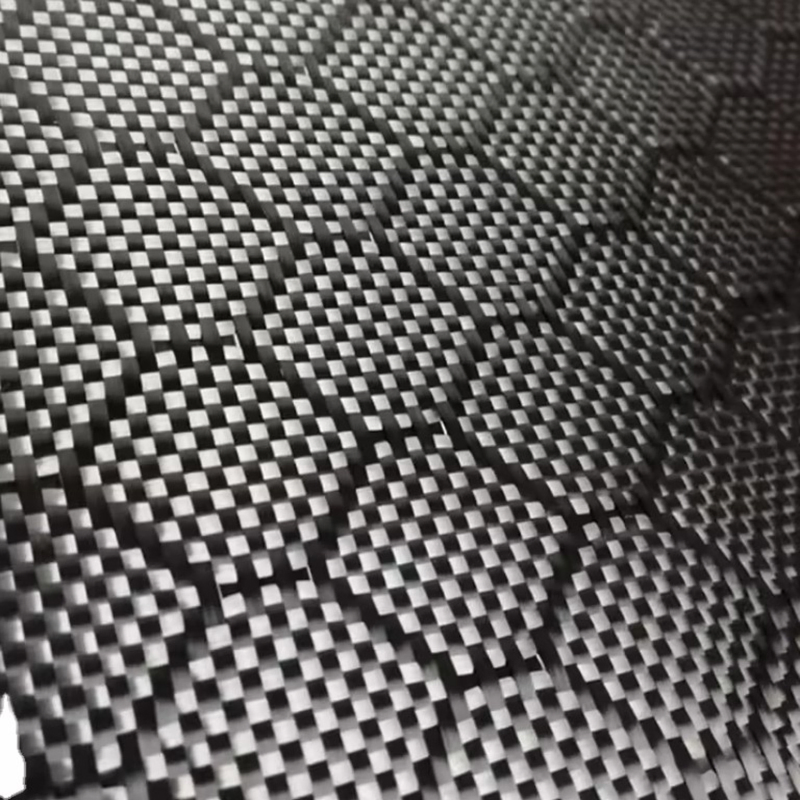

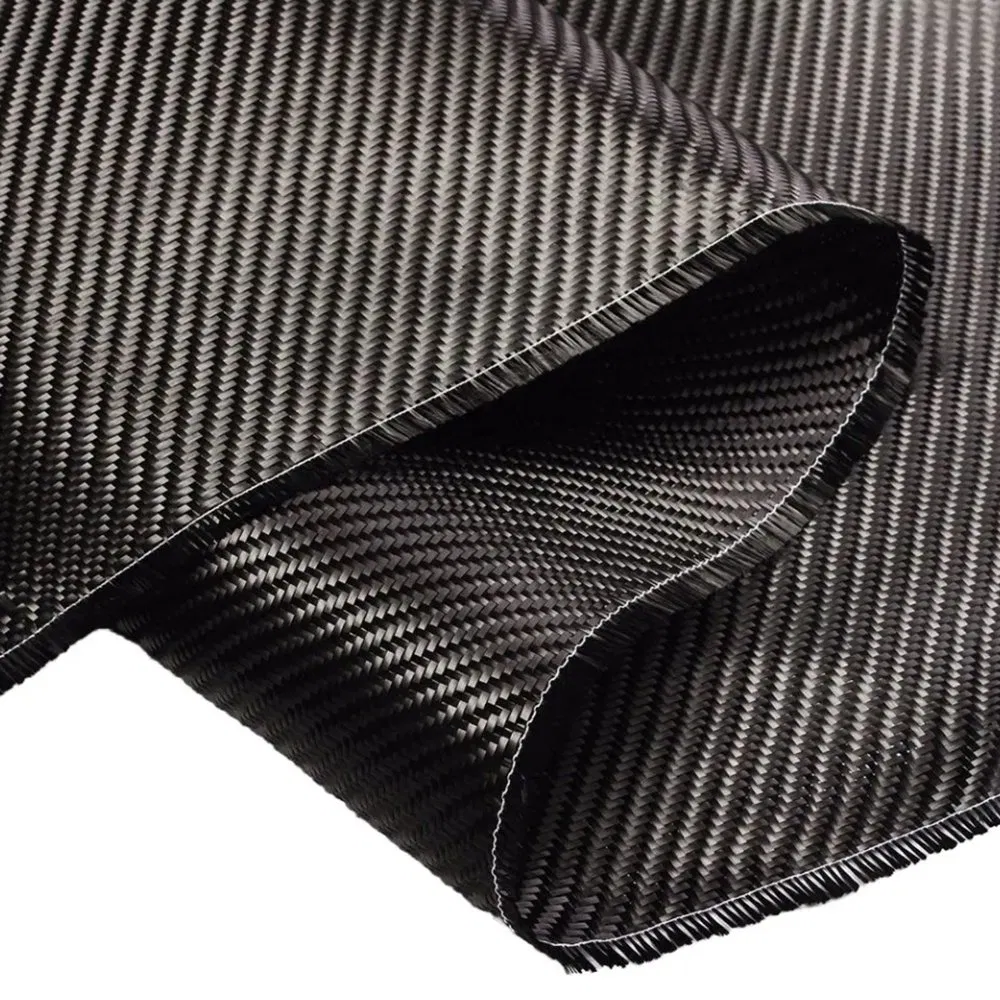

📷 Detailed Photos

📋 Technical Parameters

Code	Pattern	Yarn (Warp/Weft)	Density (/1cm)	Weight (g/sm)	Thickness (mm)	Width (mm)	Length (m)
C-200	Plain/Twill	3K / 3K	5 / 5	200	0.25	1000-1600	100-400
C-220	Plain/Twill	3K / 3K	5.5 / 5.5	220	0.28	1000-1600	100-400
C-240	Plain/Twill	3K / 3K	6 / 6	240	0.30	1000-1600	100-400
C-280	Plain/Twill	6K / 6K	3.5 / 3.5	280	0.36	1000-1600	100-400
C-320	Plain/Twill	6K / 6K	4 / 4	320	0.38	1000-1600	100-400
C-400	Plain/Twill	12K / 12K	2.5 / 2.5	400	0.46	1000-1600	100-400
C-560	Plain/Twill	12K / 12K	3.5 / 3.5	560	0.58	1000-1600	100-400

📦 Packaging & Advantages

Standard packaging includes cartons and plastic bags. For bulk orders, custom packaging with pallets is available to ensure safety during international shipping.

Why Choose Us:

We specialize in high-temperature fireproof materials including glass fiber aluminum foil cloth, dyed fabrics, and silicone products. Our materials are widely applied in aerospace, chemical, petroleum, and construction fields, recognized globally for quality and performance.

❓ Frequently Asked Questions

Are you a factory or a trading company?

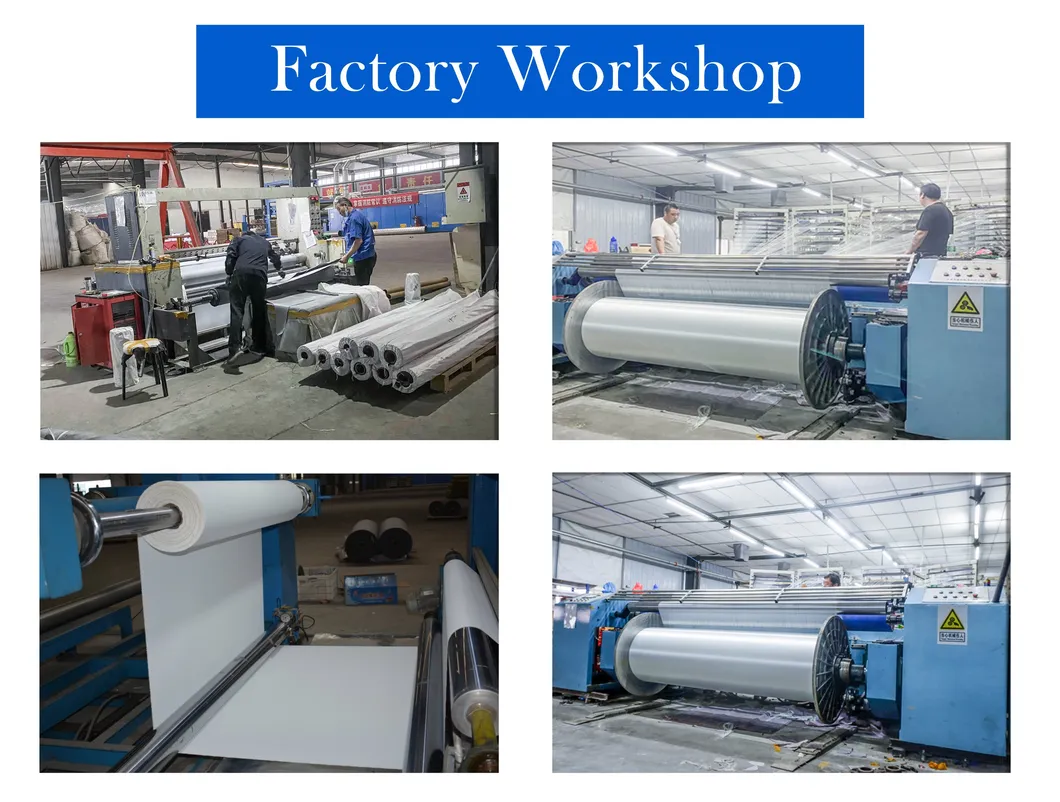

We are a specialized manufacturing factory. We welcome all clients to visit our production facilities.

What parameters are required for a quotation?

Please provide the application, pore size, dimensions, color, quantity, and preferred trade terms.

How do you ensure product quality?

We maintain a complete QC system for chemical composition and physical properties, certified by ISO9001.

What is the typical lead time for orders?

Standard production usually takes approximately 15 to 20 days after receiving the purchase order.

Do you provide samples for testing?

Yes, we provide samples. Depending on requirements, samples may be free or charged; please contact us with detailed parameters.

Do you offer customization or OEM services?

Yes, we have a dedicated R&D department to support new product development and accept OEM customization orders.
