RAXIS Fiber
1 / 5
| Model NO. | 20323 | Performance | High-Strength Type |
| State | Woven Fabric | Mechanical Property | High-Performance Type |
| Carbon Type | Unidirectional | Filament Count | 12K |
| Width | 1m | Roll Length | 100m or Customized |
| Material | Carbon Fabric+Resin | Specification | 200g/sqm |

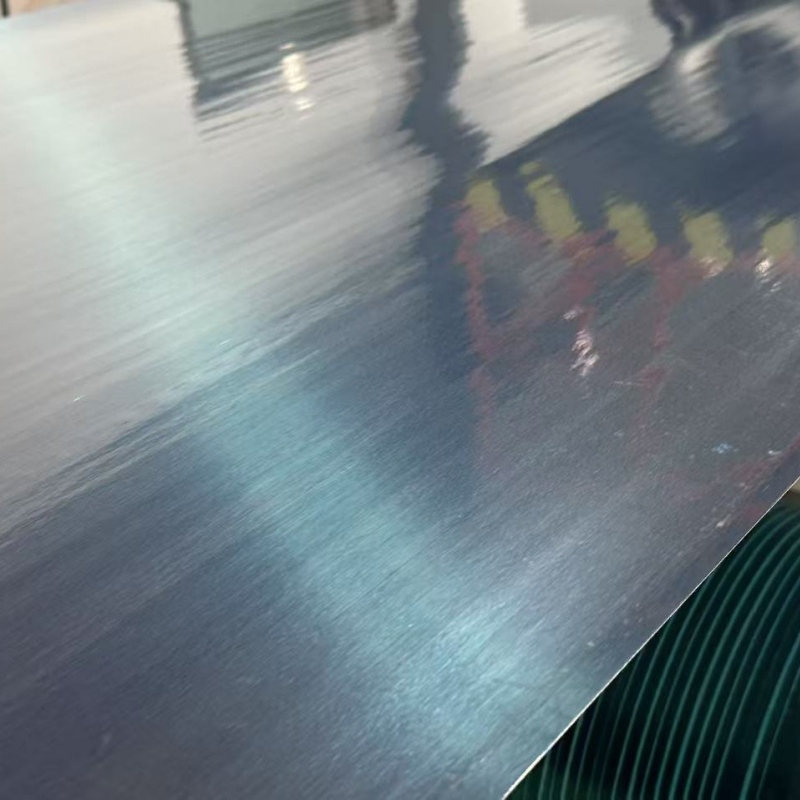

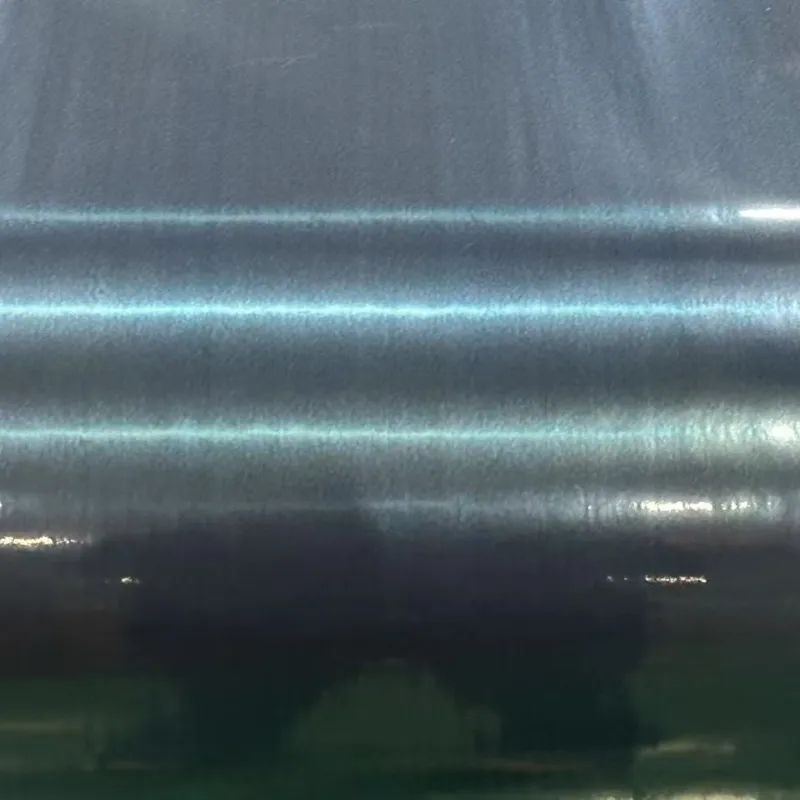

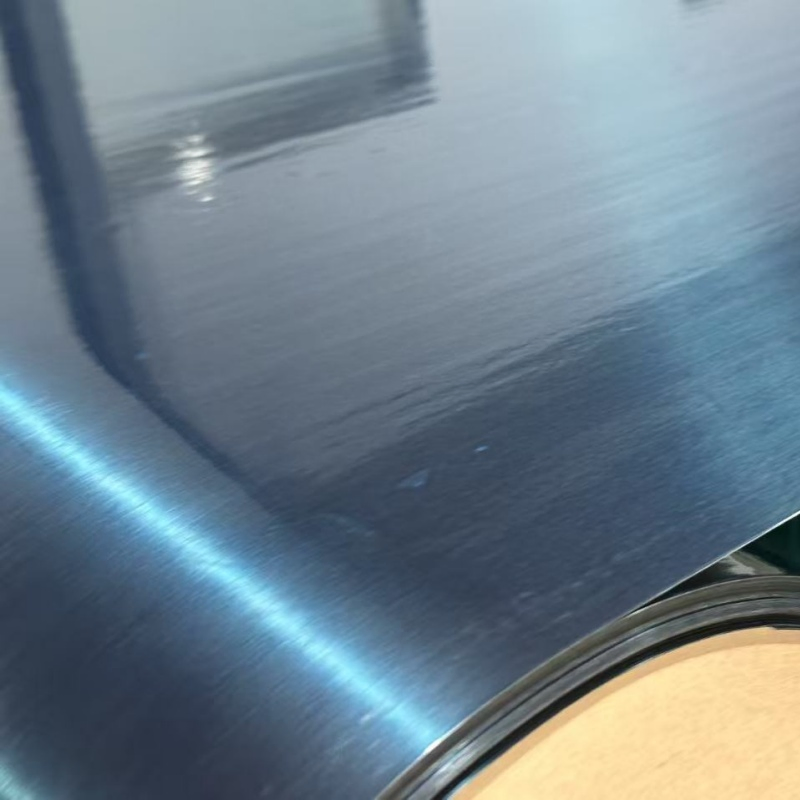

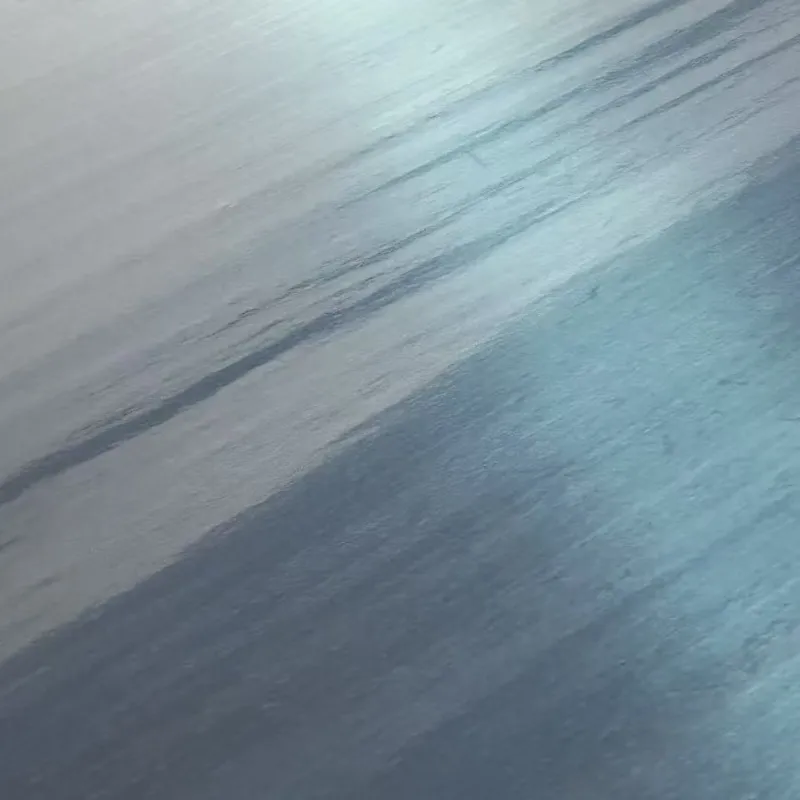

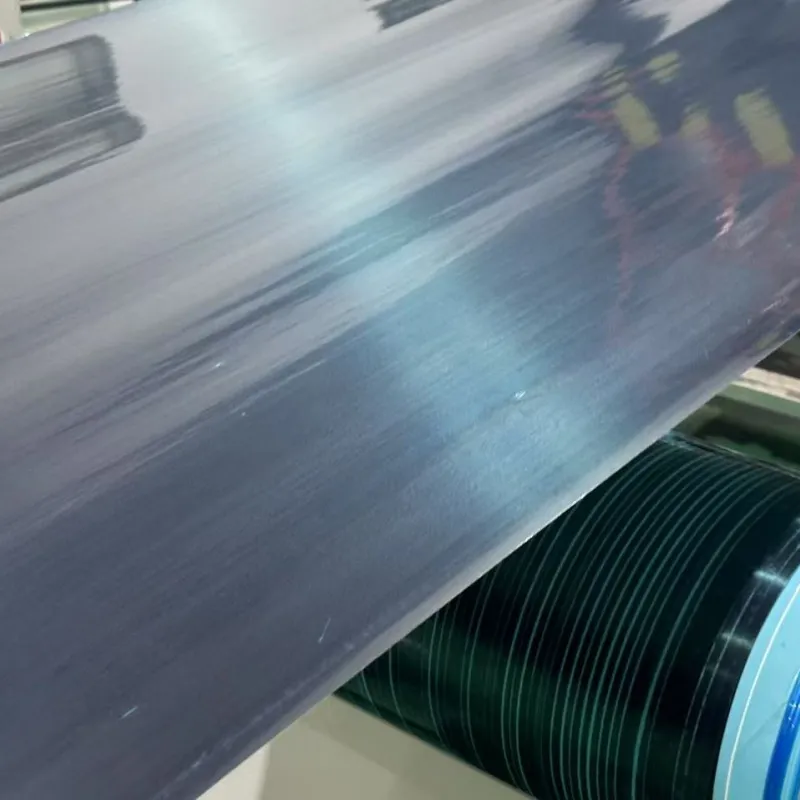

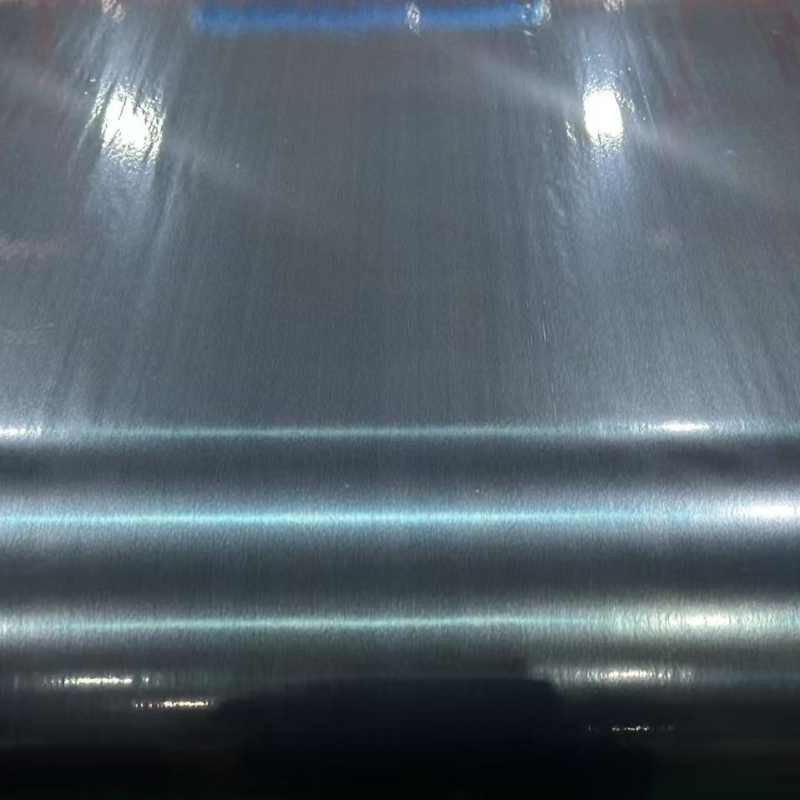

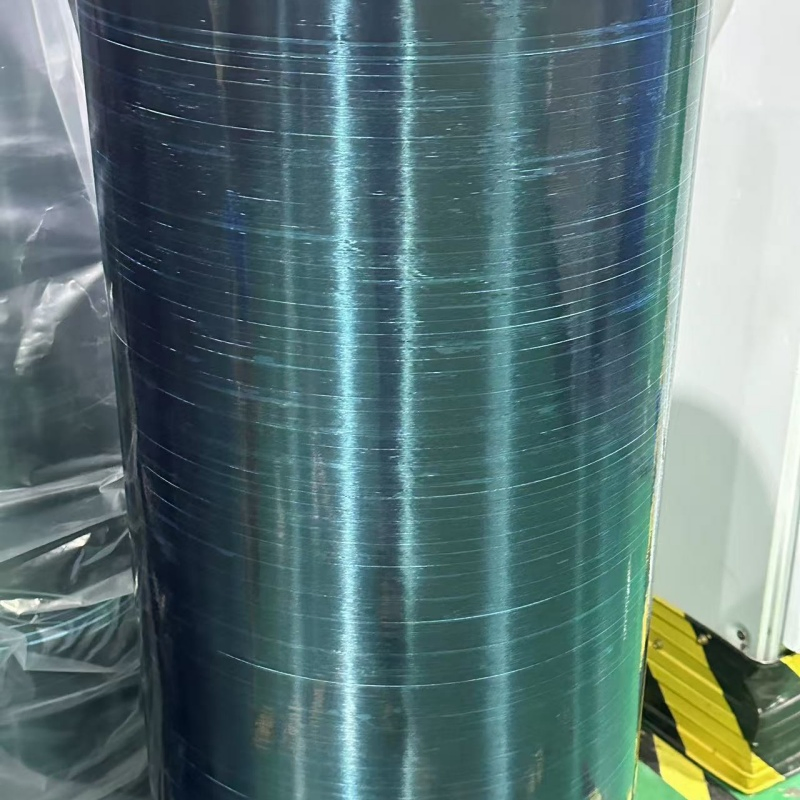

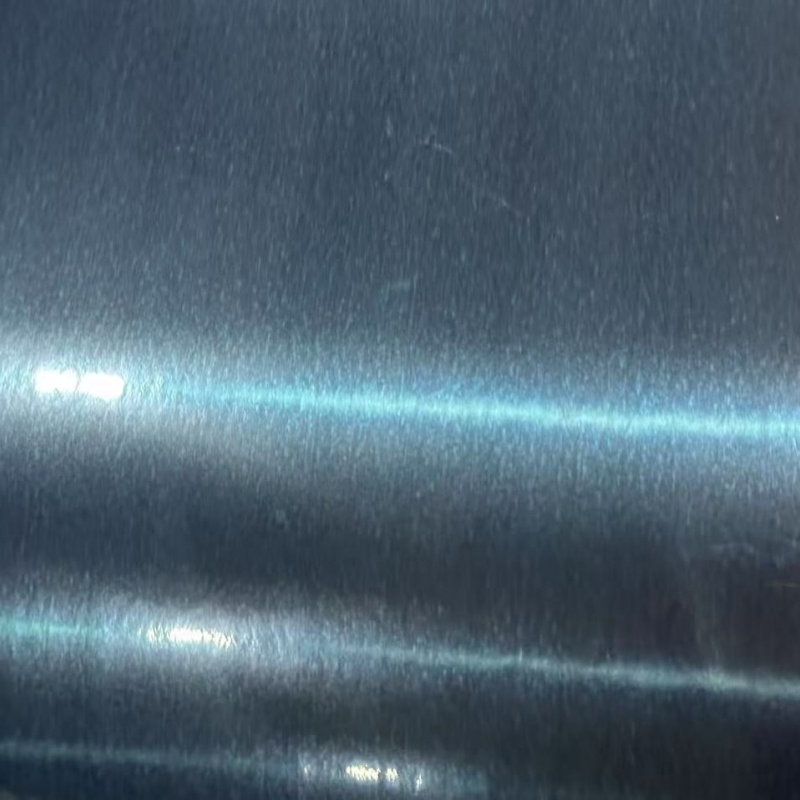

Our High-Performance 200g Unidirectional Carbon Fiber Fabric Prepreg is engineered for applications requiring extreme strength and minimal weight. Using 12K carbon yarn integrated with premium epoxy resin, this material ensures superior structural integrity for high-end manufacturing.
| Item No. | 20323 | Carbon Yarn | 12K |
| Fabric Area Weight | 200g/sqm | Resin System | Epoxy Resin (35%) |
| Leadtime | 7-35 days | HS Code | 6815131090 |
| Carbon Fiber Properties | |||
| Tensile Strength | ≥ 3500 (MPa) | Tensile Modulus | ≥ 230 (GPa) |
| Elongation | ≥ 1.5 (%) | Filament | 12K |
| Resin Properties | |||
| Bending Strength | 100~120 (MPa) | TG (Glass Transition) | 90~110 (ºC) |
| Tensile Strength | 60~70 (MPa) | Elongation | ≥ 2.5 (%) |

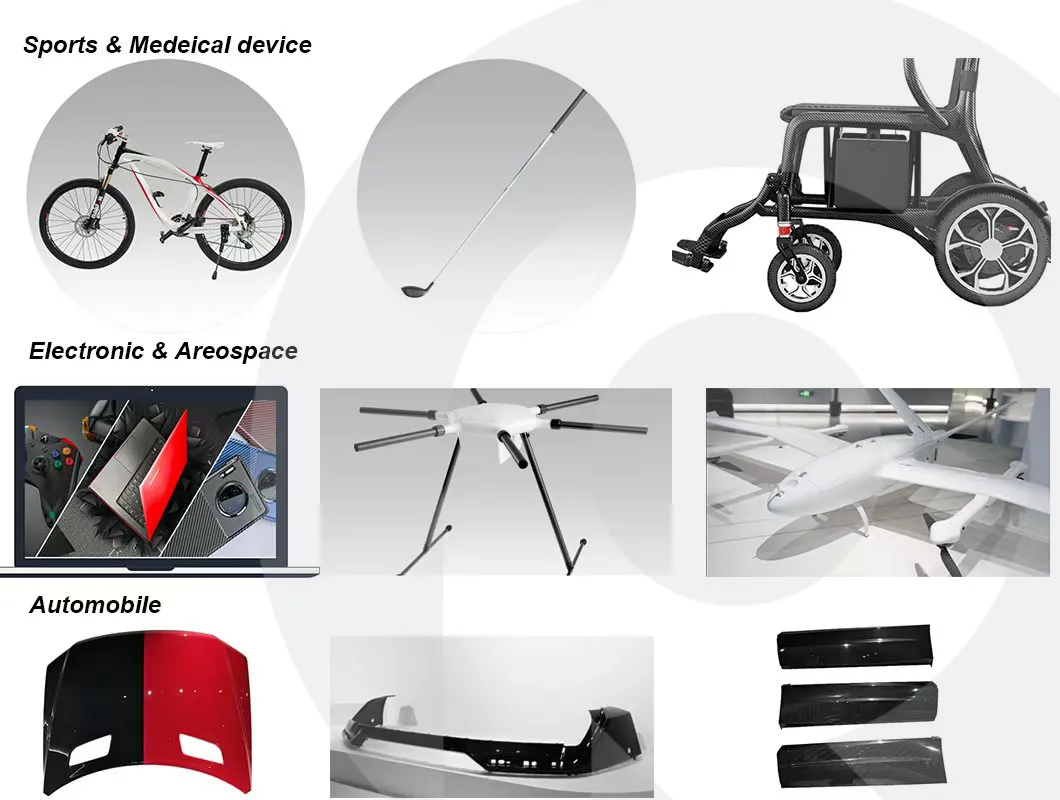

| Industry | Application Parts |
| Aerospace & Aviation | Aircraft wings, fuselages, helicopter blades, satellite components. |
| Automotive | Sports car chassis, body panels, electric vehicle components, bumper diffusers. |
| Sports & Recreation | Bicycles, tennis rackets, golf clubs, hockey sticks, kayaks, boat hulls. |
| Civil Engineering | Bridge reinforcement, building retrofitting, seismic retrofitting. |
| Renewable Energy | Wind turbine blades, hydrogen storage tanks. |
| Medical | Prosthetics, orthotic devices, surgical tools, imaging equipment. |

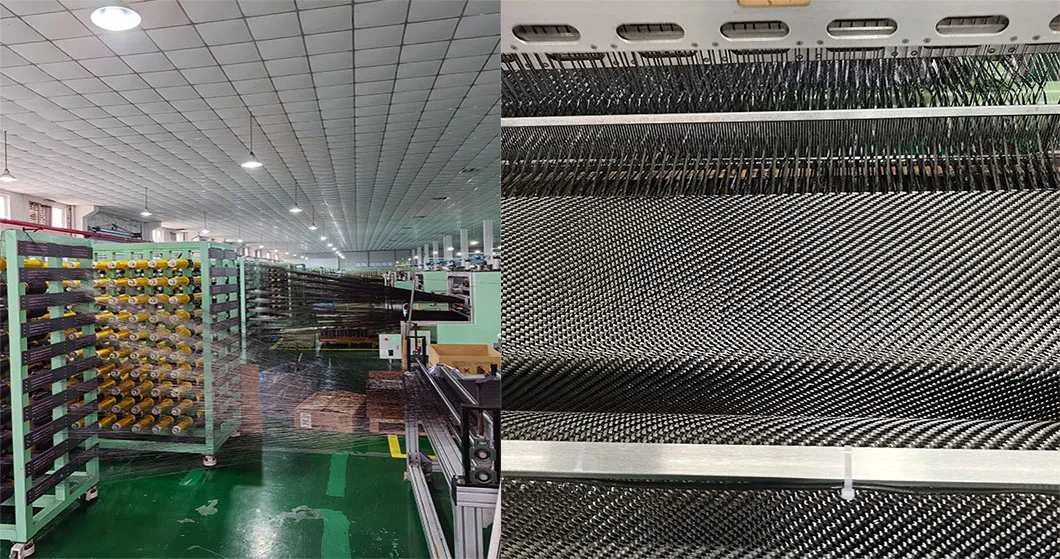

Specializing in the research, development, and production of high-quality woven textiles. Our expertise includes unidirectional, plain, twill, satin, and jacquard weaves using high-performance fibers such as carbon, glass, and aramid.
With state-of-the-art facilities and an IATF16949 certified quality management system, we deliver exceptional composites for aerospace, marine, and automotive industries.

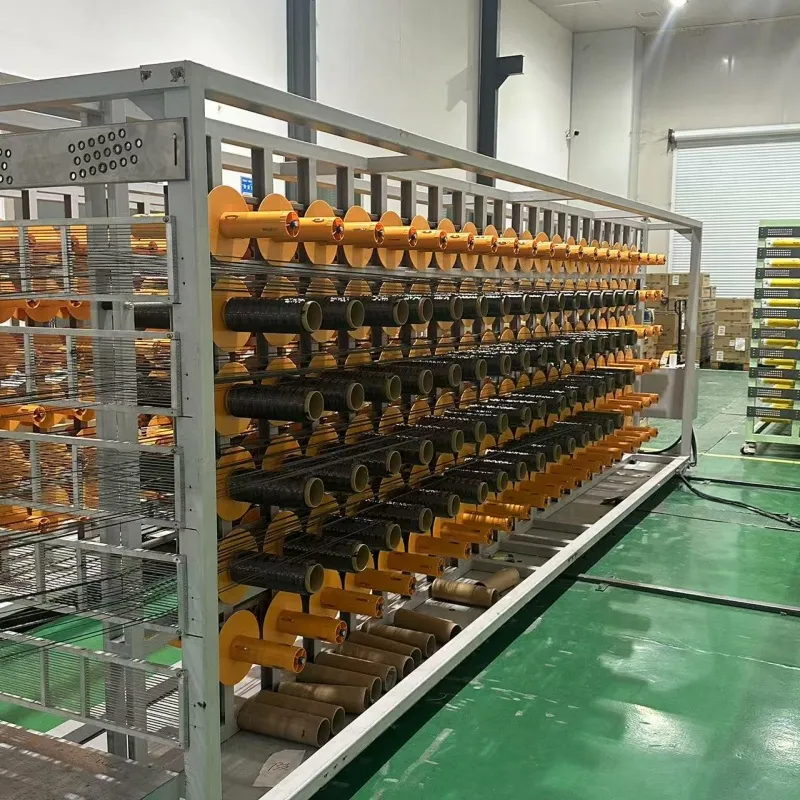

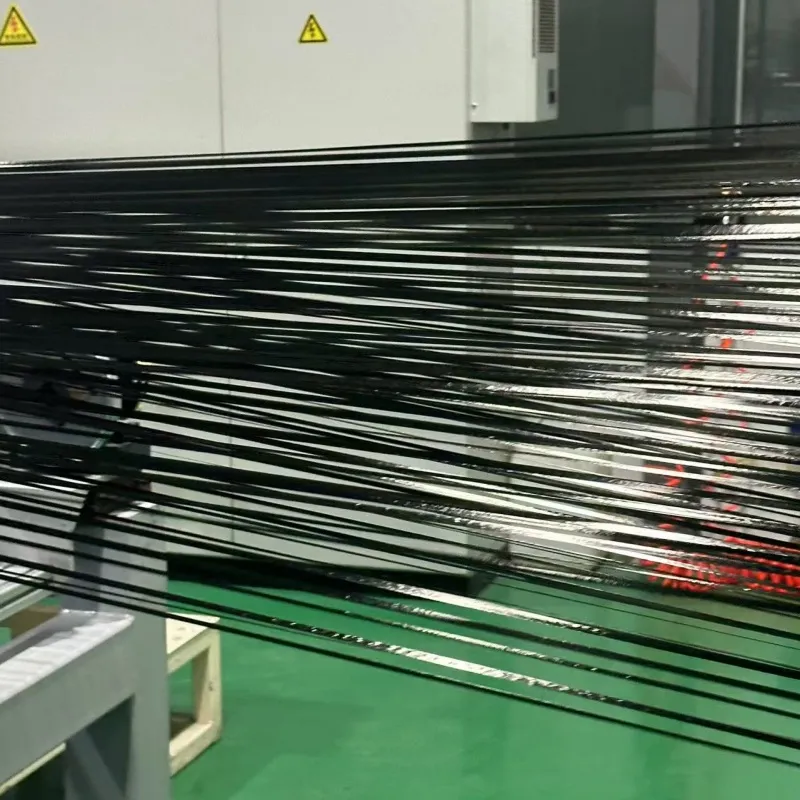

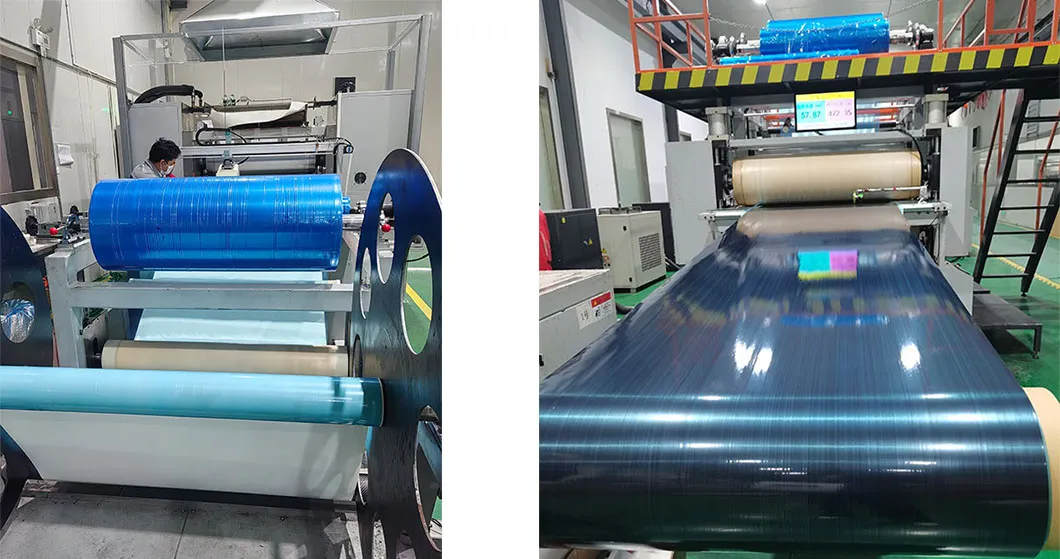

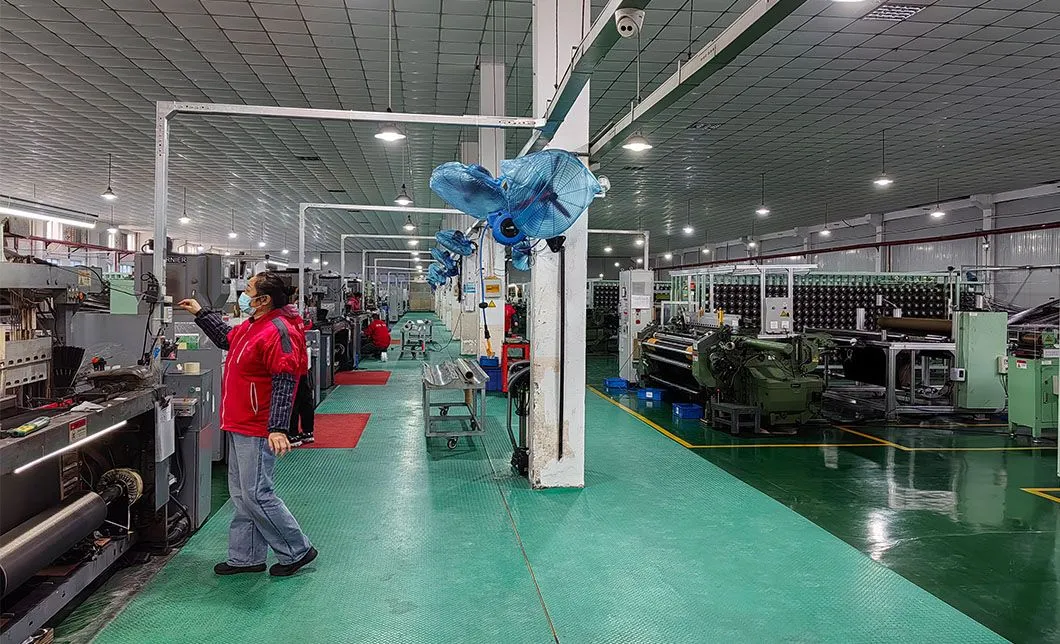

Prepreg Workshop: Equipped with 2 specialized production lines to ensure consistent quality and high production capacity (260,000 sqm/Month).

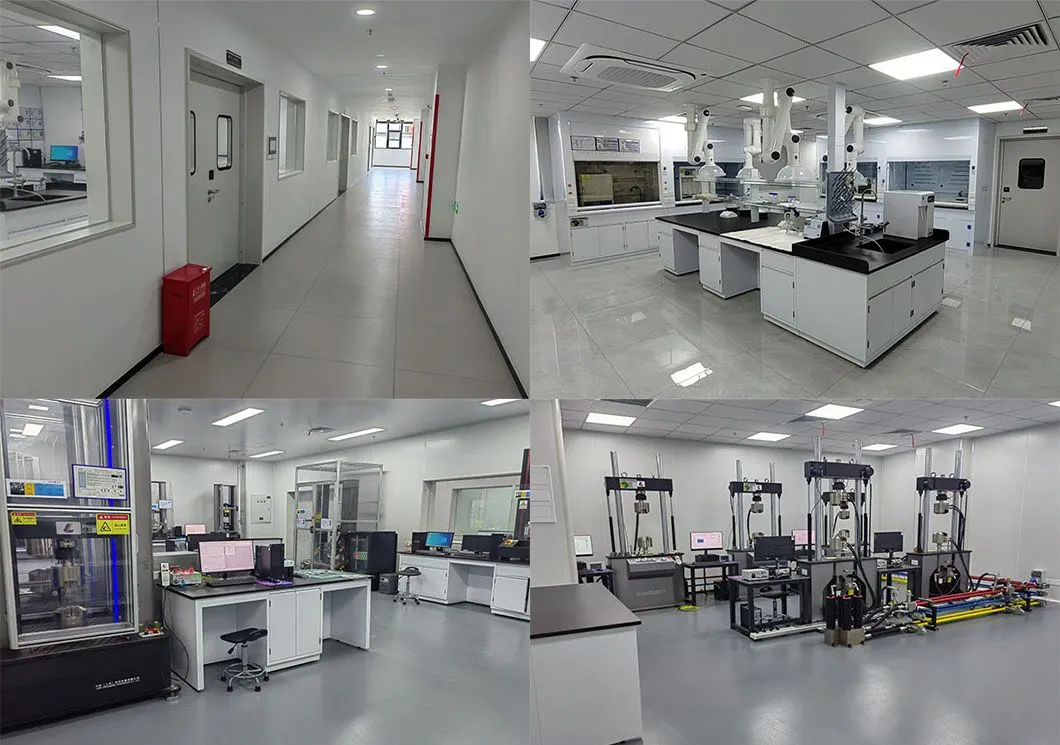

Our CNAS accredited testing center covers 3,100 square meters. We monitor every stage from raw materials to finished products, including mechanical properties, weather resistance, and chemical analysis.
