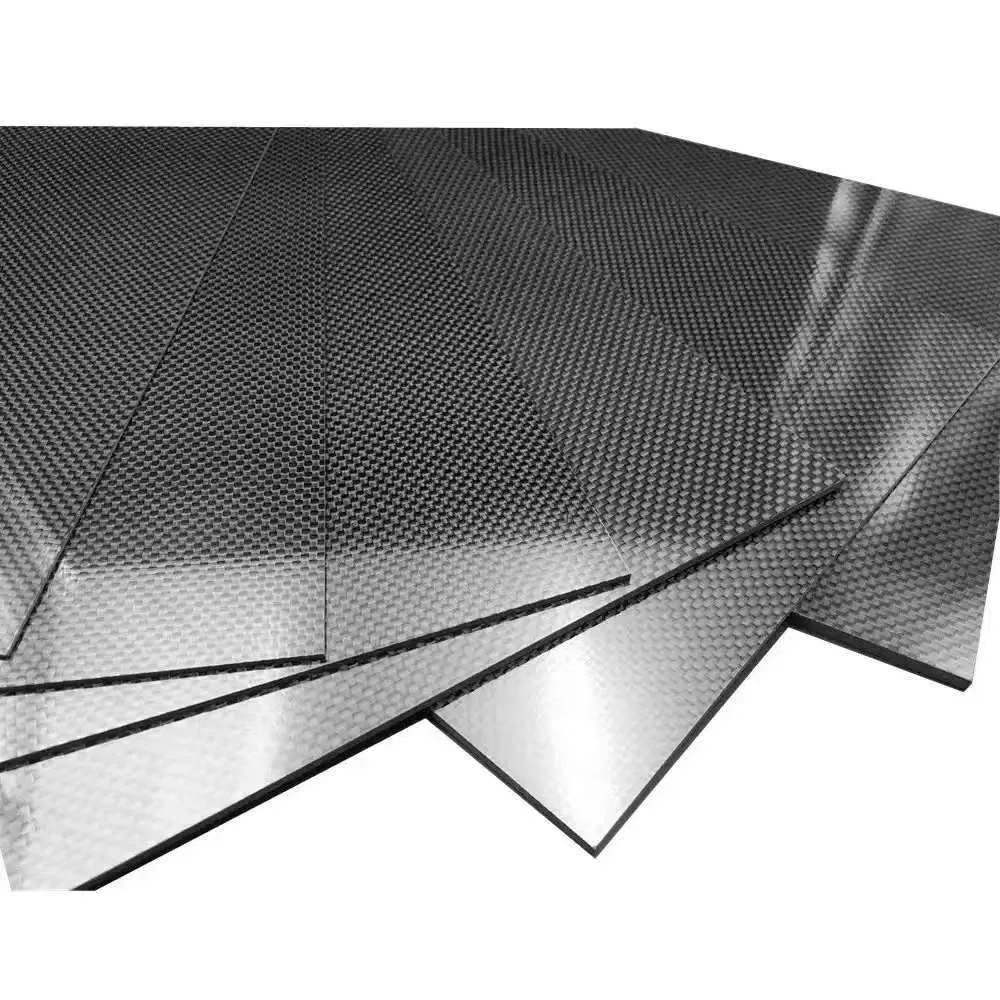

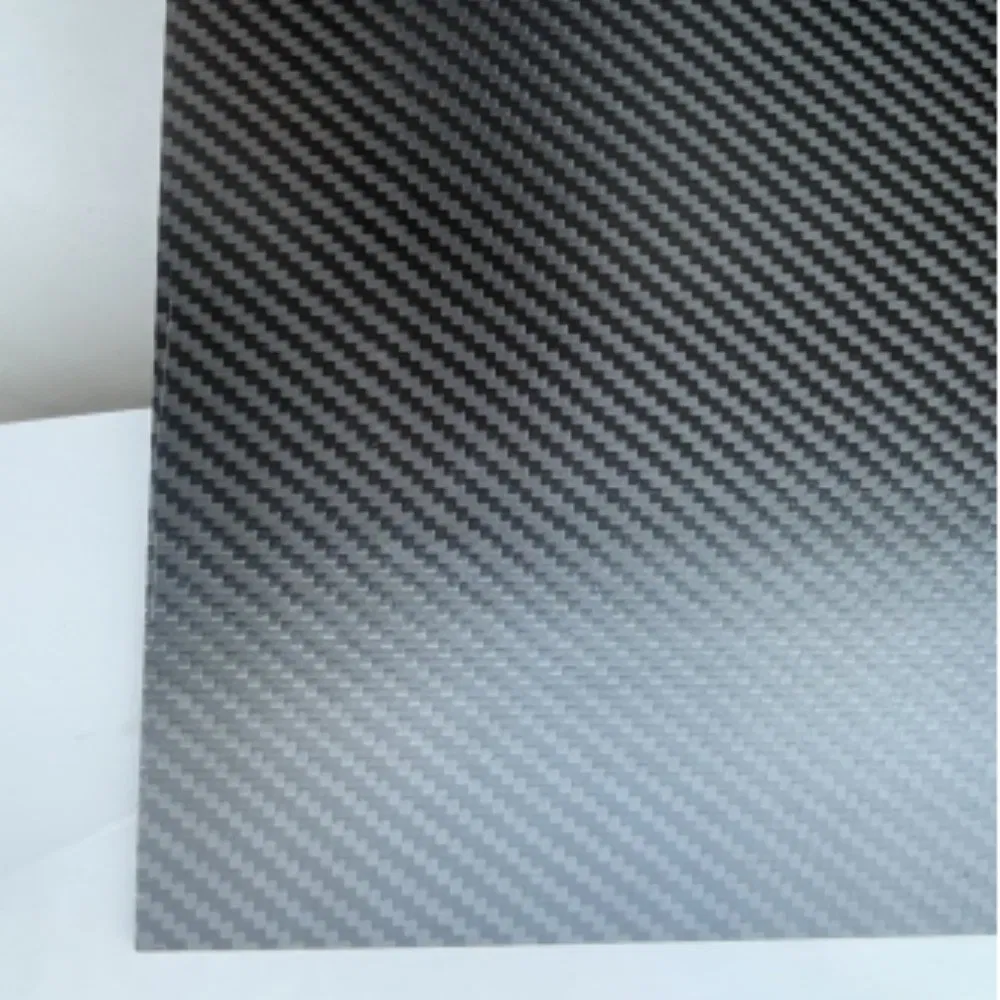

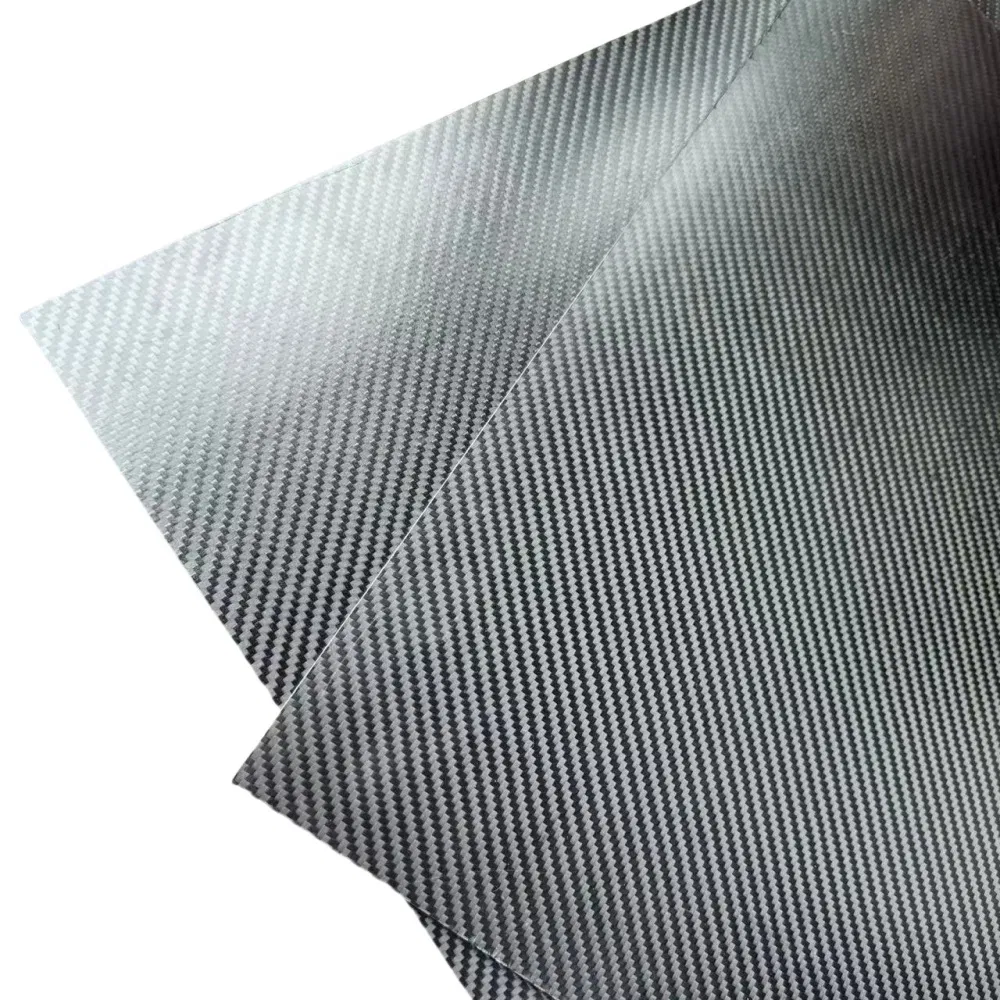

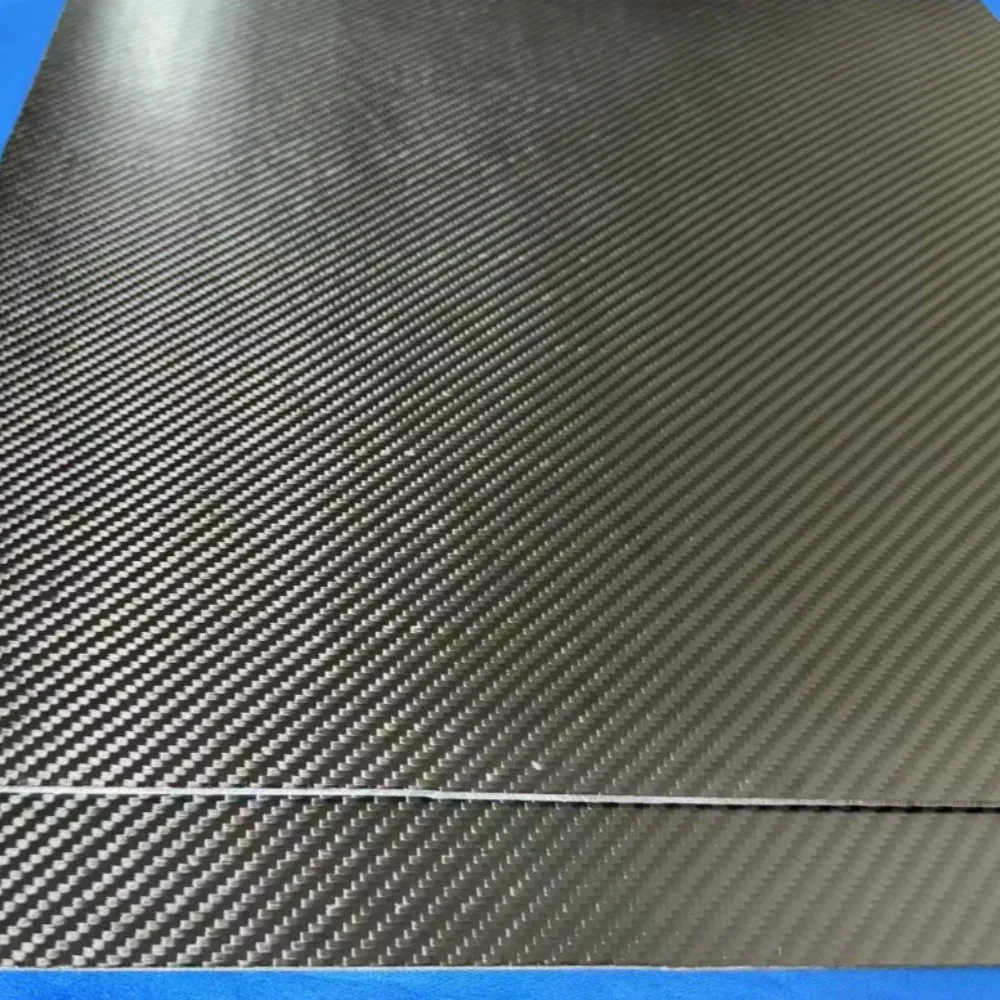

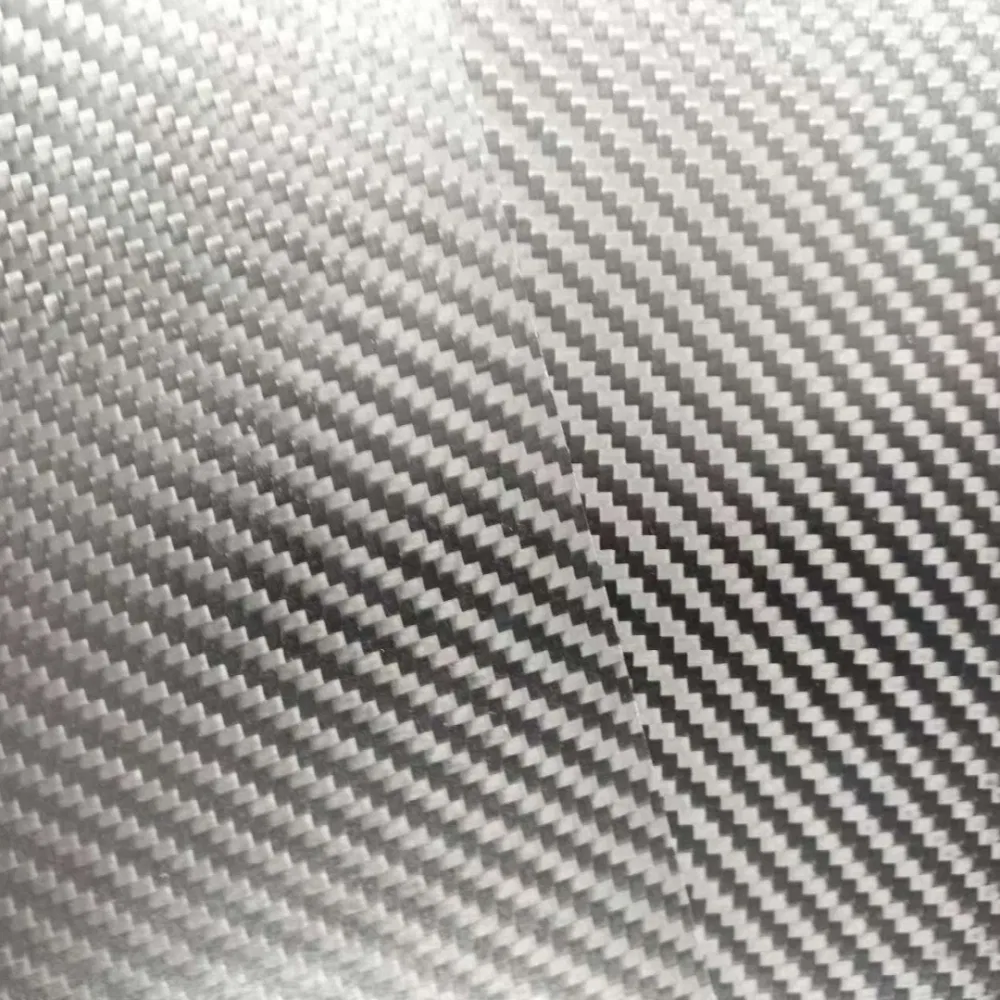

Carbon fabric sheet is manufactured with multiple layers of high strength carbon fiber prepreg using a high pressure molding process by Compressing Molding or Auto-Clave Molding. Using woven plain/twill/satin carbon fiber fabric with fibers oriented at 0 and 90 degrees, and ±45 orientation.
| S/N | Item | Standard | Average Value | C.V. % |
|---|---|---|---|---|
| 1 | Barcolithic Hardness | GB/T 3854-2017 | 65 | 2.8 |
| 2 | Bending Strength (MPa) | GB/T 1449-2005 | 936 | 2.9 |
| 3 | Tensile Strength (MPa) | GB/T 1447-2005 | 733 | 4.6 |
| 4 | Tensile Modulus (GPa) | GB/T 1447-2005 | 60.8 | 2.9 |
| 5 | Elongation (%) | GB/T 1447-2005 | 1.15 | 5.8 |
| 6 | Interlayer Shear Strength (MPa) | JC/T 773-2010 | 50.2 | 3.9 |
| 7 | Compressive Strength (MPa) | GB/T 1448-2005 | 453 | 3.6 |
| 8 | Modulus of Compression (GPa) | GB/T 1448-2005 | 52.9 | 4.1 |
Utilizing 8 sets of advanced autoclaves, we can process a maximum size of 3m * 8m. Common sizes include 500mm*500mm and 1000mm*1000mm. The appearance and weave pattern of the carbon fiber sheet can be customized to meet specific design requirements.
