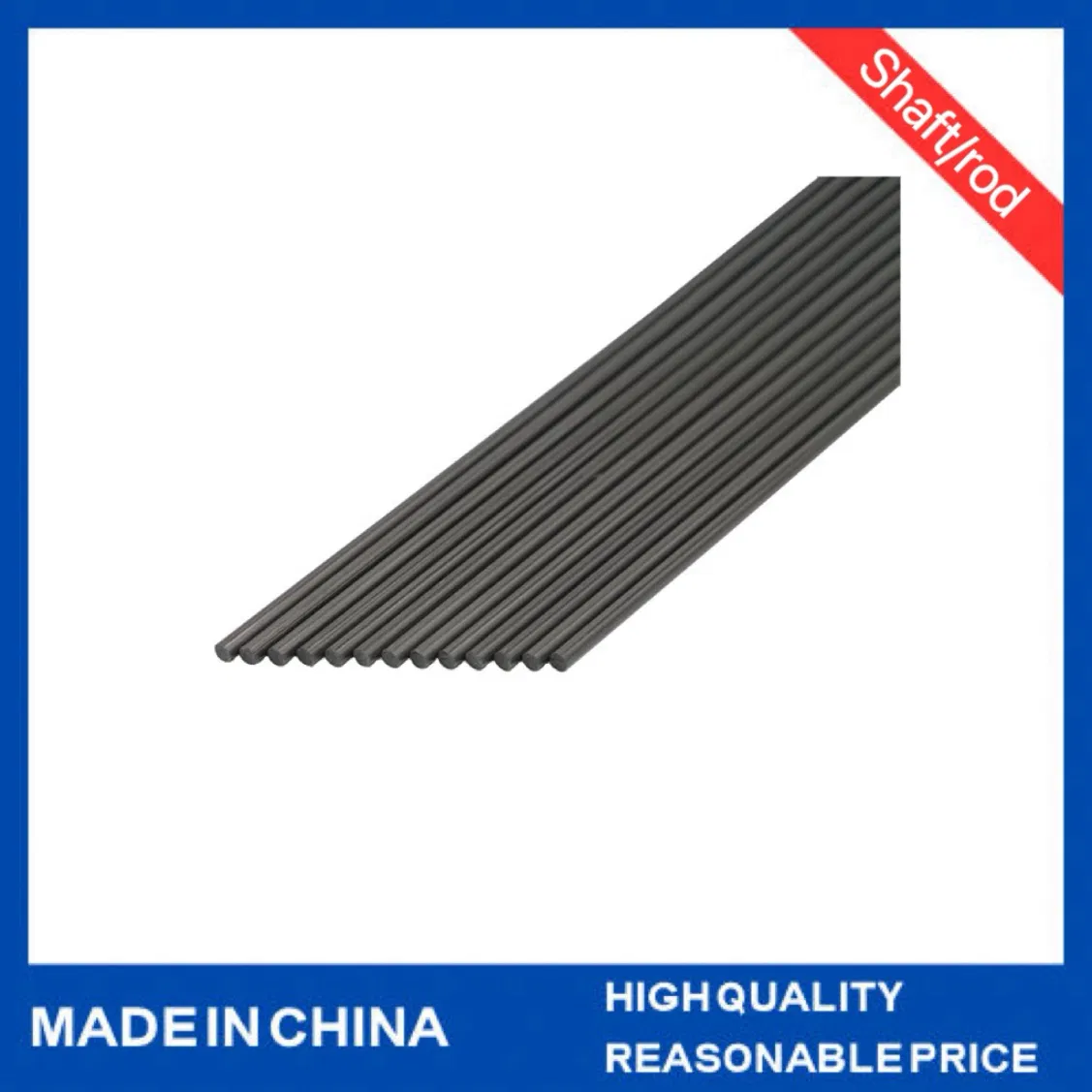

Shafts are used in the transmission section of printed circuit board equipment and are an integral part of the transmission process. These components are critical for ensuring smooth operation within high-precision environments.

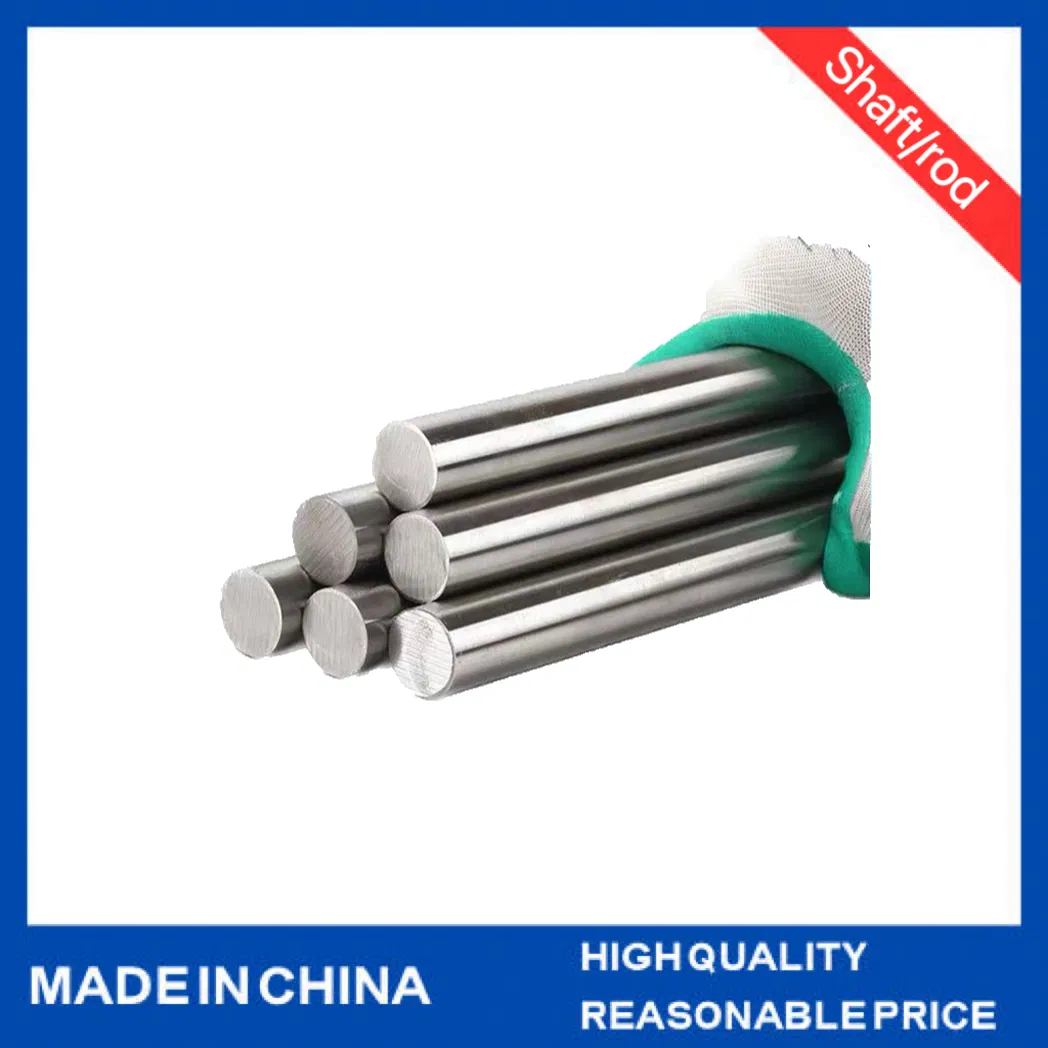

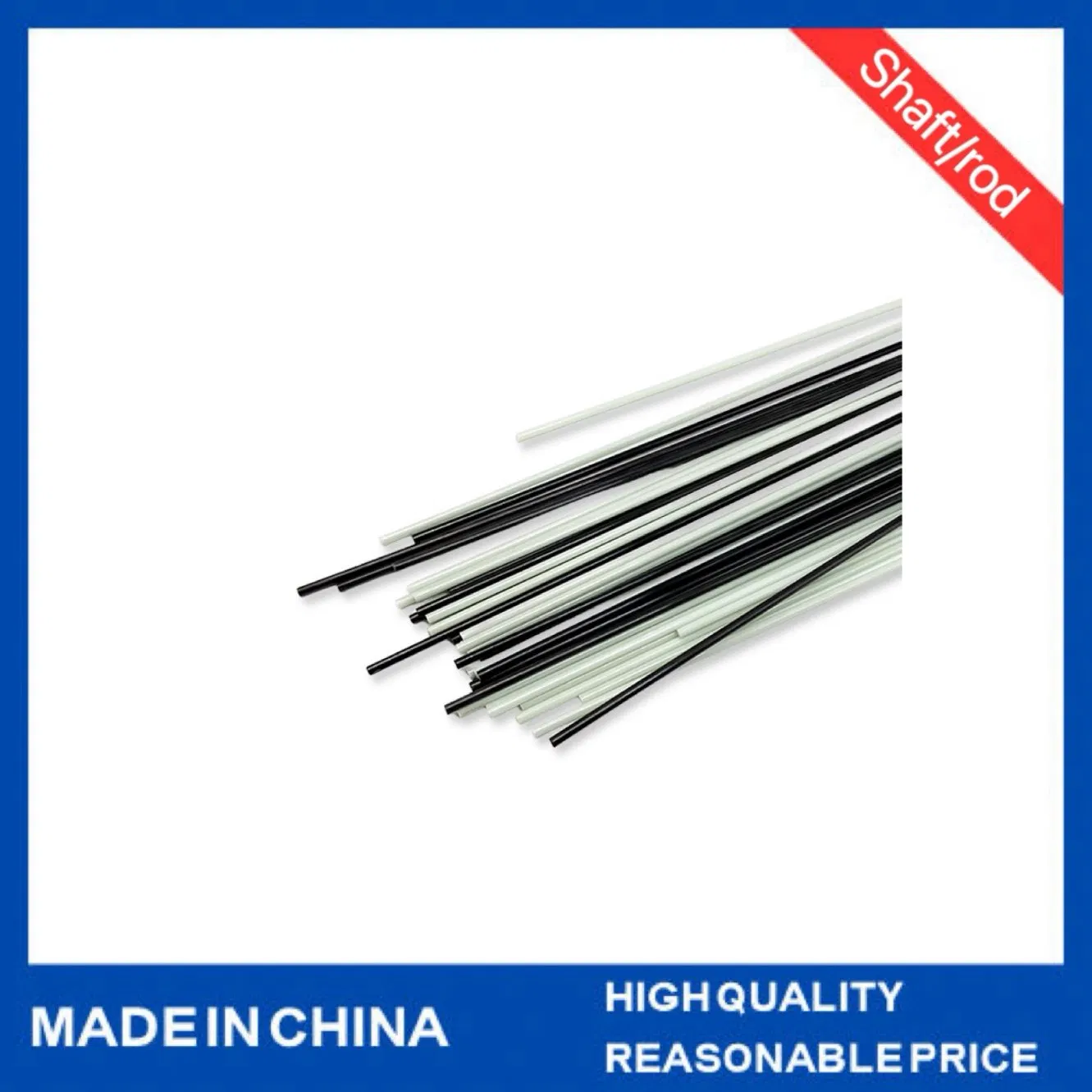

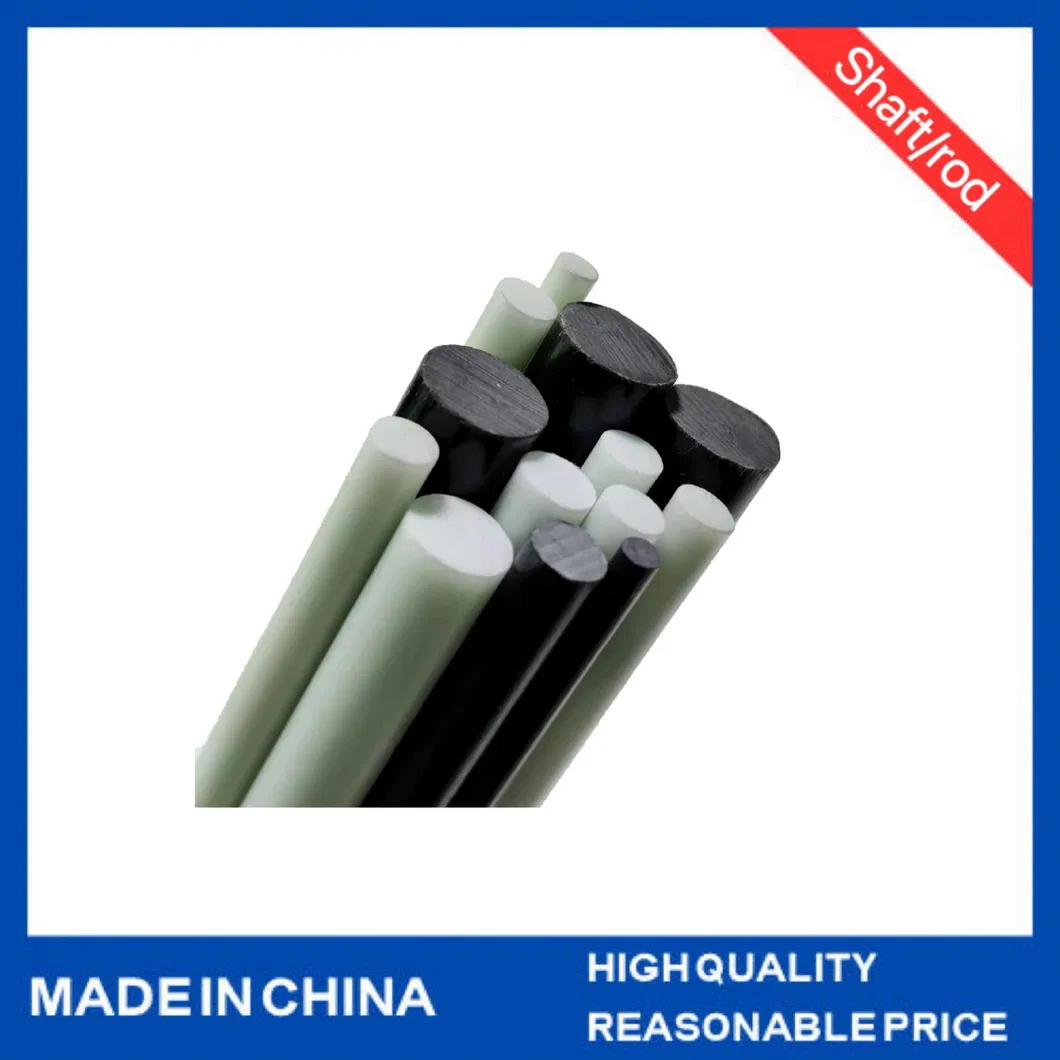

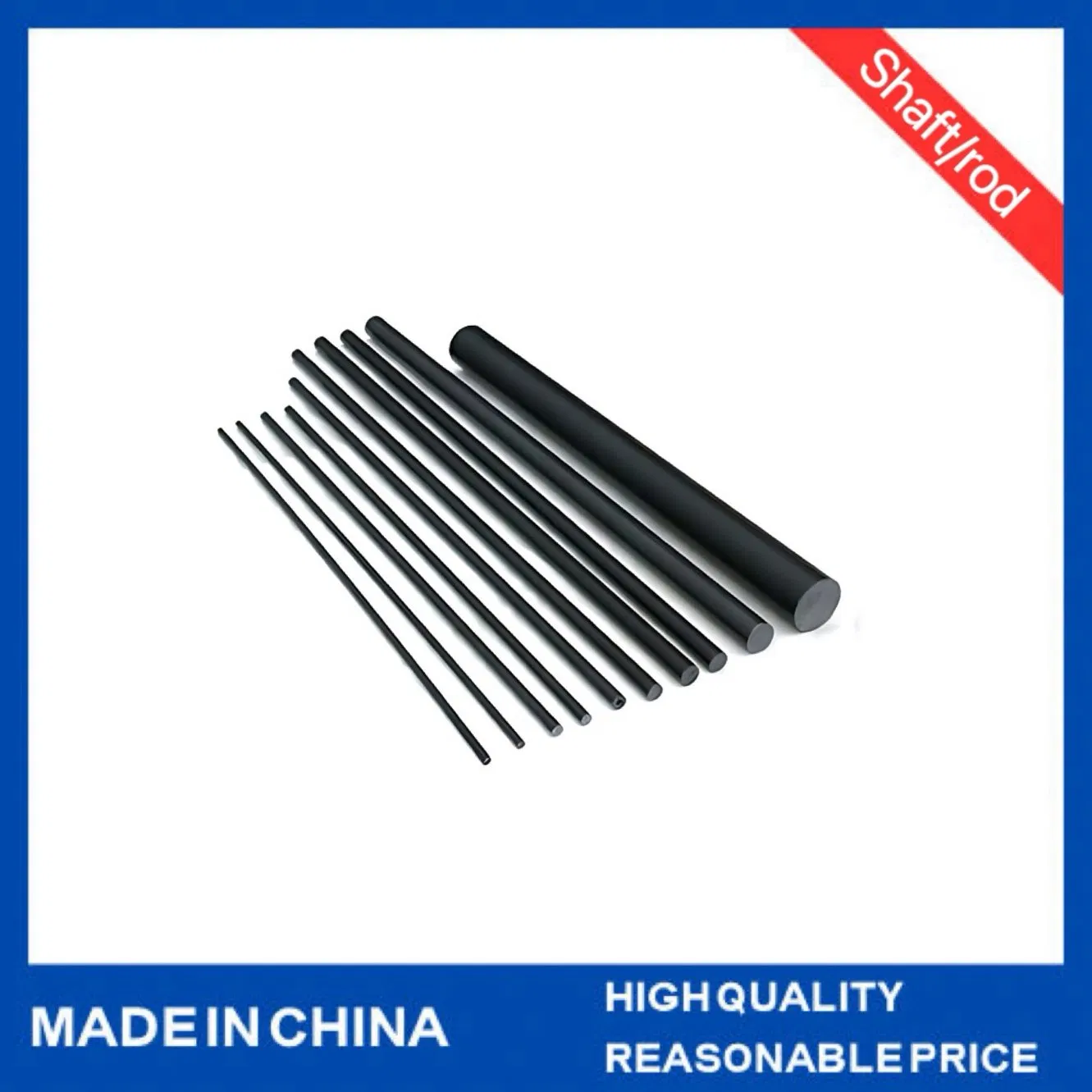

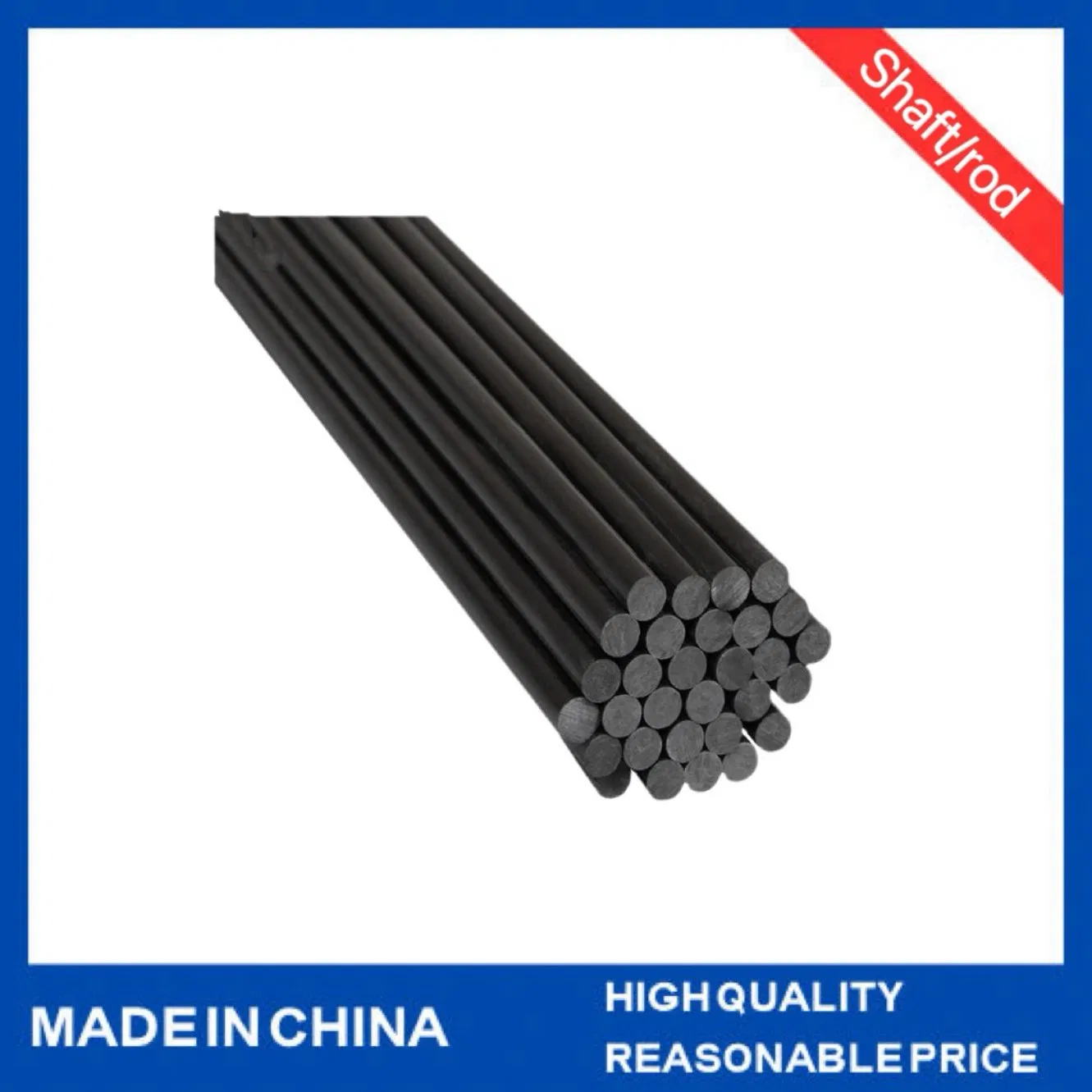

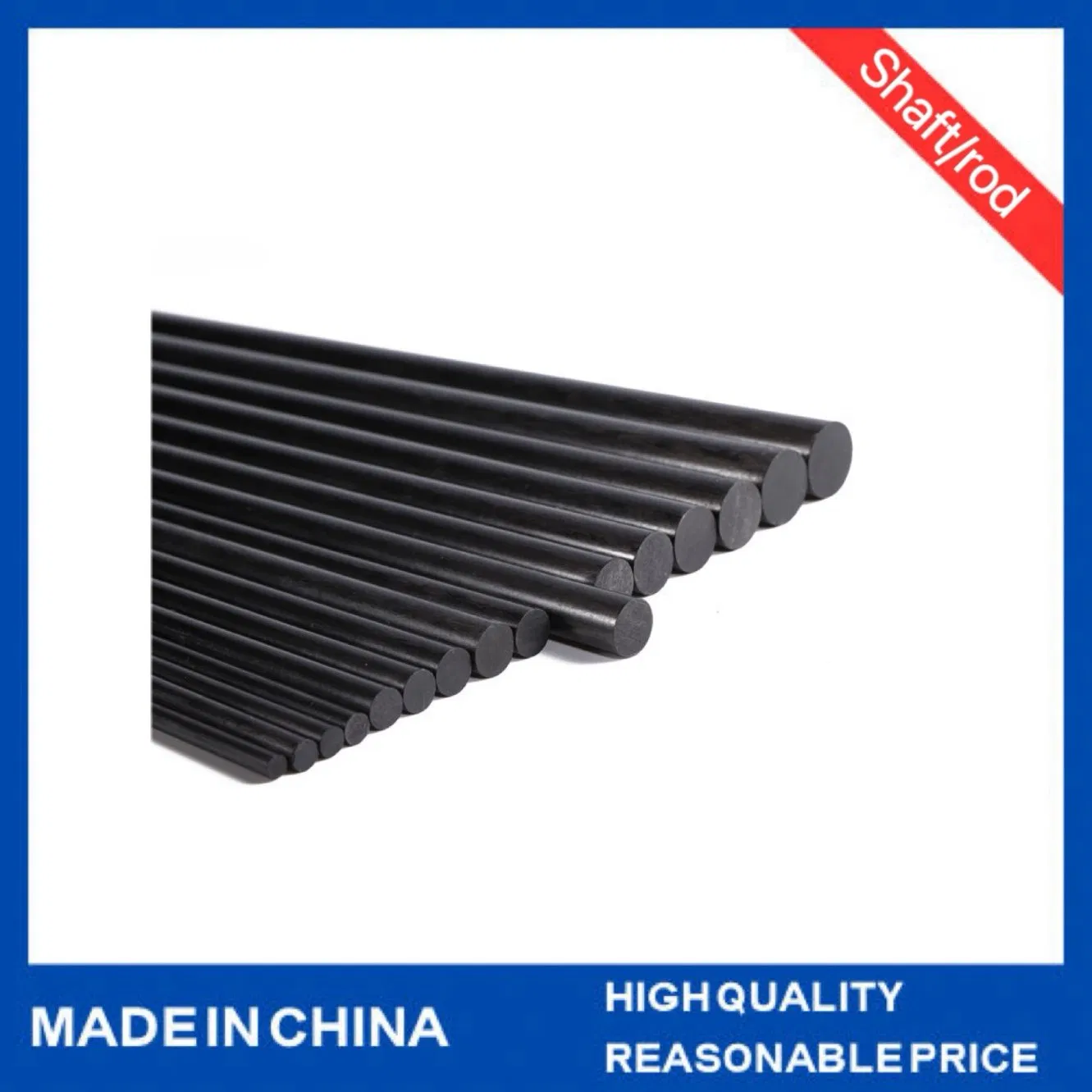

The shafts are manufactured from various high-grade materials including carbon, glass fiber, stainless steel, and titanium, selected specifically based on the operating environment. We provide both general and high-quality shafts with industry-leading center-of-circle and outside diameter tolerances. Our engineering team can provide customized designs and processing to meet specific technical requirements.
| No. | OD | OD Tolerance | Straightness Accuracy | Matching Bearing |
|---|---|---|---|---|
| 1 | Φ8 | -0.02 | 0.05-0.1mm/mm | - |
| 2 | Φ9.5 | -0.025 | 0.05-0.1mm/mm | - |
| 3 | Φ10 | -0.03 | 0.05-0.1mm/mm | 6000ZZ & 6800ZZ |
| 4 | Φ12 | -0.021 | 0.05-0.1mm/mm | 6001ZZ |
| 5 | Φ15 | -0.021 | 0.05-0.1mm/mm | 6002ZZ |
| 6 | Φ17 | -0.021 | 0.05-0.1mm/mm | 6903ZZ |
| Item | Description |
|---|---|
| Source of Materials | Direct customization from large steel mills |
| SUS304 Shaft | High hardness; scratch-resistant; low vibration; ideal for dry production environments. |
| SUS316 Shaft | Excellent acid, alkali, and corrosion resistance; suitable for wet processes. |
| Ti Shaft | Extreme high hardness and strength; superior chemical resistance. |
| Accuracy | Straightness 0.05-0.1mm/100mm; Surface roughness below 0.8S. |
| Quality Control | 100% full inspection performed before shipment. |
