Product Overview:

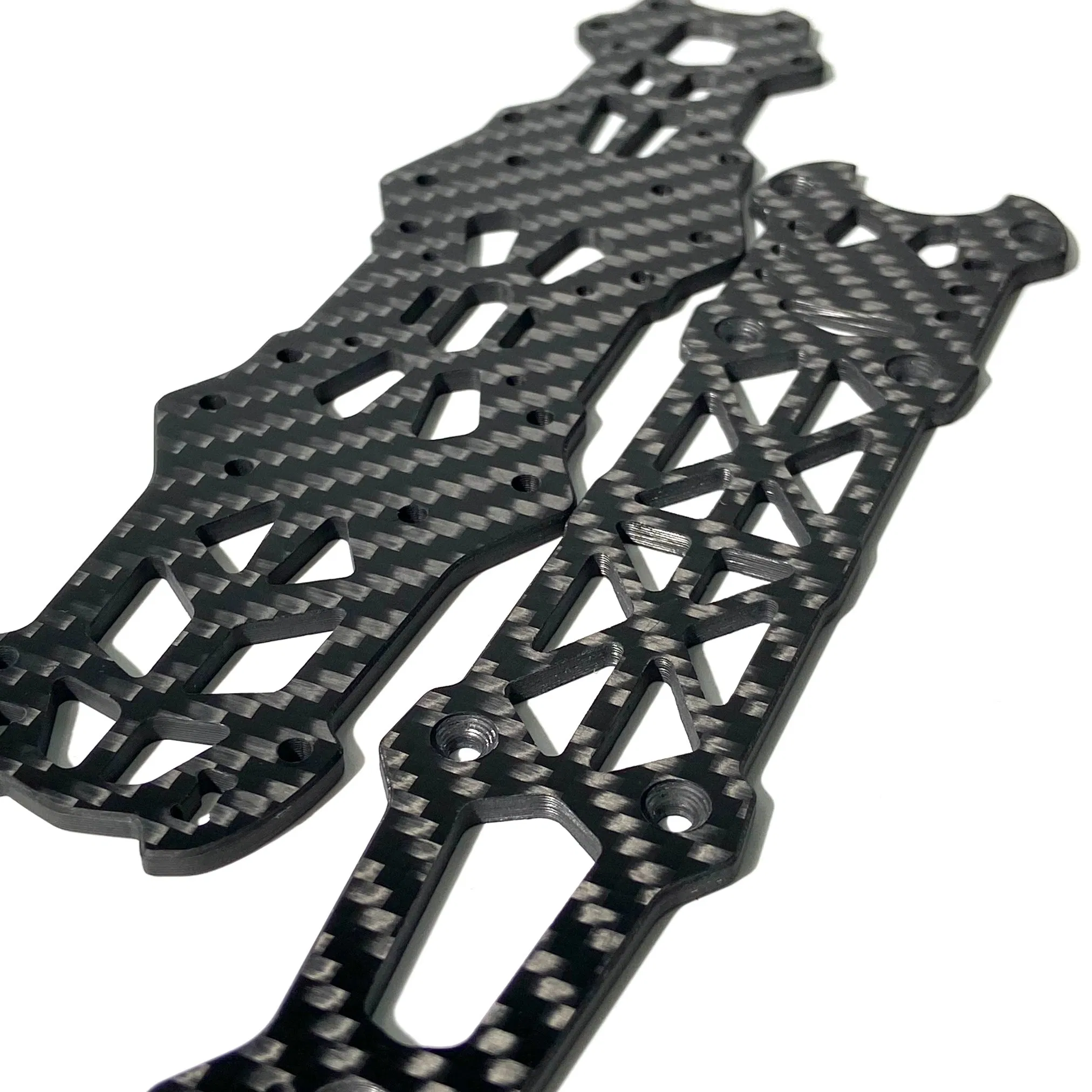

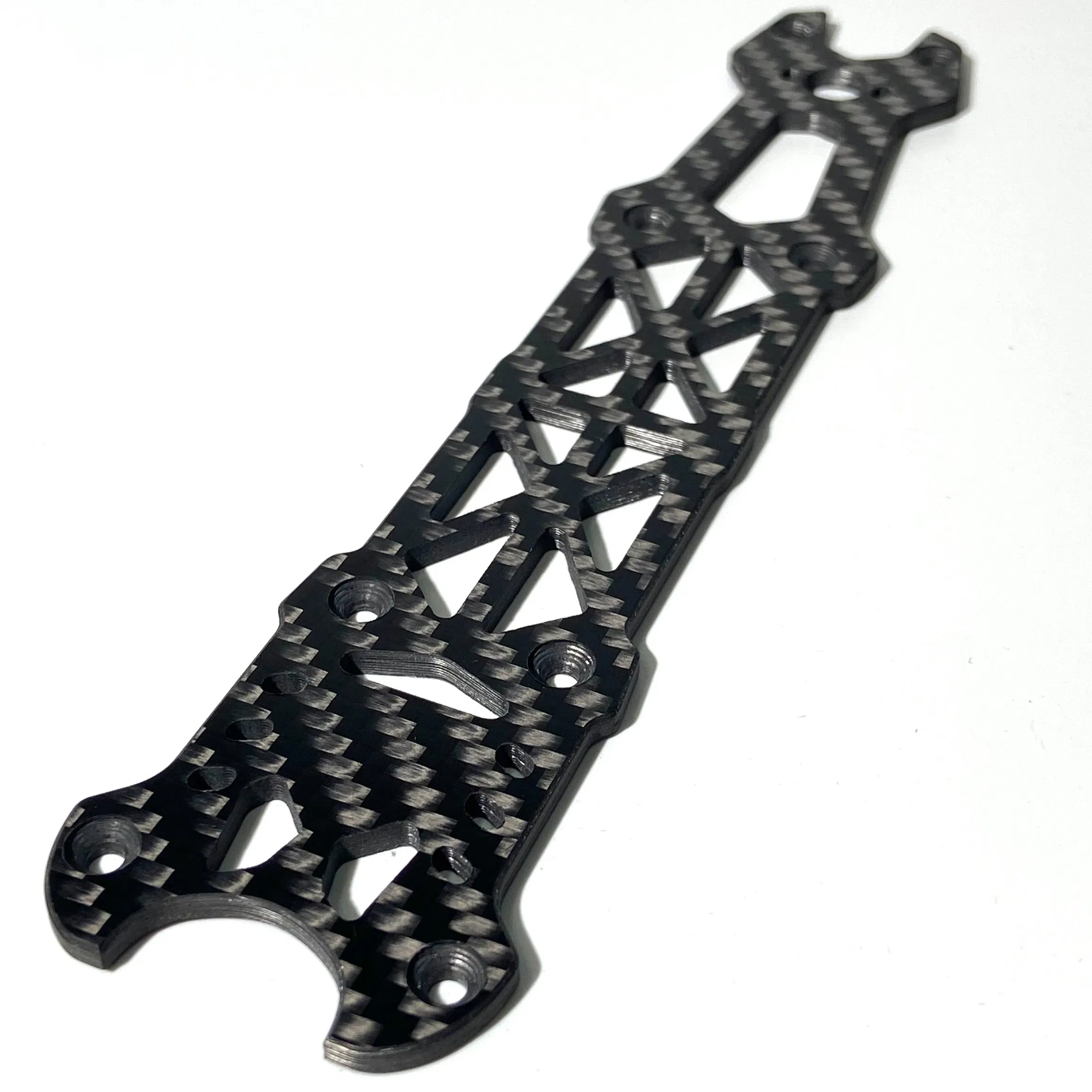

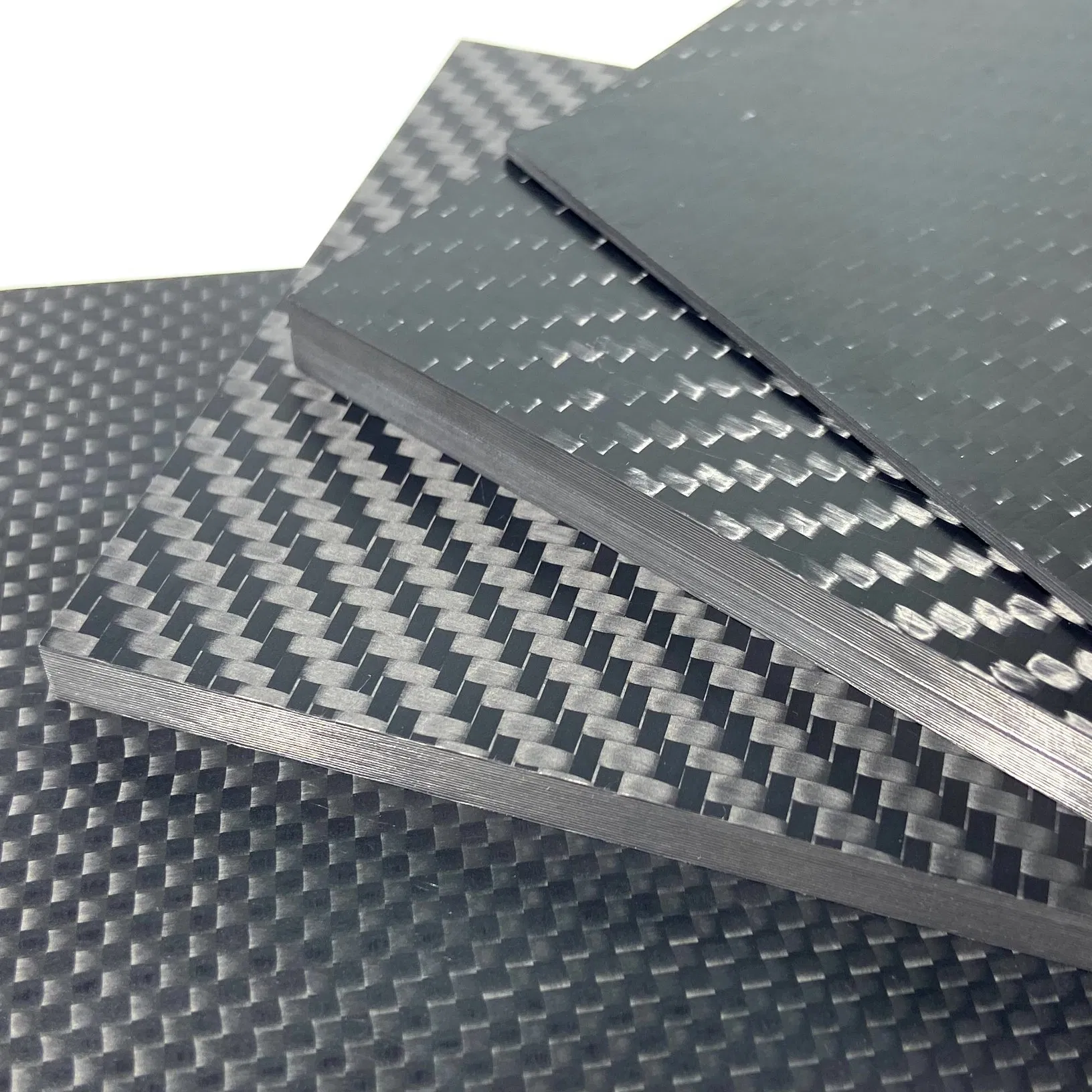

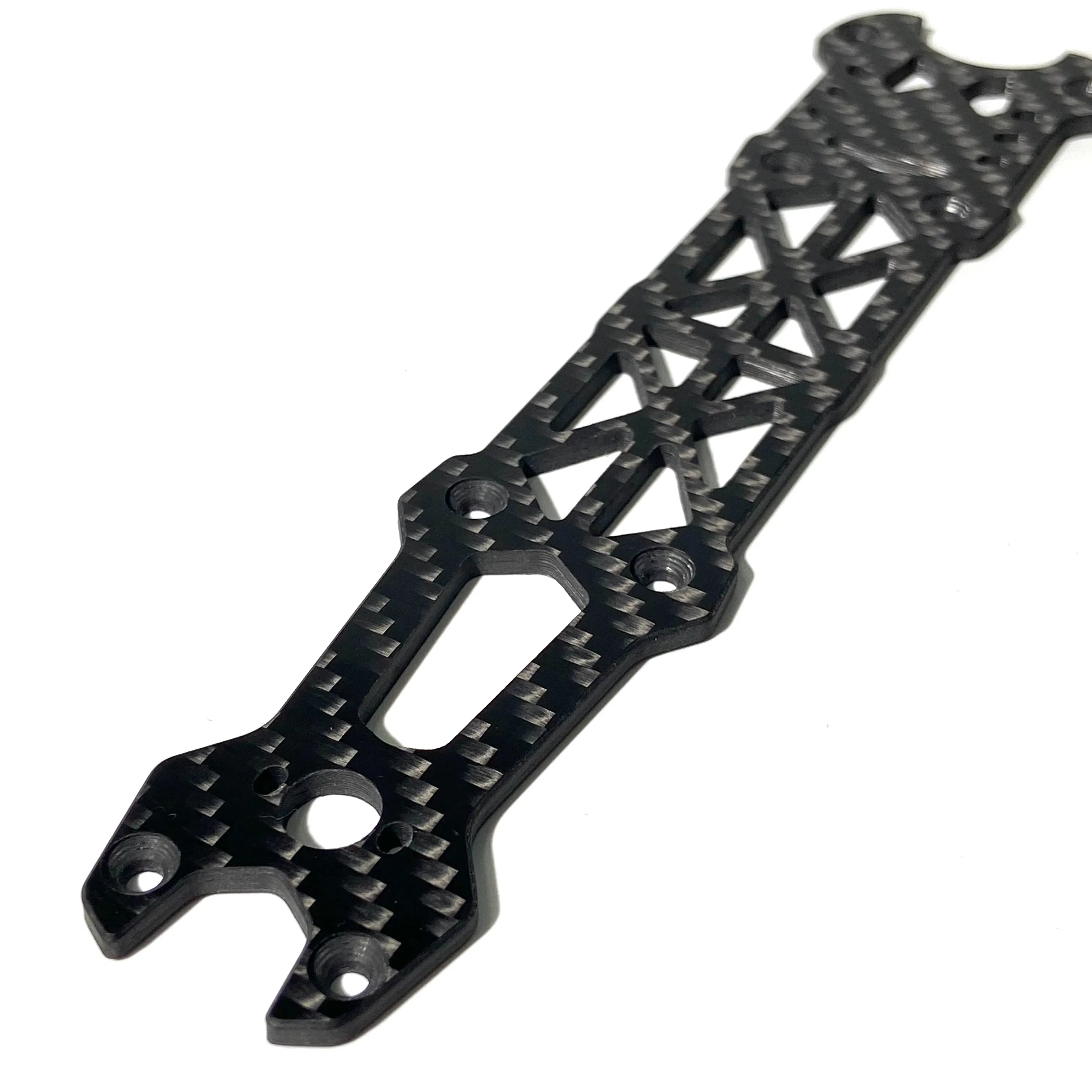

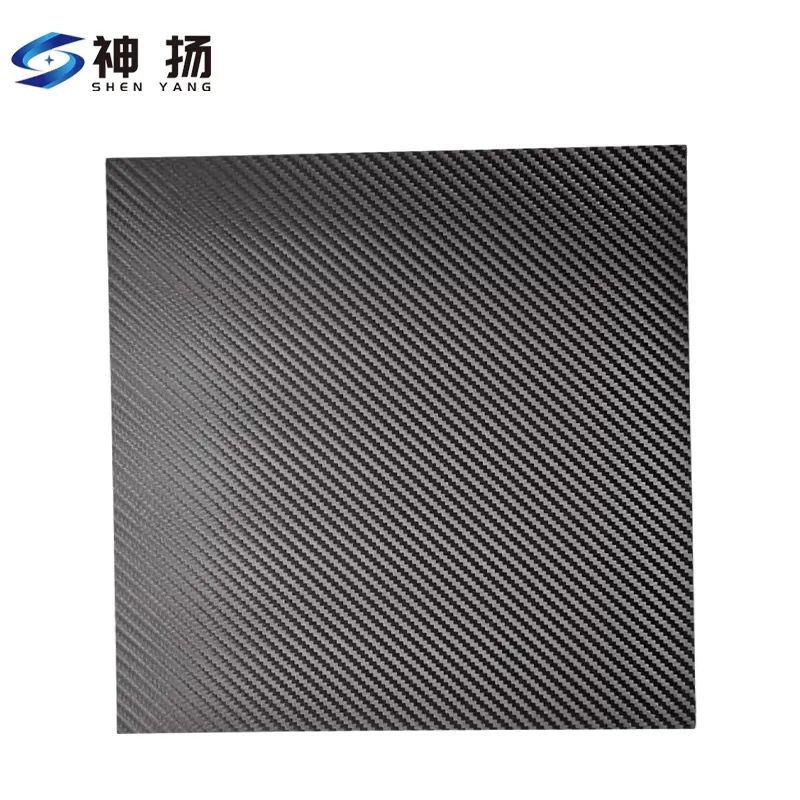

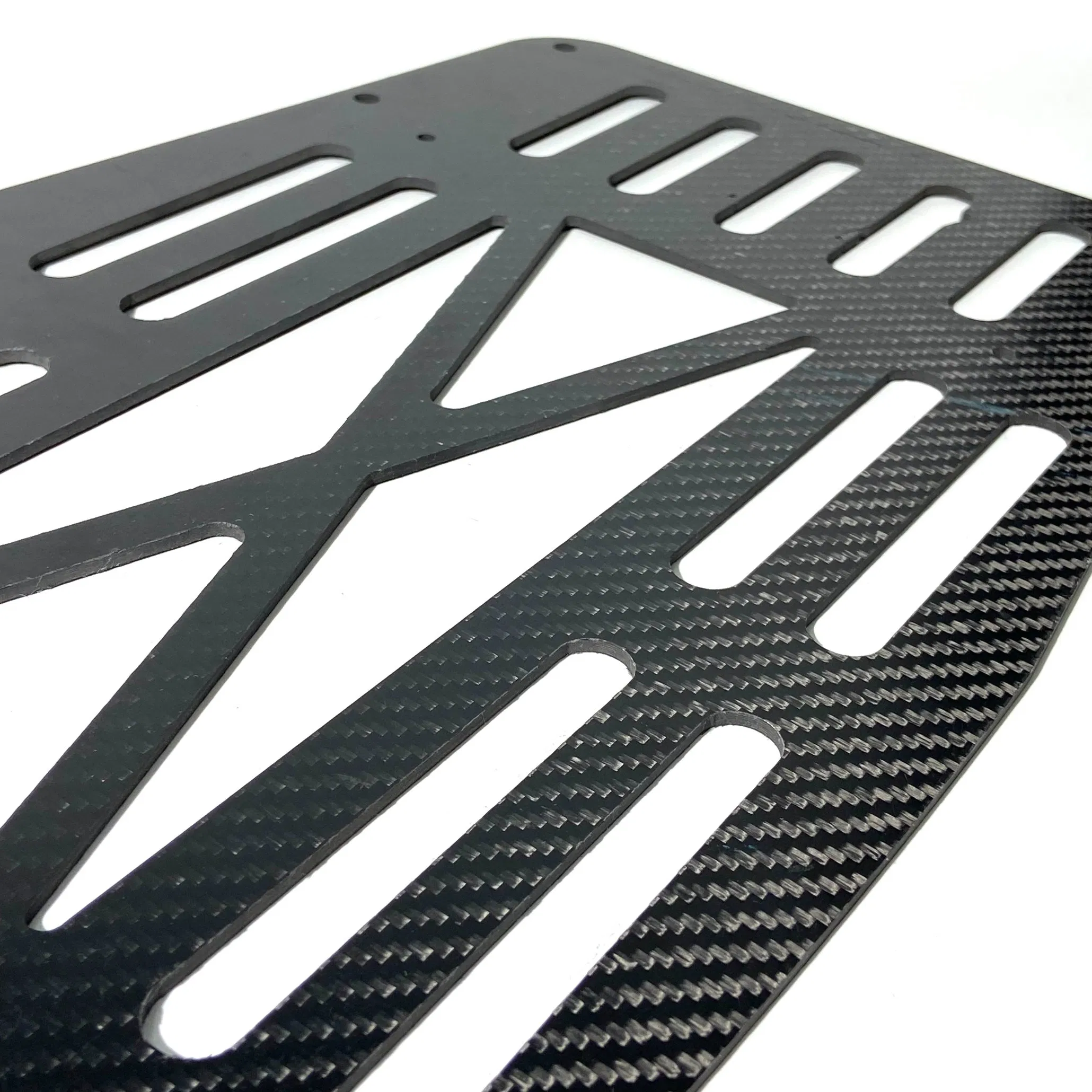

Our 1–5mm Carbon Fiber Plates are engineered using high-performance dry prepreg carbon fiber, consolidated under controlled temperature and pressure conditions. Designed with demanding industrial applications in mind, these lightweight plates (1.78 g/cm3) offer exceptional mechanical strength—up to 15 times that of steel in specific strength.
Their superior stiffness and dimensional stability make them ideal for use in sectors such as aerospace, robotics, metrology, and automated machinery. We offer full-process technical assistance—from early-stage design evaluations to volume manufacturing—to ensure every product meets rigorous aerospace-level standards.
| Parameter | Value | Notes |
|---|---|---|
| Fiber Volume Content | 62–65% | >=15% higher than wet lay-up methods |
| Glass Transition Temperature | 180–210 C | Varies depending on resin system |
| Interlaminar Shear Strength | 85–95 MPa | Tested per ASTM D2344 |
| Coefficient of Thermal Expansion | 0.1–0.5 ppm/C | Ten times better than metals |
| Porosity | <0.5% | Guaranteed by vacuum-high-pressure process |
| Surface Roughness (Ra) | 0.4–0.8 um | Optional mirror-finish or matte surface |
