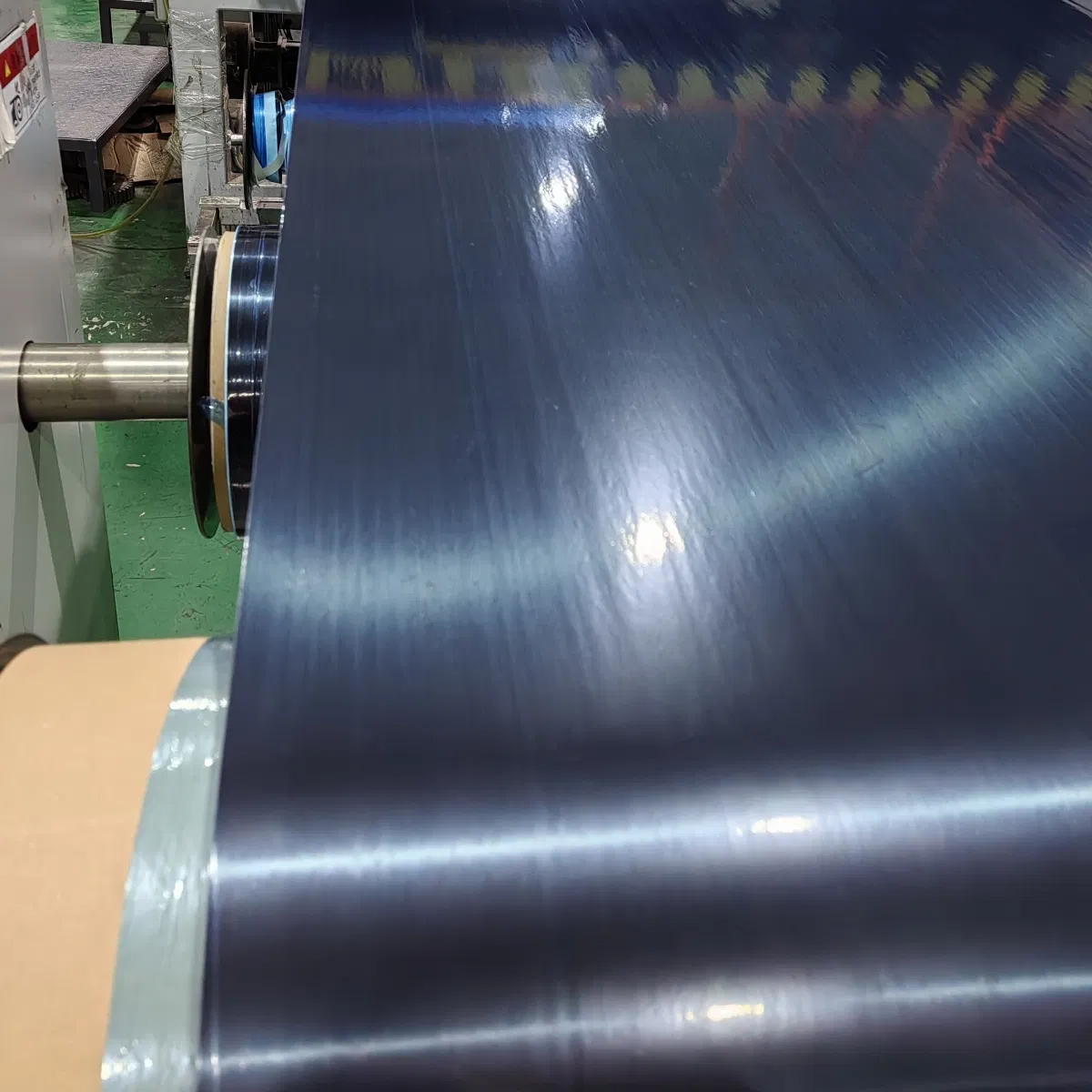

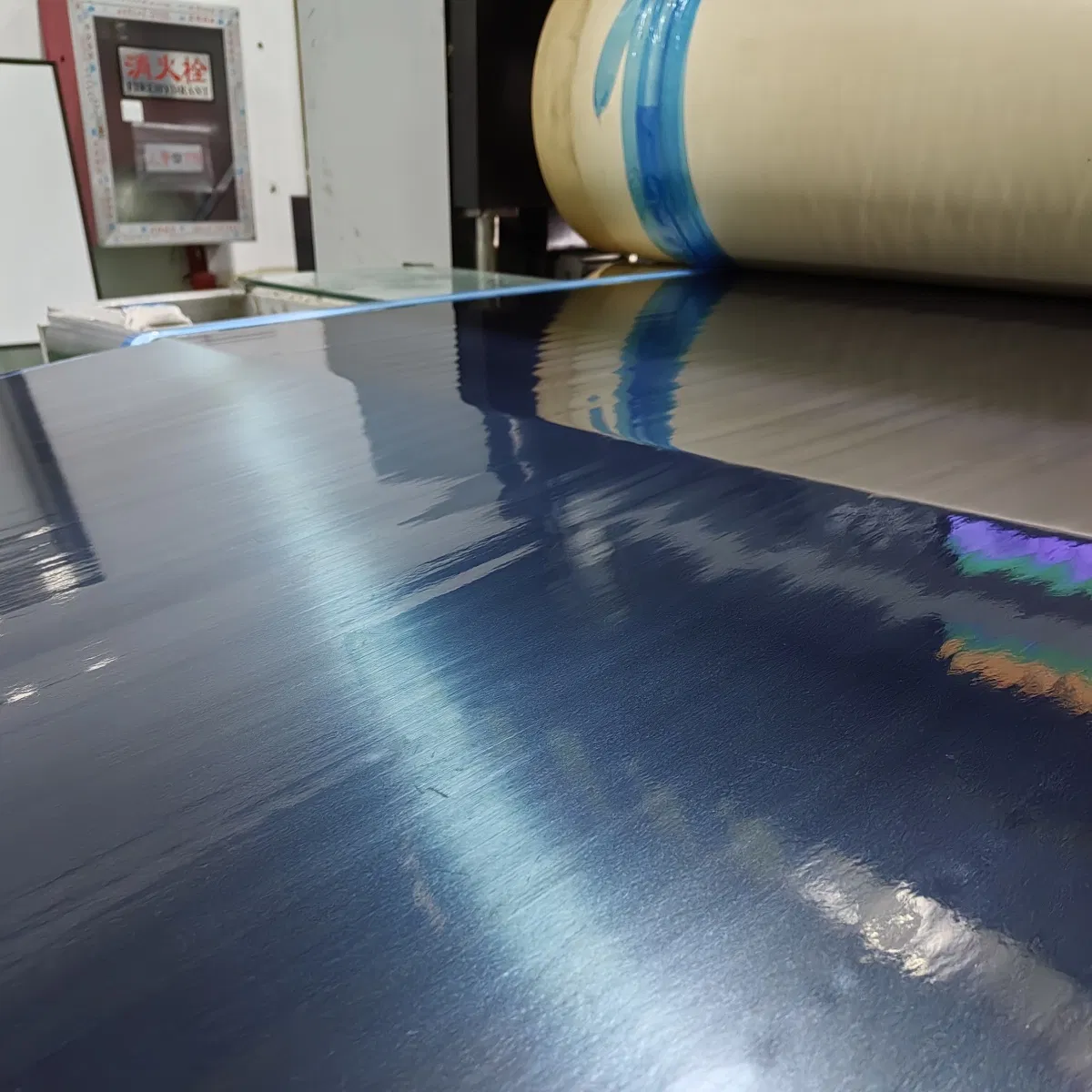

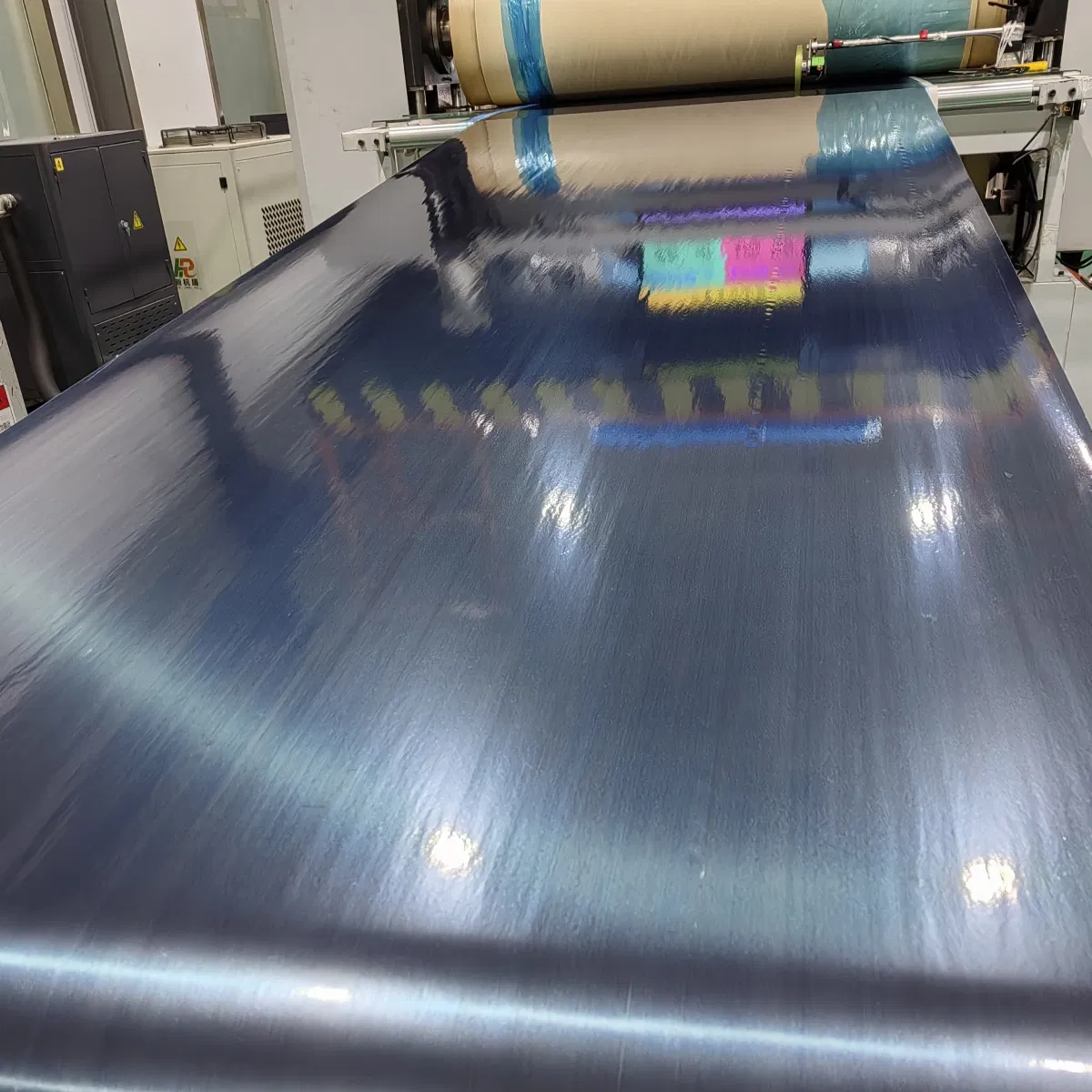

RAXIS Fiber
1 / 5
| Model NO. | 30010 | Performance | High-Strength Type |
| State | Prepreg Fabric Fabric | Mechanical Property | High-Performance Type |
| Carbon Type | Unidirectional | Filament Count | 12K |
| Width | 100cm | Roll Length | 100m or Customized |
| Material | Carbon Fabric + Resin | Specification | 100g/sqm |

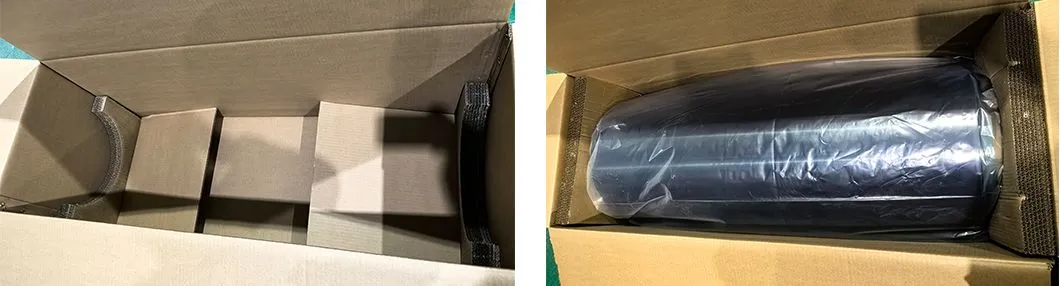

| Package Size | 117.00cm * 44.00cm * 46.00cm | Gross Weight | 20.000kg |
| Carbon Fiber Properties | |||
| Carbon Yarn | 12K | Tensile Strength | ≥ 4000 (MPa) |
| Tensile Modulus | 220~260 (GPa) | Elongation | ≥ 1.7 (%) |
| Resin Properties | |||
| Resin Used | Epoxy Resin | Resin Content | 35% |
| Bending Strength | 100~120 (MPa) | TG | 125~135 (ºC) |
Storage Temperature: Typically stored at -18°C (0°F) or lower in a freezer to prevent premature curing.
| Industry | Application Parts |
| Aerospace & Aviation | Aircraft wings, fuselages, helicopter blades, satellite components |
| Automotive | Sports car chassis, body panels, electric vehicle components |
| Sports and Recreation | Bicycles, tennis rackets, golf clubs, hockey sticks, Kayaks |
| Civil Engineering | Bridge reinforcement, building retrofitting, seismic retrofitting |
| Renewable Energy | Wind turbine blades, hydrogen storage tanks |

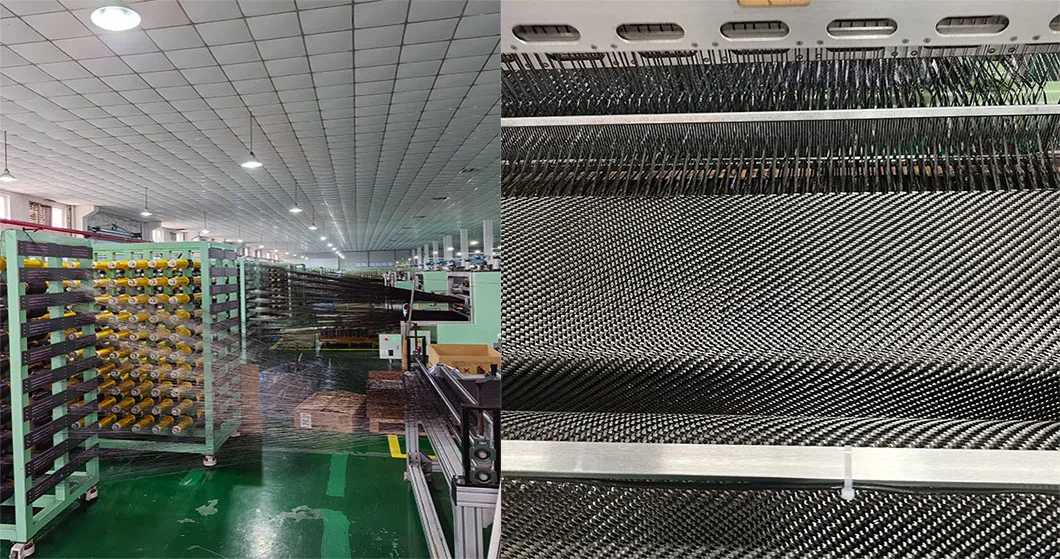

Specializing in the research, development and production of high-quality woven textiles. We offer various weave styles including unidirectional, plain, twill, satin, and jacquard, using high-performance fibers such as carbon, glass, and aramid fibers.

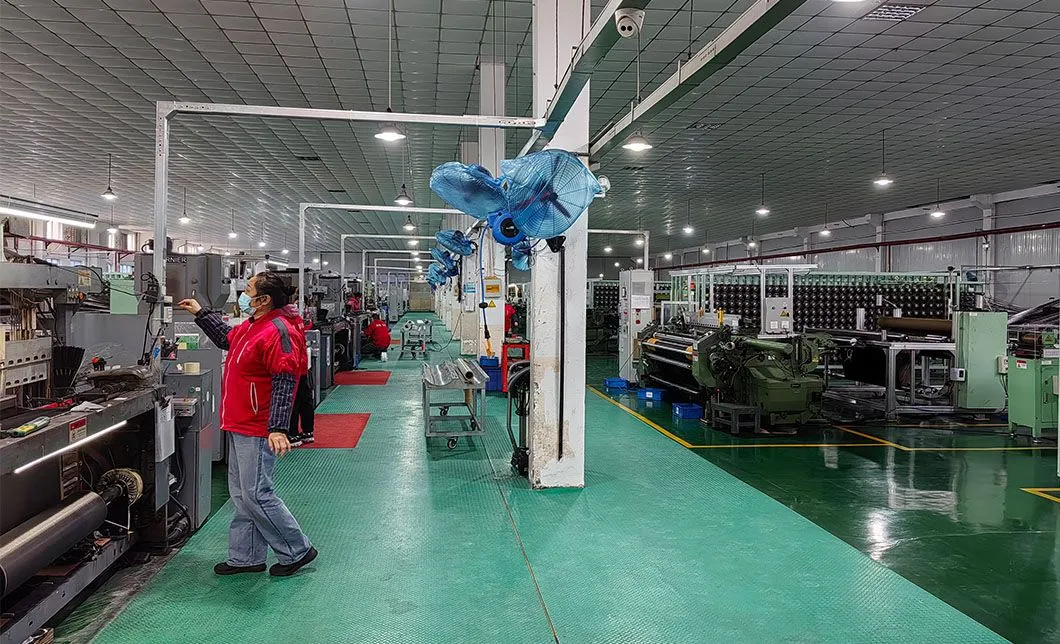

With state-of-the-art facilities and a commitment to excellence, we have obtained the prestigious IATF16949 certificate. Our products are widely applied in aerospace, marine, renewable energy, and automotive industries.

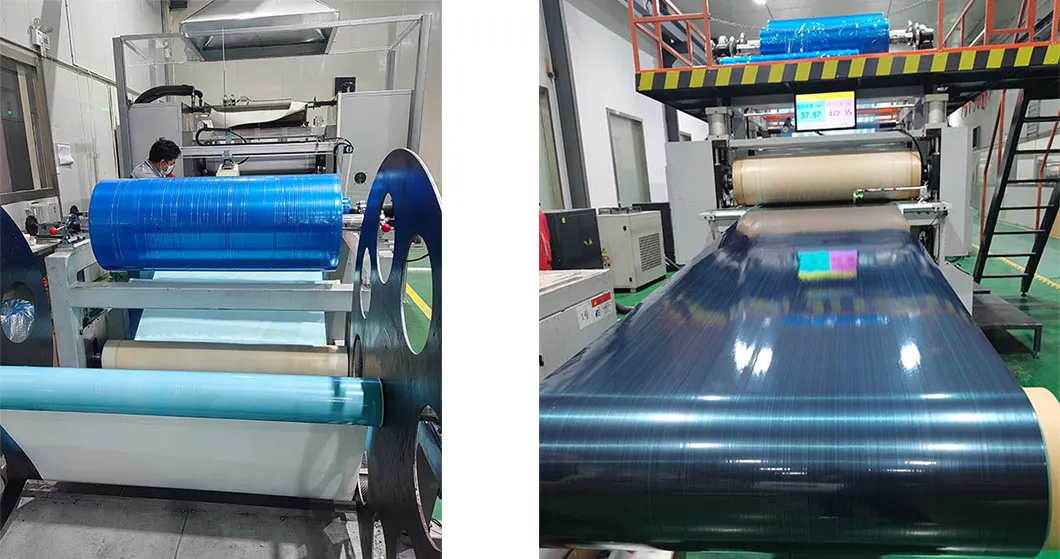

Prepreg Workshop: Equipped with 2 professional production lines to ensure quality and capacity.

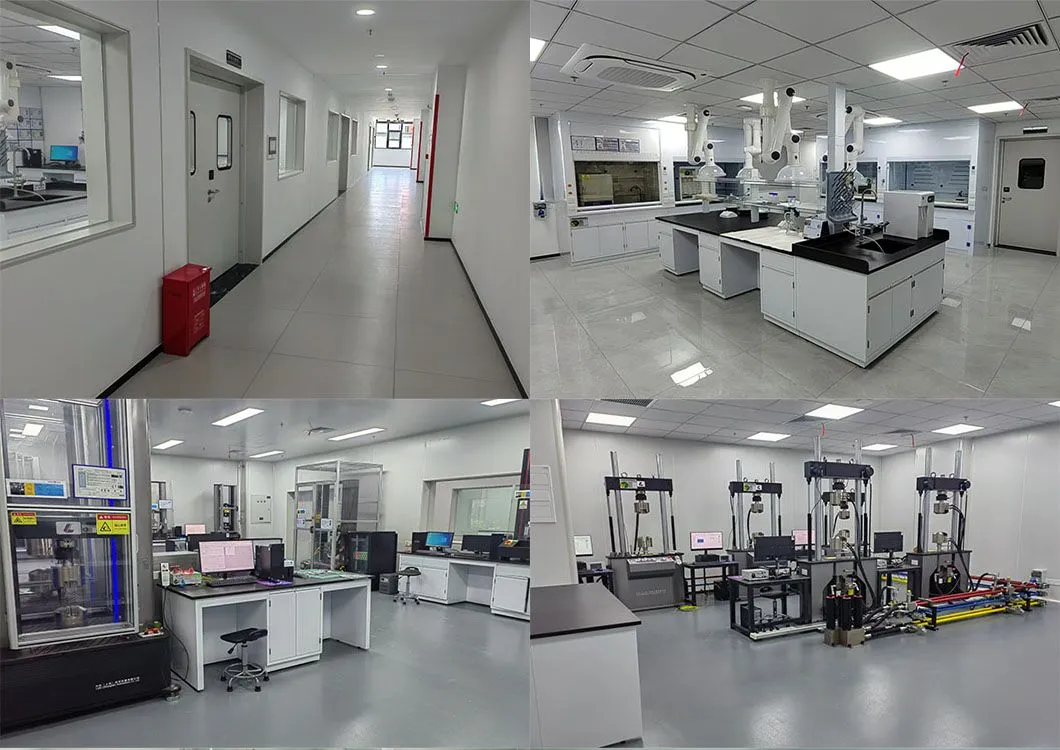

Our testing center covers about 3,100 square meters and has passed CNAS accreditation. We control all processes from raw materials to finished products, including tensile, compression, bending, and fatigue tests.
Certificates: IATF16949; Total of 19 patents including design, invention, and utility model patents.
