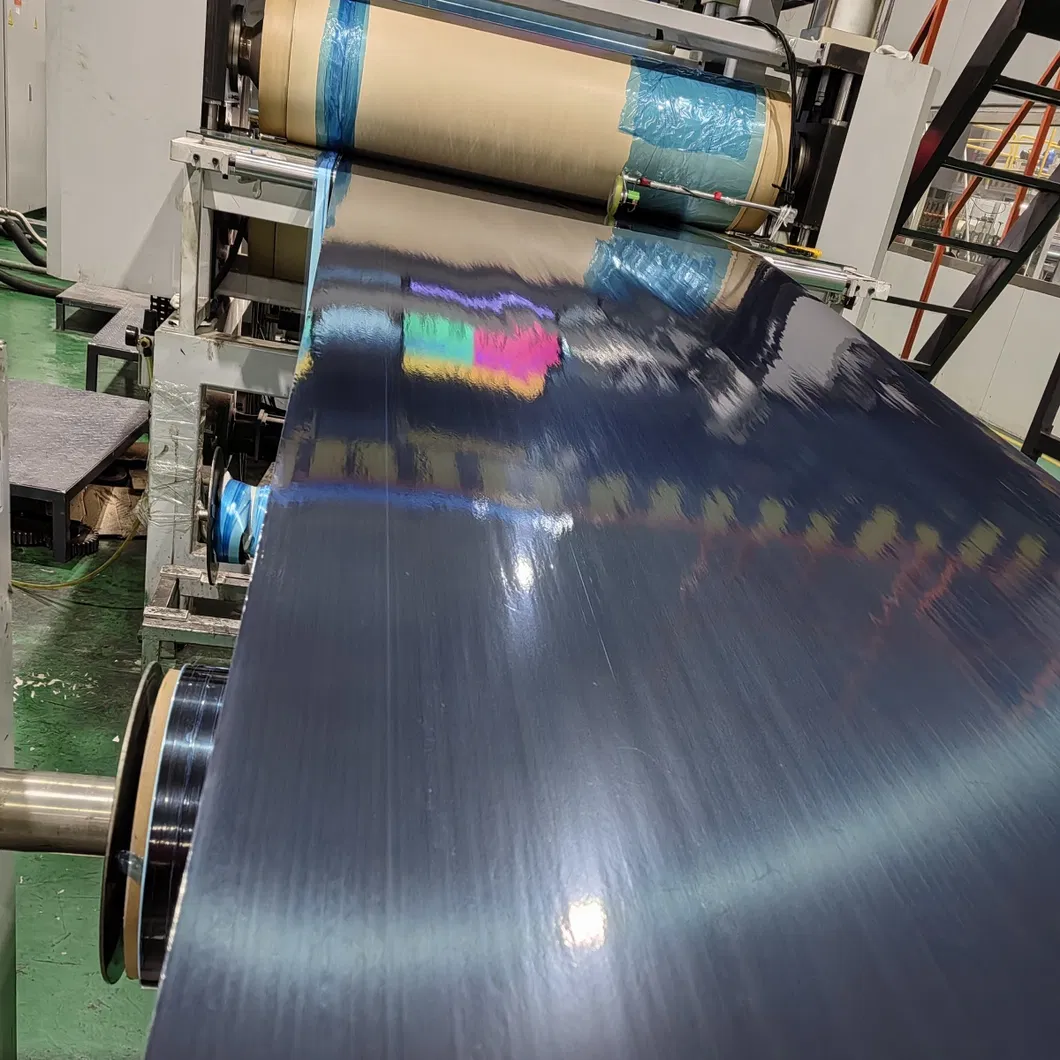

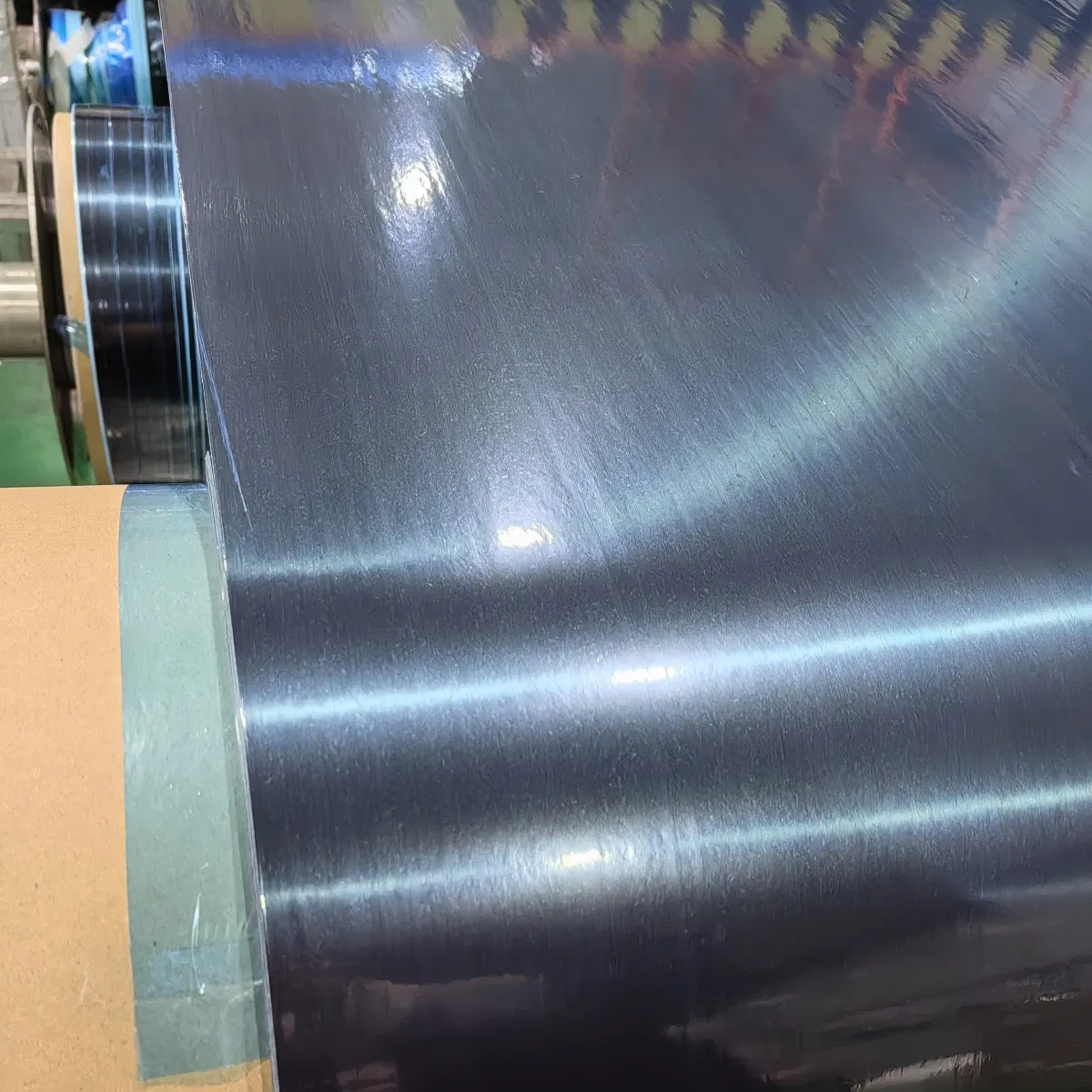

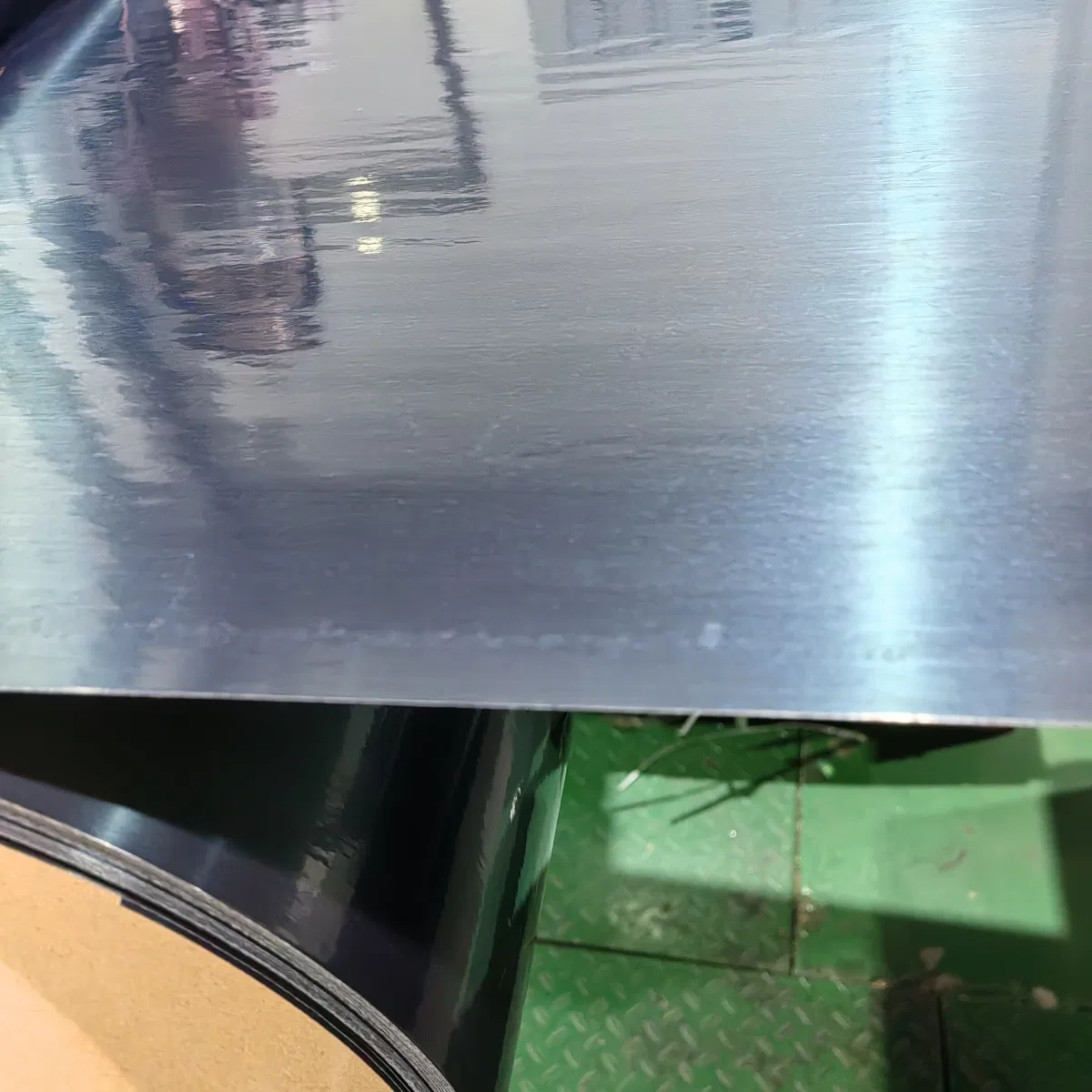

| Item No. | 30016 | Carbon Yarn | 12K |
|---|---|---|---|
| Fabric Area Weight | 120g/sqm | Material | Carbon Fabric + Resin |
| Roll Width | 100CM | Roll Length | 100M or Customized |

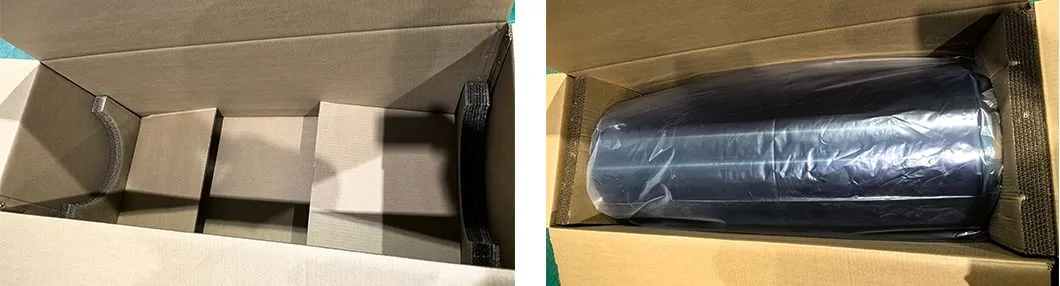

| HS Code | 6815131090 | Package | 1 Roll/Carton |
Carbon Fiber Properties:
| Tensile Strength | ≥ 4000 (MPa) | Tensile Modulus | 220~260 (GPa) |
|---|---|---|---|
| Elongation | ≥ 1.7 (%) | Resin Type | Epoxy Resin |
| Resin Content | 35% | TG (Glass Transition) | 125~135 (ºC) |
| Bending Strength | 100~120 (MPa) | Resin Elongation | 3~4 (%) |
Storage Note: Typically stored at -18°C (0°F) or lower in a freezer to prevent premature curing and slow the resin's chemical reaction.
| Industry | Application Parts |
|---|---|
| Aerospace & Aviation | Aircraft wings, fuselages, helicopter blades, satellite components |
| Automotive | Sports car chassis, body panels, electric vehicle components |
| Sports and Recreation | Bicycles, tennis rackets, golf clubs, hockey sticks, kayaks |
| Civil Engineering | Bridge reinforcement, building retrofitting, seismic retrofitting |
| Renewable Energy | Wind turbine blades, hydrogen storage tanks |
| Medical | Prosthetics, orthotic devices, surgical tools, imaging equipment |
| Electronics & Robotics | Drone frames, laptop casings, robotic arms |

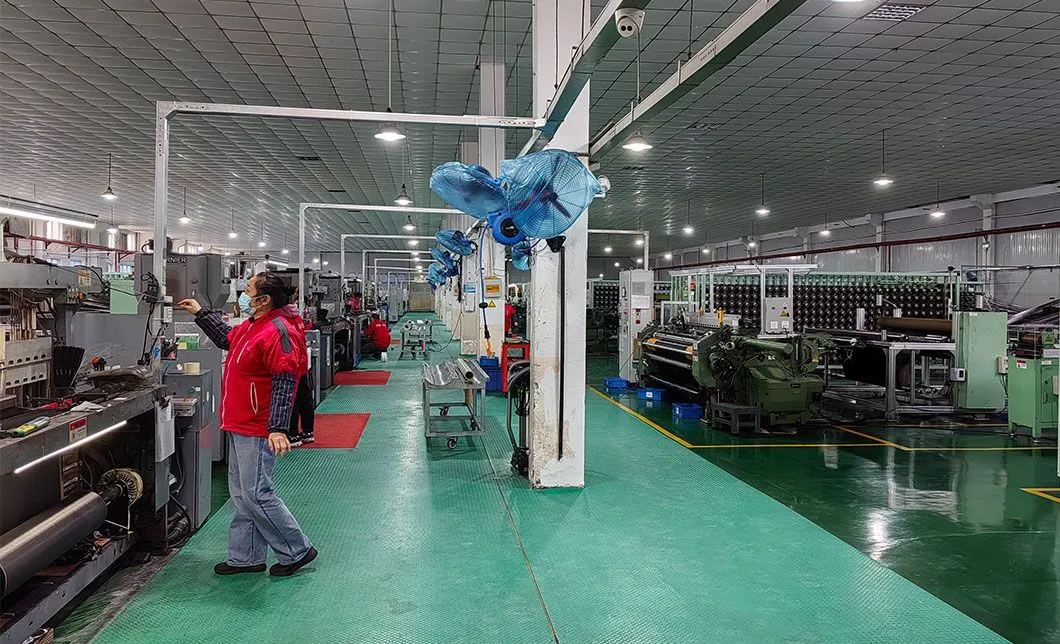

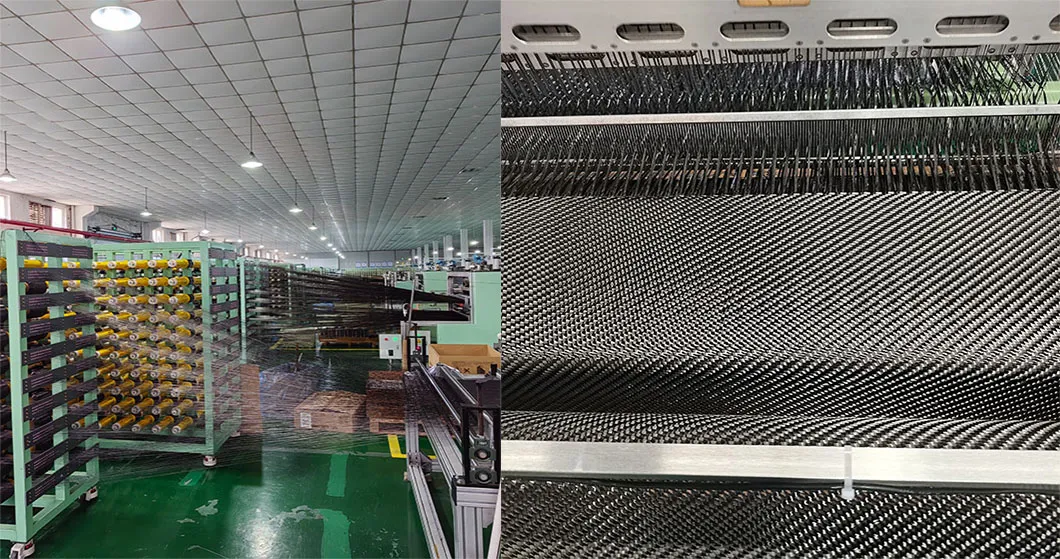

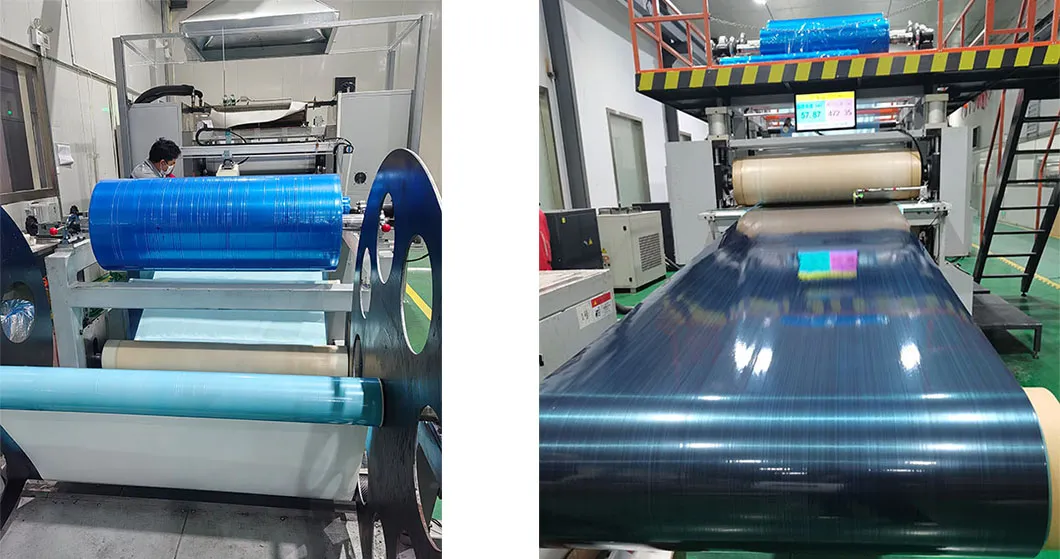

We specialize in the research, development, and production of high-quality woven textiles. Our facilities include state-of-the-art production lines for carbon fibers, glass fibers, and aramid fibers in various weave styles.

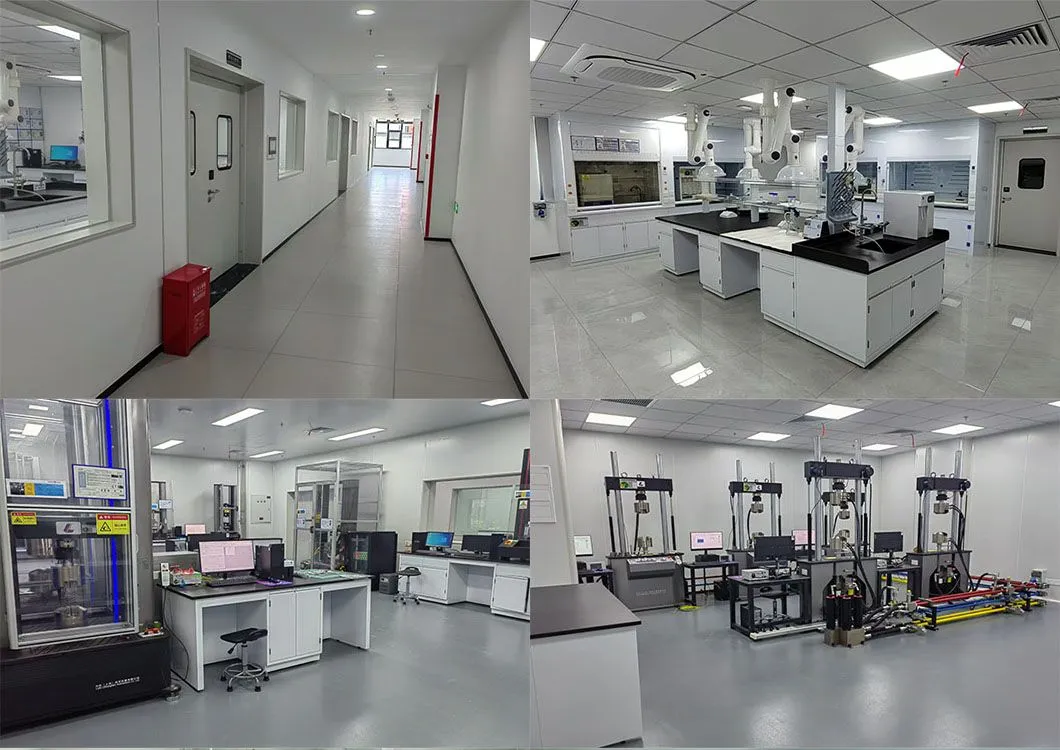

Test Laboratory: Our testing center covers 3,100 square meters and has passed CNAS laboratory accreditation. We monitor mechanical properties, weather resistance, and chemical analysis, including tensile, compression, bending, and fatigue tests.
We hold the IATF16949 certificate and 19 patents, including design, invention, and utility model patents.
