| Model NO. | 30018 | Performance | High-Strength Type |
|---|---|---|---|
| State | Prepreg Fabric Fabric | Mechanical Property | High-Performance Type |
| Carbon Type | Unidirectional | Filament Count | 12K |
| Width | 100cm | Roll Length | 100m or Customized |
| Material | Carbon Fabric+Resin | HS Code | 6815131090 |
| Package Size | 117.00cm * 44.00cm * 46.00cm | Package Gross Weight | 30.000kg |
| Item No. | 30018 | Carbon Yarn | 12K |
|---|---|---|---|
| Fabric area weight | 100g/sqm | Material | Carbon Fabric+Resin |
| Roll Width | 100CM | Outer carton CBM | 0.237CBM/Carton |
| Roll Length | 100M or Customized | Package | 1 Roll/carton |
| Production Capacity | 260K sqm/Month | Leadtime | 7-35 days |
| Carbon Yarn | 12K | Tensile Strength | ≥ 4000 (MPa) |
|---|---|---|---|
| Tensile Modulus | 220~260 (GPa) | Elongation | ≥ 1.7 (%) |
| Resin Used | Epoxy Resin | Resin Content | 35% |
|---|---|---|---|
| Tensile Strength | 60~70 (MPa) | Bending Strength | 100~120 (MPa) |
| Elongation | 3~4 (%) | TG (Glass Transition) | 125~135 (ºC) |

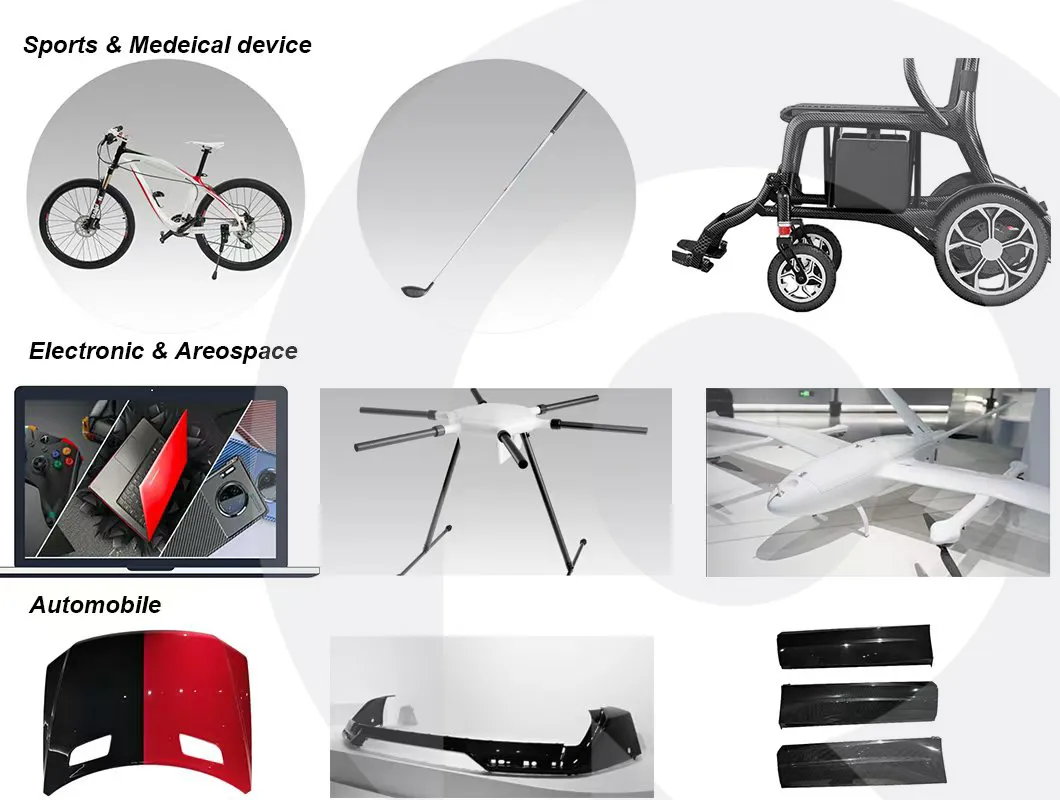

| Industry | Application Parts |
|---|---|
| Aerospace & Aviation | Aircraft wings, fuselages, helicopter blades, satellite components; Reduces weight for fuel efficiency. |
| Automotive | Sports car chassis, body panels, electric vehicle components; Enhances speed and energy efficiency. |
| Sports and Recreation | Bicycles, tennis rackets, golf clubs, hockey sticks, kayaks, and boat hulls. |
| Civil Engineering | Bridge reinforcement, building retrofitting, seismic retrofitting. |
| Renewable Energy | Wind turbine blades, hydrogen storage tanks. |
| Medical | Prosthetics, orthotic devices, surgical tools, imaging equipment. |
| Electronics & Robotics | Drone frames, laptop casings, robotic arms. |

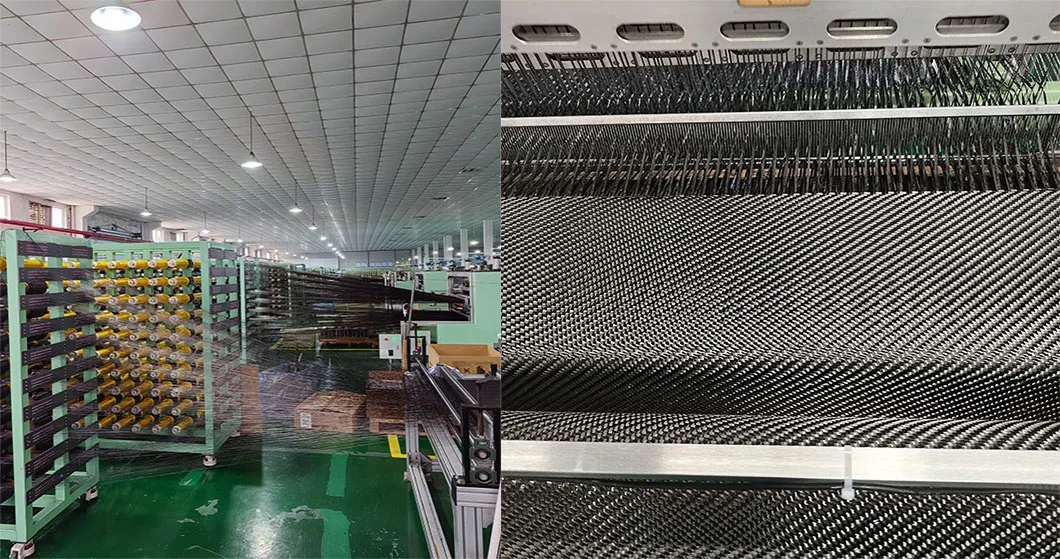

Specializing in the research, development, and production of high-quality woven textiles. Typical weave styles include unidirectional, plain, twill, satin, and jacquard, utilizing high-performance fibers such as carbon, glass, and aramid fibers.

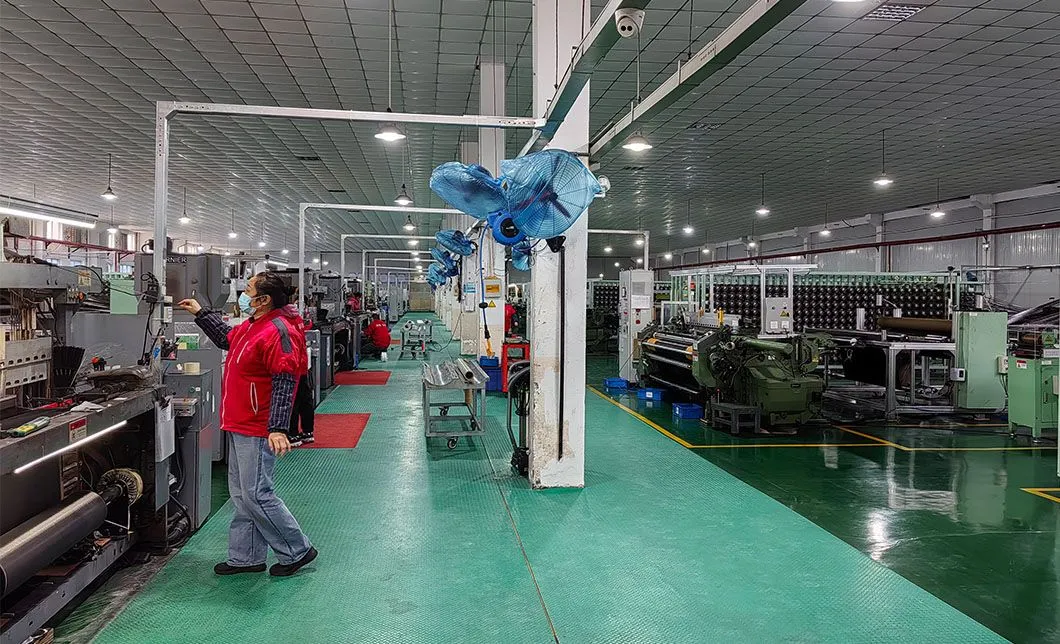

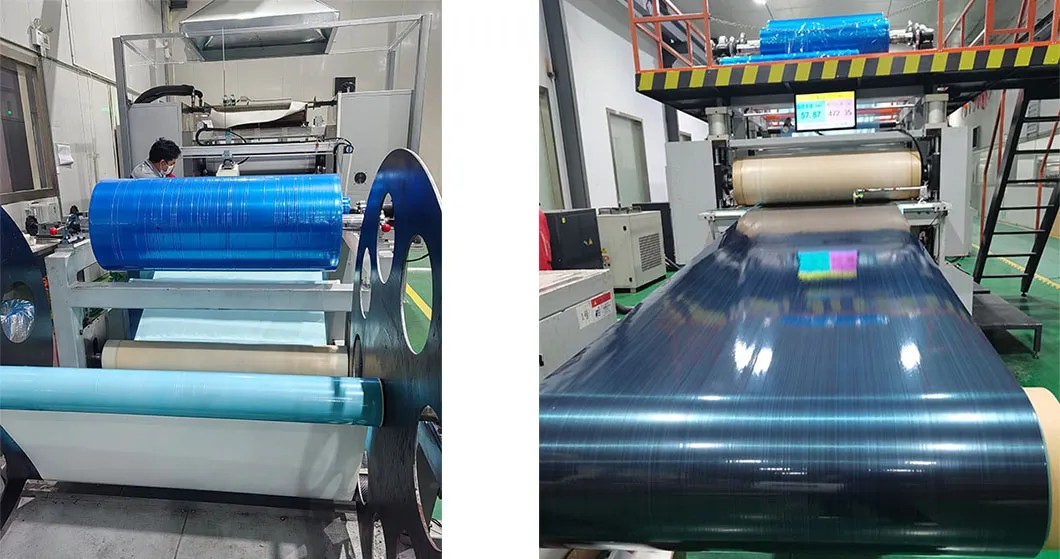

With state-of-the-art facilities and an experienced team, we deliver exceptional textiles that meet evolving market demands. The manufacturing process adheres to strict quality control standards, holding the IATF16949 certificate.

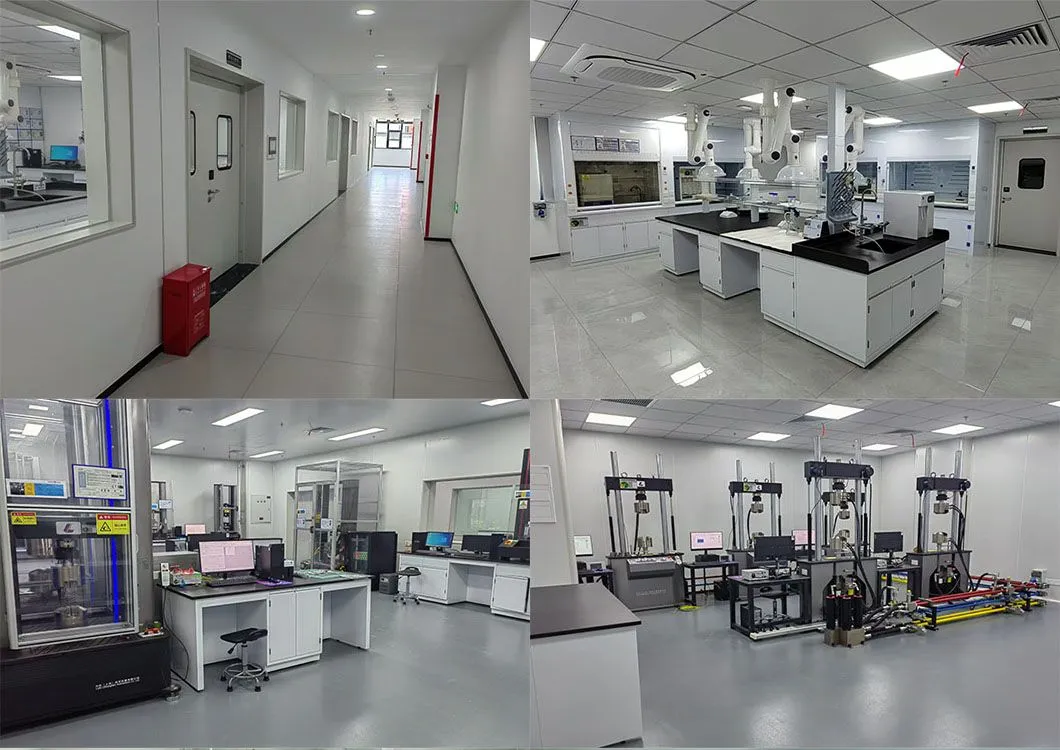

Our testing center covers an area of approximately 3,100 square meters and has passed CNAS laboratory accreditation. It features a comprehensive control system covering all processes from raw materials to finished products.
Testing Scope: Mechanical properties, weather resistance, physical properties, and chemical analysis. Key tests include tensile, compression, bending, fatigue, glass transition temperature, fiber content, and epoxy equivalent tests.
Certificates: IATF16949 certified quality management system.
Intellectual Property: 19 total patents, including 3 design patents, 5 invention patents, and 11 utility model patents.
