Value-Priced Carbon Fiber Prepreg for Cost-Effective Composite Manufacturing

1 / 5

Value-Priced Carbon Fiber Prepreg for Cost-Effective Composite Manufacturing

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

UD150

Performance

General Type

State

Chopped Fiber

Width

1000-1270mm

HS Code

6815131090

Capacity

100000

★

Product Description

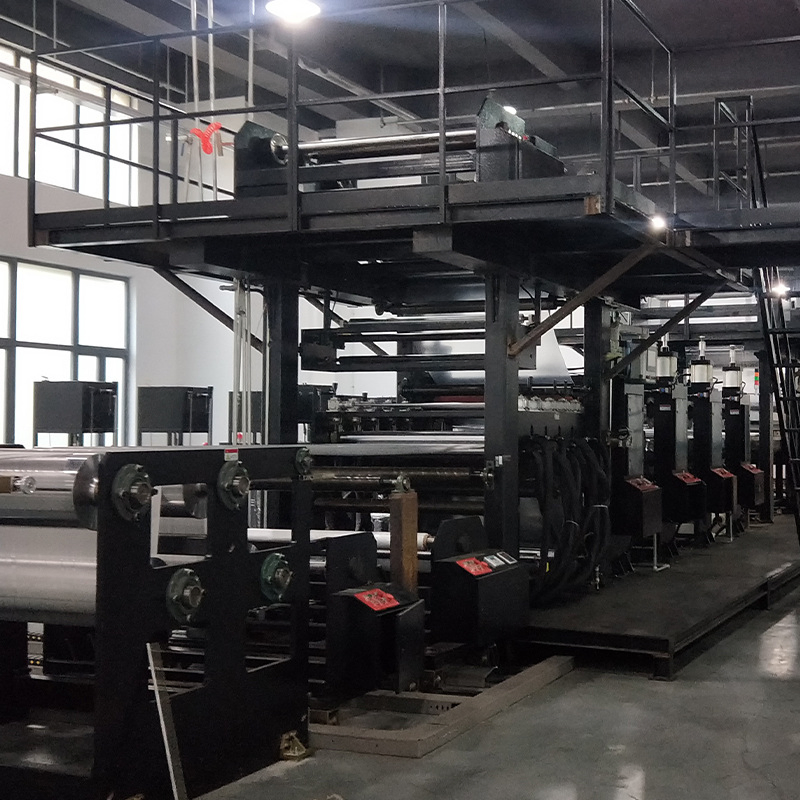

Leveraging high-performance carbon fiber materials and warp knitted fabrics, we offer a state-of-the-art high-precision carbon fiber multi-axial warp knitted fabric prepreg production line. With a fiber area weight range of 100-600g/m² and T300-T800 grade unidirectional or fabric prepreg capabilities, our materials meet the highest quality and performance demands. Utilizing thermosetting epoxy resins with medium-temperature curing, flame retardancy, and rapid curing features, these products are engineered for diverse industries including wind power, rail transit, automobile, aviation, and sports goods.

📋

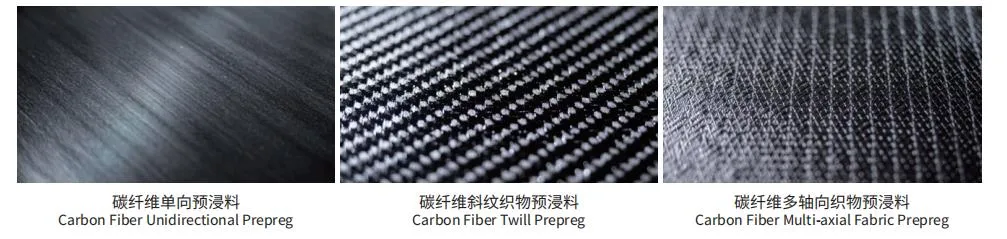

Technical Parameters

Type	Fiber Type	Fiber Area Weight (g/m²)	Resin Content (%)	Prepreg Weight (g/m)	Width (mm)
UD150	HFC20-25K	150±3	35±2	231±7	1000~1270
UD200	HFC20-25K	200±4	35±2	308±9	1000~1270
UD300	HFC20-25K	300±6	35±2	462±14	1000~1270
PN300	±45° Biaxial Fabric	300	45±2	555±20	1000~1270
LT400	0°/90° Warp Fabric	400	45±2	733±21	1000~1270
TW200	Twill Fabric	200	42±2	345±11	1000~1270

* Note: Representative types only. Specific specifications can be customized based on requirements.

⚙

Applications

📦

Packaging & Shipping

To maintain optimal quality, products are stored at -18ºC. This ensures a shelf life of up to one year. All shipments are handled using refrigerated containers to maintain product integrity during transit.

Frequently Asked Questions

What is the recommended storage temperature for the carbon fiber prepreg?

The products should be stored at -18ºC to maintain their optimal quality and performance for up to one year.

What grades of carbon fiber do you support?

We support a range of high-performance materials, including T300-T800 grade unidirectional and multi-axial warp knitted fabrics.

In which industries are these materials typically used?

Our materials are widely used in wind power, rail transit, automotive manufacturing, aviation, and high-end sports goods.

How are the products transported to ensure quality?

We use specialized refrigerated containers for shipping to ensure the chemical stability and physical integrity of the prepreg materials.

Can specific specifications be customized?

Yes, while we have standard types like UD150 and UD300, specific fiber area weights and resin contents can be adjusted according to customer requirements.

What are the key features of the resin system used?

We utilize thermosetting epoxy resins that offer medium-temperature curing, rapid curing cycles, and excellent flame retardancy properties.
