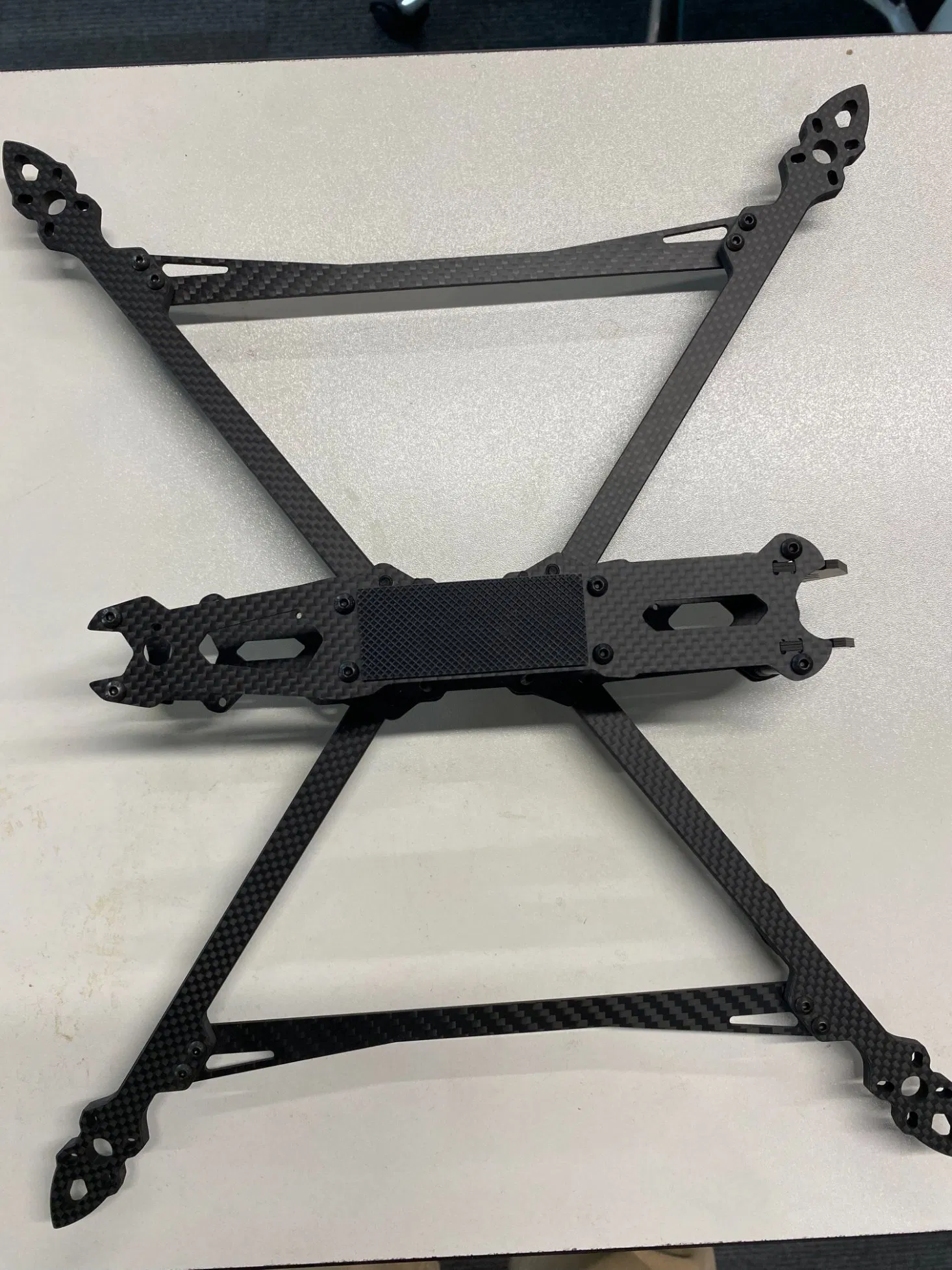

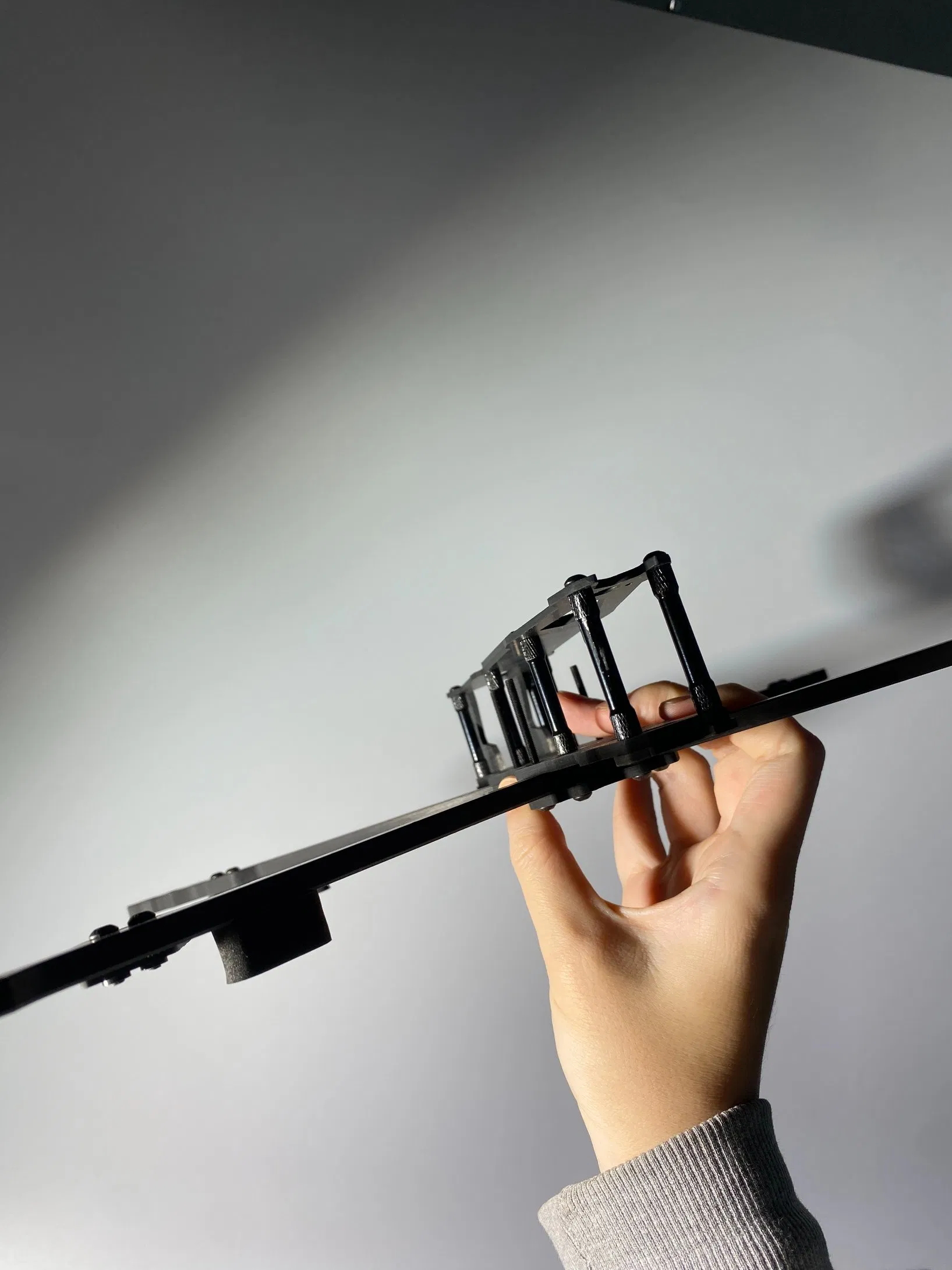

High-Performance Drone Frame Solutions

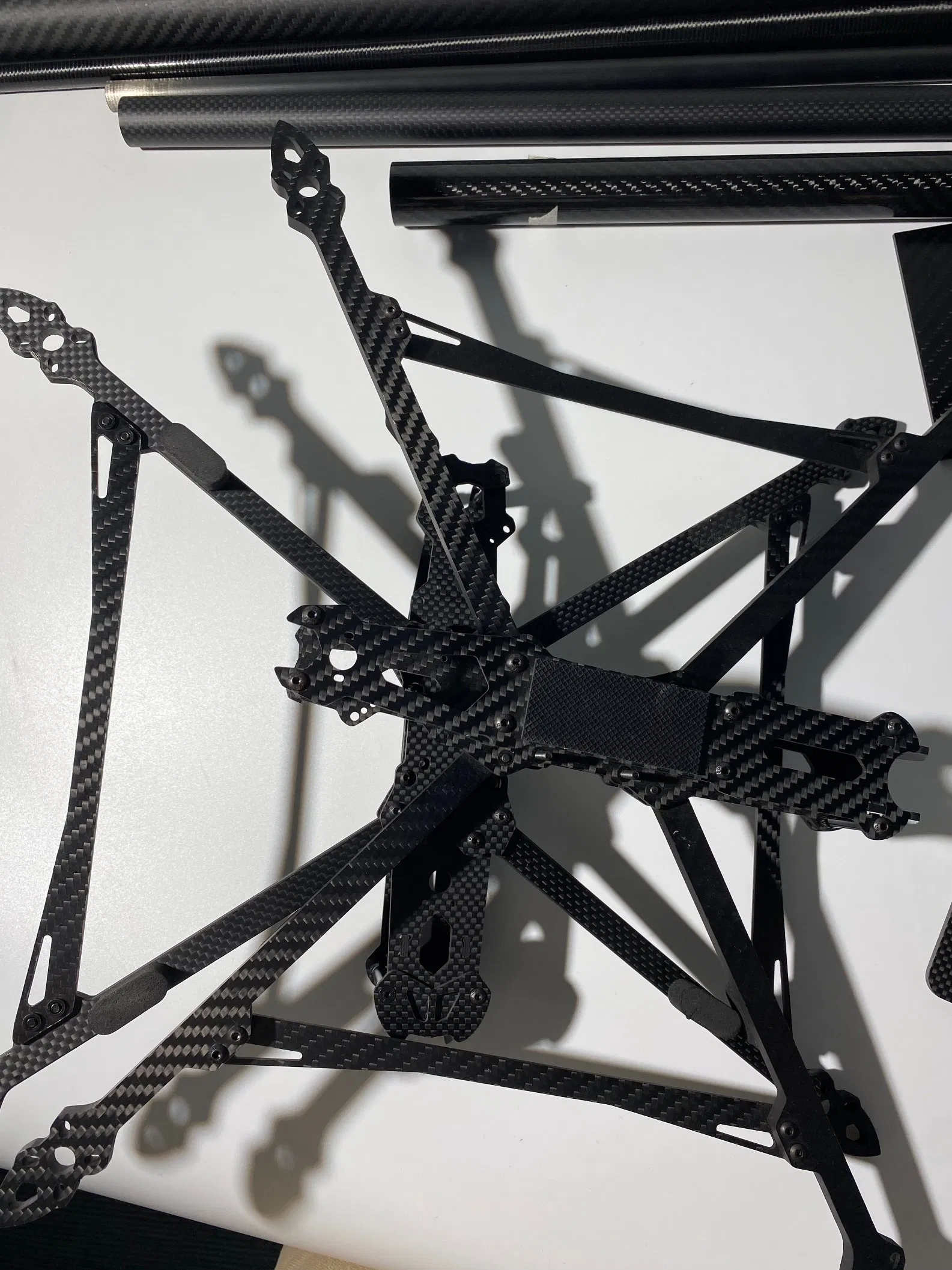

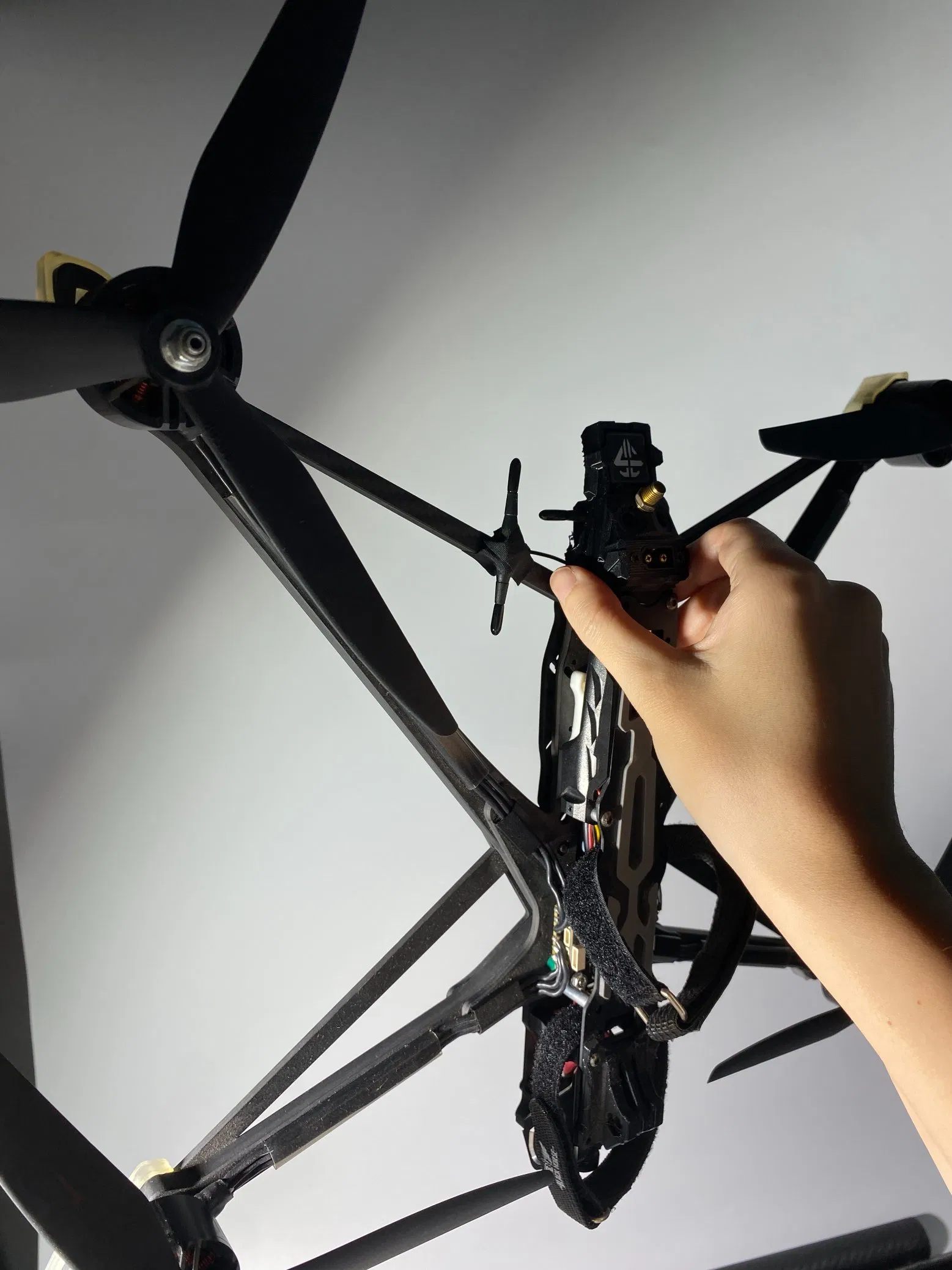

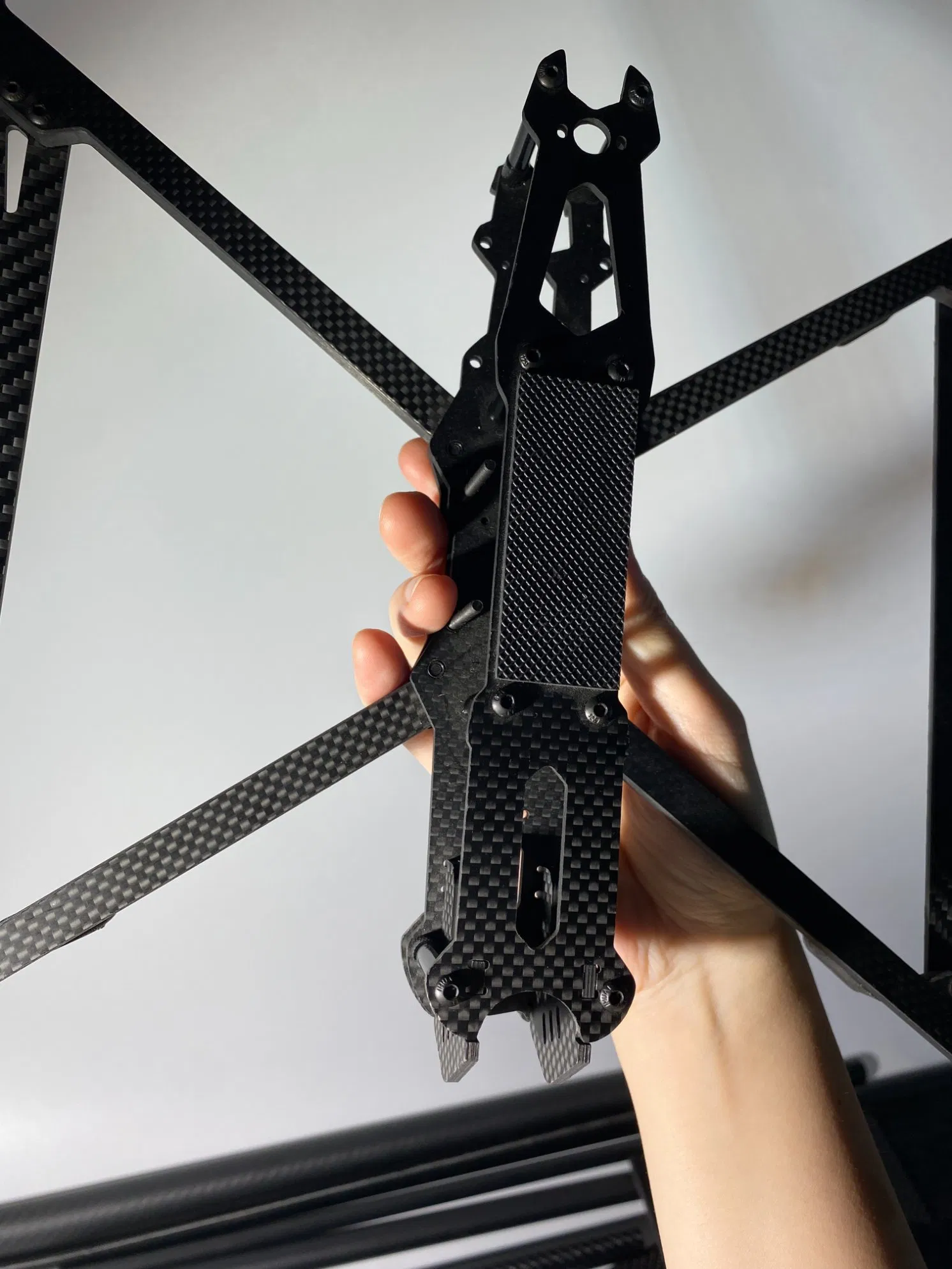

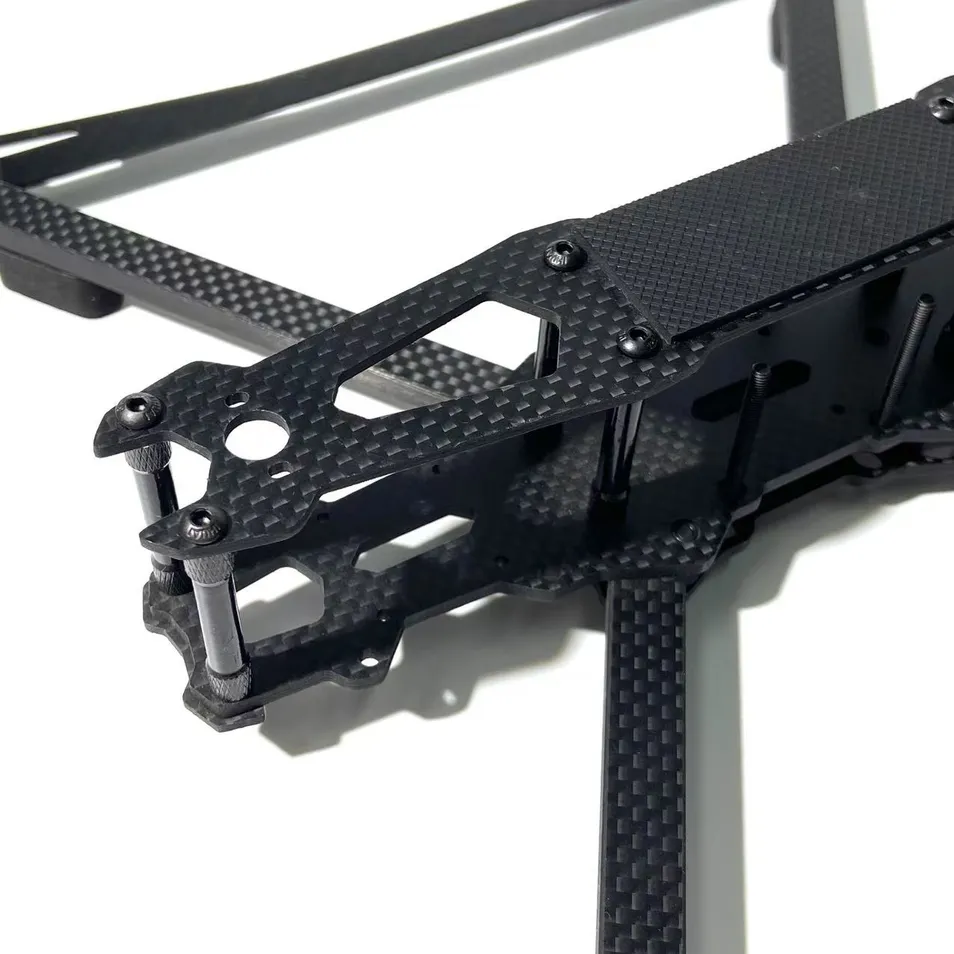

Our Carbon Fiber Drone Frames are precision-engineered using high-performance dry prepreg carbon fiber, consolidated under controlled temperature and pressure conditions. Optimized for aerial performance, these ultralight frames (1.78 g/cm³) deliver exceptional mechanical strength—up to 15 times higher specific strength than steel—ensuring maximum rigidity with minimal weight.
Their superior stiffness, vibration resistance, and dimensional stability make them ideal for high-speed maneuvers, extended flight endurance, and heavy payload support in professional drone applications. We provide complete technical support—from early-stage structural design to mass production—ensuring every frame meets rigorous aerospace-grade standards.
| Parameter | Value | Notes |
|---|---|---|
| Fiber Volume Content | 62–65% | >=15% higher than wet lay-up |
| Glass Transition Temperature | 180–210 C | Resin system dependent |
| Interlaminar Shear Strength | 85–95 MPa | Tested per ASTM D2344 |
| Coefficient of Thermal Expansion | 0.1–0.5 ppm/C | Superior to metals |
| Porosity | <0.5% | Vacuum-high-pressure process |
| Surface Roughness (Ra) | 0.4–0.8 um | Mirror or Matte finish |
