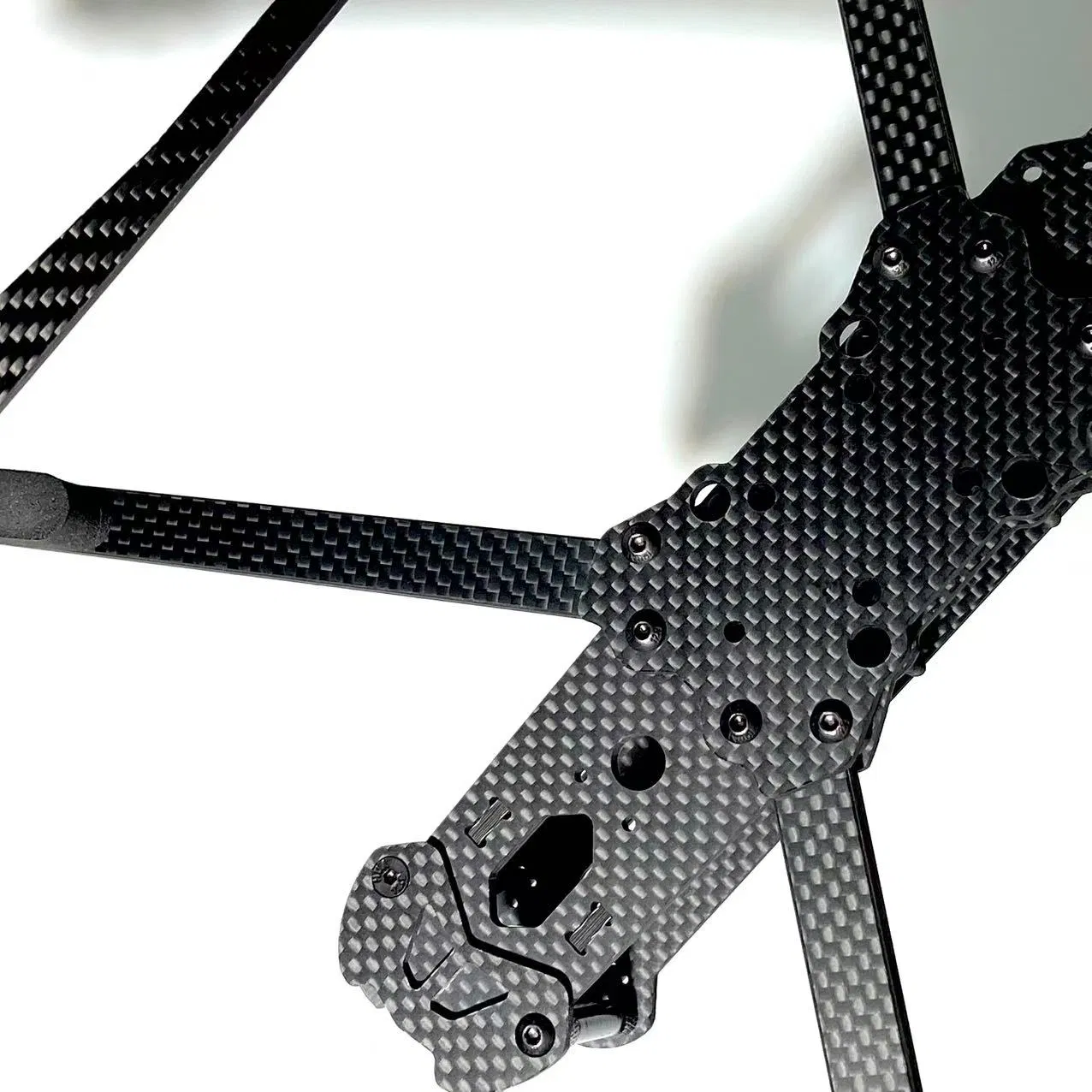

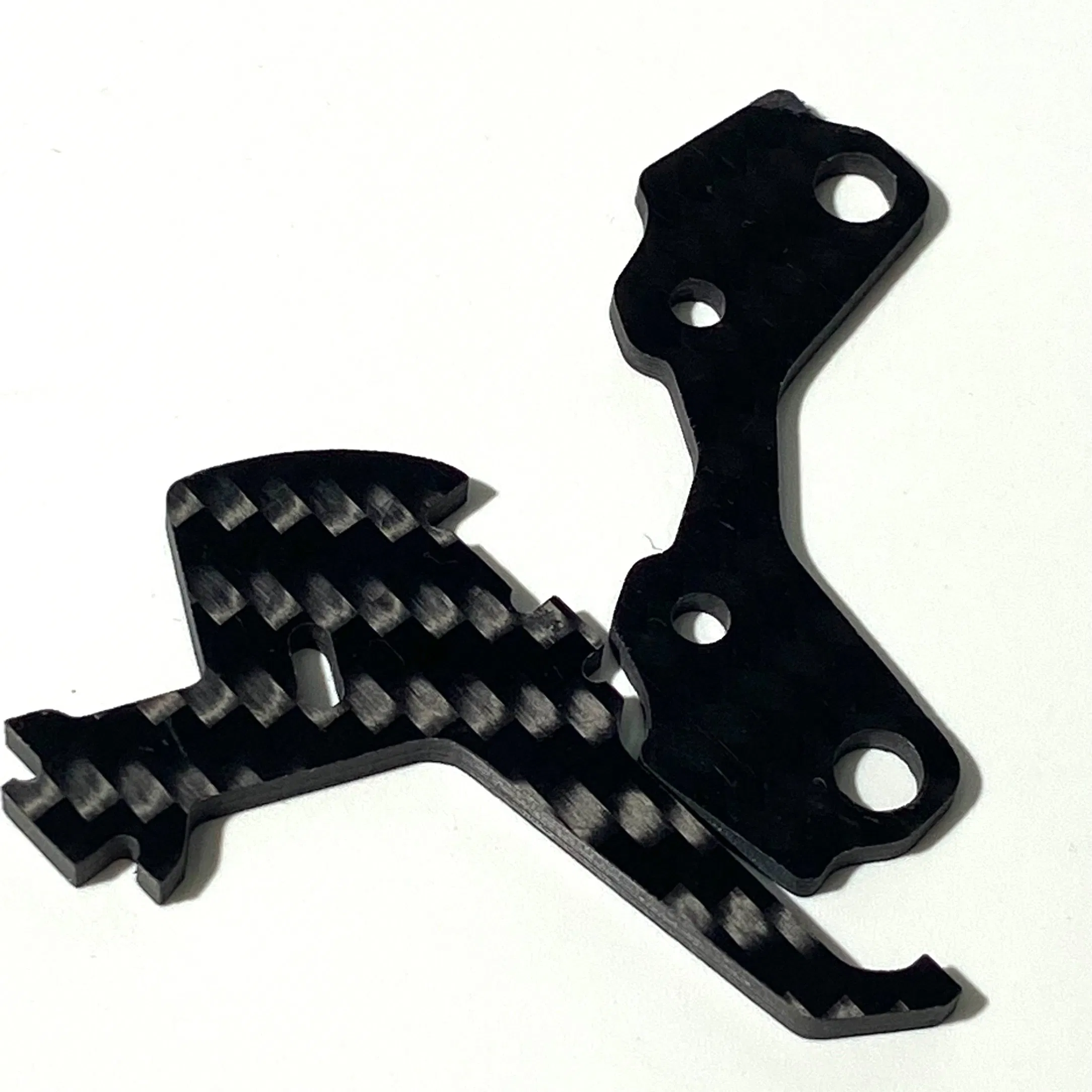

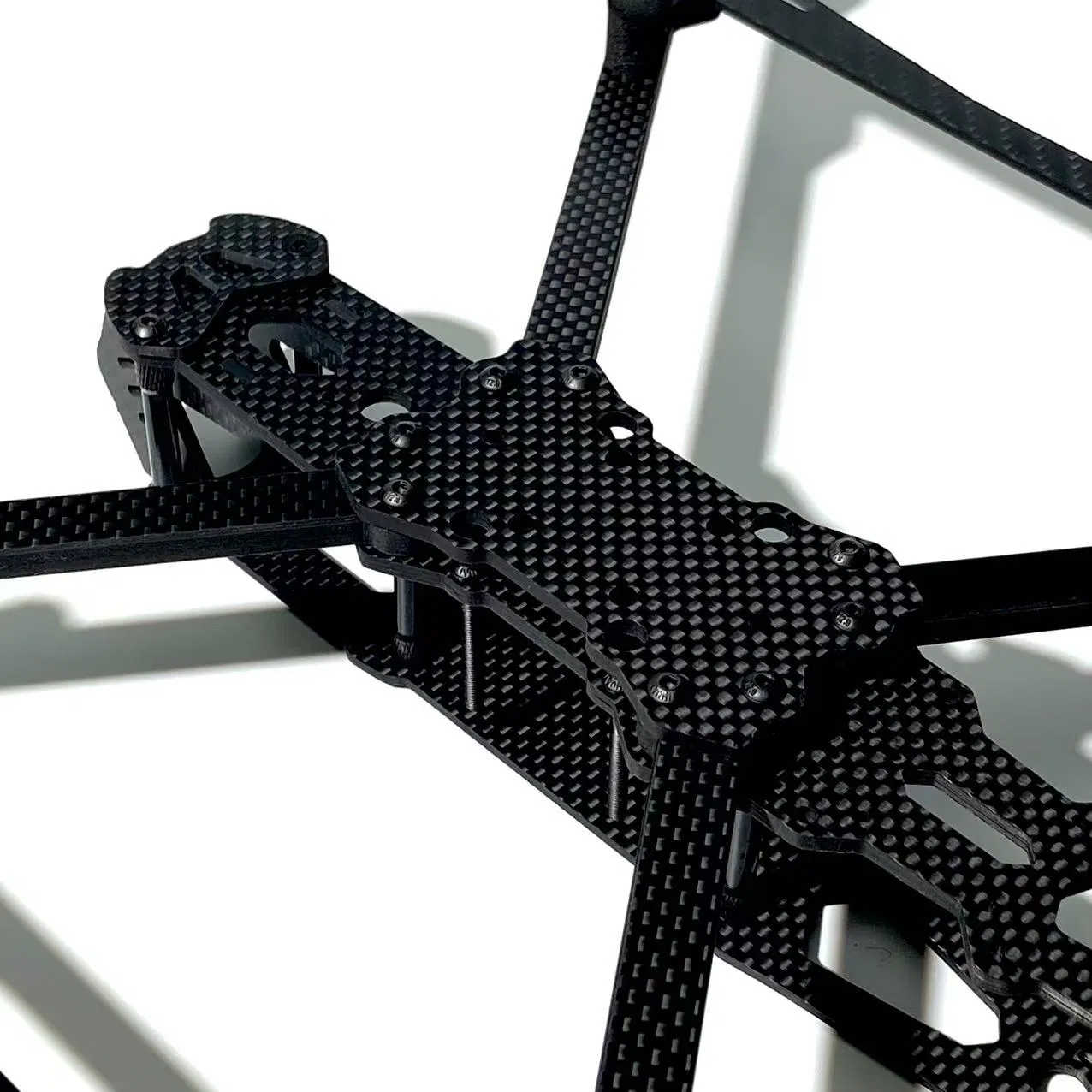

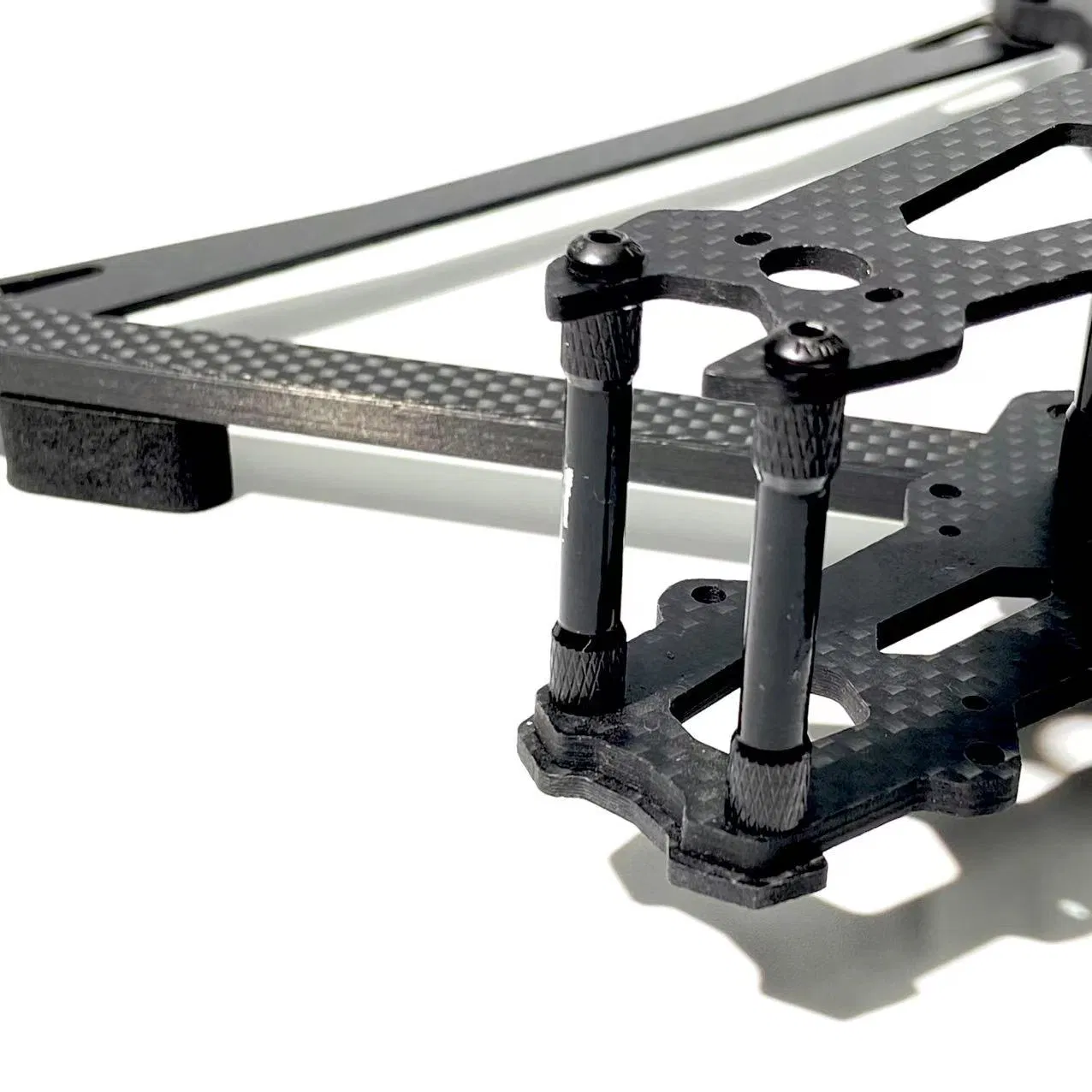

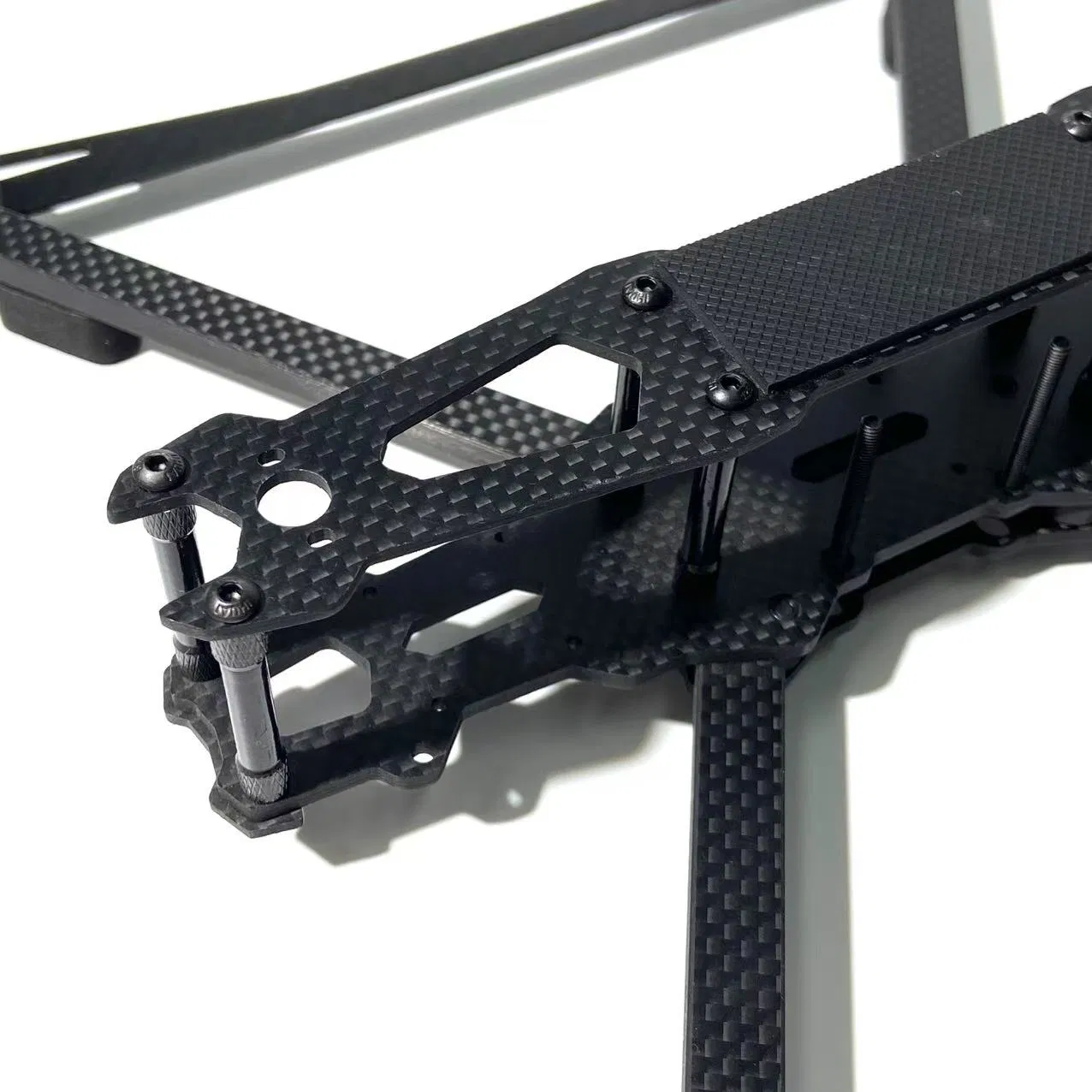

Mark4 8 Inch Fpv Drone Frame Kit Carbon Fiber Frame for Mini 2 Uav Racing Drone Frame 2mm Thick Upper Plate
Mark4 8 Inch Fpv Drone Frame Kit Carbon Fiber Frame for Mini 2 Uav Racing Drone Frame 2mm Thick Upper Plate
Mark4 8 Inch Fpv Drone Frame Kit Carbon Fiber Frame for Mini 2 Uav Racing Drone Frame 2mm Thick Upper Plate
Mark4 8 Inch Fpv Drone Frame Kit Carbon Fiber Frame for Mini 2 Uav Racing Drone Frame 2mm Thick Upper Plate
Mark4 8 Inch Fpv Drone Frame Kit Carbon Fiber Frame for Mini 2 Uav Racing Drone Frame 2mm Thick Upper Plate
1 / 5
Mark4 8 Inch Fpv Drone Frame Kit Carbon Fiber Frame for Mini 2 Uav Racing Drone Frame 2mm Thick Upper Plate
Mark4 8 Inch Fpv Drone Frame Kit Carbon Fiber Frame for Mini 2 Uav Racing Drone Frame 2mm Thick Upper Plate
Mark4 8 Inch Fpv Drone Frame Kit Carbon Fiber Frame for Mini 2 Uav Racing Drone Frame 2mm Thick Upper Plate
Mark4 8 Inch Fpv Drone Frame Kit Carbon Fiber Frame for Mini 2 Uav Racing Drone Frame 2mm Thick Upper Plate
Mark4 8 Inch Fpv Drone Frame Kit Carbon Fiber Frame for Mini 2 Uav Racing Drone Frame 2mm Thick Upper Plate

Mark4 8 Inch Fpv Drone Frame Kit Carbon Fiber Frame for Mini 2 Uav Racing Drone Frame 2mm Thick Upper Plate

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

📋

Basic Information

Model NO.
SY-9524
Performance
High-Strength Type
State
Filament
Mechanical Property
High-Performance Type
Dimensions
500mm X 500mm X 2mm
Surface Finish
Matte / Glossy
Weave
1.5K/3K/4K/15K
HS Code
68151310
🚀

Product Description

Carbon Fiber Drone Frame Kit

Product Overview

Our Carbon Fiber Drone Frames are precision-engineered using high-performance dry prepreg carbon fiber, consolidated under controlled temperature and pressure conditions. Optimized for aerial performance, these ultralight frames (1.78 g/cm³) deliver exceptional mechanical strength—up to 15 times higher specific strength than steel—ensuring maximum rigidity with minimal weight.

Their superior stiffness, vibration resistance, and dimensional stability make them ideal for high-speed maneuvers, extended flight endurance, and heavy payload support in professional drone applications. We provide complete technical support from early-stage structural design to mass production.
📊

Technical Specification

Parameter Value Notes
Fiber Volume Content 62–65% >=15% higher than wet lay-up
Glass Transition Temperature 180–210 C Excellent heat resistance
Interlaminar Shear Strength 85–95 MPa Tested per ASTM D2344
Coefficient of Thermal Expansion 0.1–0.5 ppm/C Ten times better than metals
Porosity <0.5% Vacuum-high-pressure process
Surface Roughness (Ra) 0.4–0.8 um Optional mirror-finish or matte
🛡️

Certifications

Product Certifications
📸

Product Showcase

Drone Frame Detail 1 Drone Frame Detail 2 Drone Frame Detail 3
❓

Frequently Asked Questions

Can the carbon fiber plates be custom-shaped?
Yes. Our 5-axis CNC machining center can precisely follow CAD designs for complex profiles and holes, with tolerances within +/-0.1 mm.
What are the advantages of dry prepreg plates?
Dry prepreg ensures controlled resin content and higher fiber volume, resulting in 20-30% greater strength, precise thickness tolerances (+/-0.1 mm), and superior surface quality.
What is the lead time for production?
Standard plates ship within 48 hours. Custom orders typically take 15-30 days depending on the structural complexity and quantity.
Are these frames resistant to high temperatures?
Yes, our frames feature a glass transition temperature (Tg) of 180–210°C, making them suitable for high-performance environments.
What weave options are available for the surface?
We offer a variety of weaves including 1.5K, 3K, 4K, and 15K, with choices between matte or glossy finishes to suit your aesthetic and functional needs.
How does the strength compare to traditional materials?
Our carbon fiber material provides up to 15 times the specific strength of steel while remaining significantly lighter, optimizing drone flight efficiency.
